Name: Plan 66191WE: Captivating Mediterranean Design with Second Floor Home Theater - 6718 Sq Ft
SKU: 66191WE
Price: 5200.0 USD
Availability: InStock

Plan 66191WE

Captivating Mediterranean Design with Second Floor Home Theater - 6718 Sq Ft

Heated S.F.

6,718

Beds

Baths

5.5

Stories

Cars

Floor Plan

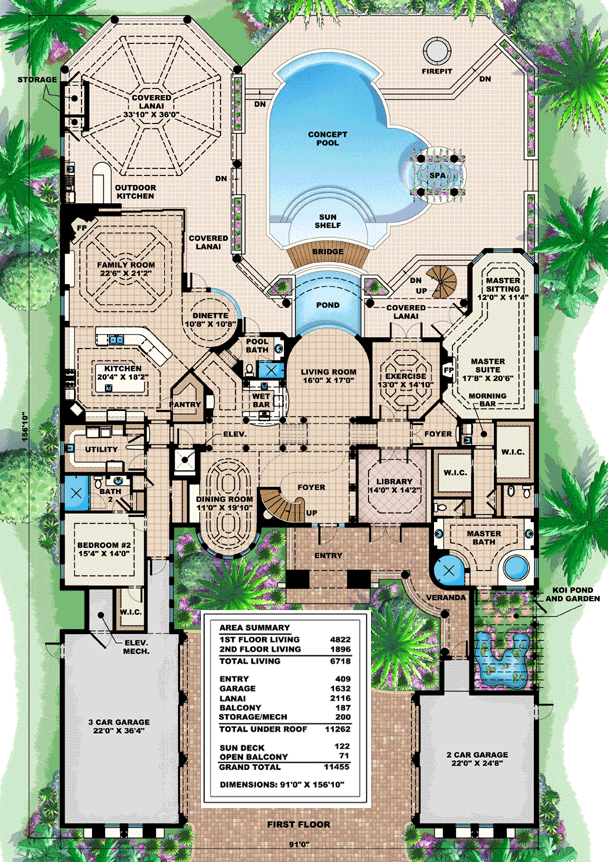

Main Level

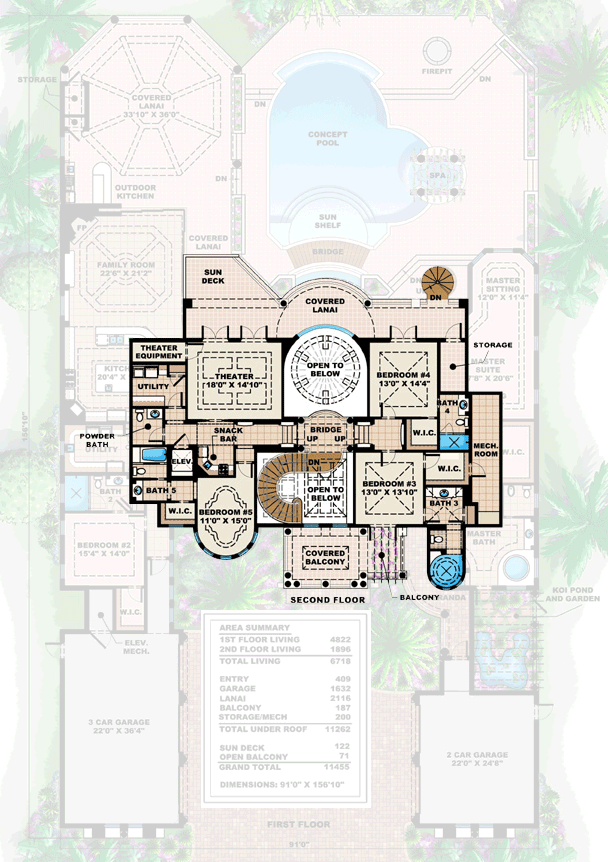

2nd Floor

Plan Details

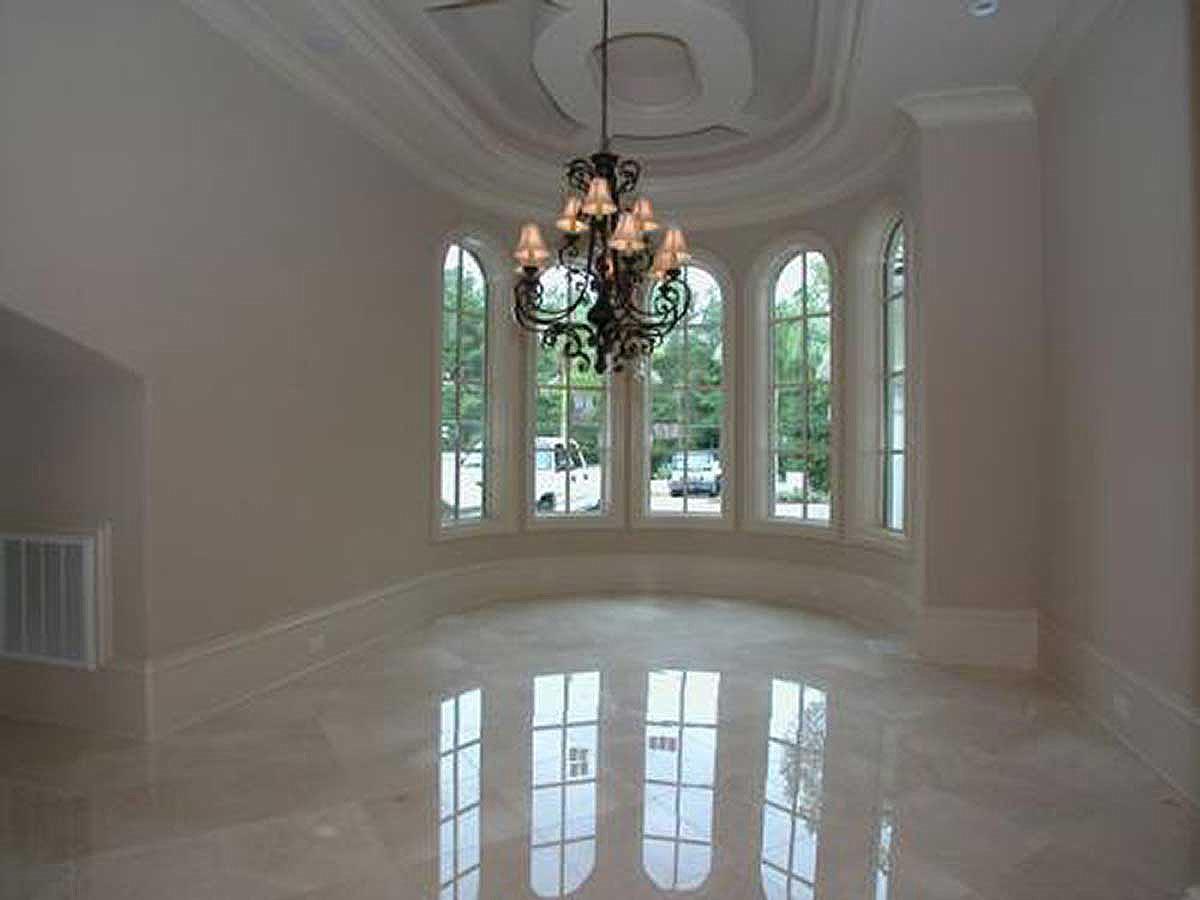

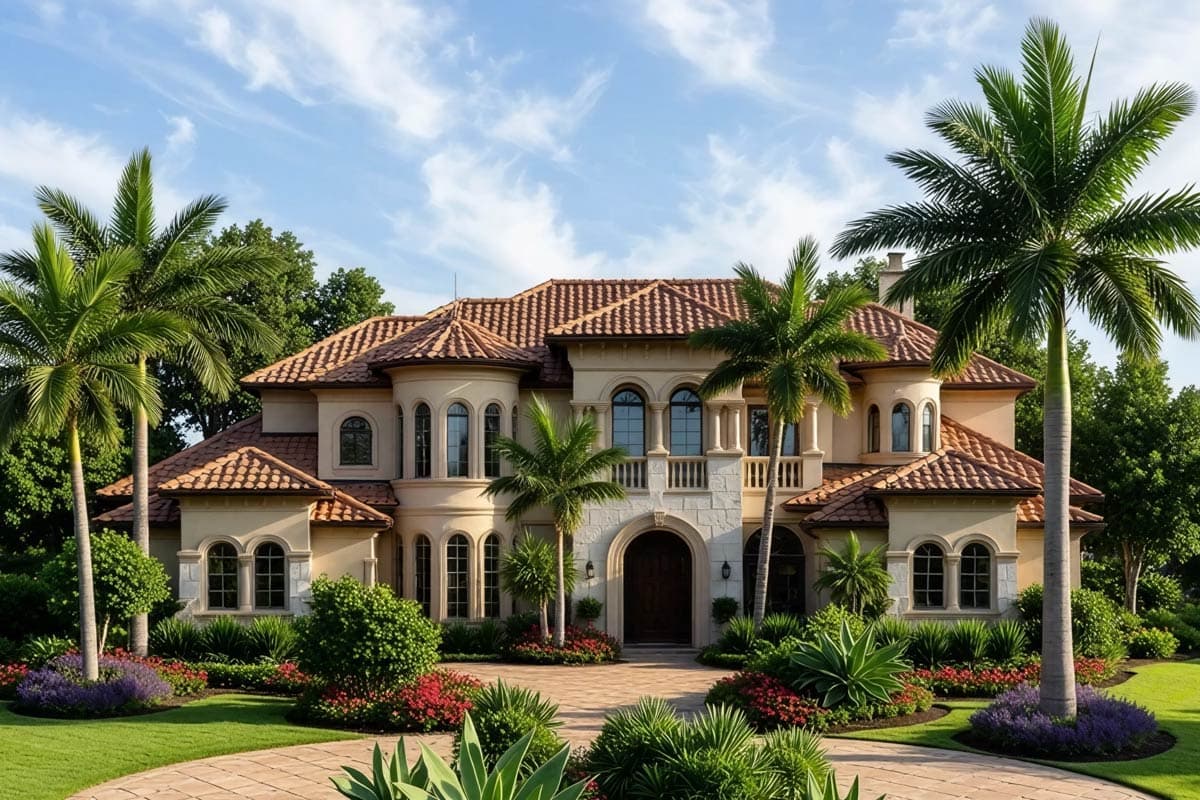

Like an artist's pallet, this picture-perfect Mediterranean home is sure to captivate you with a perfect blend of materials and architectural details that portray a classic look. Inside, the graceful columns and barrel ceilings delineate space without the use of walls creating a wide open feel.

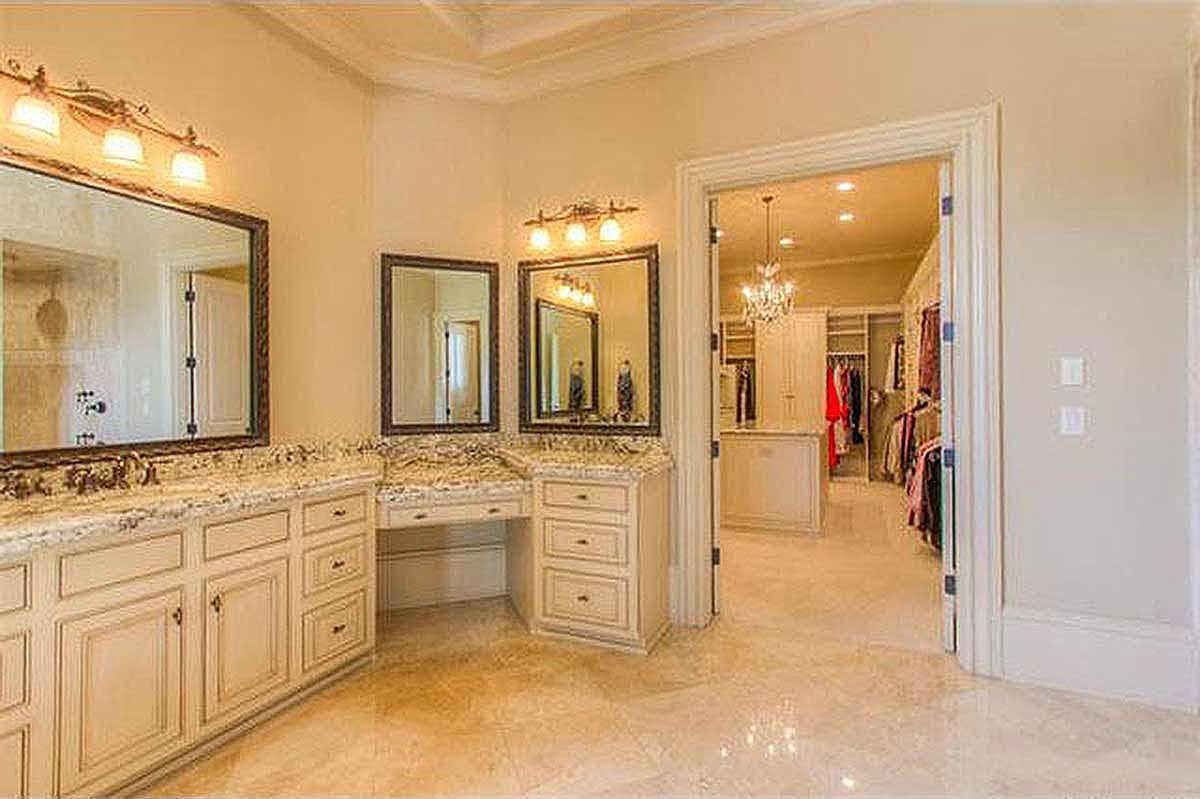

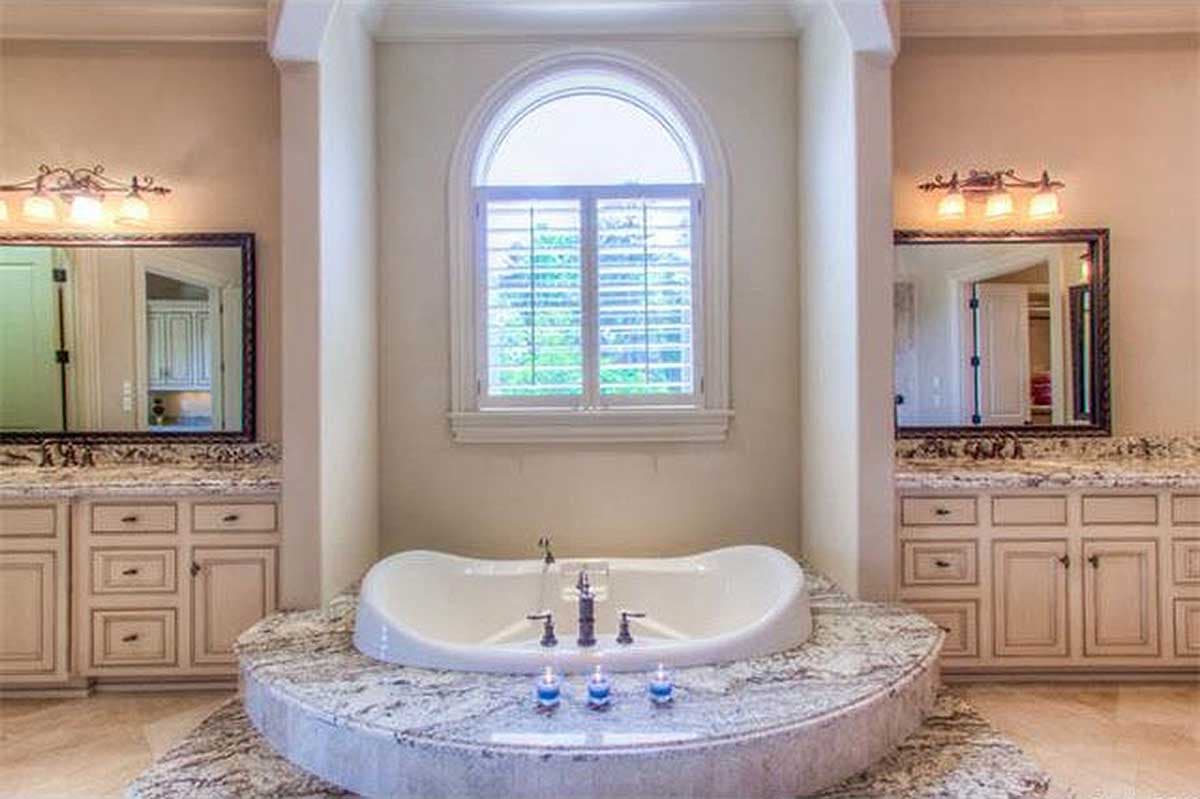

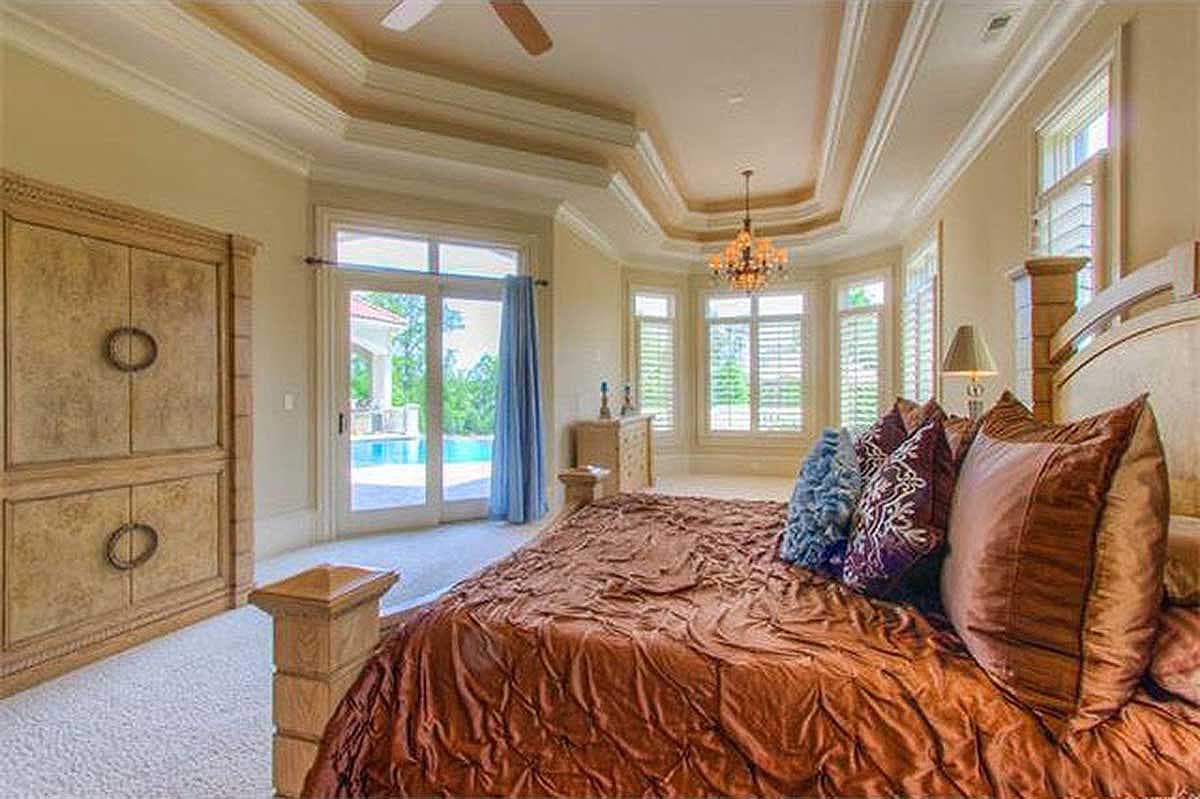

Entertaining is a must with a dining room fit for a king. Before dinner, stop at the wet bar with arched soffits and a radial bar top. On the other side of the home is the well appointed master suite. A fireplace, a morning bar, a radial shower and soaking tub are all facets of this incredible room. Just outside the bath is a private koi pond and garden with trellis above.

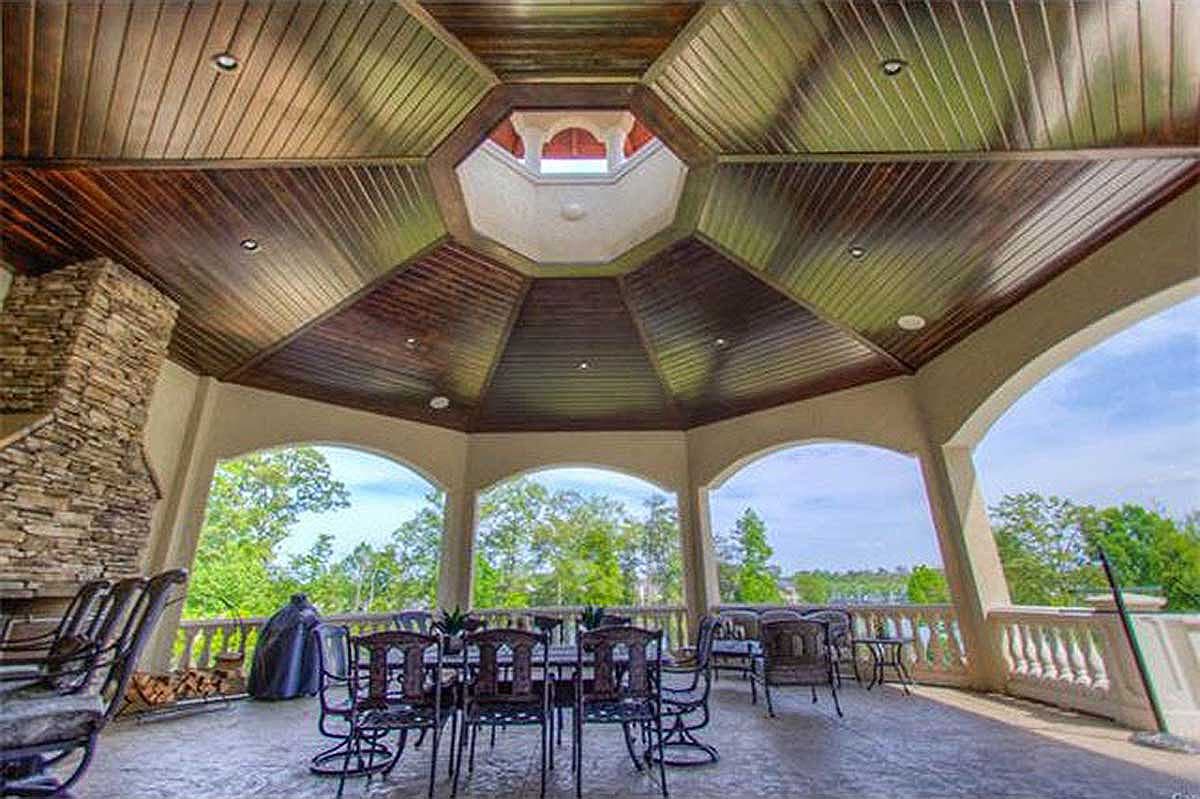

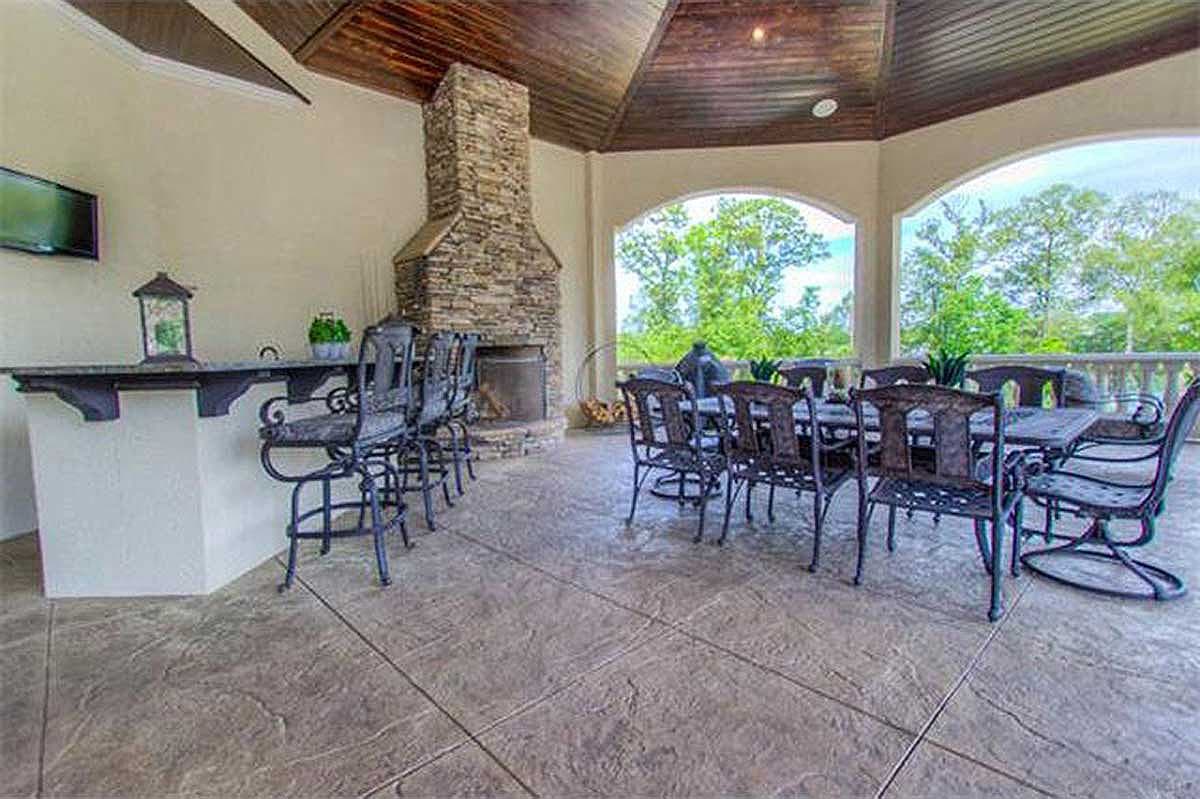

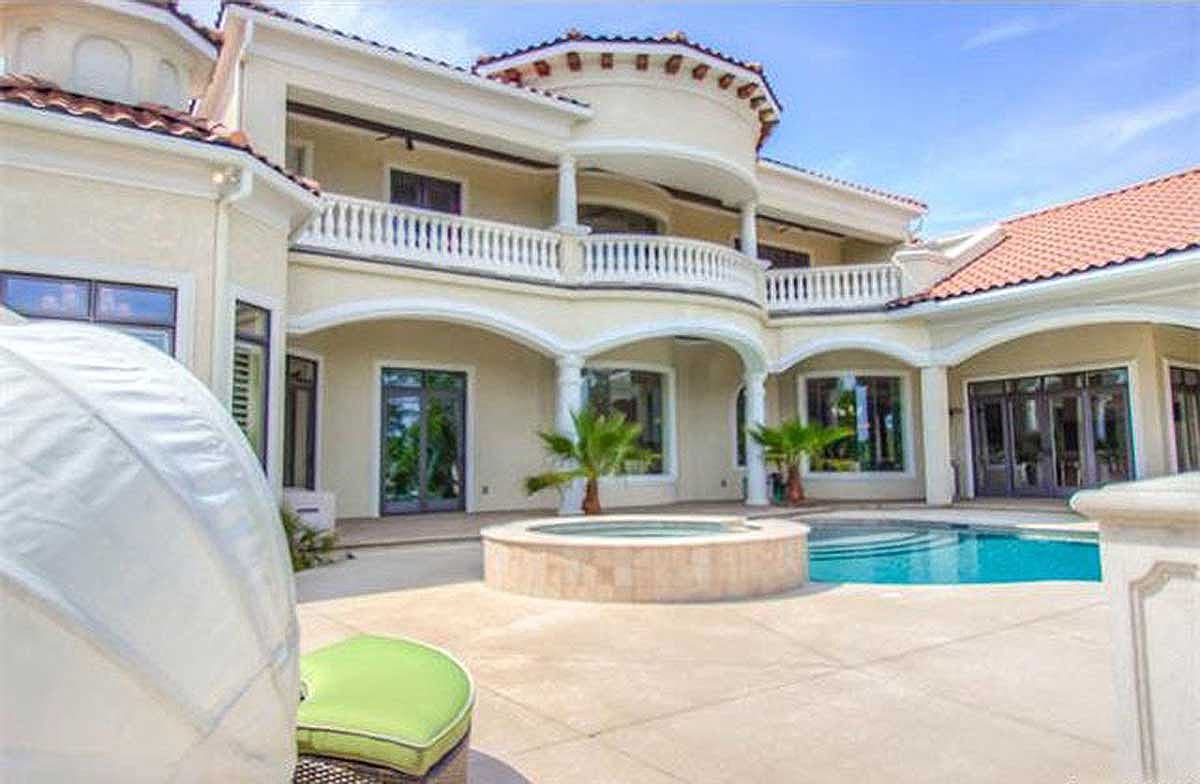

On the other side of the home is a guest bedroom with its own bath and walk-in closet. A perfect retreat for the extended guest. The rear lanai features an impressive vaulted, exposed beam ceiling extending up to a functional cupola, embellished with natural woods and stone brackets; a great conversation place to enjoy the pool, spa and trellis with garden views.

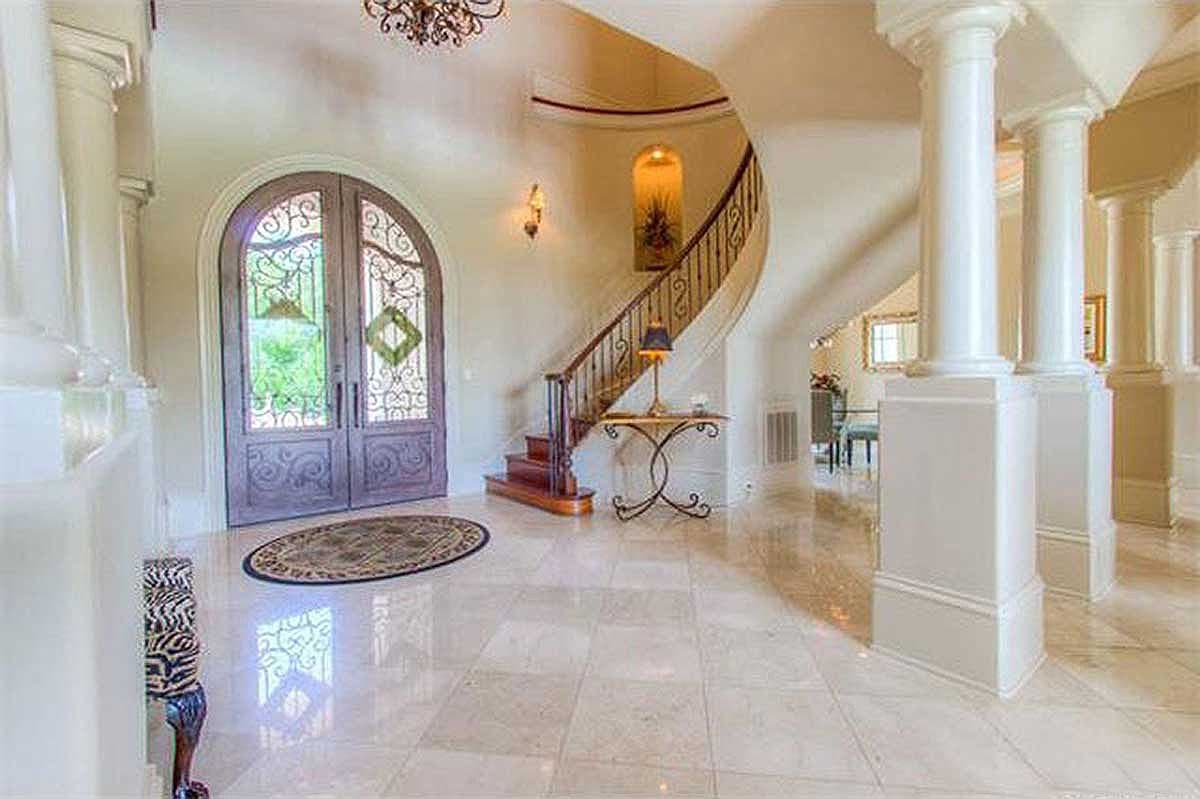

Upstairs starts with the ascent up the winding staircase within the grand foyer which has a multitude of intricate ceiling designs. As you cross the bridge, overlook the living room with a massive rotunda ceiling above. To the right are two suites with large walk-in closets, and to the left, a fifth suite, also with a large walk-in closet and elegant bath. As an added feature, a snack bar is adjacent to a theatre allowing you to experience your favorite movies.

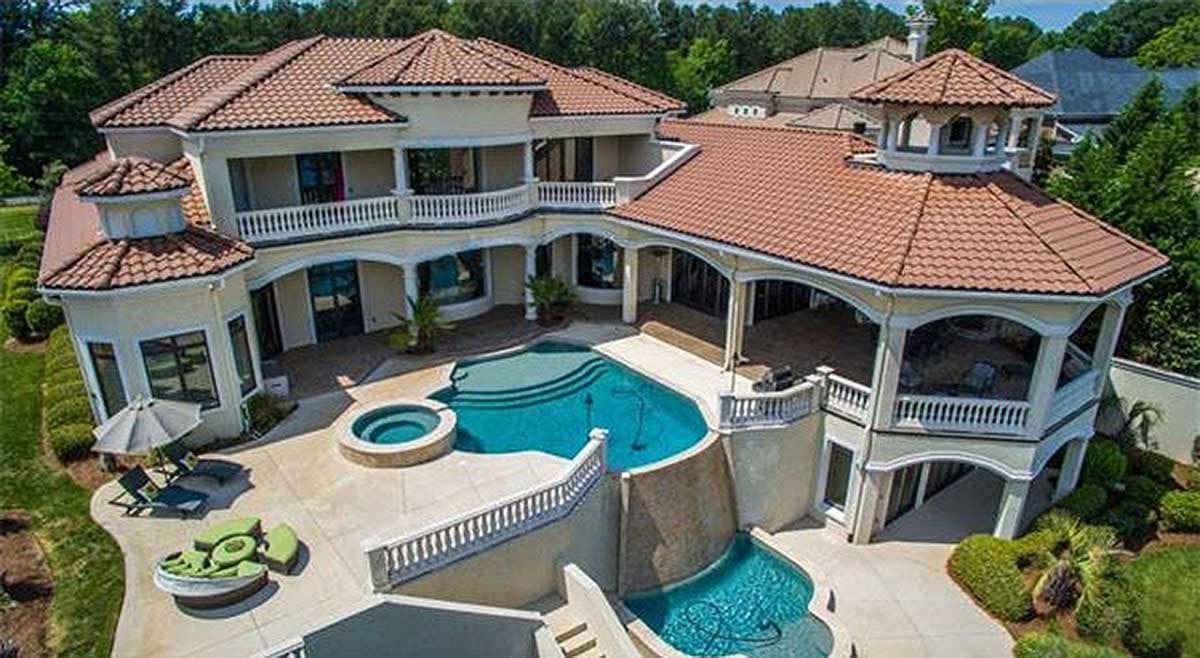

The second floor lanai and sun deck overlook the pool area and entire rear estate, providing privacy for sunbathing or a late night card game with the best of friends.

What's Included

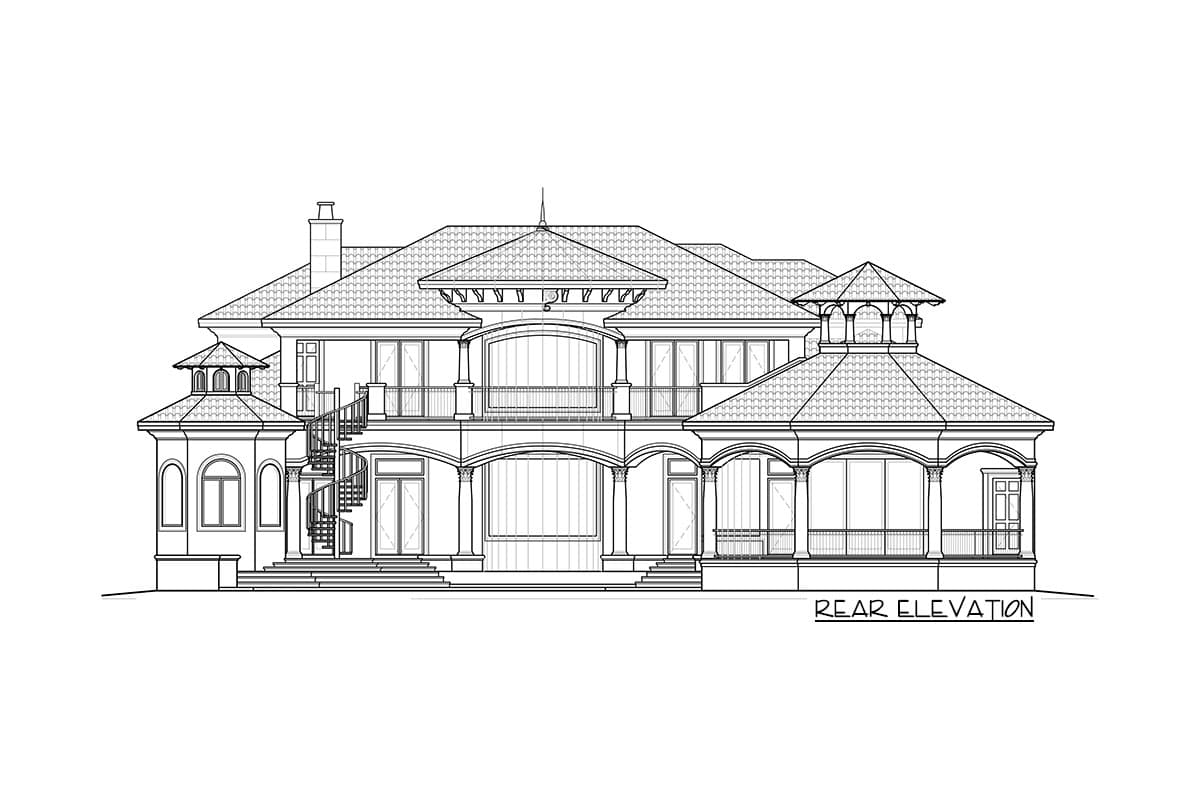

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
