Plan 810031RBT
Carriage House Detached Garage Plan with 1 or 2 Bed Apartment - 1345 Sq Ft
Heated S.F.
1,345
Beds
2
Baths
1.5
Stories
2
Cars
3
Floor Plan

Plan 810031RBT

Main Level
slide image 0
2nd Floor
slide image 1

Plan 810031RBT

1-800-854-7852

1-262-521-4596

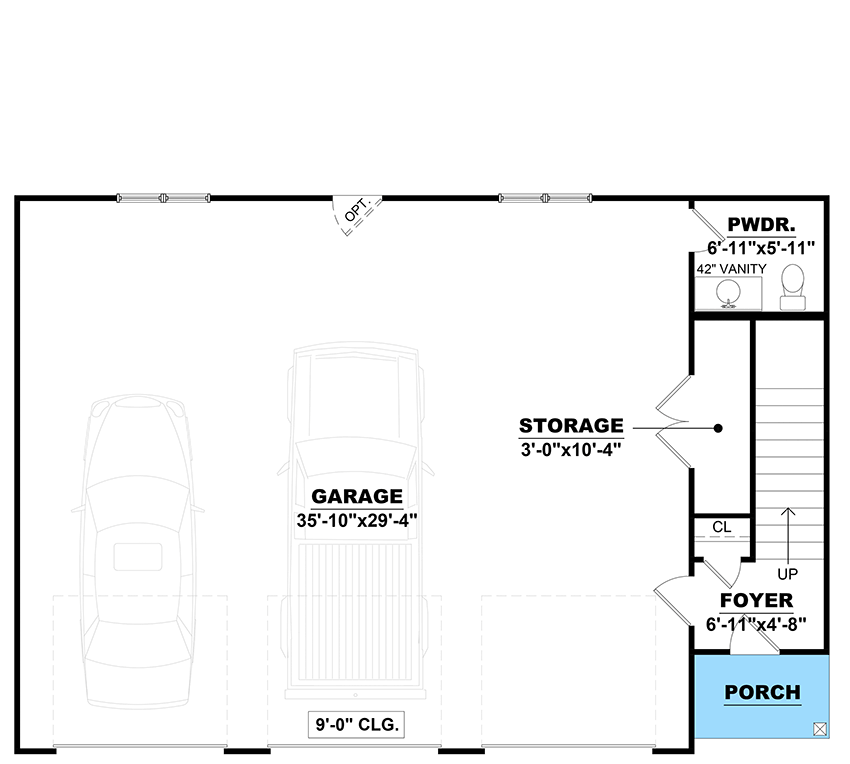

Main Level
floor plan image Main Level

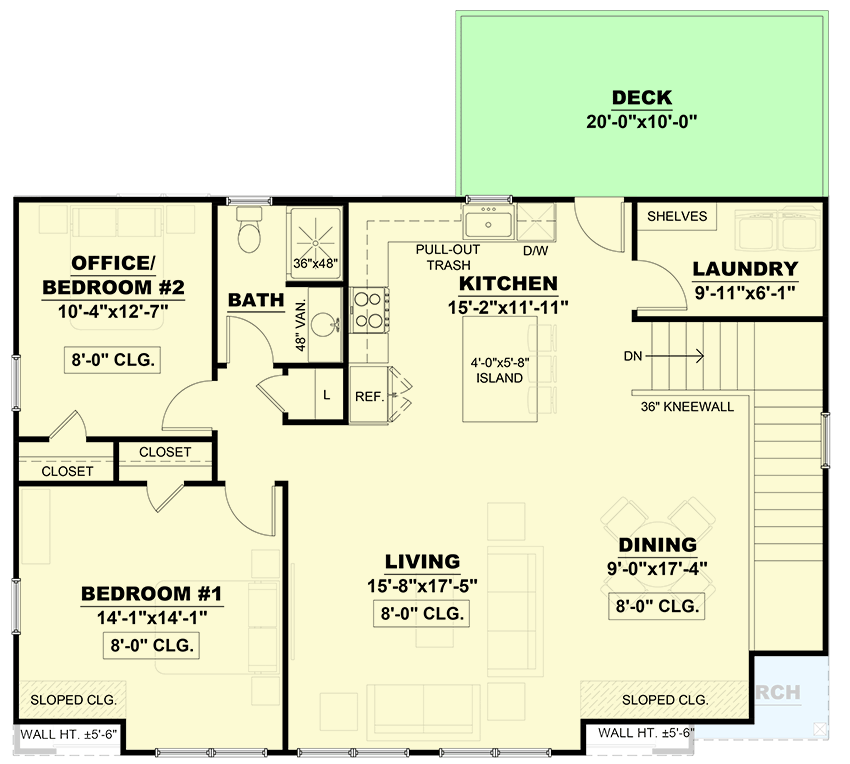

2nd Floor
floor plan image 2nd Floor
Plan Details

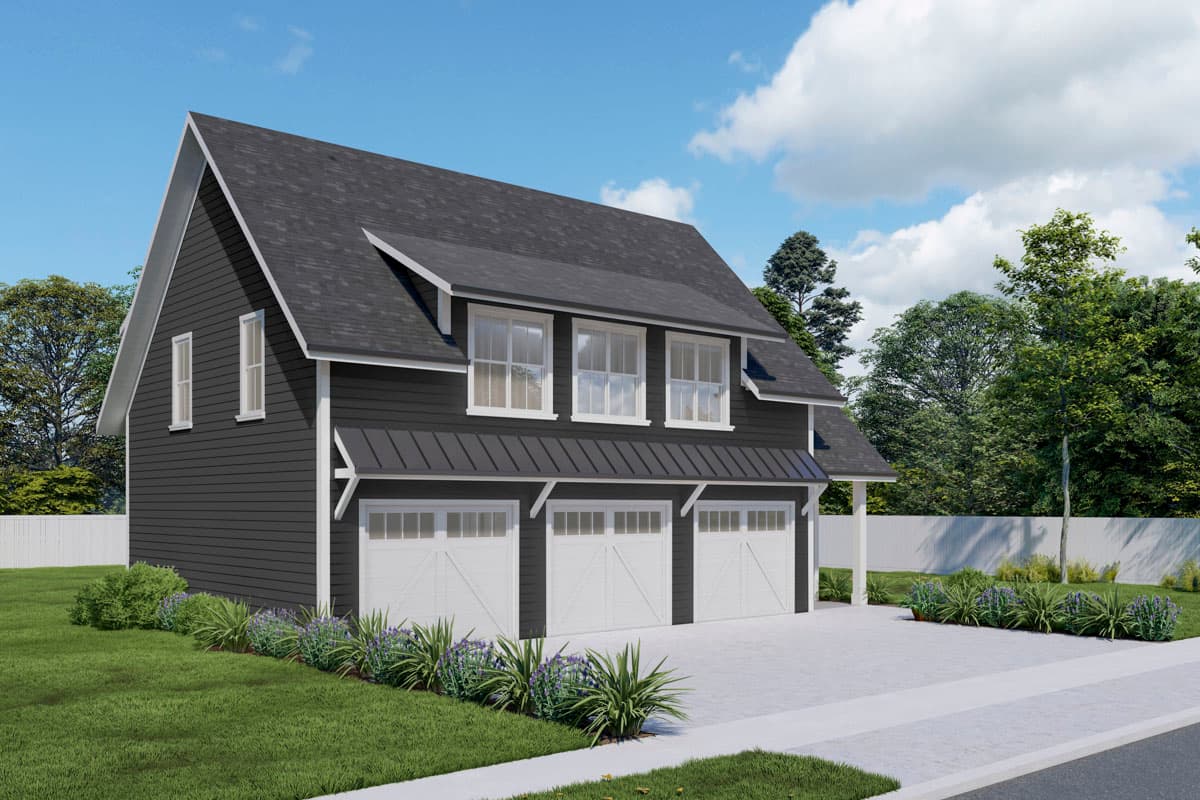

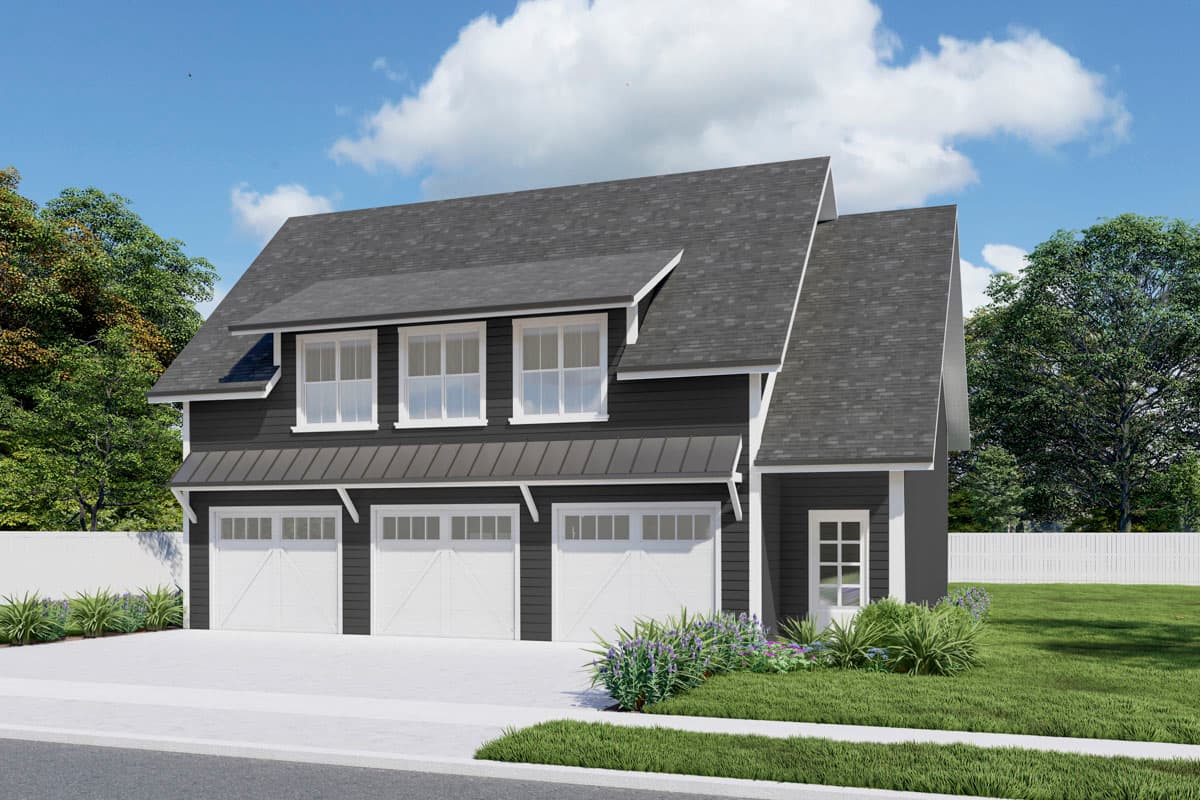

  • A broad shed dormer with three two-over-two windows enhances the curb appeal while allowing natural light to brighten the living space above the 3-car garage.
  • Enclosed stairs on the right side lead to a foyer and closet, making the transition from both outside and the garage more comfortable.
  • The ground floor is dedicated to parking and storage, with a half bath conveniently located in the back-right corner. On the upper level, the left side features the main bedroom and a versatile flex room that can serve as a home office.
  • The main living area is open from front to back, with informal seating at the kitchen peninsula and laundry discreetly tucked in the back-right corner.
  • Related Plans: Get an alternate layout with garage plans 810003RBT (1,196 sq. ft.) and 810018RBT (1,345 sq. ft.).
What's Included
  • Cover sheet with General Notes, Area Tabulation, Index, Drawing Symbol Key, Rendering, Materials Legend
  • Foundation Plan, Foundation Plan Notes, Wall Type Legend, Roof Plan, General Roof Plan Notes
  • Main Level Floor Plan, Upper Level Floor Plan, Wall Type Legend, Interior Kitchen Elevations

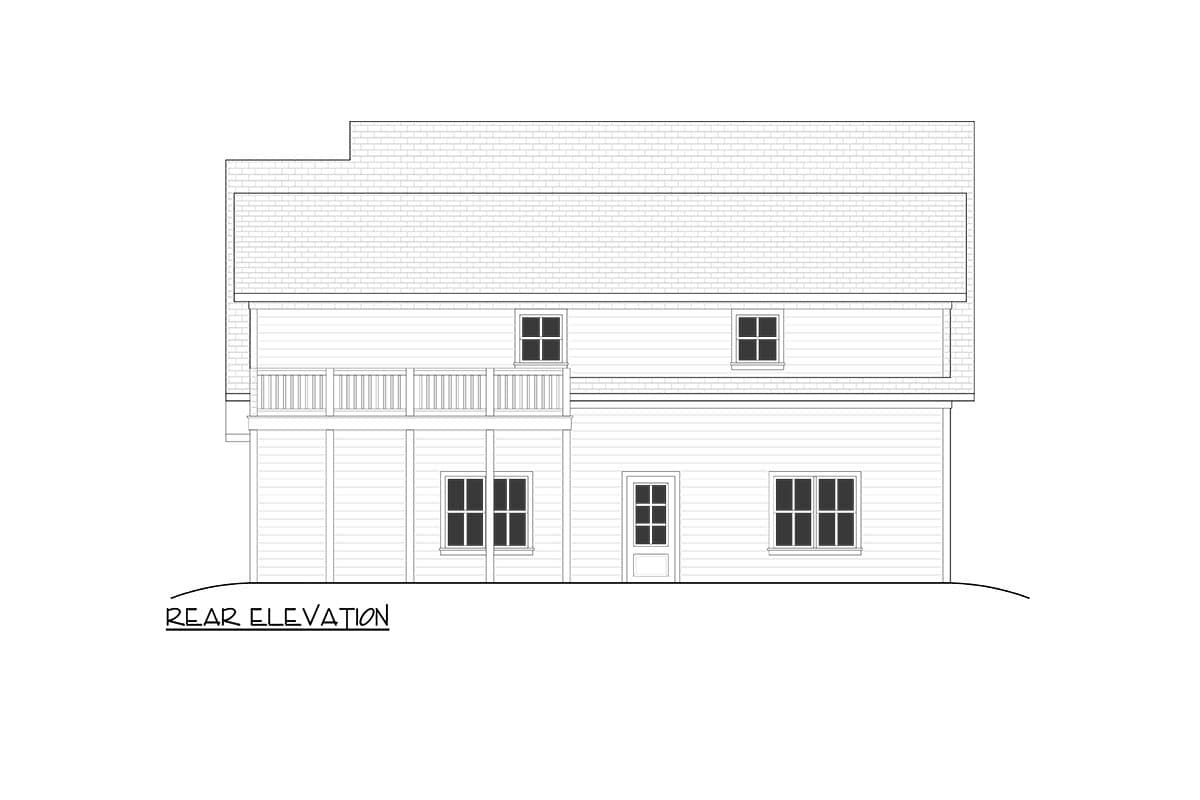

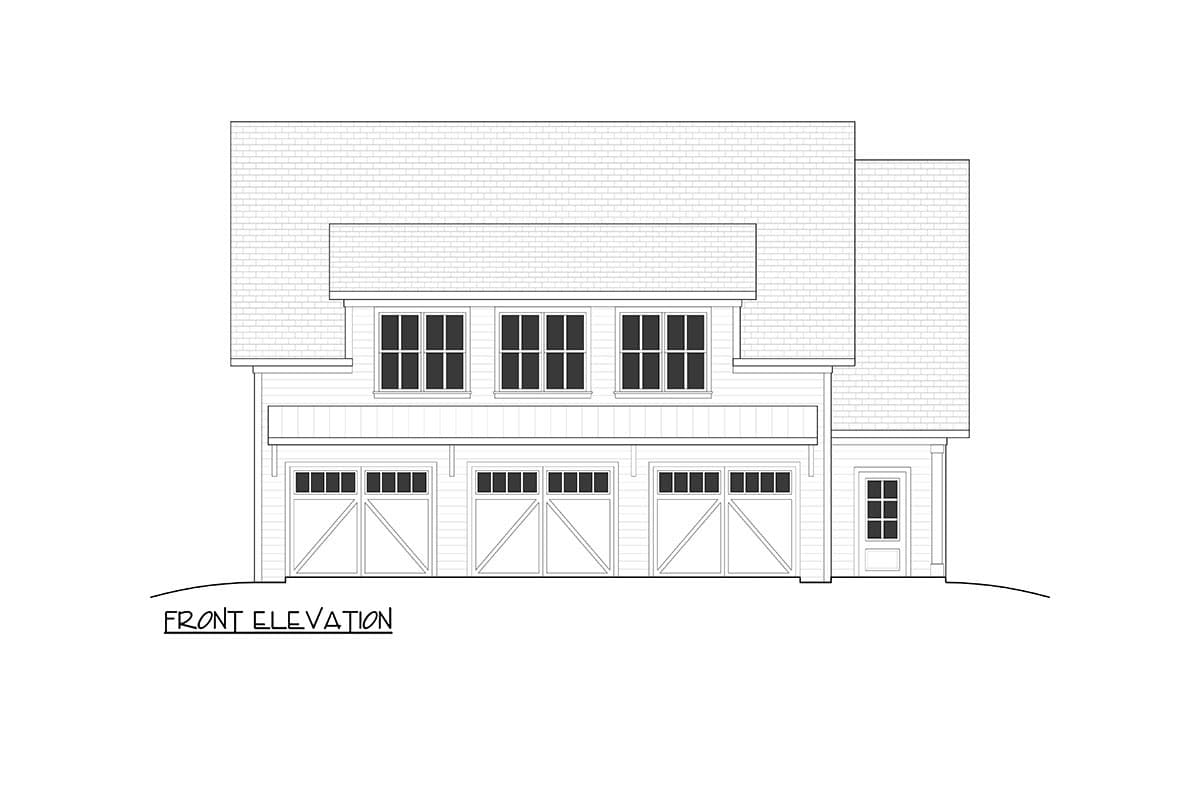

  • Four Exterior Elevations, General Elevation Notes
  • Typical Wall Sections
  • Electrical Lighting Plans, Electrical Legend, Electrical Notes

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,345 sq. ft.

1st Floor

149 sq. ft.

2nd Floor

1,196 sq. ft.

Porch, Front

33 sq. ft.

Deck

120 sq. ft.

Storage

36 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

43' 9"

Depth

40' 0"

Max Ridge Height

29' 2"

Garage

Type

Detached

Area

1088 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Cottage

Modern Farmhouse

New American

Traditional

Special Features

Bedrooms - Clustered

Flex Room

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Workshop

Square Footage Breakdown

Total Heated Area

1,345 sq. ft.

1st Floor

149 sq. ft.

2nd Floor

1,196 sq. ft.

Porch, Front

33 sq. ft.

Deck

120 sq. ft.

Storage

36 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

43' 9"

Depth

40' 0"

Max Ridge Height

29' 2"

Garage

Type

Detached

Area

1088 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Cottage

Modern Farmhouse

New American

Traditional

Special Features

Bedrooms - Clustered

Flex Room

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Workshop
