Plan 72796DA
Carriage House with RV Parking
Heated S.F.
508
Beds
Baths
1
Stories
1
Cars
4
Floor Plan

Plan 72796DA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 72796DA

1-800-854-7852

1-262-521-4596

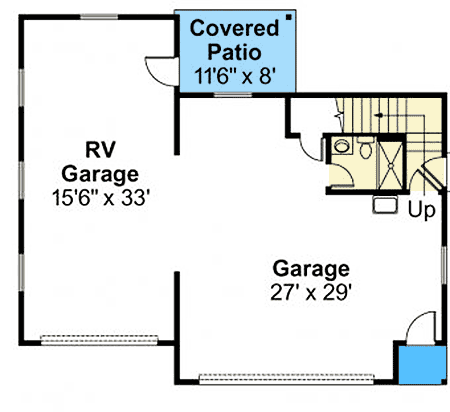

Main Level
floor plan image Main Level

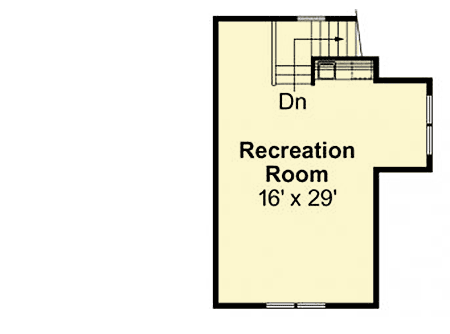

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This traditional garage plan can park up to four cars.
  • The largest door is 18' wide and 8' tall, and can house two cars. The other door is 12' wide and 13' tall and could house a recreational vehicle or two cars.
  • This carriage house plan also has a full bathroom on the first floor and a recreation room on the second floor.
  • The roof has a 6:12 pitch.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

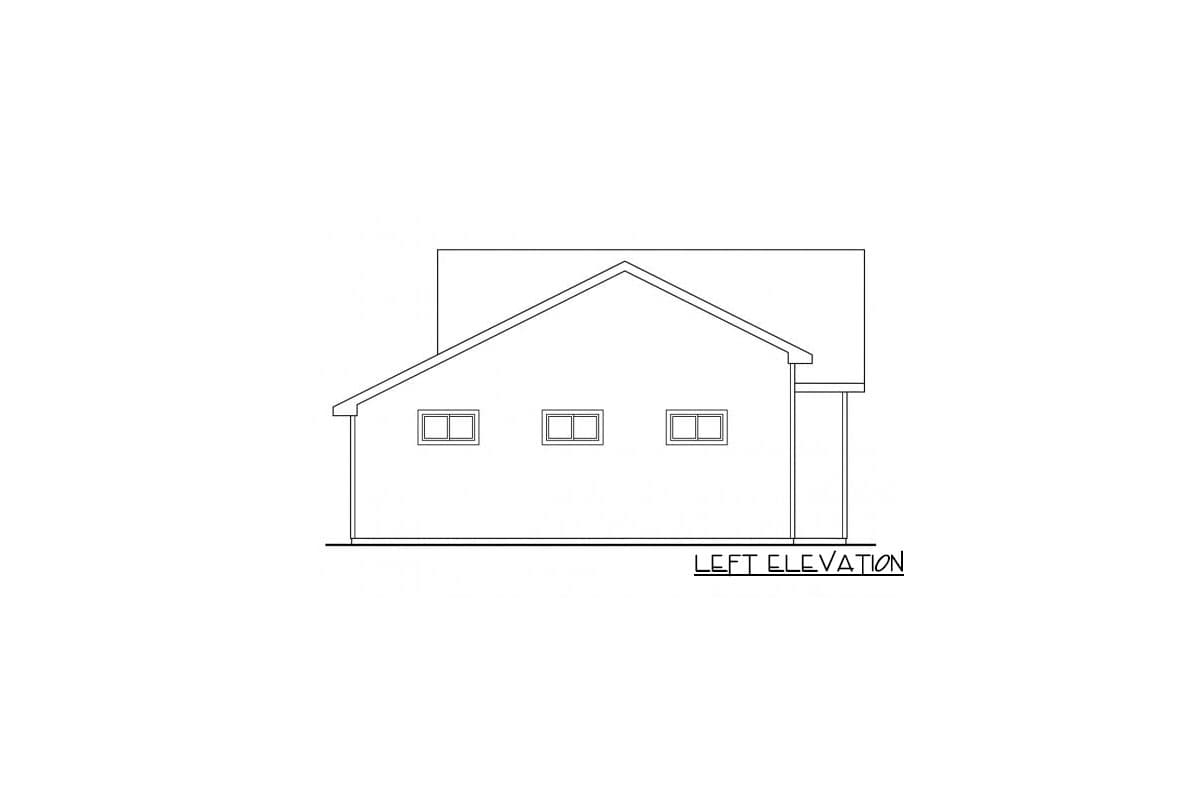

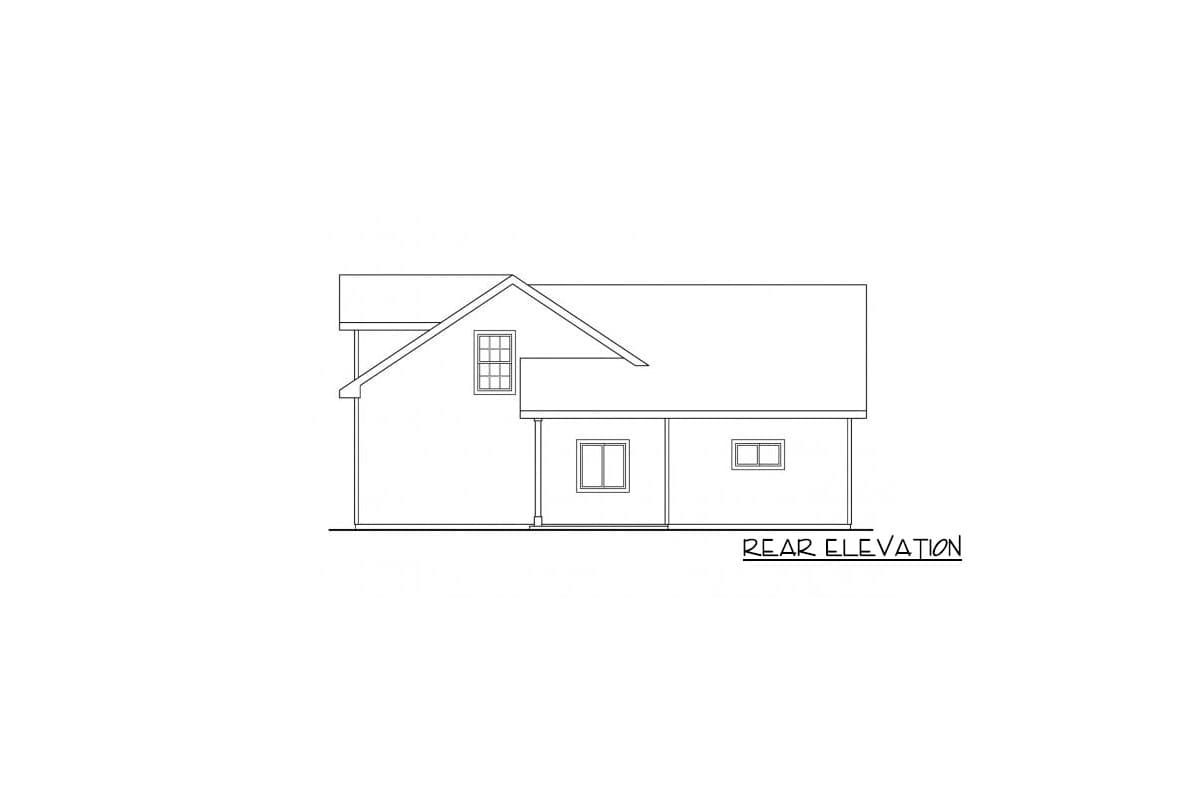

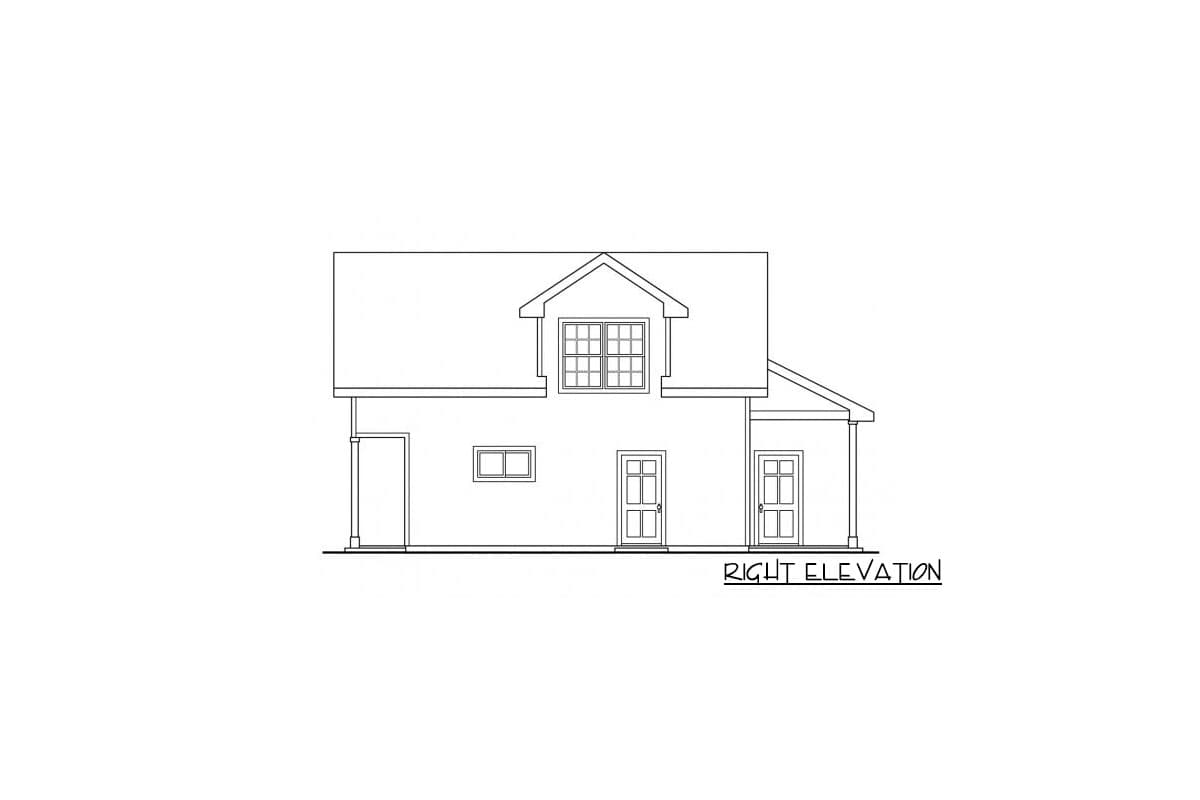

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

508 sq. ft.

2nd Floor

508 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

38' 0"

Max Ridge Height

23' 0"

Garage

Type

Detached, RV Garage

Area

1368 sq. ft.

Count

4 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Architectural Style

Carriage

Square Footage Breakdown

Total Heated Area

508 sq. ft.

2nd Floor

508 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

38' 0"

Max Ridge Height

23' 0"

Garage

Type

Detached, RV Garage

Area

1368 sq. ft.

Count

4 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Architectural Style
