Plan 66161WE
Cascading Roof Lines
Heated S.F.
3,742
Beds
3
Baths
3
Stories
1
Cars
3
Floor Plan

Plan 66161WE

Main Level
slide image 0

Plan 66161WE

1-800-854-7852

1-262-521-4596

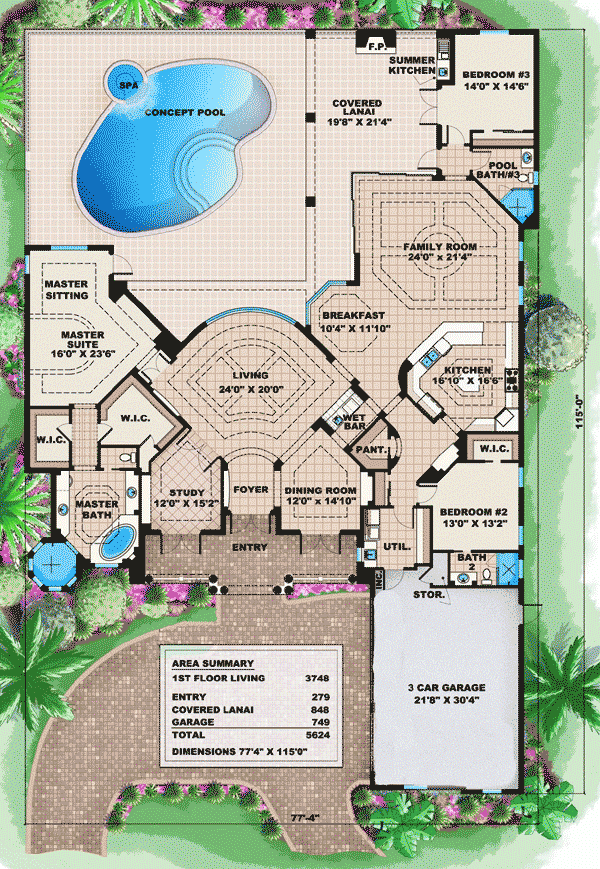

Main Level
floor plan image Main Level
Plan Details

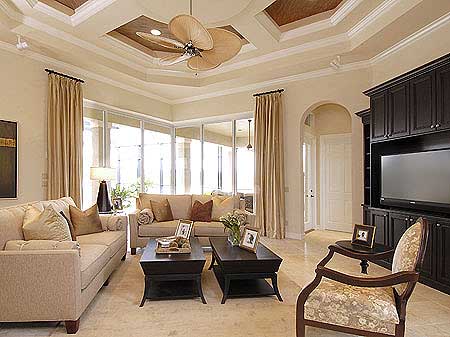

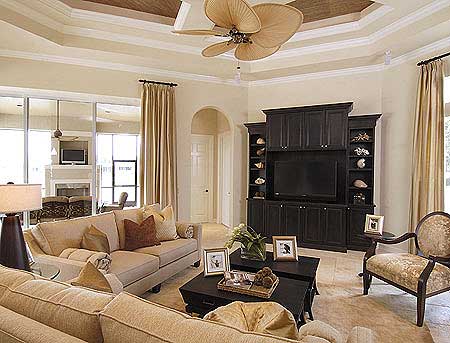

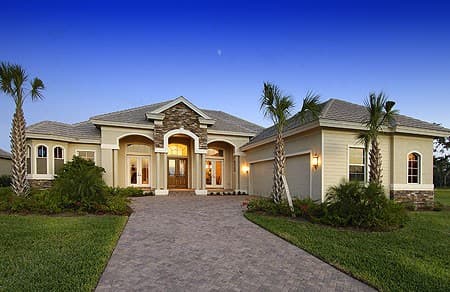

  • Cascading roof lines and a soaring stone entry sets this home plan apart. As you enter, a dramatic and distinctive curved window spans the wall of the living room making it optimal for water or golf course views.

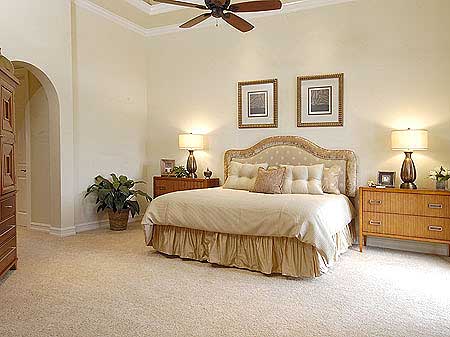

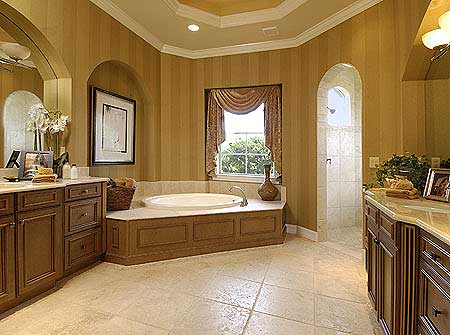

  • Just off the living room is the luxurious master suite; the ceiling designs add interest to the bedroom while the octagon shaped walk-in shower adds appeal to the expansive master bath. The master closets are 9'x6'8" and 11'x11'10".

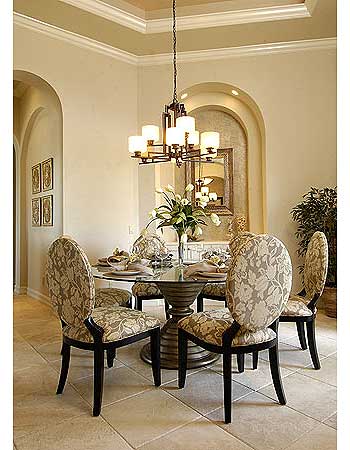

  • Entertaining in this home plan is enjoyable by all with the detailed wet bar featuring a barrel ceiling and conveniently located between the kitchen and dining room.

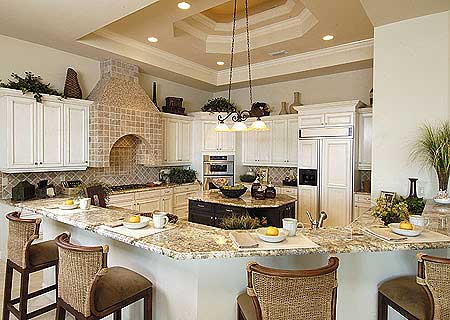

  • The kitchen's openness to the family room further conveys the easy flow of the home.

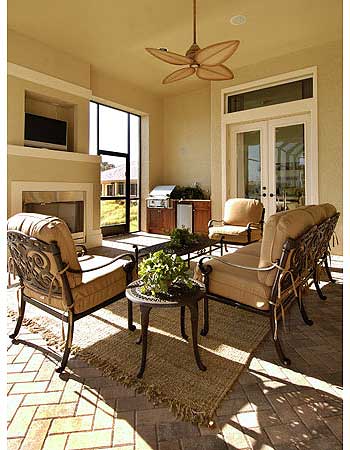

  • For a private refuge, the third bedroom is tucked behind the family room with its own entrance onto the covered lanai.
What's Included
Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,742 sq. ft.

1st Floor

3,742 sq. ft.

Lanai

987 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

77' 4"

Depth

115' 0"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

742 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Living Room

Coffered

13' 0''

Kitchen

Coffered

14' 0''

Bedroom 3

Flat

12' 0''

Entry

Flat

13' 8''

Family Room

Coffered

14' 0''

Master Bath

Coffered

12' 0''

Study

Coffered

13' 0''

Bedroom 2

Flat

10' 0''

Foyer

Flat

14' 0''

Lanai

Flat

12' 0''

Dining Room

Coffered

14' 0''

Master Bedroom

Coffered

13' 0''

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Wet Bar
