Plan 710257BTZ
Casually Elegant 3-Bed Home Plan
Heated S.F.
2,234
Beds
3
Baths
2
Stories
2
Cars
2
Floor Plan

Plan 710257BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710257BTZ

1-800-854-7852

1-262-521-4596

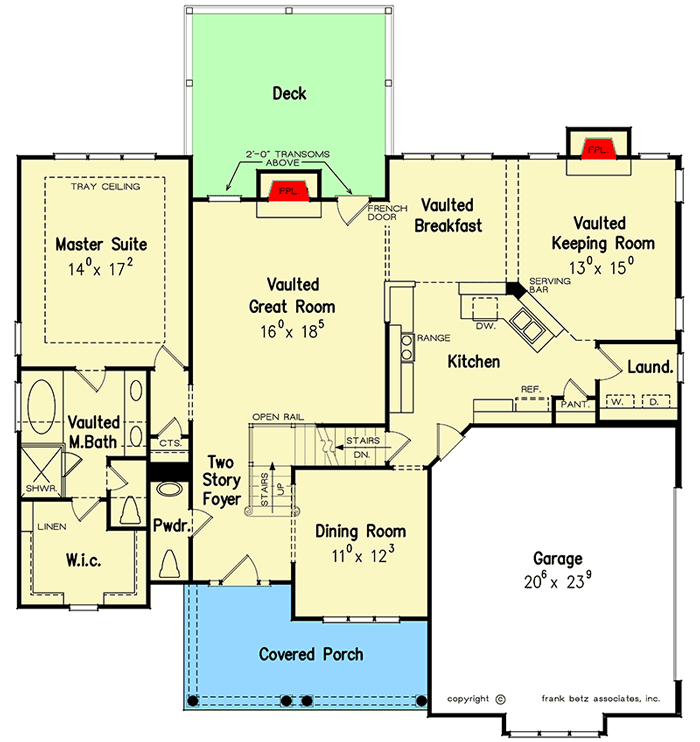

Main Level
floor plan image Main Level

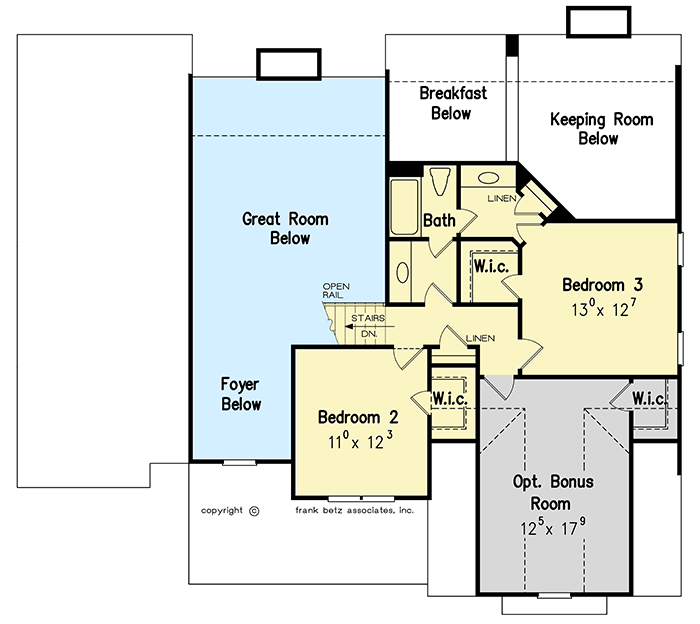

2nd Floor
floor plan image 2nd Floor
Plan Details

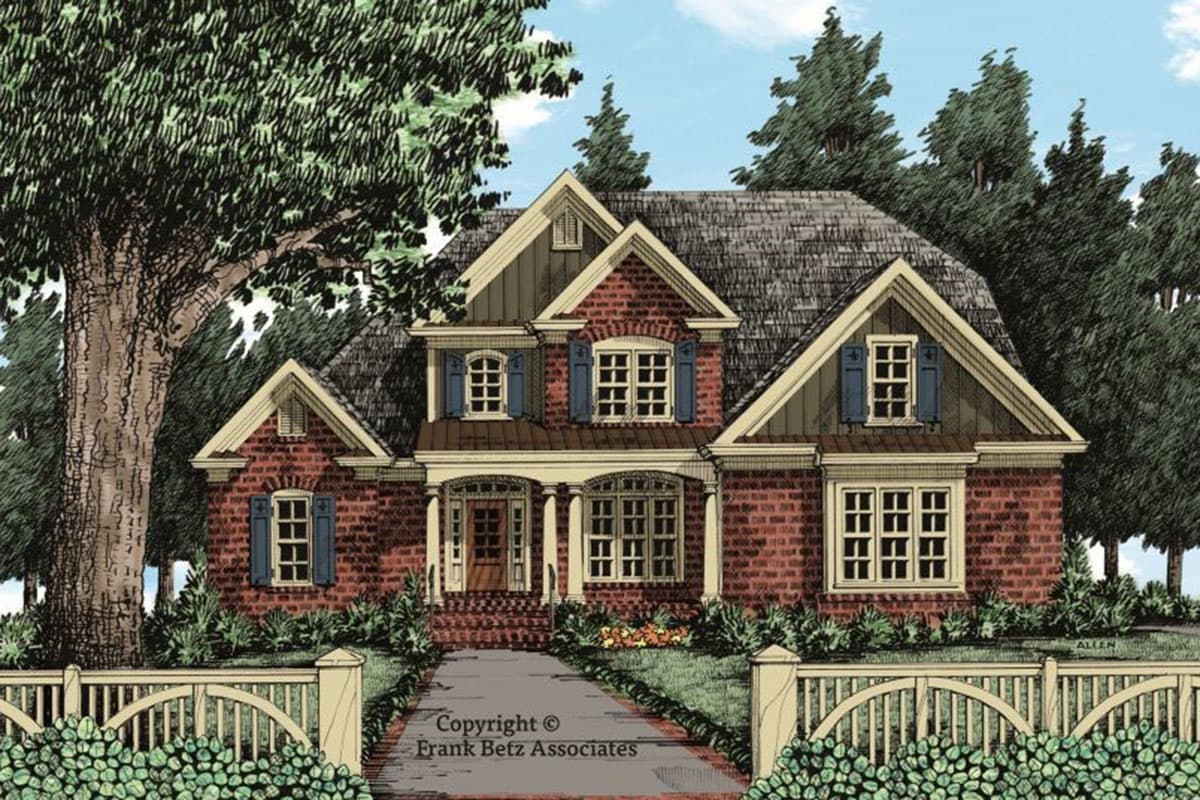

  • A classic combination of brick and siding never goes out of style, especially when complemented by a timeless floor plan.
  • A wide, welcoming porch opens to a vaulted foyer and great room, where a window-flanked fireplace draws all eyes upward.
  • An open-railed staircase folds around the formal dining room and rises to the upstairs bedrooms and bath. Below lies the spacious kitchen, where an angled serving bar unites the breakfast and keeping rooms for maximum interaction. The master suite occupies a quiet wing of its own.
  • Upstairs, two secondary bedrooms – each with a walk-in closet -- share a divided bathing area. An optional bonus room over the garage gives you expansion possibilities.
  • Related Plan: Get a front-facing garage with house plan 710079BTZ.
What's Included

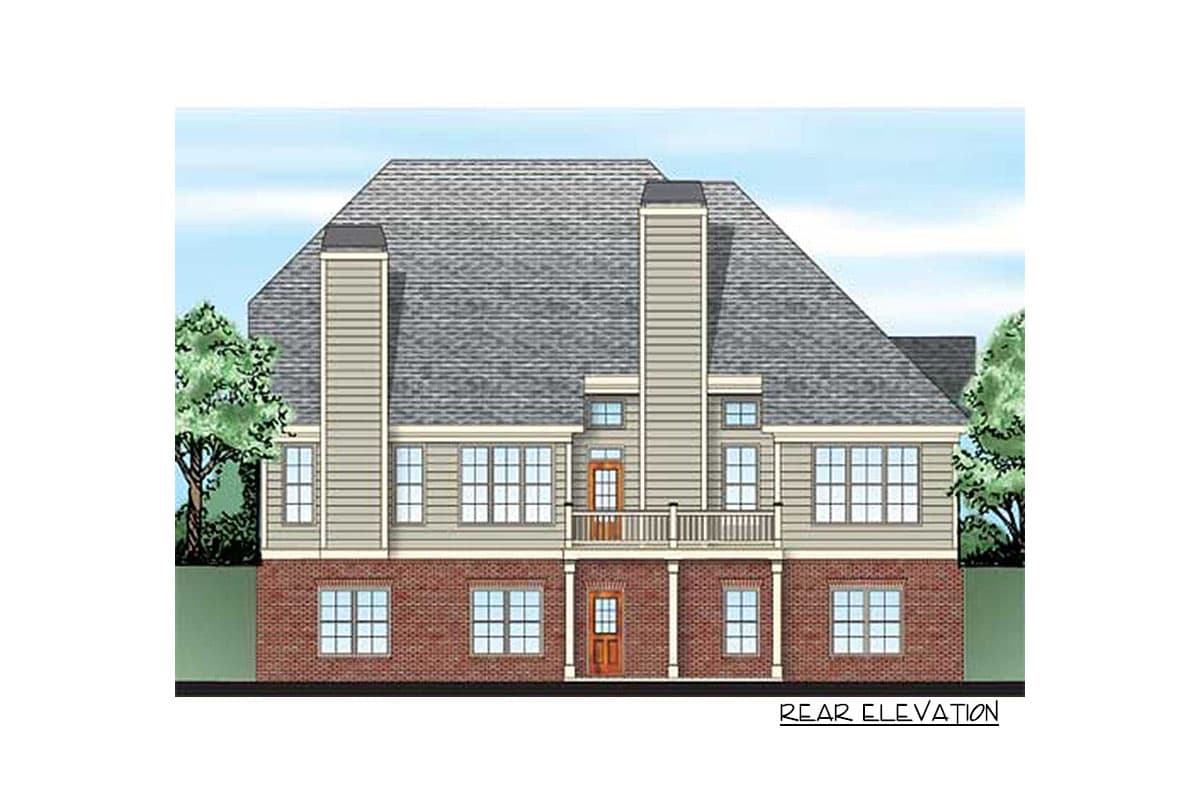

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,234 sq. ft.

1st Floor

1,690 sq. ft.

2nd Floor

544 sq. ft.

Basement Unfinished

2,234 sq. ft.

Bonus

254 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

55' 0"

Depth

50' 4"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

507 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bonus Room

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery
