Plan 95045RW

Center-Entry Mountain Ranch

Heated S.F.

3,469

Beds

2 - 5

Baths

2.5 - 5.5

Stories

1

Cars

4

Floor Plan

Main Level

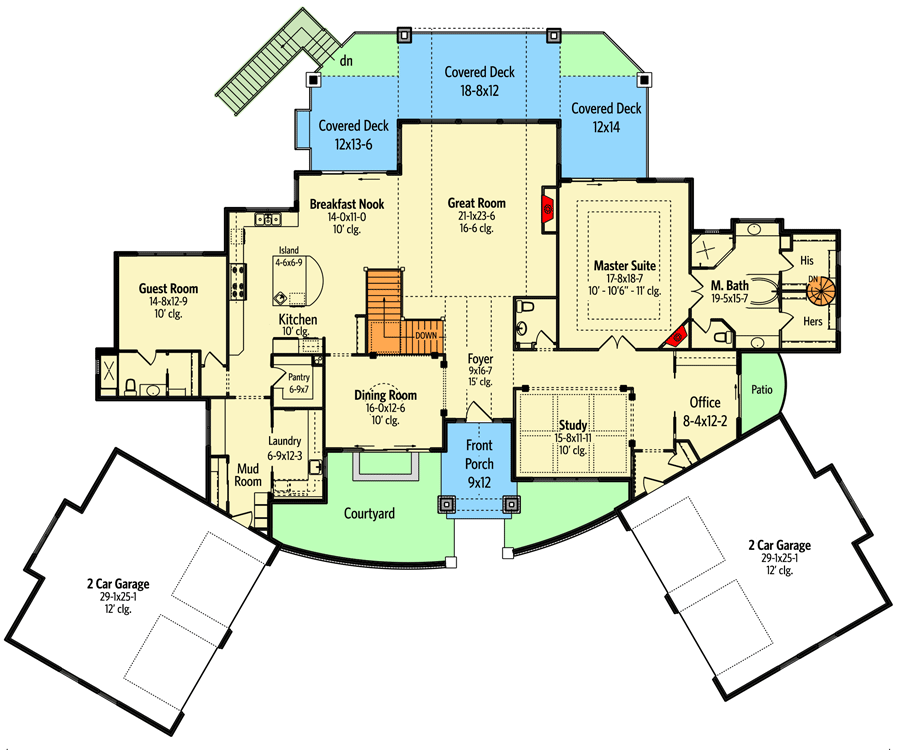

floor plan image Main Level

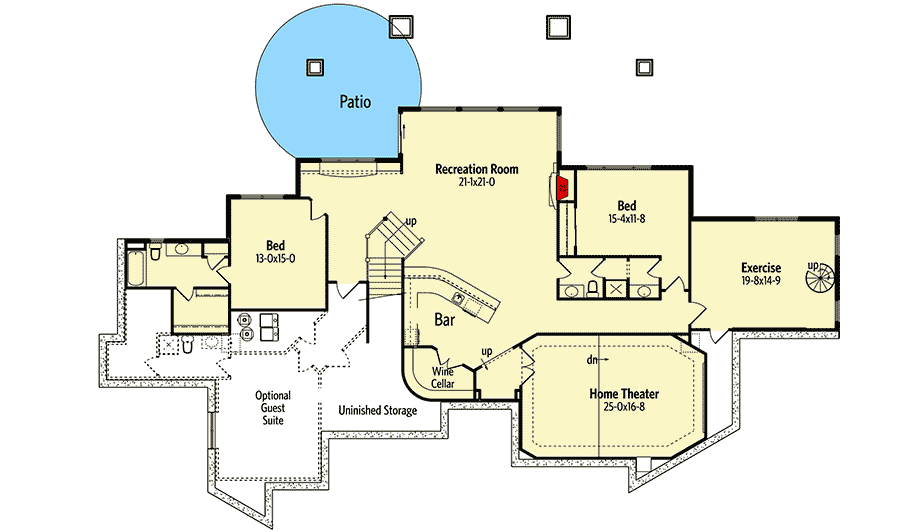

Basement

floor plan image Basement

Plan Details

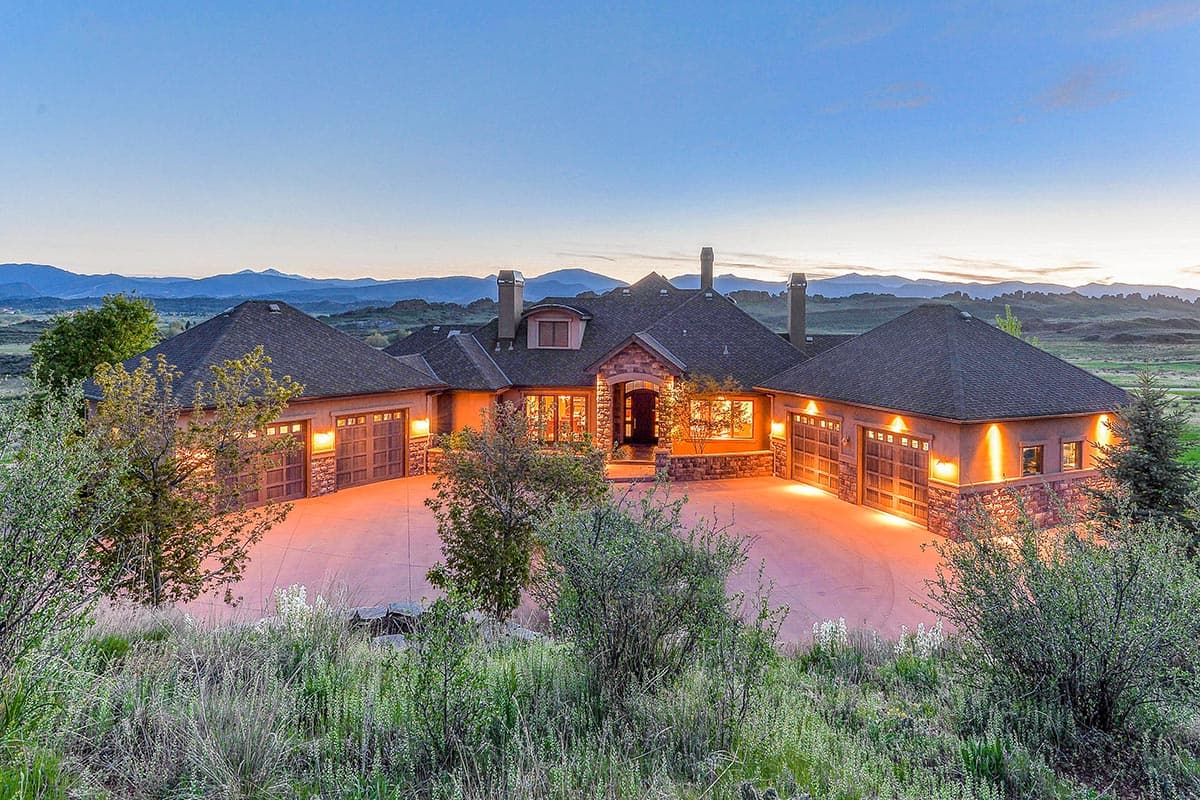

Beautifully proportioned, this Mountain house plan has a two car garage on each side of the home to give you a balanced facade.

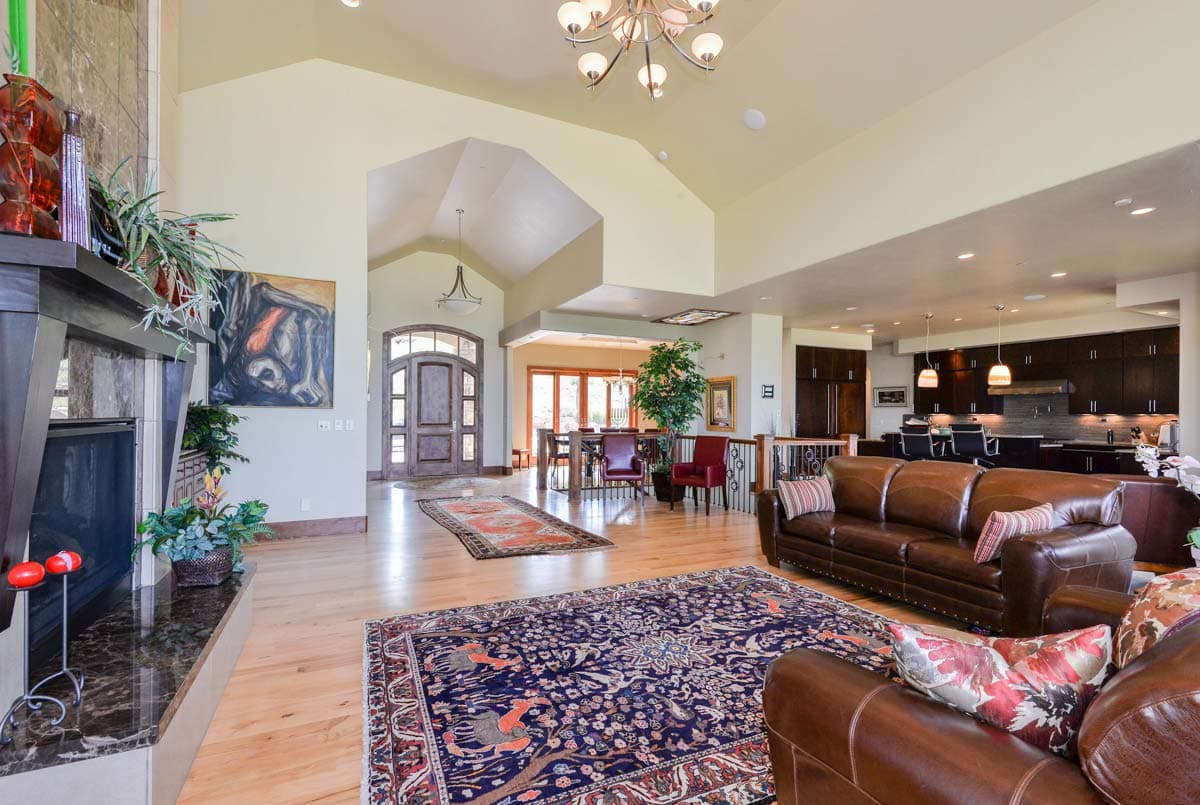

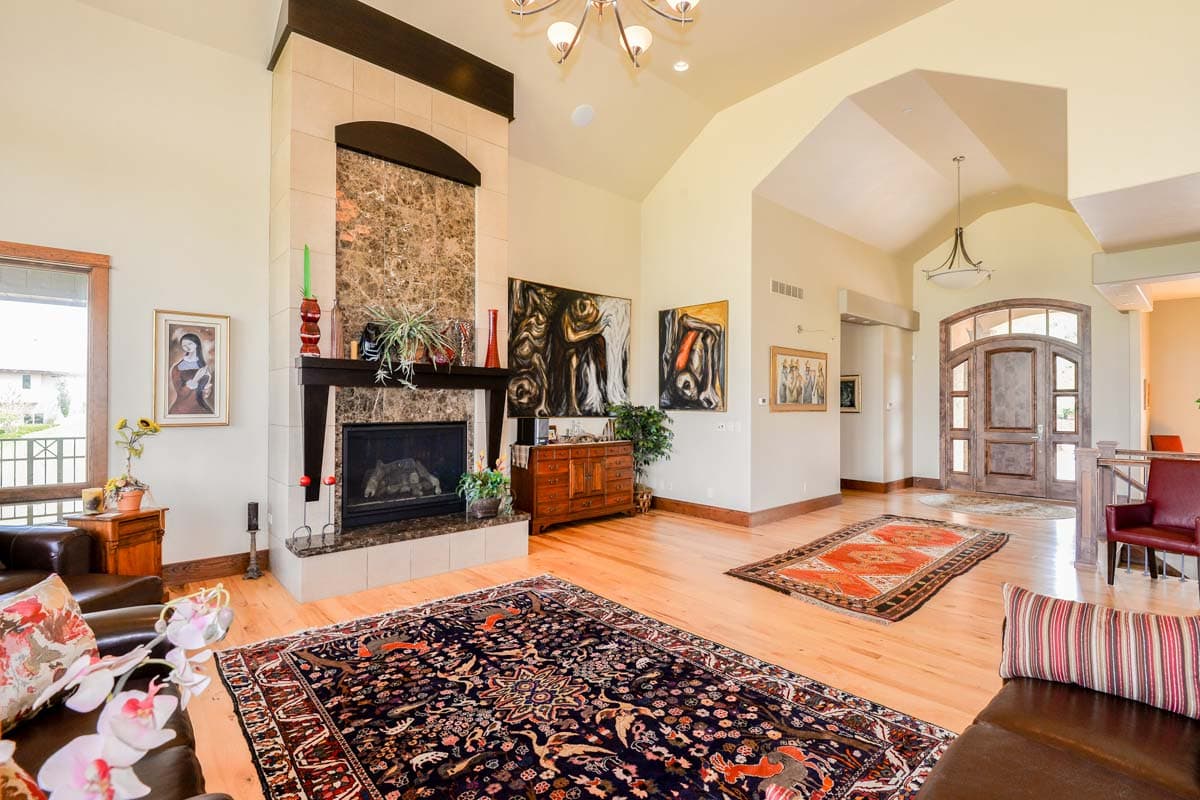

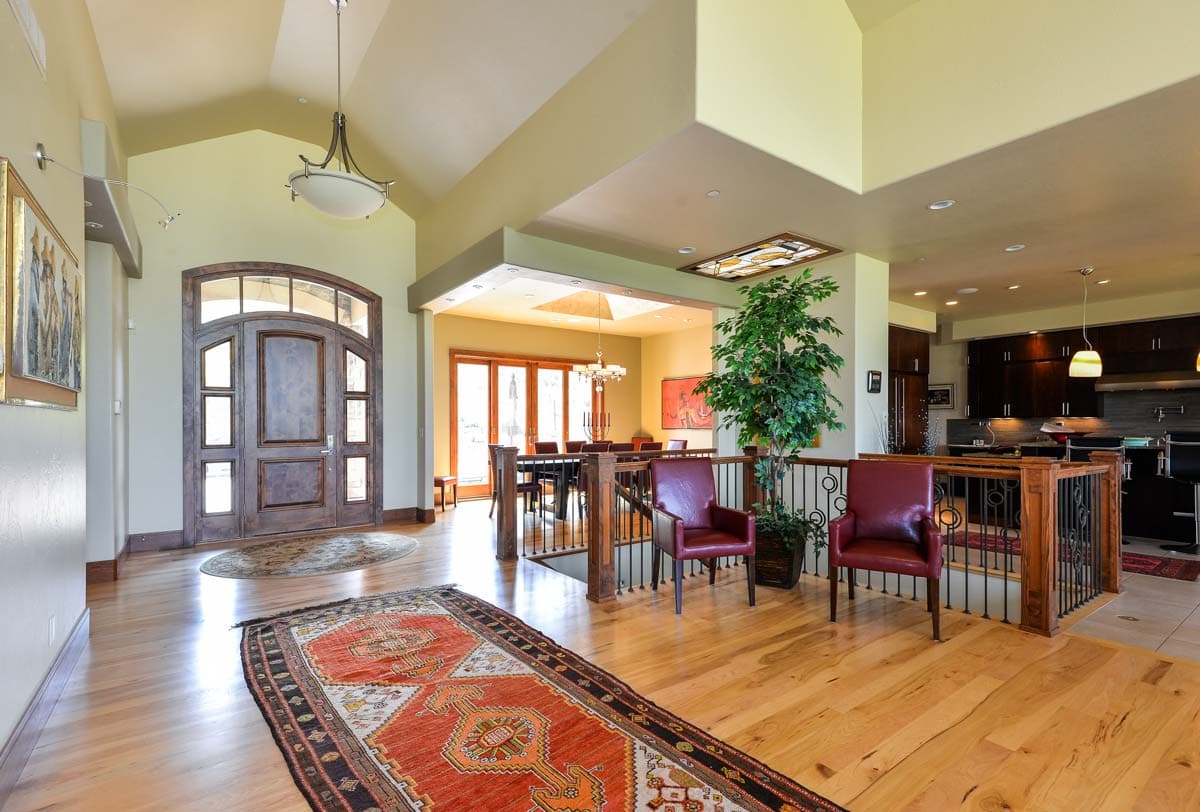

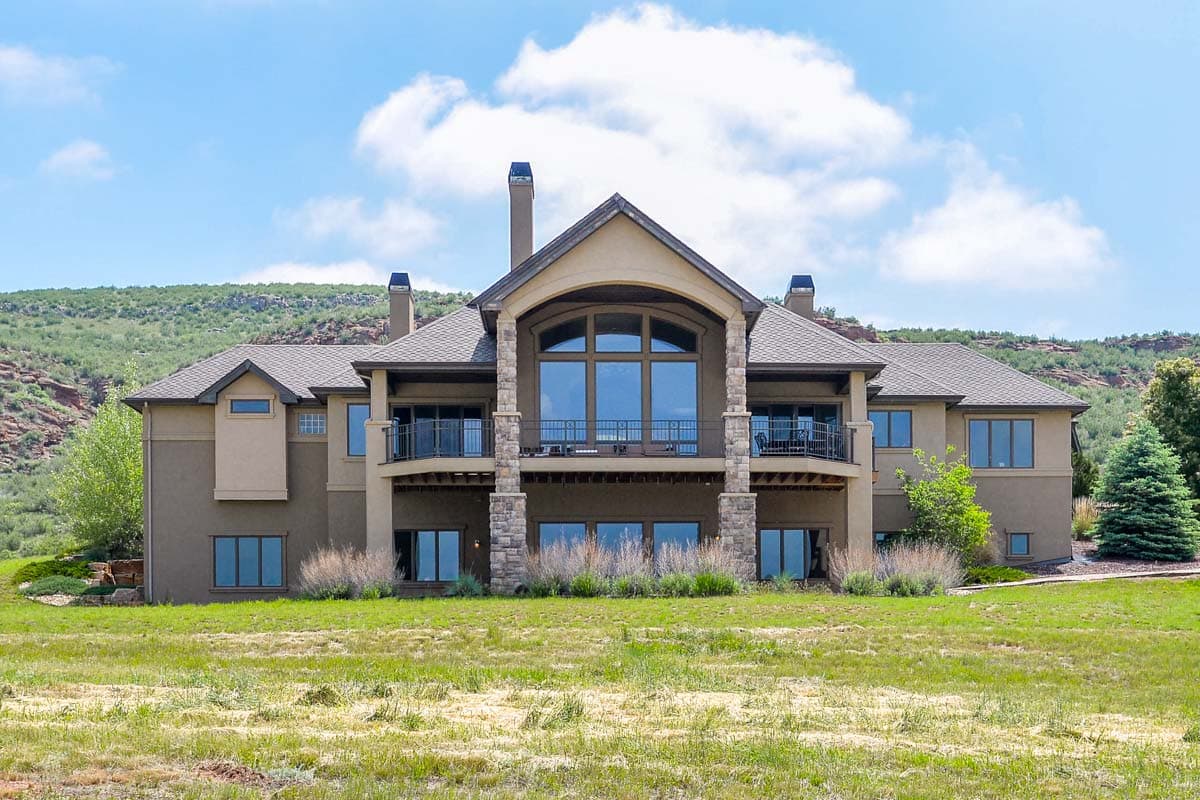

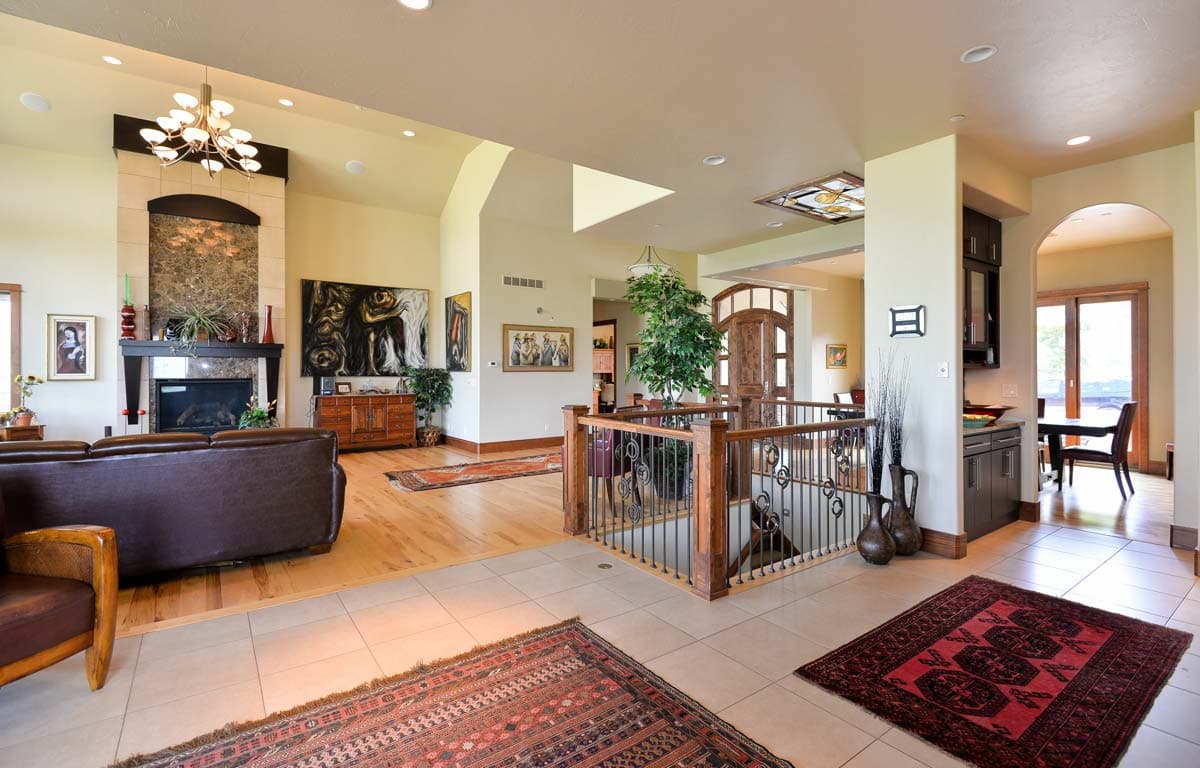

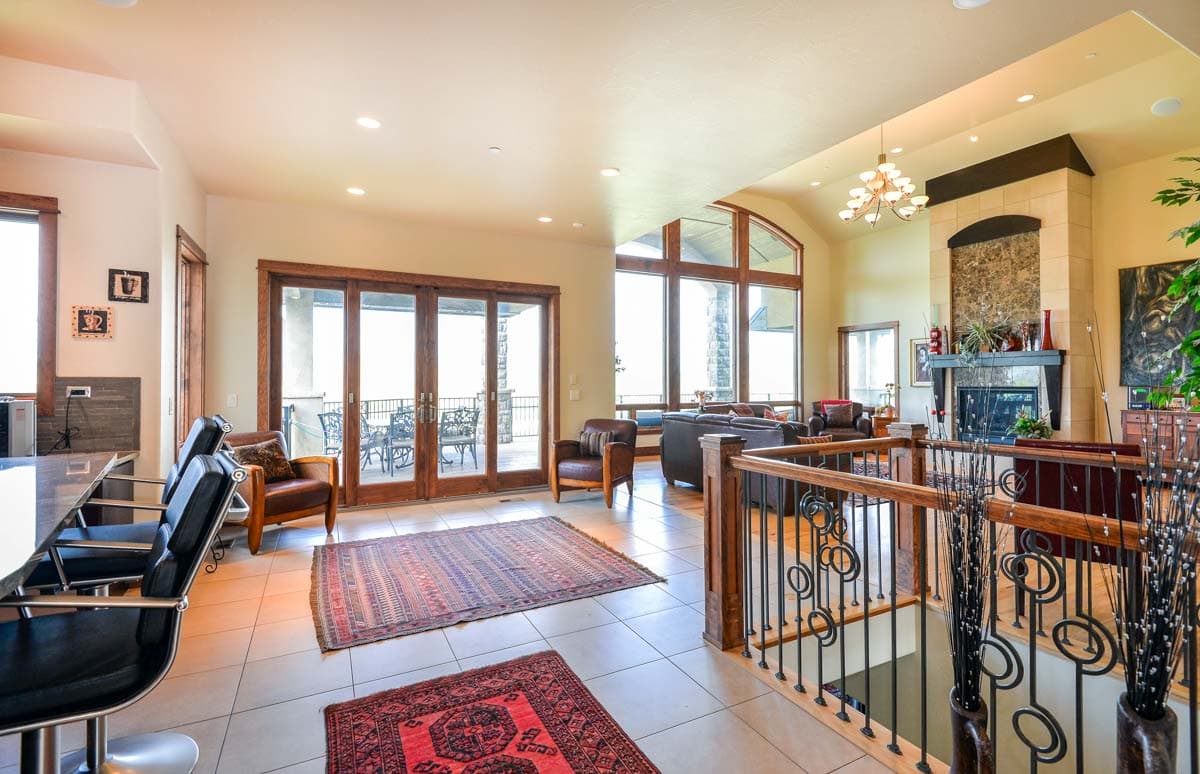

Tall, vaulted ceilings top the foyer and huge great room that has a wall of windows at the back end to give you sweeping views of the outdoors.
The open layout makes the home feel larger.
Even the study is open but if you want to work with doors shut, a home office is close by with sliding pocket doors and it's own private patio area.

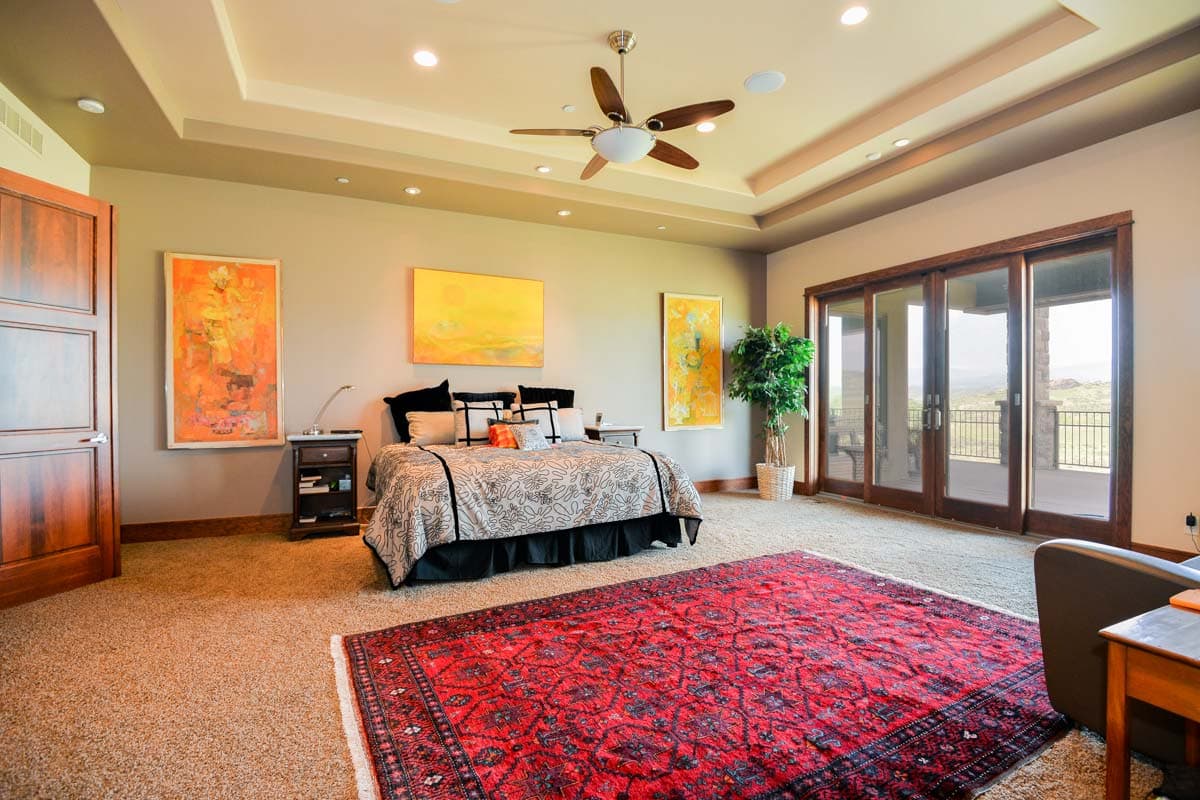

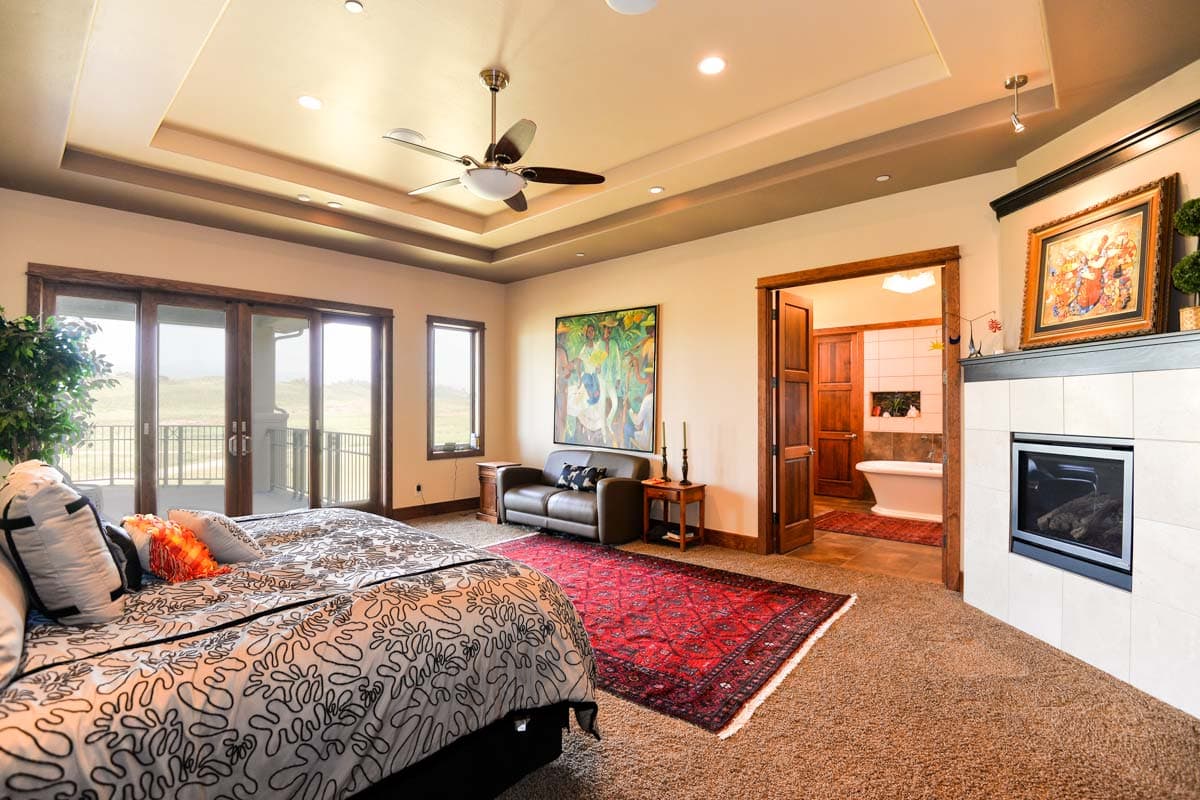

The master suite is simply gorgeous with a huge amount of space and a lovely double tray ceiling.

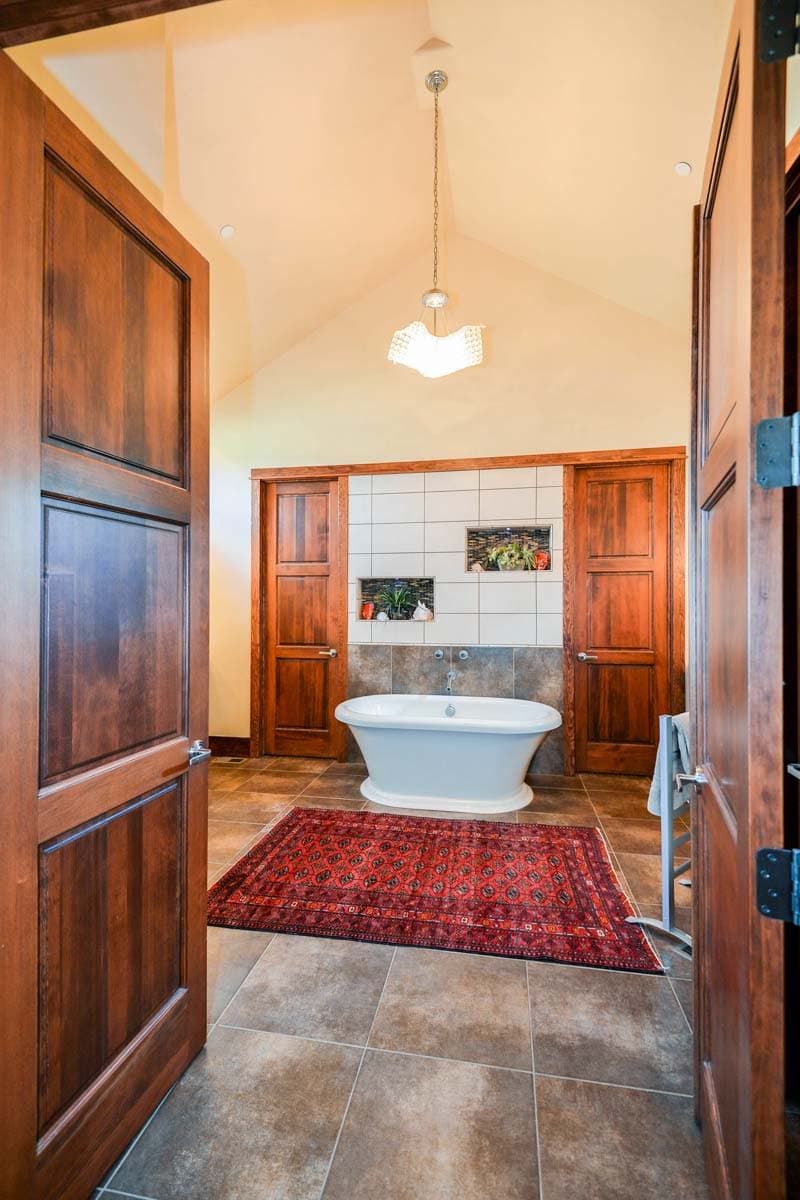

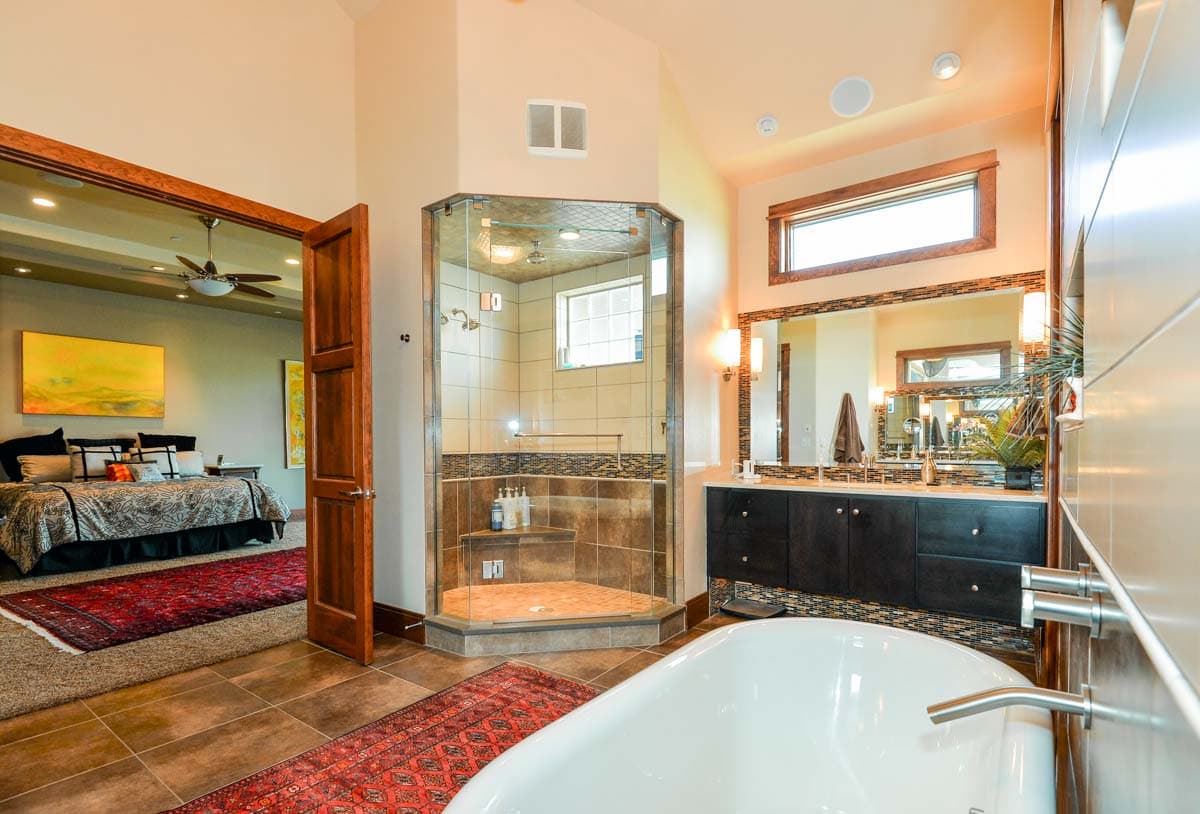

The big soaking tub takes center stage in the master bathroom and the walk-in closet has a spiral staircase down to an exercise room on the optional finished lower level.

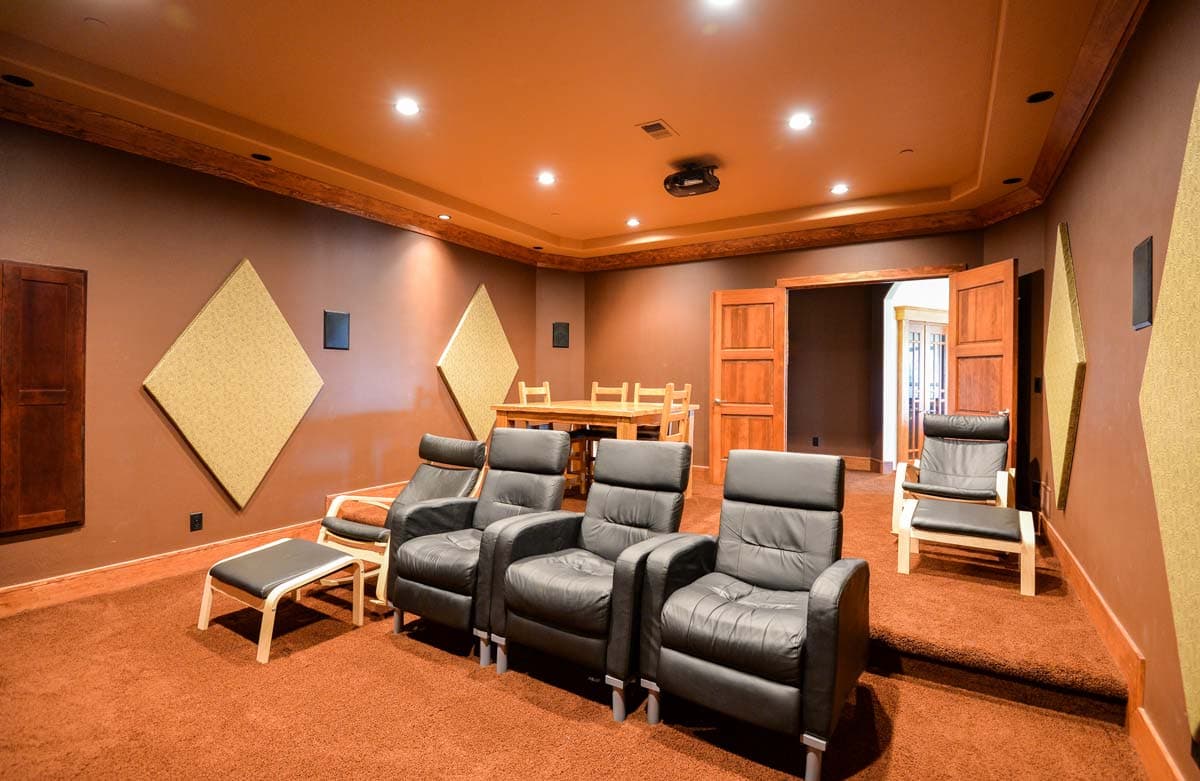

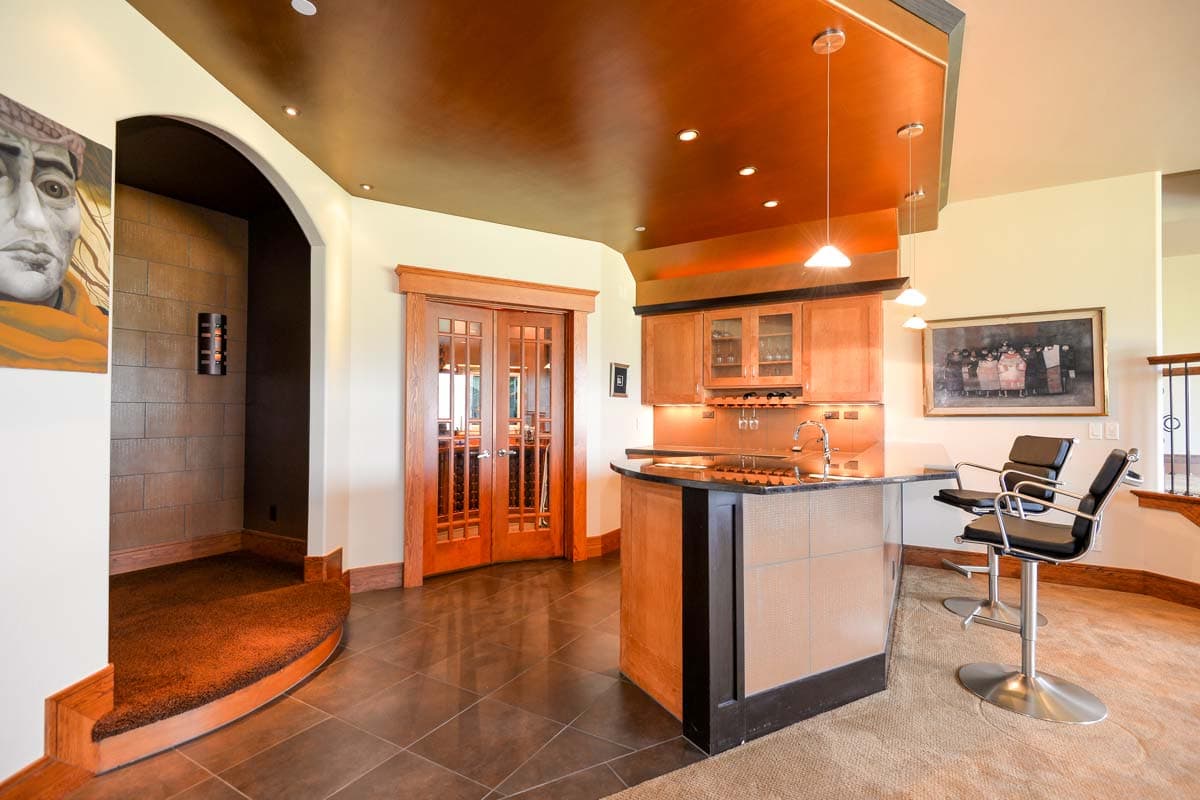

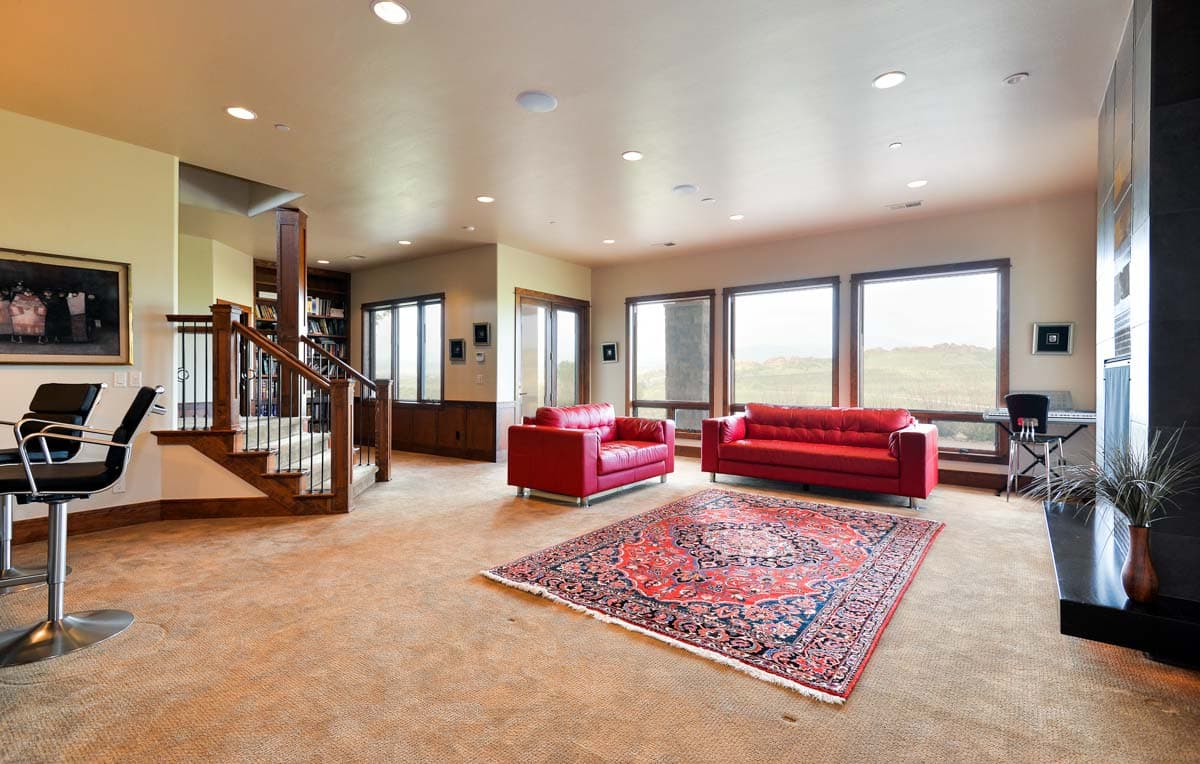

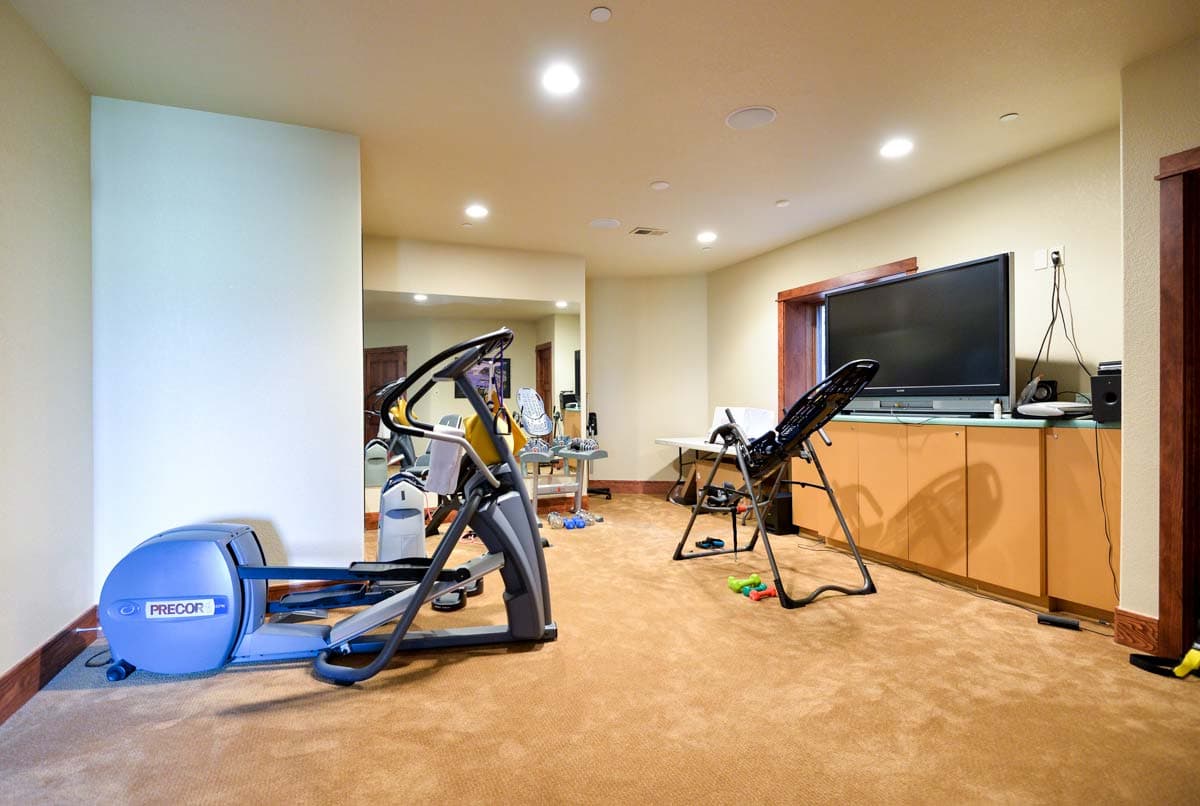

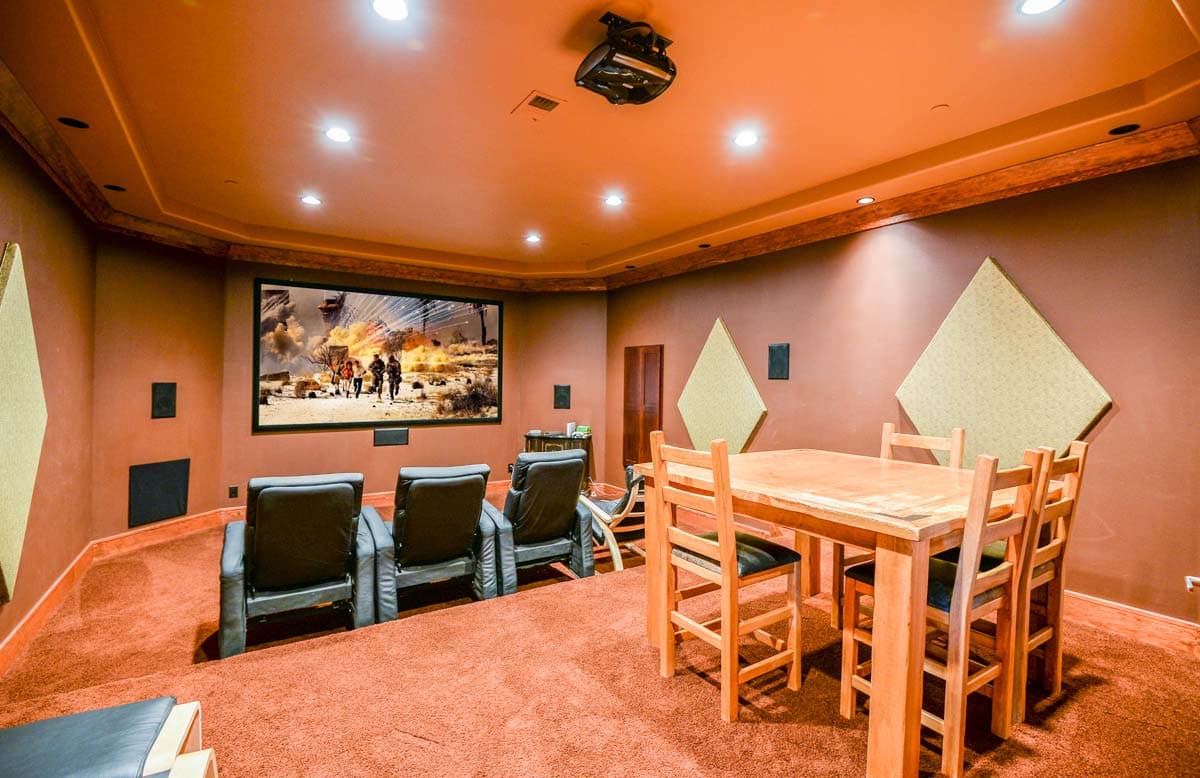

Gain an extra 2,519 square feet of living space by finishing the optional lower level shown with a rec room, magnificent home theater, an exercise room and two more bedrooms.

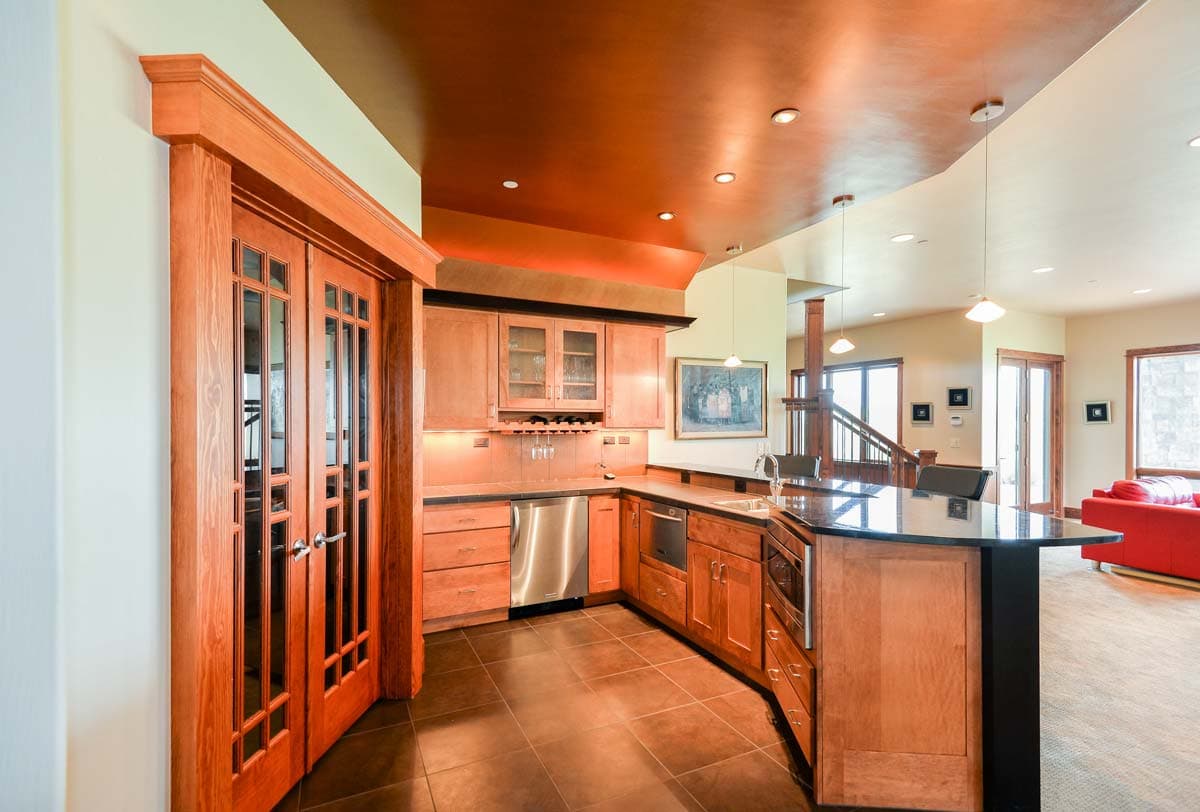

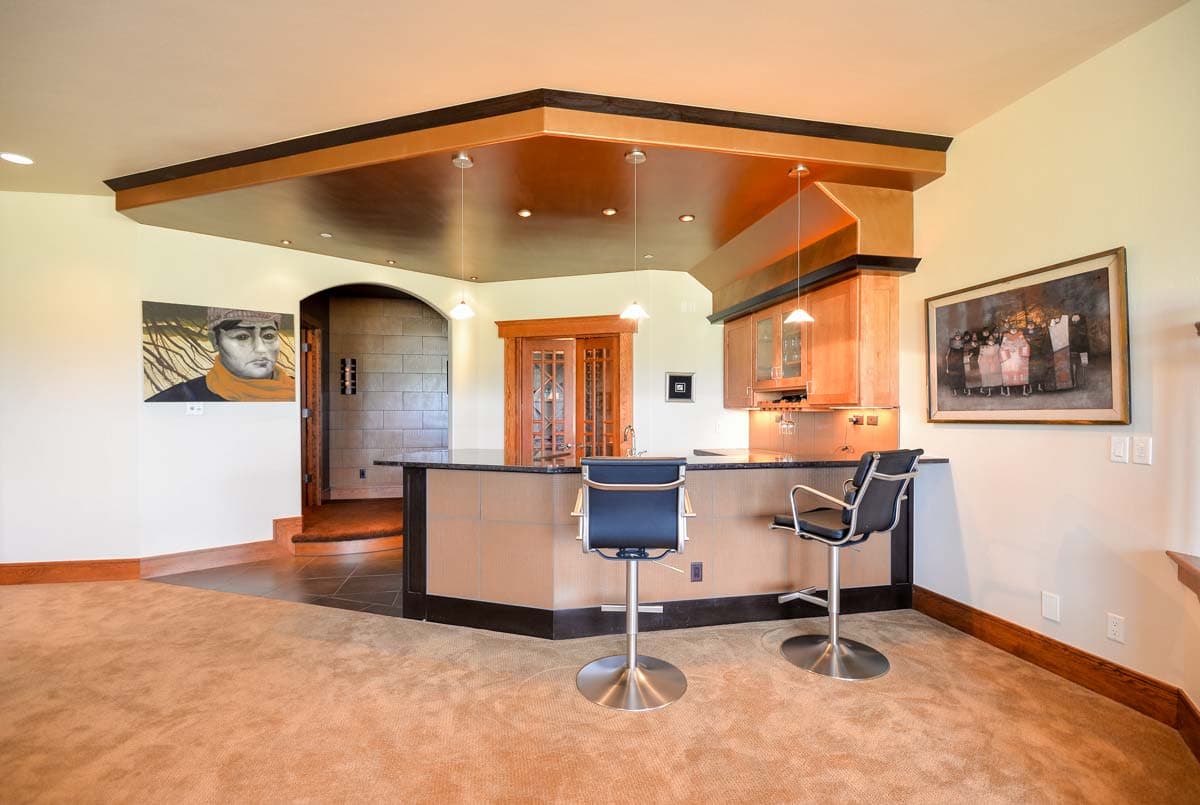

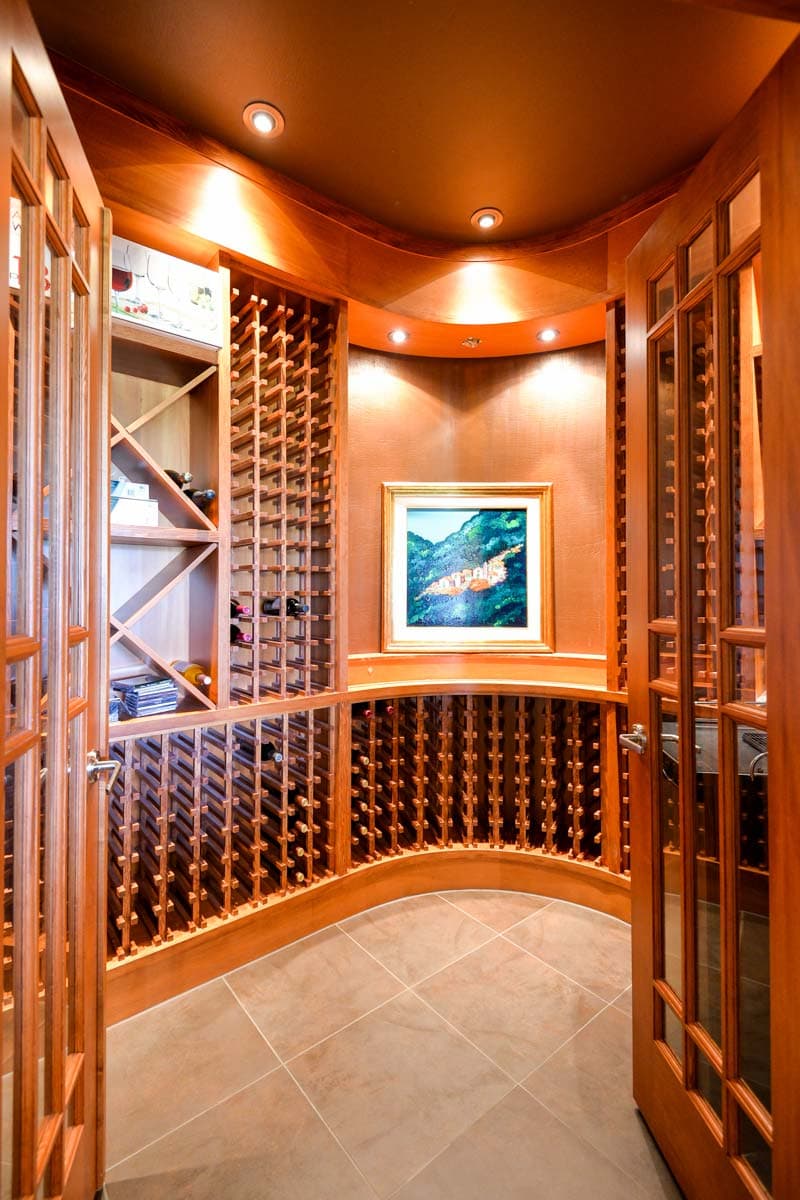

There's even a wine cellar and large wet bar for entertaining.

What's Included

Cover Page
4 Elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,469 sq. ft.

1st Floor

3,469 sq. ft.

Basement Unfinished

950 sq. ft.

Optional Lower Level

2,519 sq. ft.

Deck & Porch

1,642 sq. ft.

Beds/Baths

Bedrooms

2, 3, 4, or 5

Full bathrooms

2, 3, 4, or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

120' 0"

Depth

98' 9"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

1159 sq. ft.

Count

4 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

12'

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Premium Collection

Square Footage Breakdown

Total Heated Area

3,469 sq. ft.

1st Floor

3,469 sq. ft.

Basement Unfinished

950 sq. ft.

Optional Lower Level

2,519 sq. ft.

Deck & Porch

1,642 sq. ft.

Beds/Baths

Bedrooms

2, 3, 4, or 5

Full bathrooms

2, 3, 4, or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

120' 0"

Depth

98' 9"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

1159 sq. ft.

Count

4 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

12'

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Premium Collection
