Plan 8177LB
Centralized Laundry a Plus
Heated S.F.
2,078
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 8177LB

Main Level
slide image 0
2nd Floor
slide image 1

Plan 8177LB

1-800-854-7852

1-262-521-4596

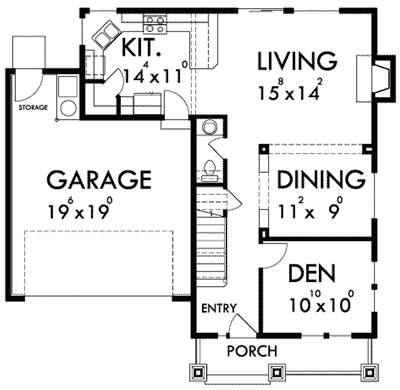

Main Level
floor plan image Main Level

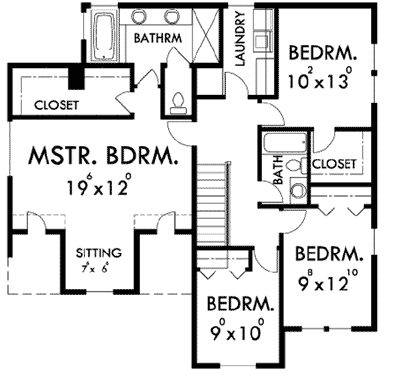

2nd Floor
floor plan image 2nd Floor
Plan Details
  • With all the bedrooms on the second floor, you'll love having laundry centralized on the upper floor.
  • Great for your narrow lot, this Craftsman home plan has lots of character.
  • The living room is the main hub and is open to the kitchen and the dining room set off by tasteful columns.
  • For a more private seting, then makes a great retreat.
  • A door in back of the garage make unloading groceries a breeze.
  • Related Plan: Get an alternate upstairs layout with house plan 8132LB.
What's Included

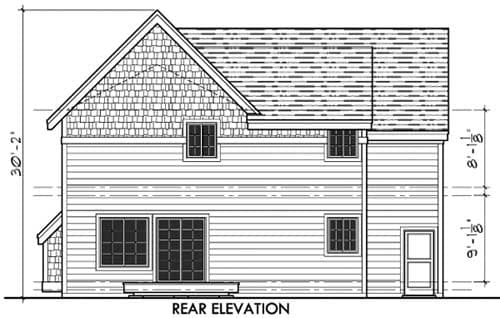

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,078 sq. ft.

1st Floor

825 sq. ft.

2nd Floor

1,253 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

40' 0"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

370 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Craftsman

Northwest

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 2nd Floor

Master Suite - Sitting Area

Square Footage Breakdown

Total Heated Area

2,078 sq. ft.

1st Floor

825 sq. ft.

2nd Floor

1,253 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

40' 0"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

370 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Craftsman

Northwest

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 2nd Floor

Master Suite - Sitting Area
