Plan 80903PM
Chalet-Style Vacation Cottage with Finished Lower Level - 1457 Sq Ft
Heated S.F.
1,457
Beds
3
Baths
2
Stories
2
Floor Plan

Plan 80903PM

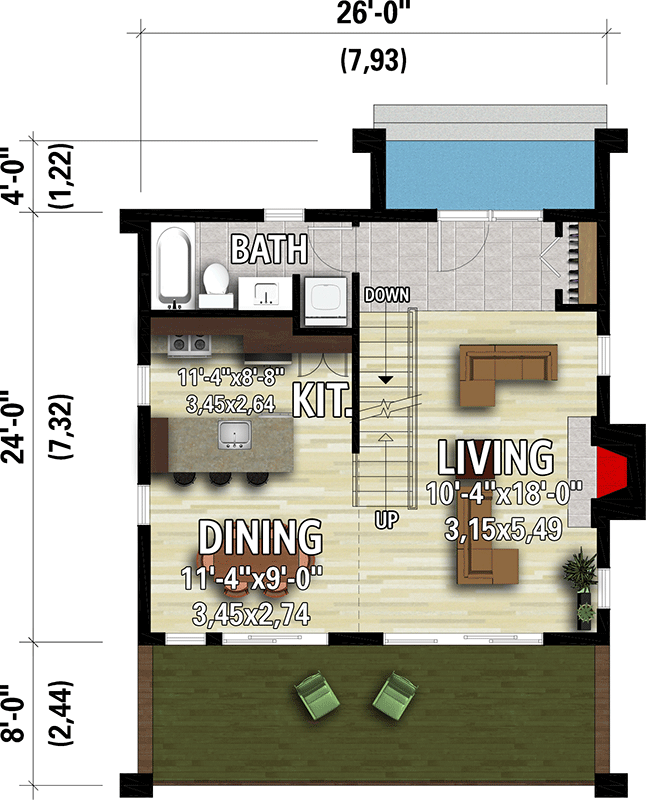

Main Level
slide image 0

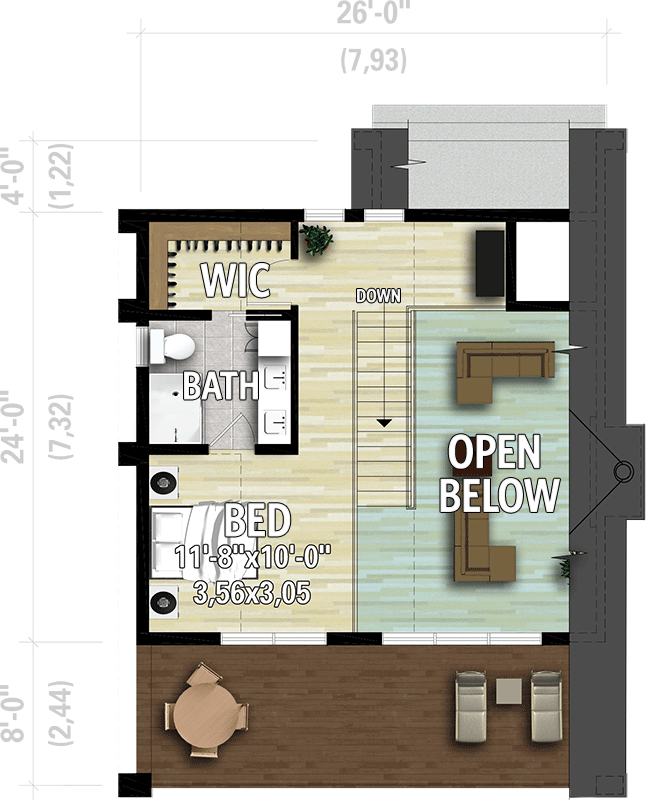

2nd Floor
slide image 1

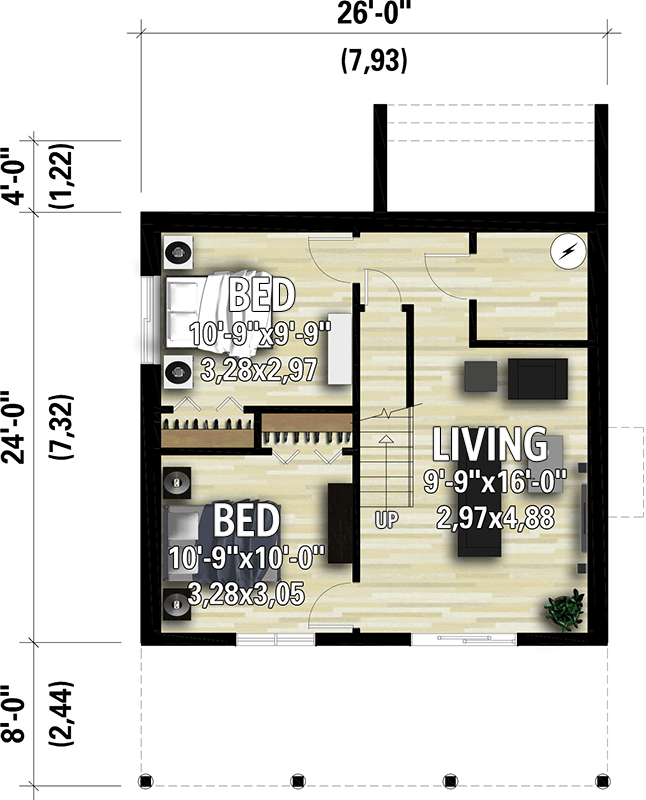

Lower Level
slide image 2

Plan 80903PM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Lower Level
floor plan image Lower Level
Plan Details
  • The wide entry foyer of this chalet-style vacation cottage opens up to a two-story living room with a big fireplace as the focal point.
  • Step out onto the big deck through sliding glass doors to enjoy the sunshine outdoors.
  • You can seat three people at the island in the kitchen and get great views while you cook.
  • There's a stack washer/dryer and a full bathroom off the foyer.
  • The ground level has two bedrooms and a family room.
  • On the top floor, homeowners have a loft style master suite with a walk-in closet, private bathroom and views of the living room below.
What's Included
Please note this plan is designed to the National Building Code of Canada.

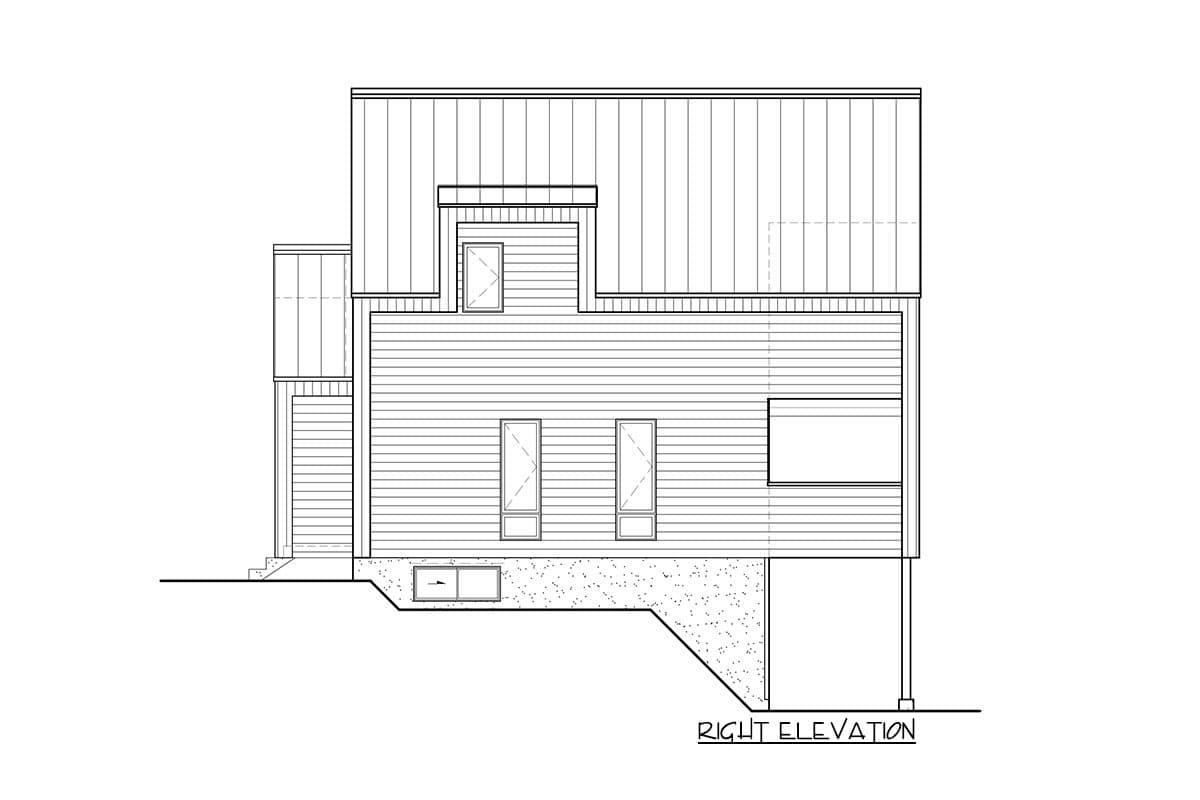

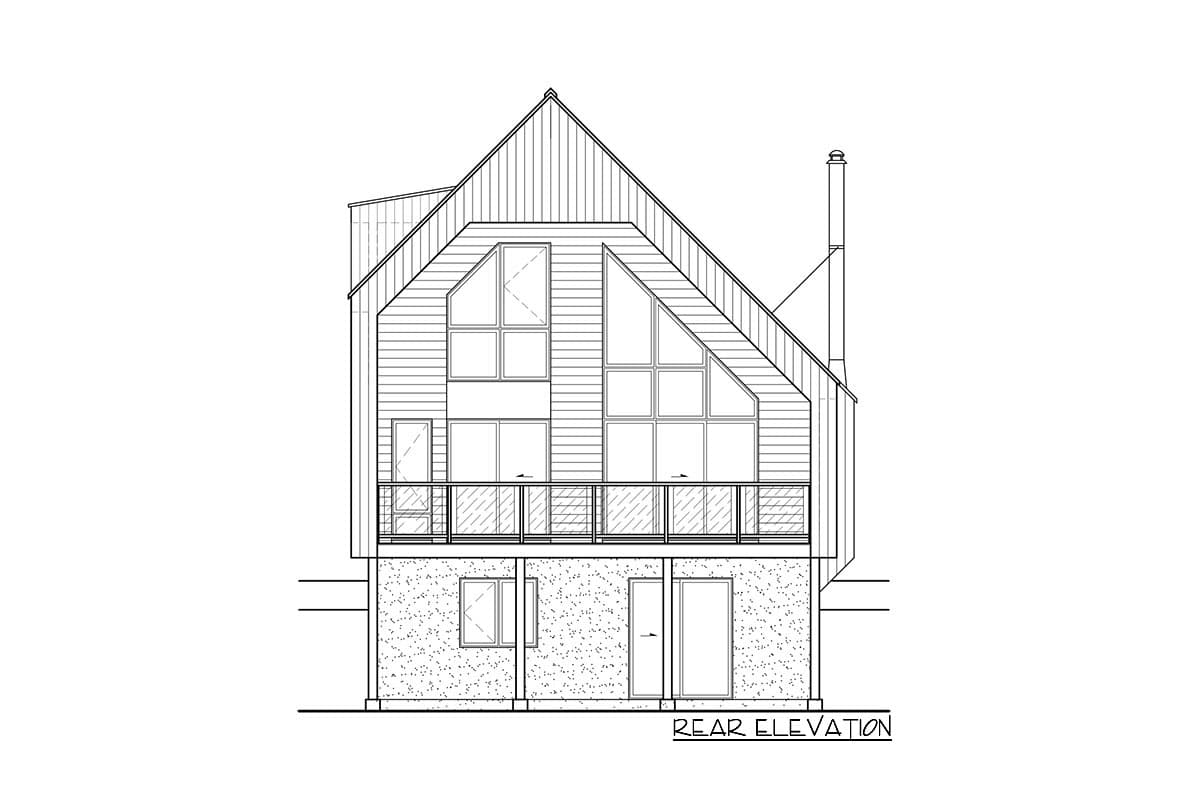

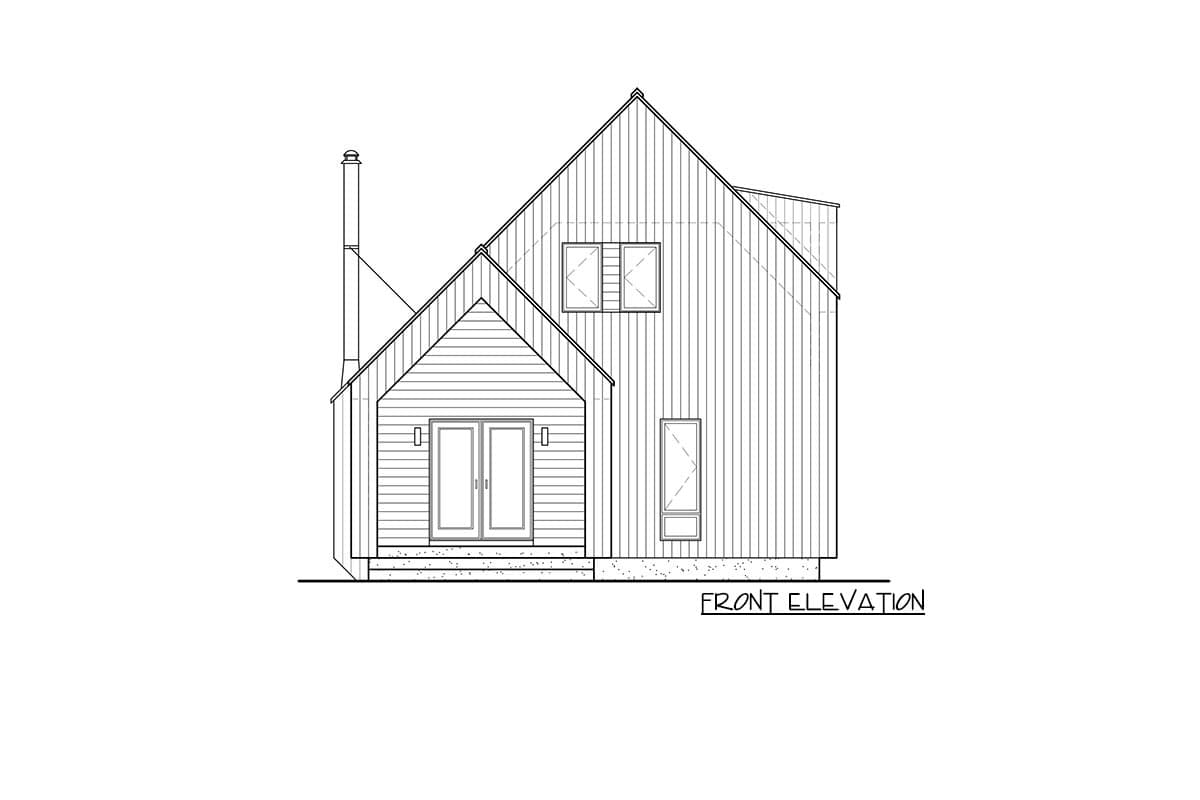

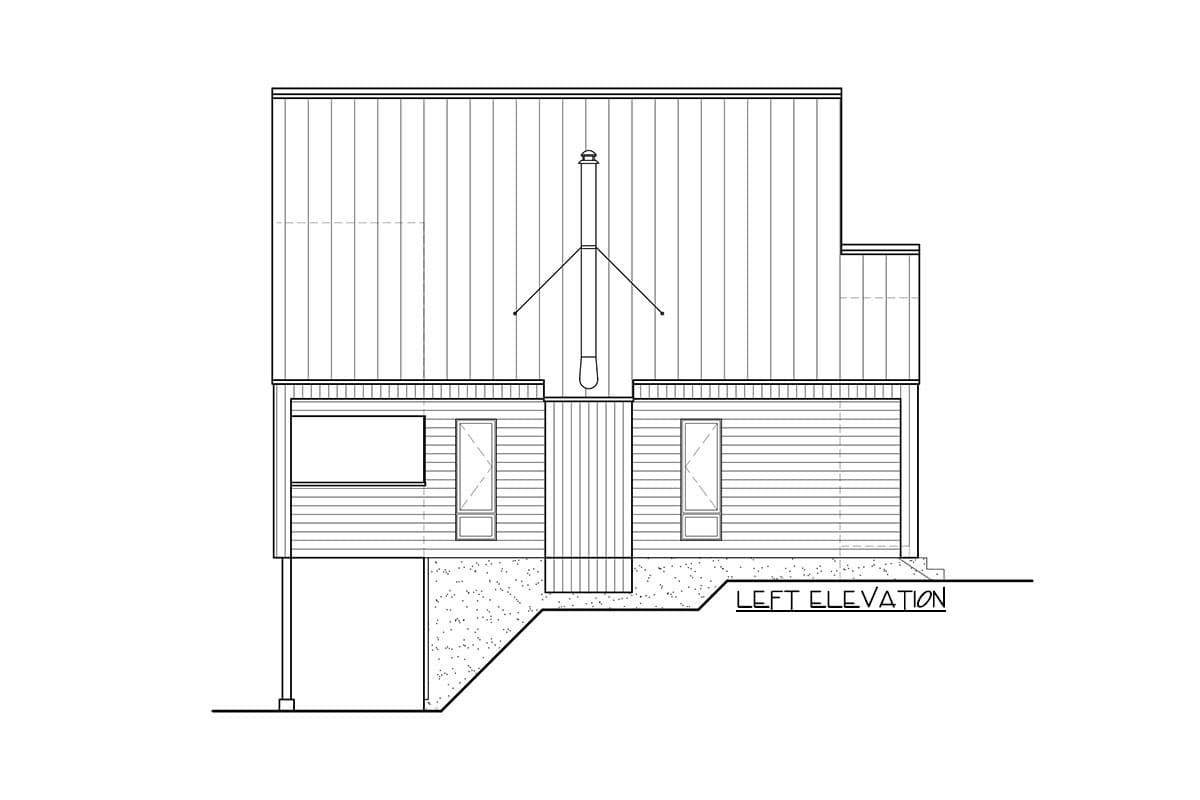

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,457 sq. ft.

Lower Level

492 sq. ft.

1st Floor

624 sq. ft.

2nd Floor

341 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

24' 0"

Max Ridge Height

35' 0"

Ceiling Heights

Lower Level

8' 2"

First Floor

10'

Second Floor

10'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Modern

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - 2nd Floor

Two Story Great Room

Plan Collections

Canadian House Plans

Sloping Lot

Square Footage Breakdown

Total Heated Area

1,457 sq. ft.

Lower Level

492 sq. ft.

1st Floor

624 sq. ft.

2nd Floor

341 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

24' 0"

Max Ridge Height

35' 0"

Ceiling Heights

Lower Level

8' 2"

First Floor

10'

Second Floor

10'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Modern

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - 2nd Floor

Two Story Great Room

Plan Collections

Canadian House Plans

Sloping Lot
