Plan 59986ND
Charming 3-Bed House Plan with Open Floor Plan - 1629 Sq Ft
Heated S.F.
1,629
Beds
2 - 3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 59986ND

Main Level
slide image 0
Bonus
slide image 1
Optional Basement Stairs
slide image 2

Plan 59986ND

1-800-854-7852

1-262-521-4596

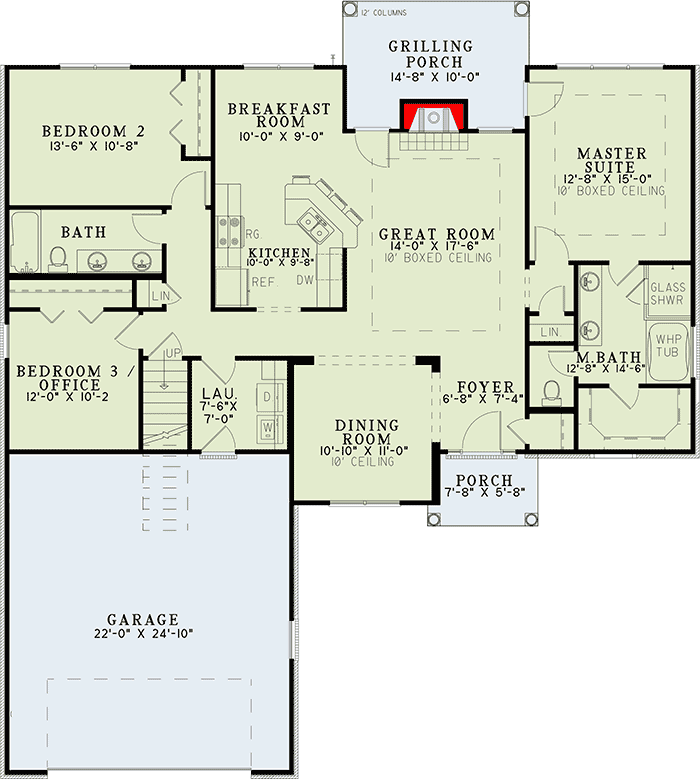

Main Level
floor plan image Main Level

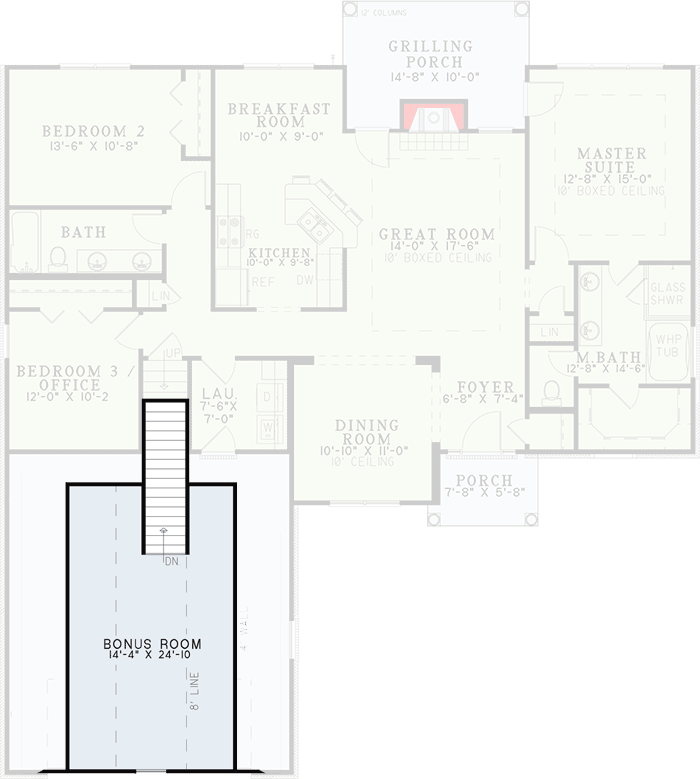

Bonus
floor plan image Bonus

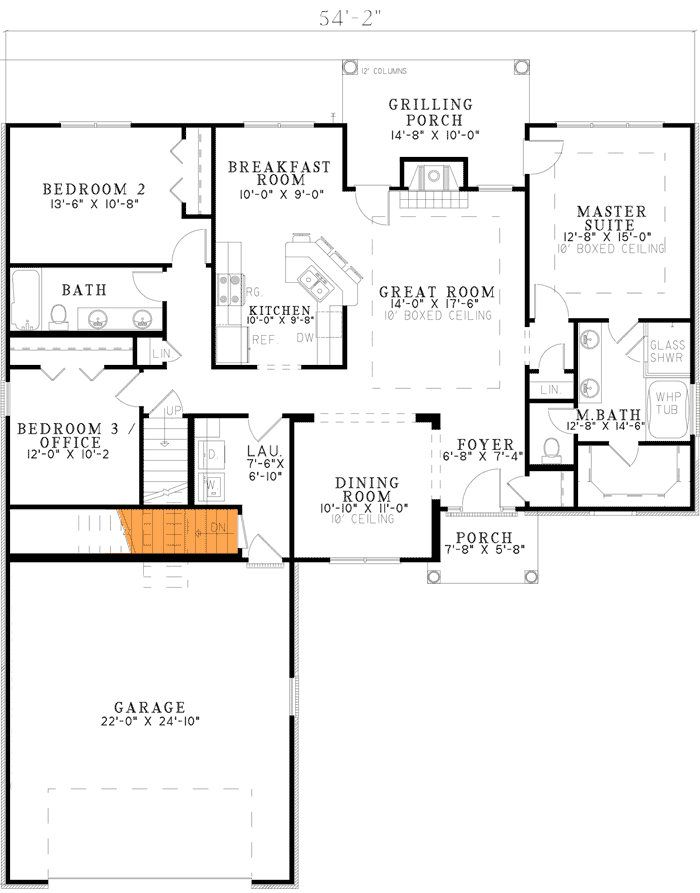

Optional Basement Stairs
floor plan image Optional Basement Stairs
Plan Details

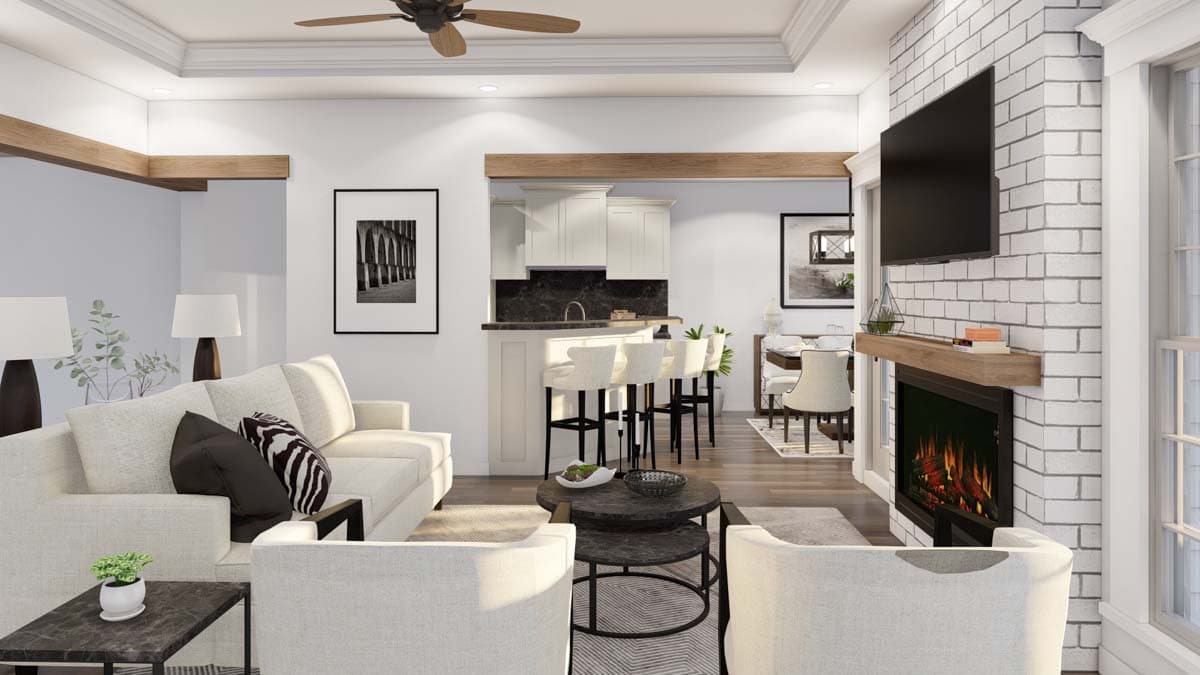

  • This charming 3 bedroom, 2 bathroom home has an open floor plan with the great room open to the foyer, dining room, and kitchen.

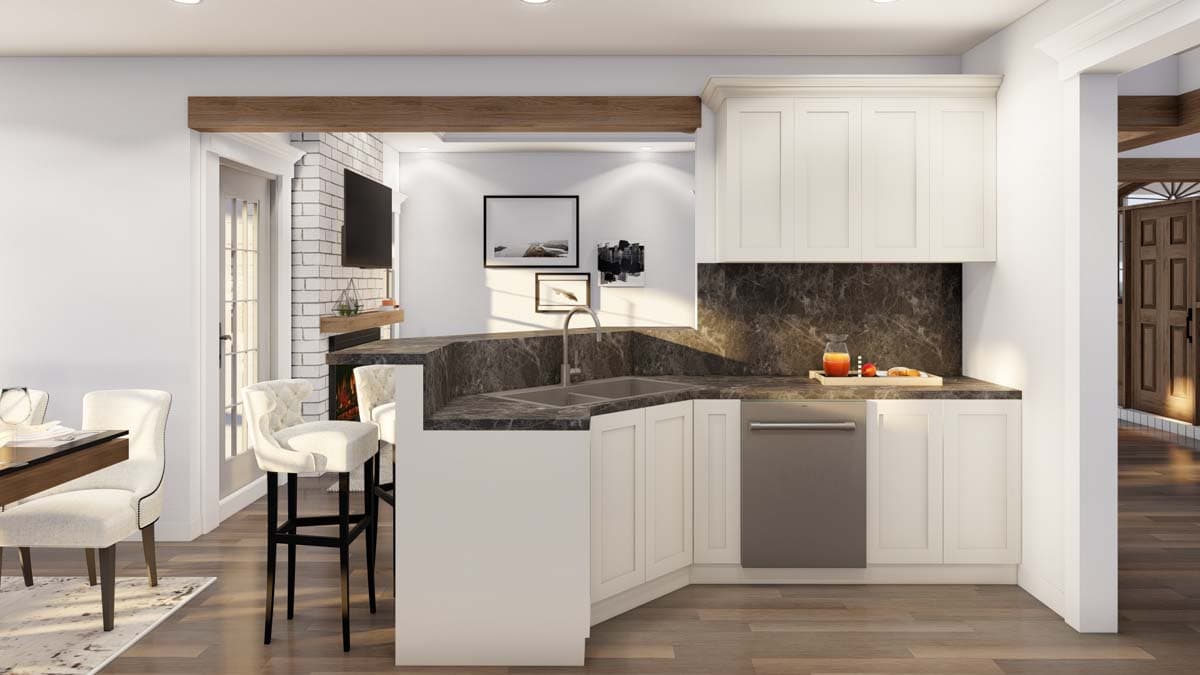

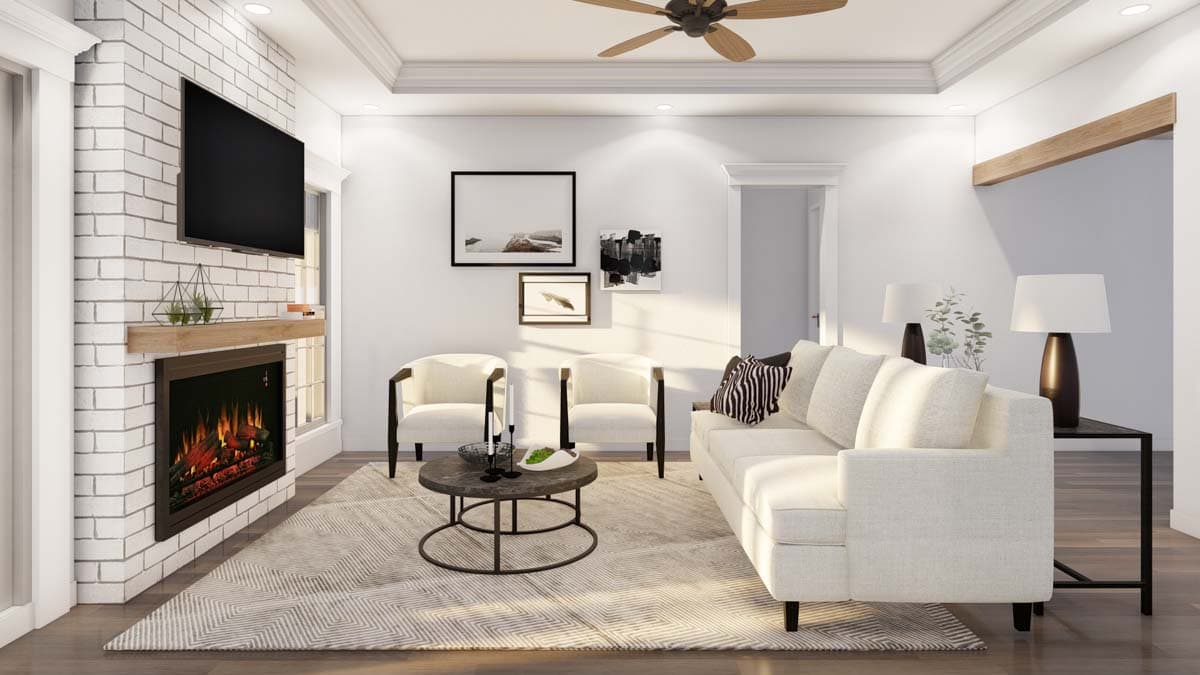

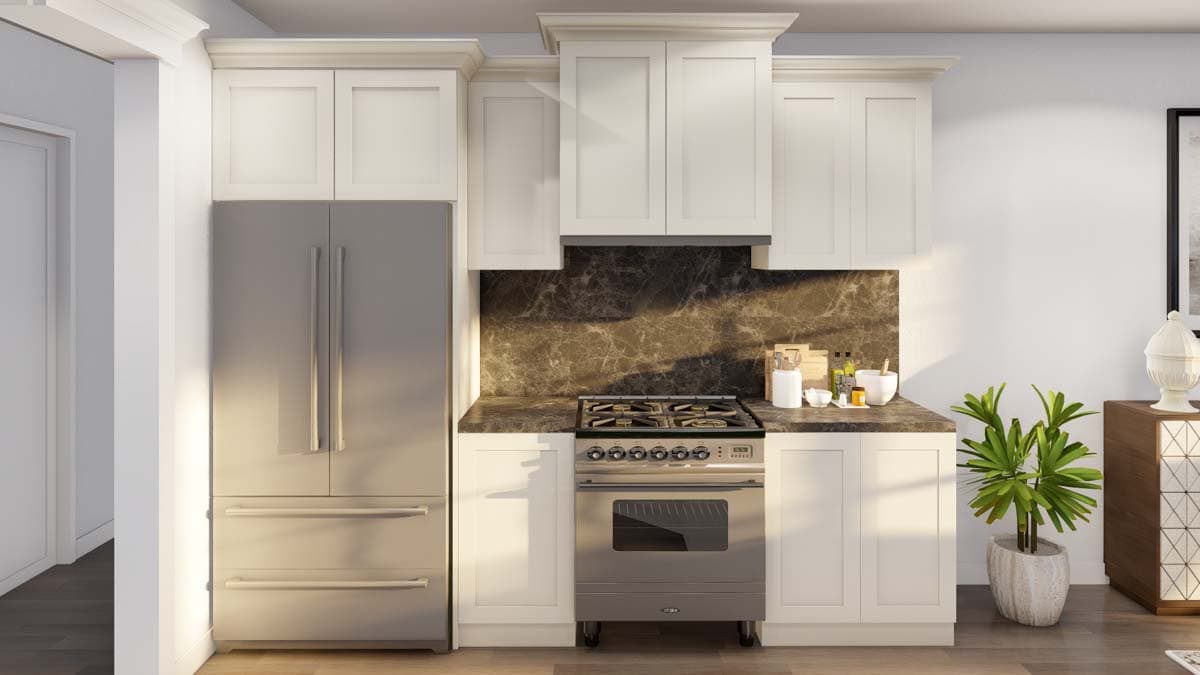

  • A breakfast room is off of the kitchen which features an eat-at bar. The Great Room has a fireplace and access to a grilling porch.
  • The master suite features a 10’ boxed ceiling and has access to the grilling porch.
  • The master bath offers a glass shower, whirlpool tub, dual vanities, and a walk-in closet. Bedroom 2 and 3 are on the other side of the house and bedroom 3 could double as an office.
  • Related Plan: Get an alternate exterior with house plan 59987ND.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

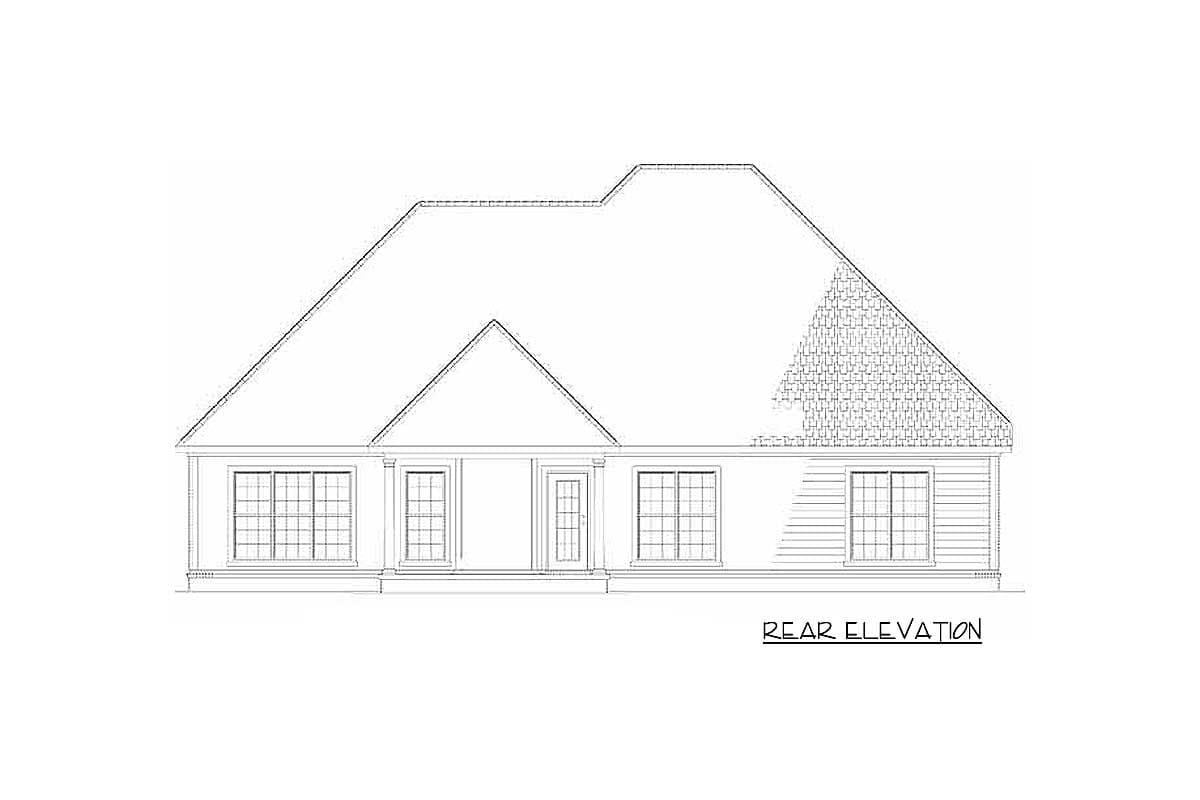

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,629 sq. ft.

1st Floor

1,629 sq. ft.

Bonus

383 sq. ft.

Porch, Front

45 sq. ft.

Porch, Rear

143 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 2"

Depth

60' 8"

Max Ridge Height

27' 4"

Garage

Type

Attached

Area

569 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

Traditional

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
