Plan 40516WM
Charming 4-Bed Cottage House Plan with Options - 1481 Sq Ft
Heated S.F.
1,481
Beds
4
Baths
2
Stories
1
Floor Plan

Plan 40516WM

Main Level
slide image 0

Plan 40516WM

1-800-854-7852

1-262-521-4596

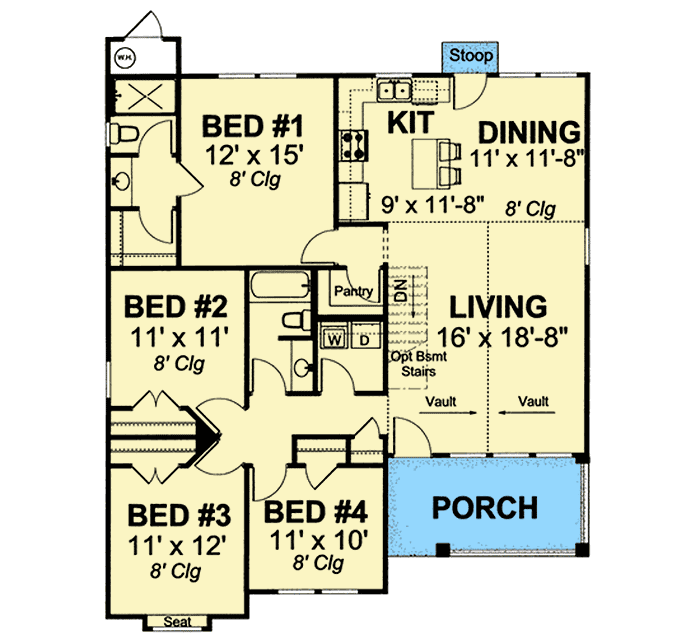

Main Level
floor plan image Main Level
Plan Details
  • A cozy front porch greets you and to this 4-bed cottage house plan and provides shelter as you enter the home into the vaulted open floor plan.
  • The living room is open to the kitchen and dining room.
  • The bedrooms are clustered on the left with laundry convenient to all.
  • Related Plans: For an alternate layout, see house plan 40518WM. Add a garage with house plans 40517WM and 40519WM.
What's Included
  • Front elevation and construction notes

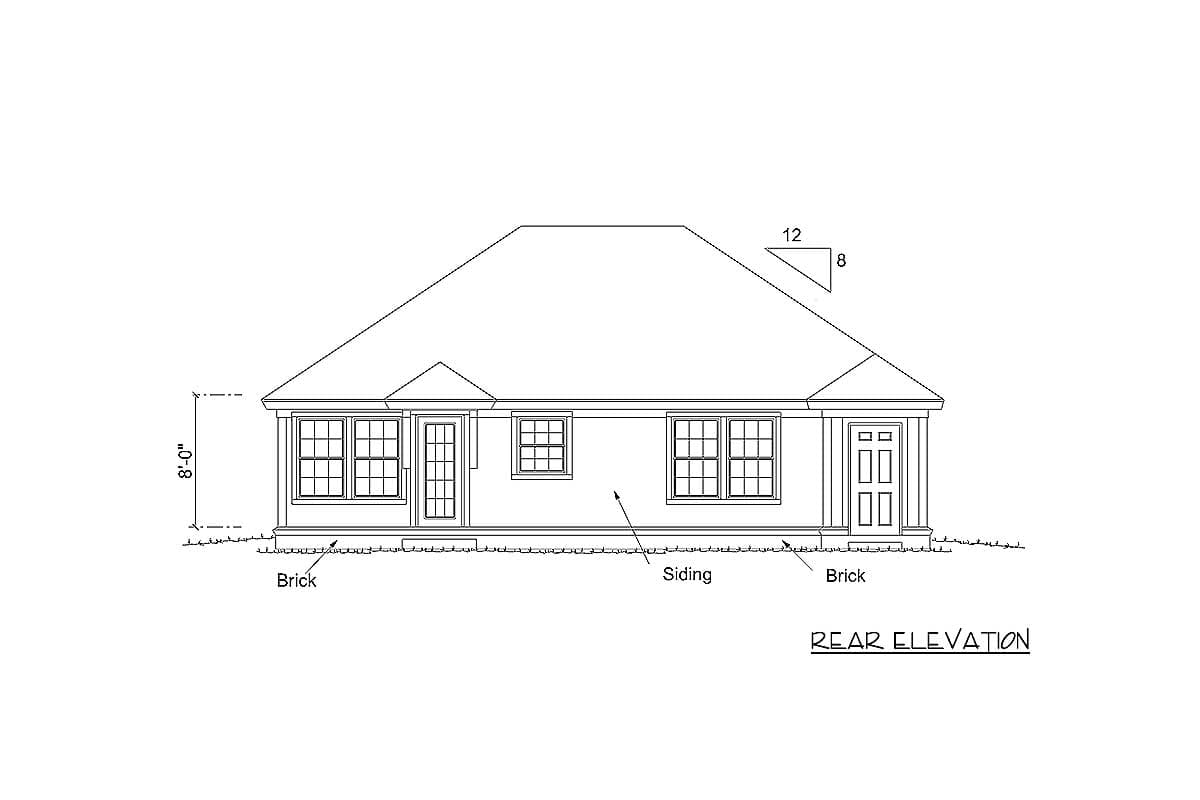

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,481 sq. ft.

1st Floor

1,481 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

47' 0"

Max Ridge Height

19' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Architectural Style

Cottage

Southern

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,481 sq. ft.

1st Floor

1,481 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

47' 0"

Max Ridge Height

19' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Architectural Style

Cottage

Southern

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor
