Plan 765016TWN
Charming 4-Bed House Plan with Lower-level Garage - 3214 Sq Ft
Heated S.F.
3,214
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 765016TWN

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 765016TWN

1-800-854-7852

1-262-521-4596

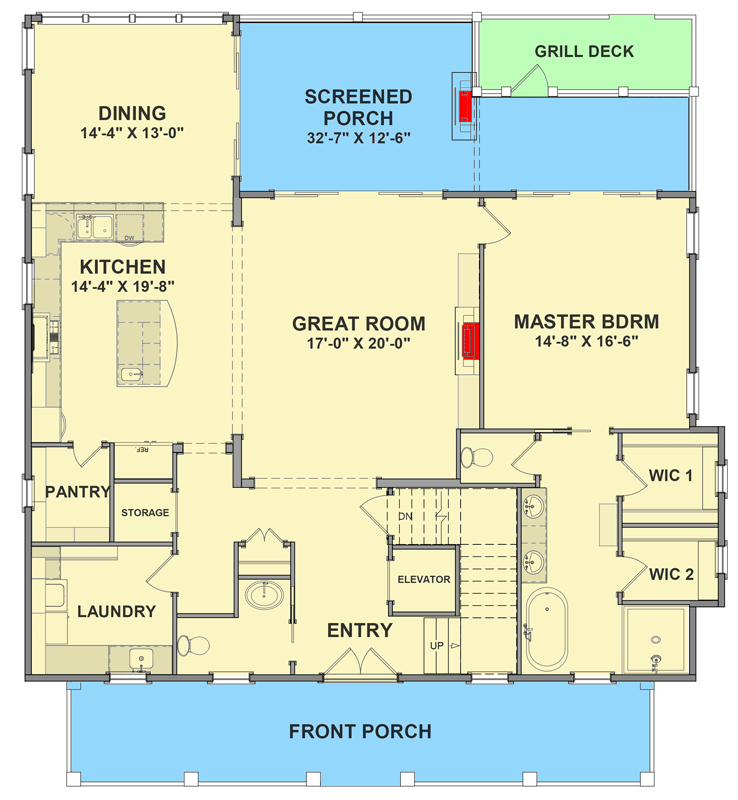

Main Level
floor plan image Main Level

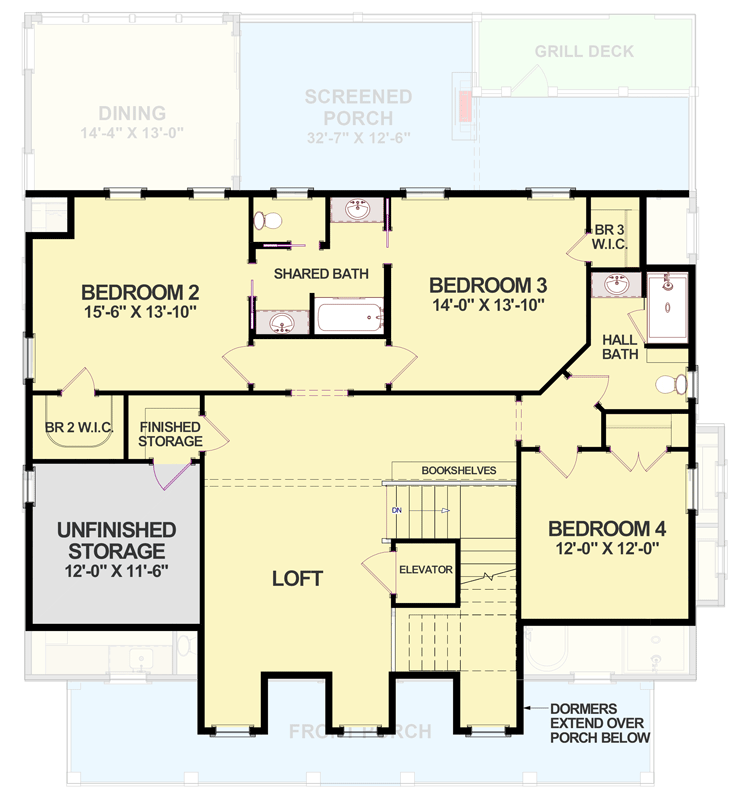

2nd Floor
floor plan image 2nd Floor

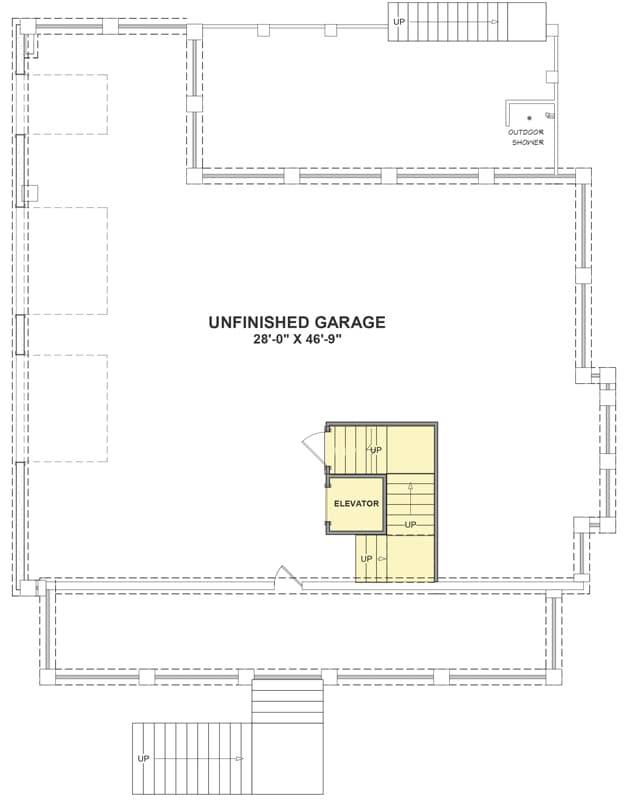

Lower Level
floor plan image Lower Level
Plan Details
  • The symmetrical exterior adds a sense of comfort to the curb appeal of this charming, 4-bedroom house plan with three dormers and 3,214 square feet of heated living space.
  • The generously-sized front porch welcomes visitors, while encouraging you to enjoy the views. Once inside, a powder bath and coat closet are conveniently located to the left.

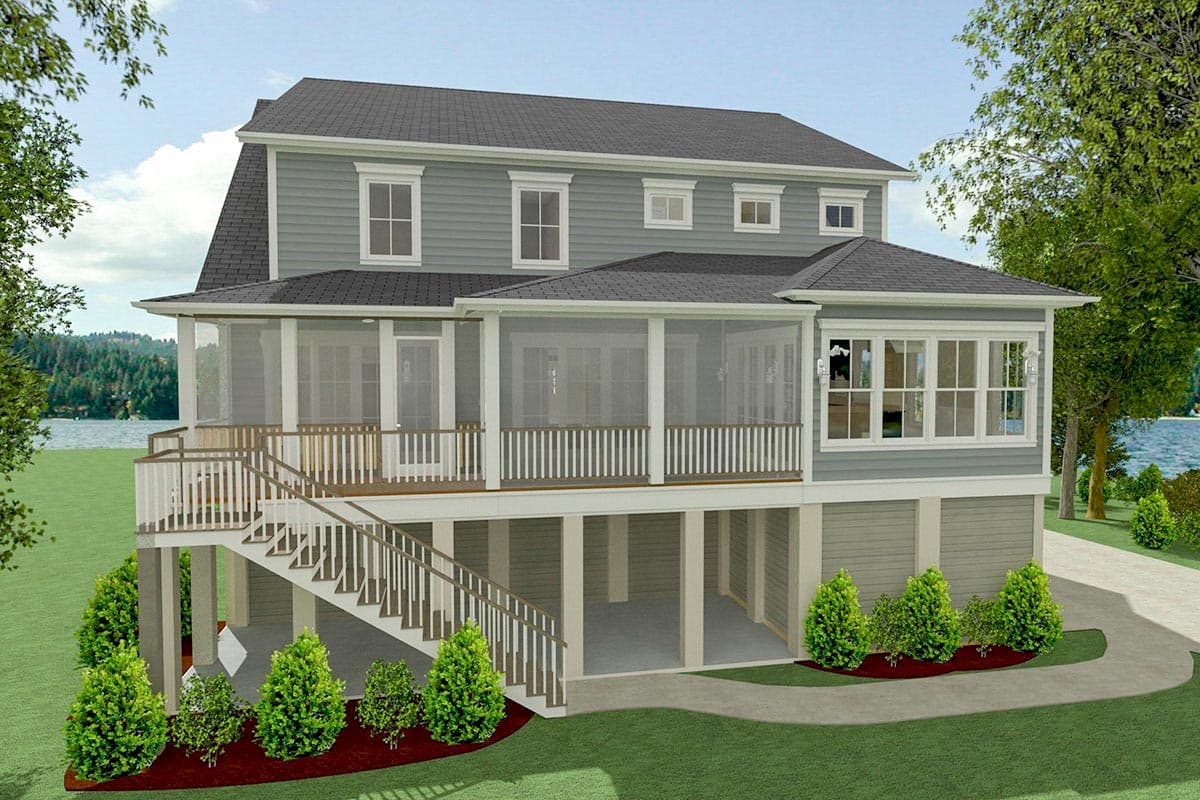

  • A spacious, screened porch, with a fireplace, offers three points of access: the great room, dining room, and master bedroom. The open layout creates an ideal space for family gatherings, while ample workspace and storage space help when entertaining.
  • The main-level master bedroom considers your future needs, and features an en suite with dual closets, a toilet room, and a freestanding tub.
  • Upstairs, discover three bedrooms; two share a Jack-and-Jill bath, and one neighbors a full bath. A loft with built-in bookshelves resides at the top of the stairs, offering a space for the kids to relax.
  • The lower level of the home consists of the 2-car garage with a bay for lawn equipment, along with an outdoor shower. Utilize the elevator when carrying groceries, or the stairs, to move between the floors.
What's Included
  • Cover Sheet with General Notes
  • Foundation Plan
  • Floor Plans with Dimensions
  • Exterior Elevations
  • Cross Section
  • Door & Window Schedules
  • Roof plan
  • Electrical Plans
  • Cabinetry Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,214 sq. ft.

1st Floor

1,899 sq. ft.

2nd Floor

1,315 sq. ft.

Porch, Combined

326 sq. ft.

Screened Porch

238 sq. ft.

Deck

87 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Post/Pier

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

55' 0"

Max Ridge Height

41' 6"

Garage

Type

Drive Under, Attached

Area

1899 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Low Country

Southern

Special Features

Butler Walk-in Pantry

Elevator

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Outdoor Fireplace
