Name: Plan 6964AM: Charming Bungalow with Finished Lower Level - 2964 Sq Ft
SKU: 6964AM
Price: 1545.6 USD
Availability: InStock

Plan 6964AM

Charming Bungalow with Finished Lower Level - 2964 Sq Ft

Heated S.F.

2,964

Beds

2 - 4

Baths

2 - 3

Stories

Cars

Floor Plan

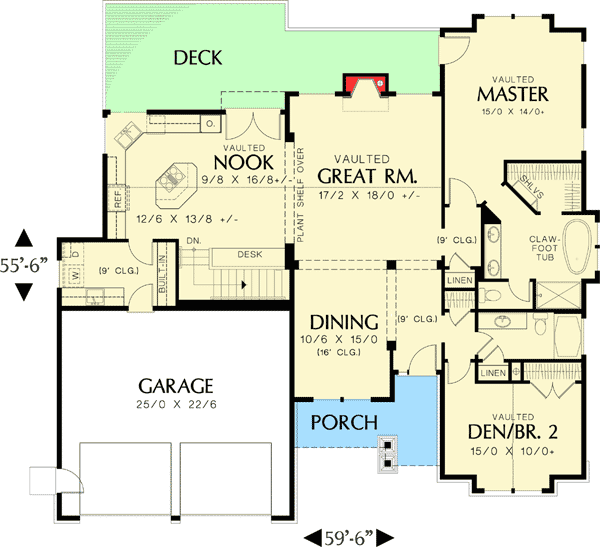

Main Level

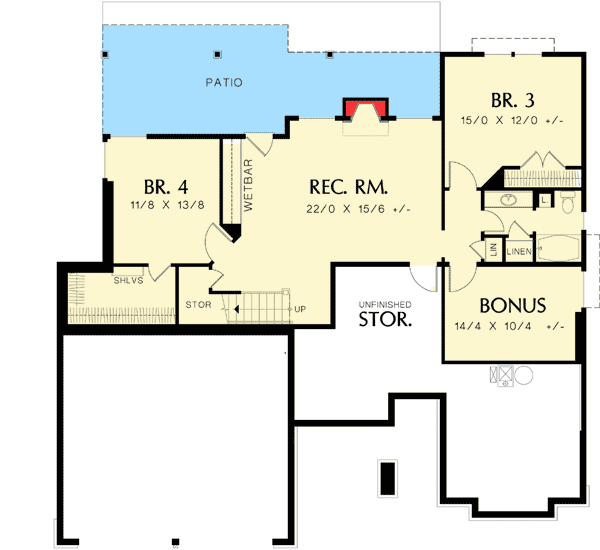

Lower Level

Plan Details

This charming bungalow has lots of character and a reasonable budget! At just 2,964 square feet this efficient house plan will allow you to control building costs so you can afford to keep its eye-catching details including carriage-style garage doors, a stone-accented foundation, and gable brackets.
The versatile floor plan will meet the needs of the empty-nester or young family. The den offers work-at-home space for down-sizing empty-nesters or it has the option to become a bedroom for the young couple who need a nursery.
The kitchen island defines the cook's work space, yet maintains the openness that allows the cook to converse with those in the breakfast nook and great room. The island's arching bar is ideal whether serving a quick breakfast or laying out a buffet at a party.
A plant shelf in the great room, columns in the entry and dining room, and a claw-foot master suite tub impart consistency with the early 20th century roots of bungalow architecture.
When more space is needed for children and grandchildren, the lower level can be finished with two additional bedrooms, a rec room, bonus room, and large storage area.

What's Included

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
IMPORTANT NOTE: Sections and elevations depict the standard foundation only.
Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
