Plan 59739ND
Charming Cottage
Heated S.F.
1,559
Beds
3
Baths
2
Stories
2
Cars
2
Floor Plan

Plan 59739ND

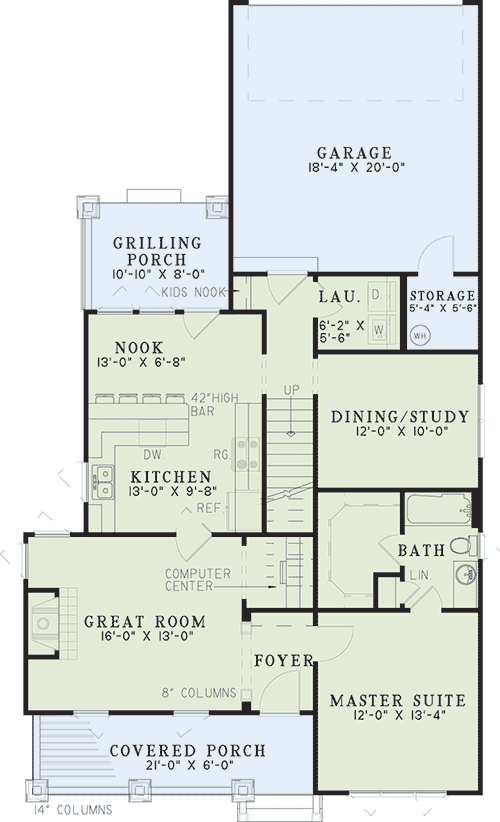

Main Level
slide image 0

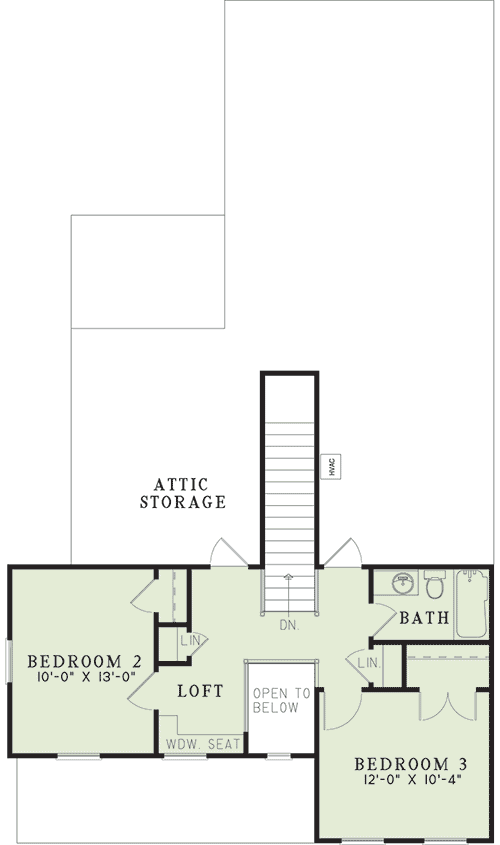

2nd Floor
slide image 1

Plan 59739ND

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • The simple elegance of this charming cottage home plan will capture your heart. As you enter the foyer, you'll admire the graceful appeal of the eight-inch columns that invite you into the spacious great room.
  • Starting the day will be fun for everyone in the quaint breakfast nook with access to the rear grilling porch.
  • After everyone is off to work or play, you'll be able to relax upstairs, maybe reading your favorite book on the window seat, or retreating to the master suite with private bath complete with a huge walk-in closet.
  • This home plan also features two large bedrooms, loft area, and has ample storage space to suit your needs.
  • For an alternate exterior, see house plan 59163ND.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,559 sq. ft.

1st Floor

1,063 sq. ft.

2nd Floor

496 sq. ft.

Porch, Combined

212 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

34' 4"

Depth

59' 6"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

419 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Craftsman

Special Features

Breakfast Nook

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,559 sq. ft.

1st Floor

1,063 sq. ft.

2nd Floor

496 sq. ft.

Porch, Combined

212 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

34' 4"

Depth

59' 6"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

419 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Craftsman

Special Features

Breakfast Nook

Loft

Master Suite - 1st Floor
