Plan 51040MM
Charming Craftsman House Plan
Heated S.F.
1,509
Beds
3
Baths
2
Stories
1
Cars
2
Photos

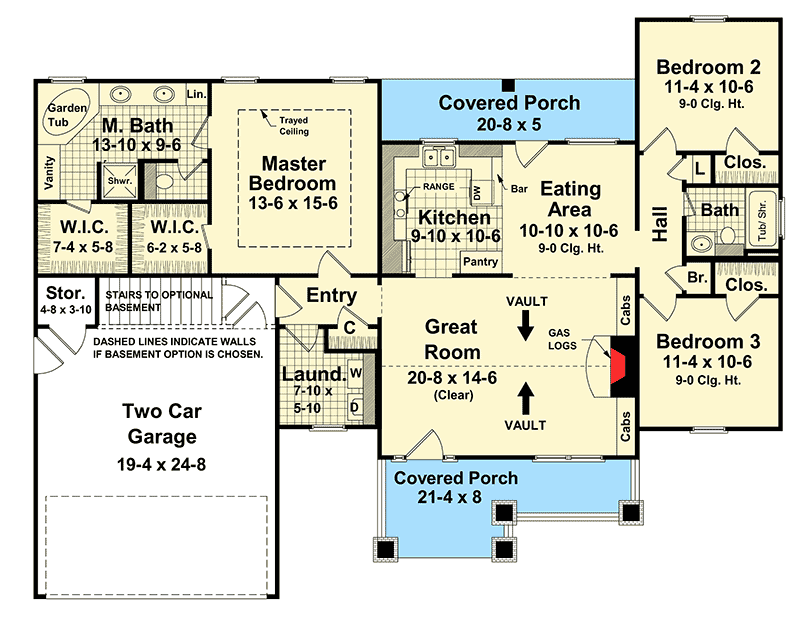

Floor Plan

Plan 51040MM

Main Level
slide image 0

Plan 51040MM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This Craftsman house plan provides a very functional split-floor plan layout with many of the features that your family desires including an expansive master bedroom / bath with trayed ceiling and plenty of storage space in the his and her walk-in closets.
  • The large great room features an attractive vaulted ceiling and a gas log fireplace.
  • Front and rear covered porches are great for enjoying the outdoors in comfort.
  • The laundry room is conveniently located.
  • An open kitchen layout with plenty of counter space for that growing family is sure to please.
  • The basement foundation option makes for a great value with a wide variety of innovative features.
  • Related Plans: Get more room with house plans 51159MM (1,627 sq. ft.), 51173MM (1,801 sq. ft.) and 51143MM (1,876 sq. ft.). Build in reverse with home plans 51041MM (1,800 s.f.) and 51043MM (2,067 s.f.). Get a slab or crawlspace with house plans 51122MM (1,853 s.f.) and 51131MM (1,604 sq. ft.).
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 51040MM comes to life in Texas

House Plan 51040MM comes to life in Texas

27

Photos

What's Included
This nine page plan set includes the following:
  • Cover Sheet
  • Foundation Plan
  • Foundation Details
  • Fully dimensioned floor plan

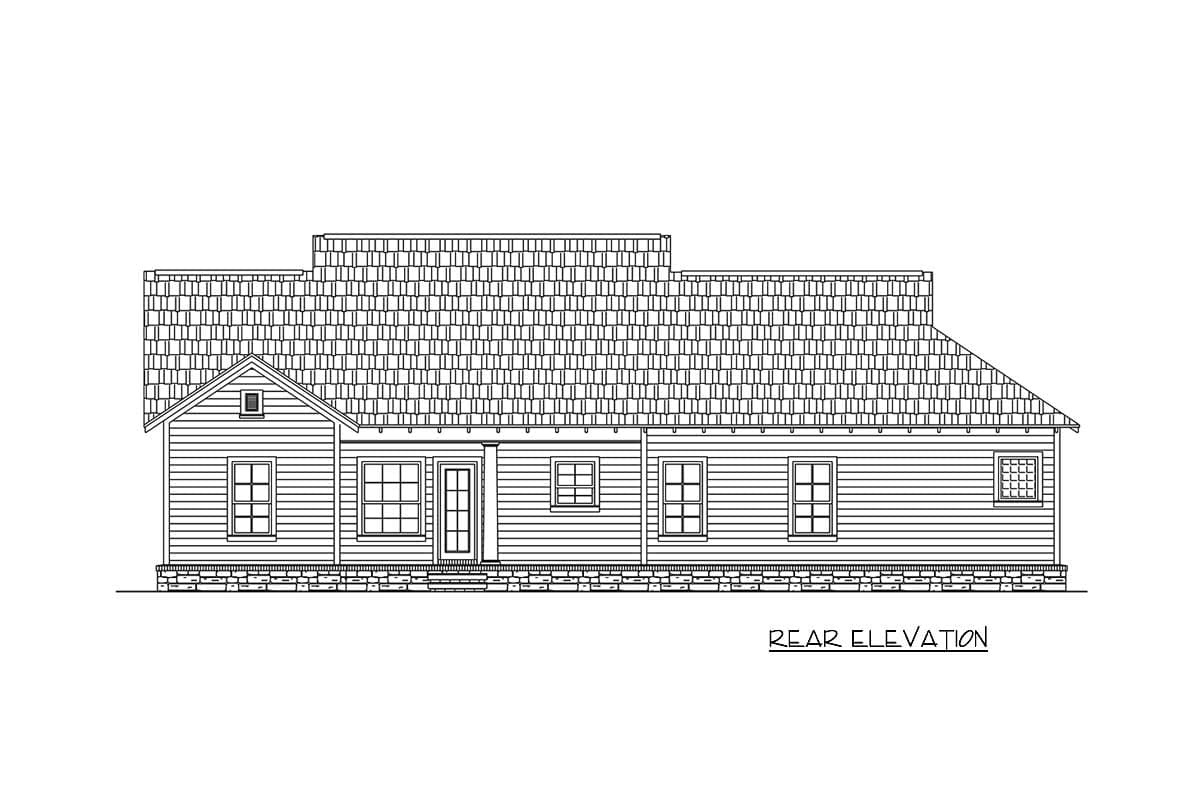

  • Front and Right elevations
  • Rear and Left elevations
  • Cross Section and Cabinet elevation
  • Roof Framing layout and Span tables for stick framed roof
  • Electrical Plan


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,509 sq. ft.

1st Floor

1,509 sq. ft.

Porch, Front

140 sq. ft.

Porch, Rear

103 sq. ft.

Storage

18 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

61' 0"

Depth

47' 4"

Max Ridge Height

22' 1"

Garage

Type

Attached

Area

519 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Great Room

Vaulted

13' 10''

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections

Photo Gallery

USDA Approved

Square Footage Breakdown

Total Heated Area

1,509 sq. ft.

1st Floor

1,509 sq. ft.

Porch, Front

140 sq. ft.

Porch, Rear

103 sq. ft.

Storage

18 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

61' 0"

Depth

47' 4"

Max Ridge Height

22' 1"

Garage

Type

Attached

Area

519 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Great Room

Vaulted

13' 10''

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections

Photo Gallery

USDA Approved
