Charming Craftsman House Plan with 3 car garage

Heated S.F.

3,435

Beds

4

Baths

3.5

Stories

2

Cars

3

Floor Plan

Main Level

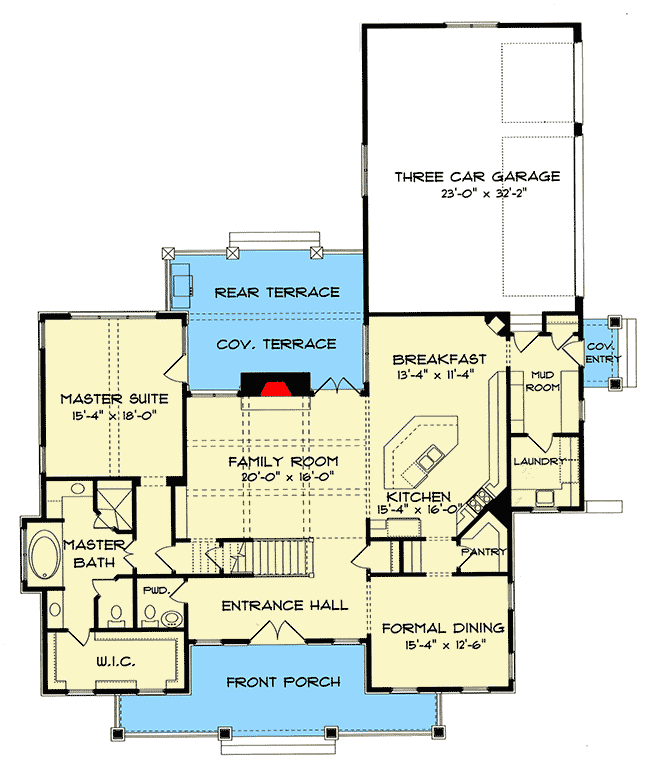

floor plan image Main Level

2nd Floor

floor plan image 2nd Floor

Plan Details

This charming house plan is made for outdoor living, with a large front porch and a covered terrace opening onto a large outdoor rear terrace.
A gourmet kitchen with walk-in pantry and a formal dining room highlight the open floor plan.
The downstairs master suite features a spacious master bath and walk-in closet.
Upstairs you’ll find three suites and a game room.
There’s plenty of room for parking and workshop space in the attached garage with 3-car dimensions.

What's Included

Cover Sheet
General Note Sheet
Foundation Sheet
Floor Plan
Roof Framing Plan
4 Elevations
Openings & Sections Sheet
Foundation Details
Cornice Details
Electrical

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,435 sq. ft.

1st Floor

2,126 sq. ft.

2nd Floor

1,309 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

66' 10"

Depth

80' 6"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

740 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Square Footage Breakdown

Total Heated Area

3,435 sq. ft.

1st Floor

2,126 sq. ft.

2nd Floor

1,309 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

66' 10"

Depth

80' 6"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

740 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
