Plan 17587LV
Charming European House Plan with Circular Stair
Heated S.F.
4,290
Beds
3
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 17587LV

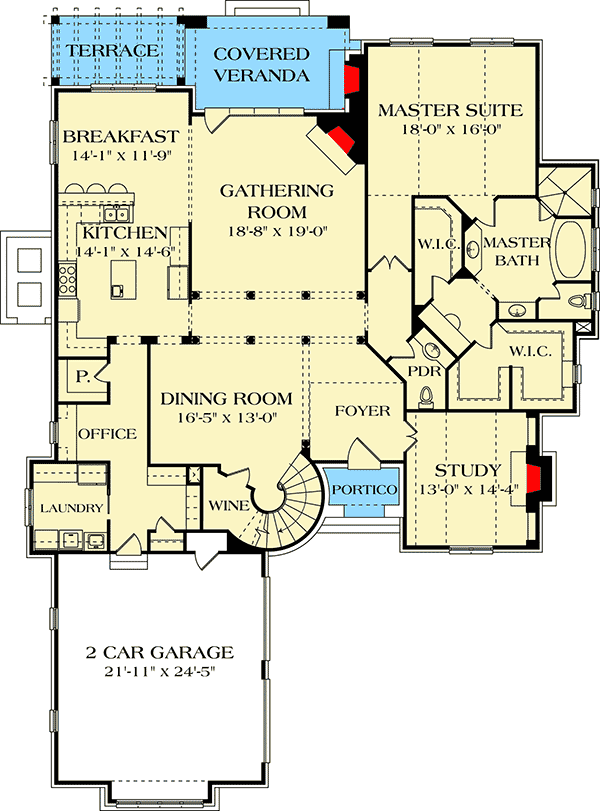

Main Level
slide image 0
2nd Floor
slide image 1

Plan 17587LV

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Charming European elements create an impressive look and feel to this home.
  • Brick with stone accents and a turret featuring ascending arched casement windows adorn the front.
  • The rear of the home displays a stone, covered veranda with outdoor fireplace aside from an elegant pergola.
  • The view from the breakfast room is through the pergola with its greenery and climbing, flowering fauna greeting you at the start of each day.
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,290 sq. ft.

1st Floor

2,705 sq. ft.

2nd Floor

1,585 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

61' 7"

Depth

85' 7"

Garage

Type

Attached

Area

593 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

European

French Country

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Outdoor Fireplace

Plan Collections

Luxury
