Plan 710059BTZ
Charming House Plan with 4th Bedroom Option
Heated S.F.
1,764
Beds
3 - 4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 710059BTZ

Main Level
slide image 0
2nd Floor
slide image 1
Optional 4th Bedroom
slide image 2

Plan 710059BTZ

1-800-854-7852

1-262-521-4596

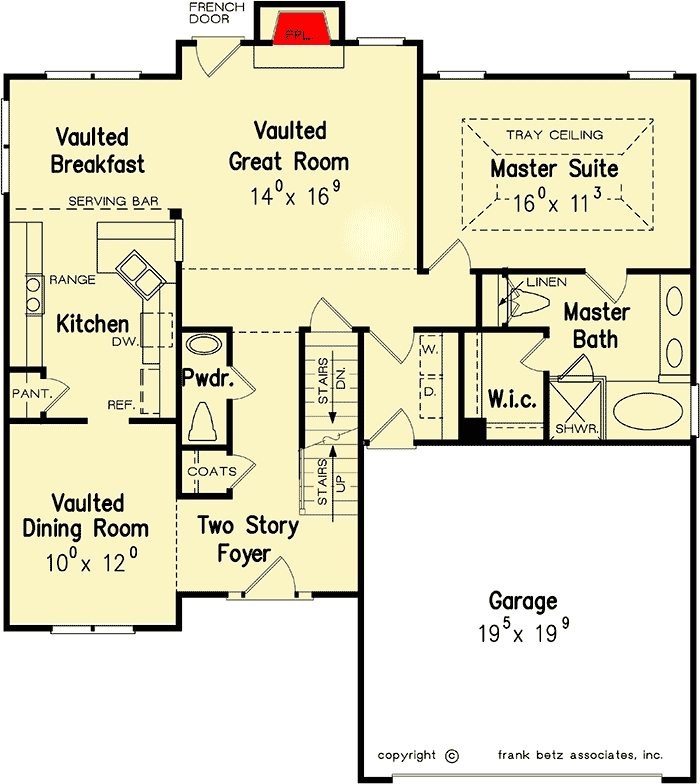

Main Level
floor plan image Main Level

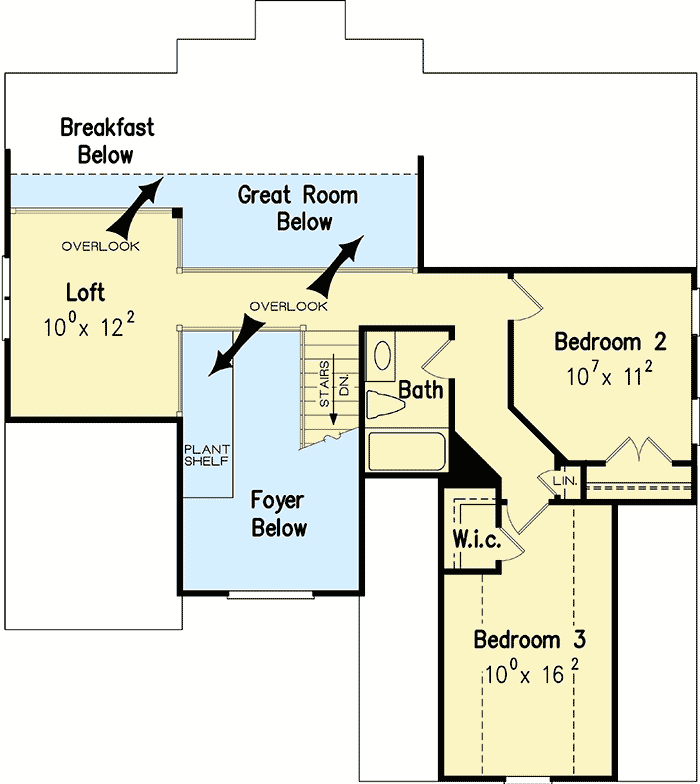

2nd Floor
floor plan image 2nd Floor
Optional 4th Bedroom
floor plan image Optional 4th Bedroom
Plan Details
  • First-time homeowners or those seeking to downsize will appreciate the charm and character that this 3-bed house plan (with a 4th bed option) in its conservative square footage.
  • Vaulted ceilings throughout the main level of the home keep this space feeling roomy and open.
  • A handy serving bar in the kitchen makes casual meal-time and entertaining convenient and fun.
  • A loft overlooks the great room from the second floor and makes a wonderful play area for kids or home office. This space can also be easily changed to a fourth bedroom for those who prefer it.
  • The garage entry is routed through the laundry room, keeping shoes and coats in their place.
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,764 sq. ft.

1st Floor

1,144 sq. ft.

2nd Floor

620 sq. ft.

Basement Unfinished

1,144 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

41' 0"

Depth

46' 4"

Max Ridge Height

25' 10"

Garage

Type

Attached

Area

383 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

1,764 sq. ft.

1st Floor

1,144 sq. ft.

2nd Floor

620 sq. ft.

Basement Unfinished

1,144 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

41' 0"

Depth

46' 4"

Max Ridge Height

25' 10"

Garage

Type

Attached

Area

383 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Plan Collections

Home Office
