Plan 17705LV
Charming Shingle Cottage
Heated S.F.
2,029
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 17705LV

Main Level
slide image 0
Bonus
slide image 1

Plan 17705LV

1-800-854-7852

1-262-521-4596

Main Level

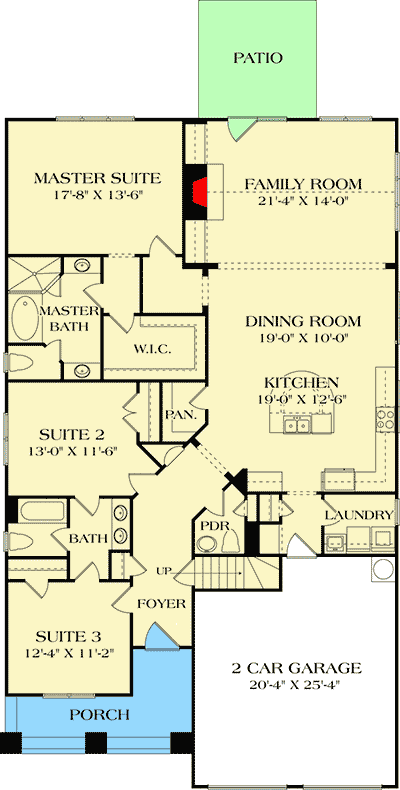

floor plan image Main Level
Bonus
floor plan image Bonus
Plan Details
  • All the appeal of a charming cottage greets you as you walk up the path to the covered porch.
  • Only 40' wide, this cottage would fit well on a narrow lot.
  • All the bedrooms lie on the left side of the house with the master suite being placed in the rear for quiet.
  • The main living area of the home plan combines the kitchen, dining and family room for spectacular views.
  • The master bedroom has a large walk-in closet measuring 10'-4" x 6'-7".
  • A second floor bonus space can be finished to suit your needs.
  • Related Plan: Get a front-entry garage with house plan 17677LV.
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,029 sq. ft.

1st Floor

2,029 sq. ft.

Bonus

456 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 0"

Depth

68' 2"

Garage

Type

Attached

Area

491 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Architectural Style

Cottage

Craftsman

Northwest

Shingle

Special Features

Bedrooms - Clustered

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,029 sq. ft.

1st Floor

2,029 sq. ft.

Bonus

456 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 0"

Depth

68' 2"

Garage

Type

Attached

Area

491 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Architectural Style

Cottage

Craftsman

Northwest

Shingle

Special Features

Bedrooms - Clustered

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor
