Plan 510033WDY
Charming Southern House Plan
Heated S.F.
2,685
Beds
4 - 5
Baths
3 - 4
Stories
1-2
Cars
3
Floor Plan

Plan 510033WDY

Main Level
slide image 0
Bonus
slide image 1

Plan 510033WDY

1-800-854-7852

1-262-521-4596

Main Level

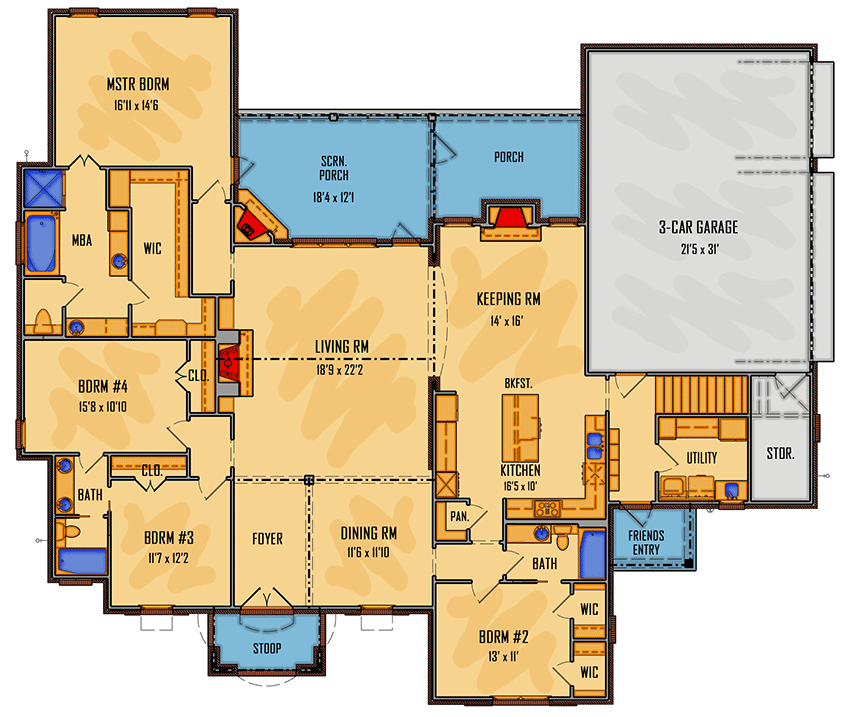

floor plan image Main Level
Bonus
floor plan image Bonus
Plan Details
  • With its interesting roof lines and transom windows, this Southern house plan presents a charming facade.

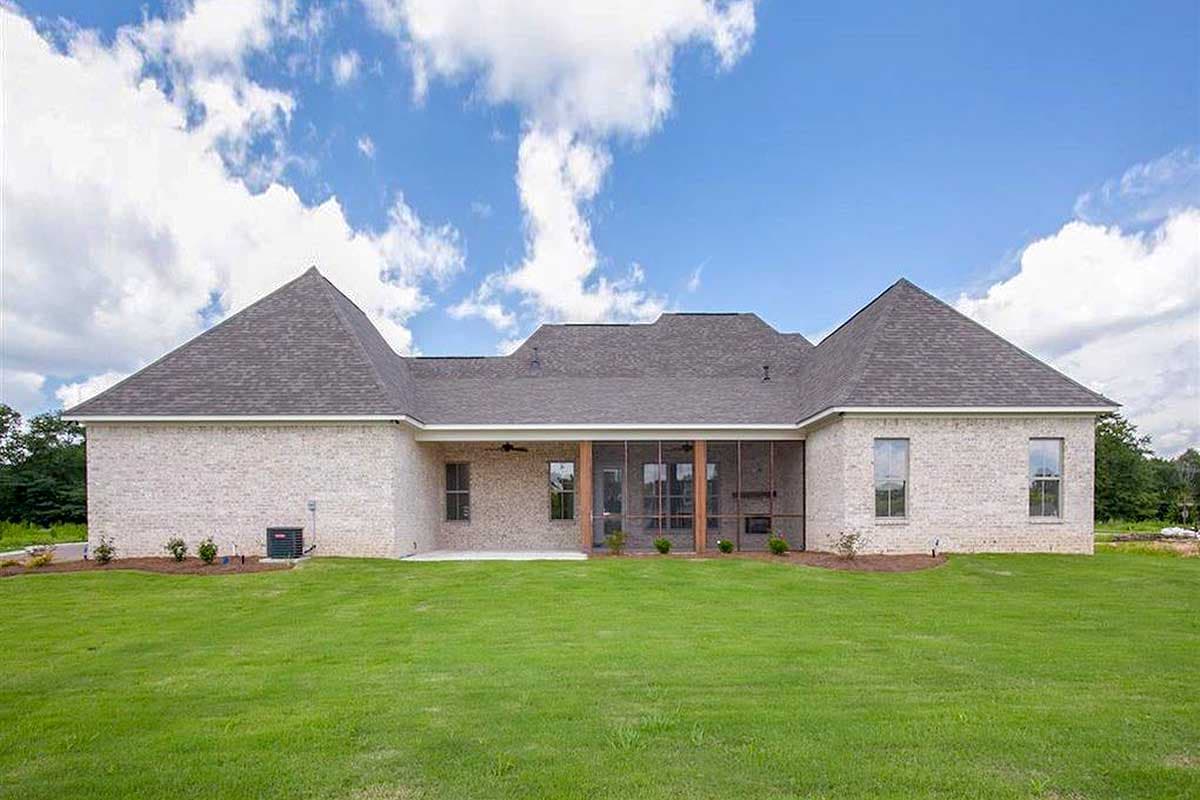

  • Amenities such as a screened porch with fireplace, open floor plan and second floor optional bonus room are wonderful perks.

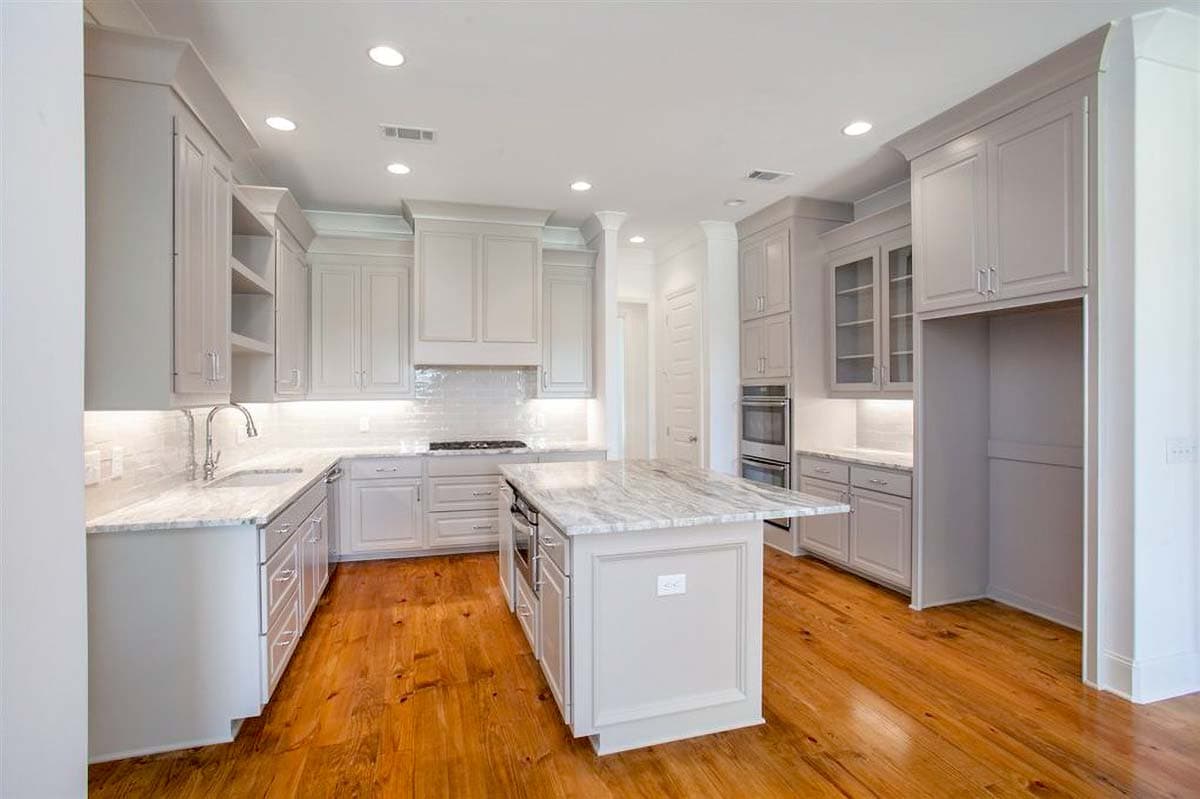

  • In the large kitchen, the views extend into the large keeping room so you can watch the kids play while cooking.
  • Bedroom 2 is set off by itself and has two walk-in closets and an attached bathroom making it ideal as an in-law suite.
  • Bedrooms 3 and 4 are on the opposite side of the home with a shared bathroom.
  • And the master suite has the best location in the house in the back away from street noise.
What's Included
This plan has 8 pages as follows:
  1. Coversheet Color Rendering
  2. First Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

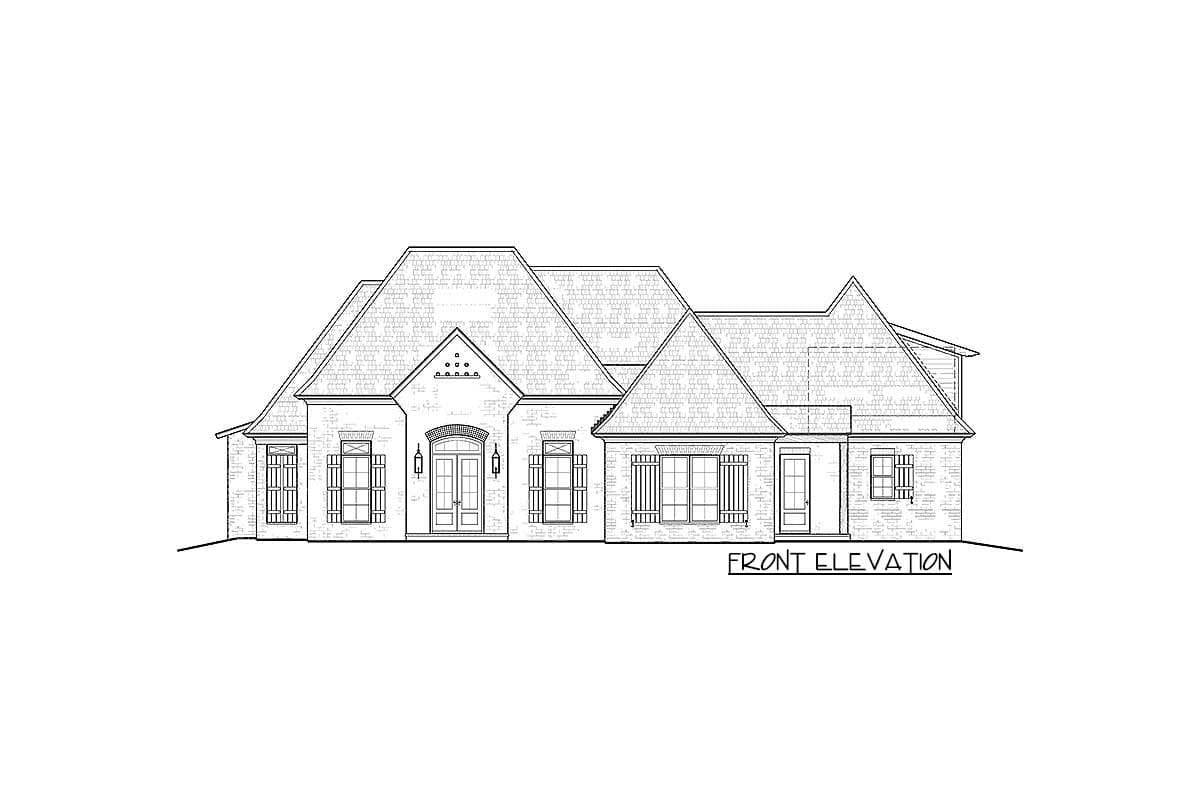

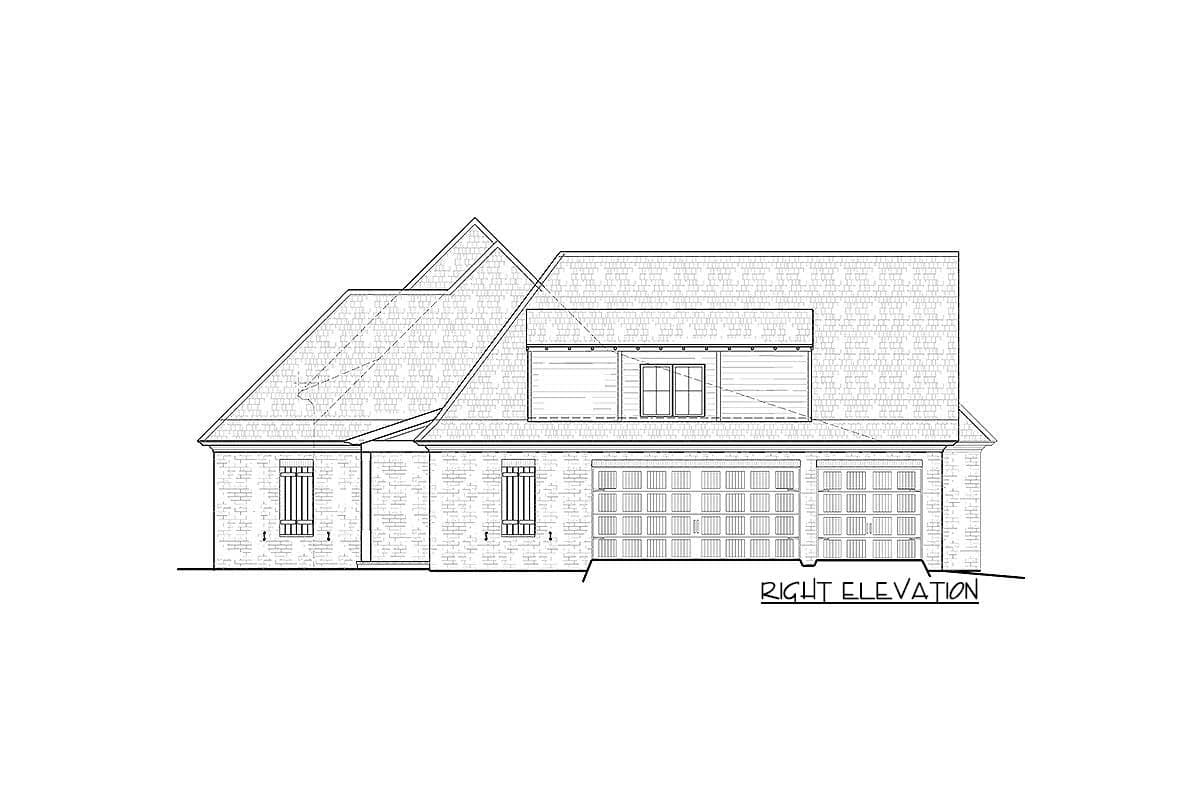

  3. Second Floor Dimensions, Notes, Door and Window Sizes, Beam Sizing, Wall Flashing Detail, Front Exterior Elevation, Right Exterior Elevation

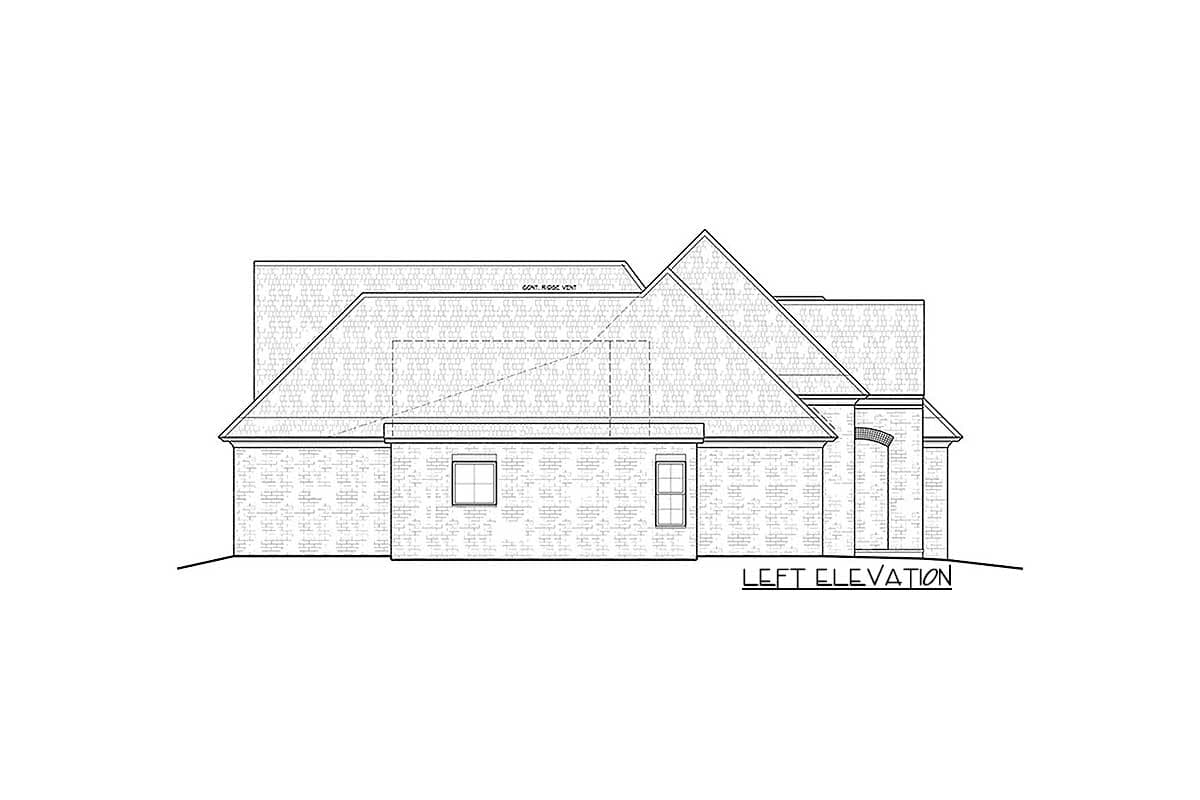

  4. Rear Exterior Elevation, Left Exterior Elevation, Roof Plan, Roof Support Brick Detail, Wall Flashing Detail, True Jack Arch Detail
  5. Building Section, Cornice Details, Ridge Vent Detail, Strong Back Detail, Flashing Detail, Stair Detail, Rafter Span Schedule
  6. First Floor & Second Floor Electrical Plans and Schedules
  7. Slab Foundation
  8. Footing Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,685 sq. ft.

1st Floor

2,685 sq. ft.

Bonus

350 sq. ft.

Porch, Front

68 sq. ft.

Porch, Rear

384 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

77' 3"

Depth

67' 2"

Max Ridge Height

29' 10"

Garage

Type

Attached

Area

761 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 16

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

French Country

Southern

Traditional

Special Features

Bedrooms - Clustered

Bonus Room

Butler Walk-in Pantry

In-Law Suite

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,685 sq. ft.

1st Floor

2,685 sq. ft.

Bonus

350 sq. ft.

Porch, Front

68 sq. ft.

Porch, Rear

384 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

77' 3"

Depth

67' 2"

Max Ridge Height

29' 10"

Garage

Type

Attached

Area

761 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 16

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

French Country

Southern

Traditional

Special Features

Bedrooms - Clustered

Bonus Room

Butler Walk-in Pantry

In-Law Suite

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery
