Plan 570002LEF
Charming Southern House Plan
Heated S.F.
2,779
Beds
3 - 4
Baths
3
Stories
1
Cars
3
Floor Plan

Plan 570002LEF

Main Level
slide image 0

Plan 570002LEF

1-800-854-7852

1-262-521-4596

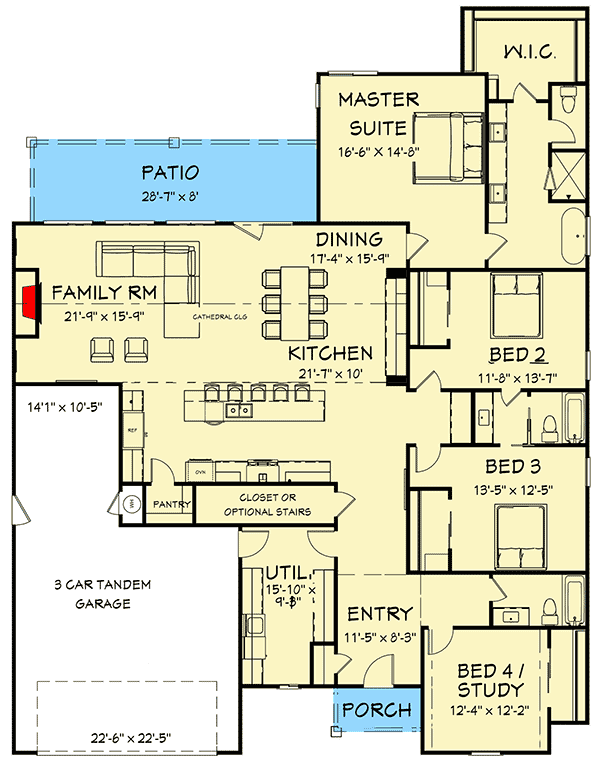

Main Level
floor plan image Main Level
Plan Details
  • The steep hip roof of this Southern house plan adds loads of charm.
  • The gourmet kitchen offers a big island that faces the vaulted family room and dining room.
  • There's room for five stools so you can dine casually too.
  • This home comes with a walk-in pantry and a tandem 3 car garage.
  • Choose from four bedrooms or three and a study.
  • The master suite is located at the back of the home away from street noise.
What's Included
  • Exterior elevations
  • Detailed floor plans
  • Roof plans
  • Foundation plans
  • Electrical plans
  • Typical Wall Section
  • Typical Stair Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,779 sq. ft.

1st Floor

2,779 sq. ft.

Porch, Combined

275 sq. ft.

Covered Patio

230 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

57' 10"

Depth

75' 0"

Max Ridge Height

33' 2"

Garage

Type

Attached

Area

672 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Family Room

Cathedral

0' 0''

Kitchen

Cathedral

0' 0''

Dining Room

Cathedral

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Architectural Style

French Country

Southern

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Two Story Great Room
