Plan 770005CED

Exclusive

Charming Traditional House Plan

Heated S.F.

2,626

Beds

3

Baths

2.5

Stories

2

Cars

2

Floor Plan

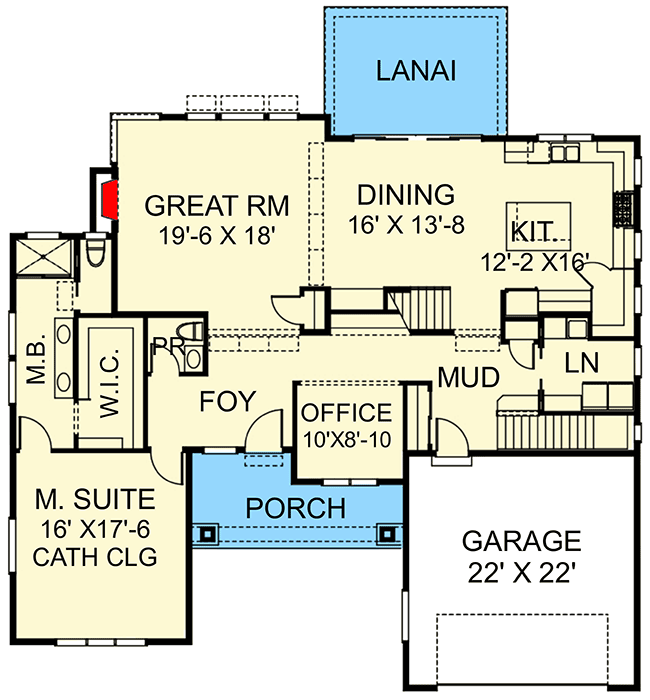

Main Level

floor plan image Main Level

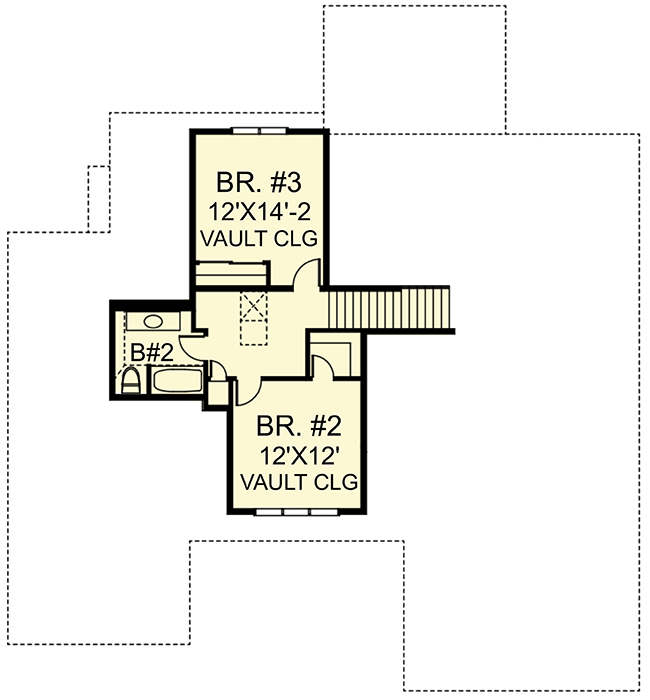

2nd Floor

floor plan image 2nd Floor

Plan Details

A big shed dormer sits over the front porch of this charming Traditional house plan.
With a big, open layout, this floor plan gives you walls of glass across the back.

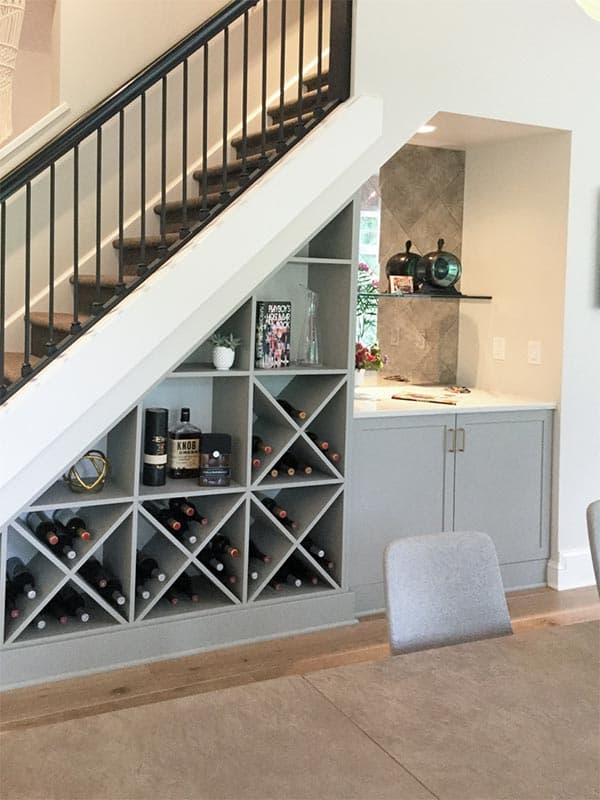

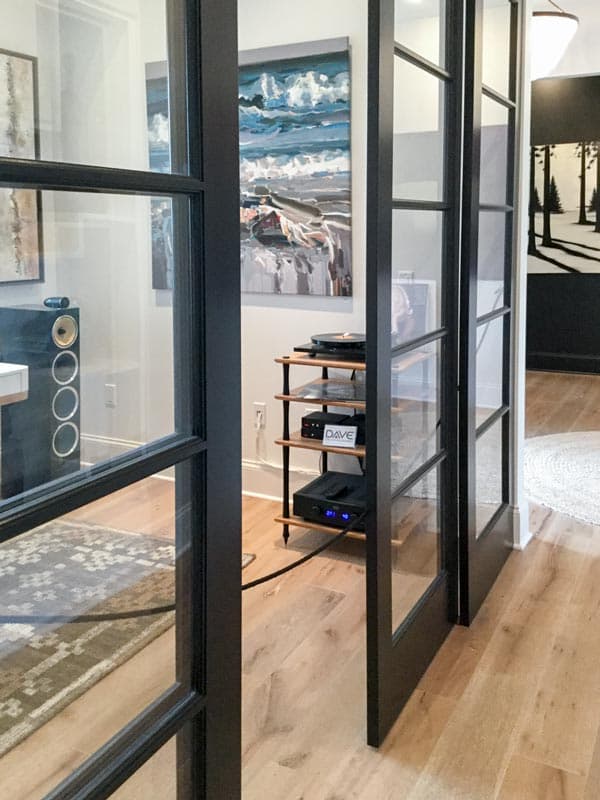

Dramatic touches include cathedral entry, French sliding doors into the front study, a special window in the laundry, and display shelves and beverage center tucked under stairs.

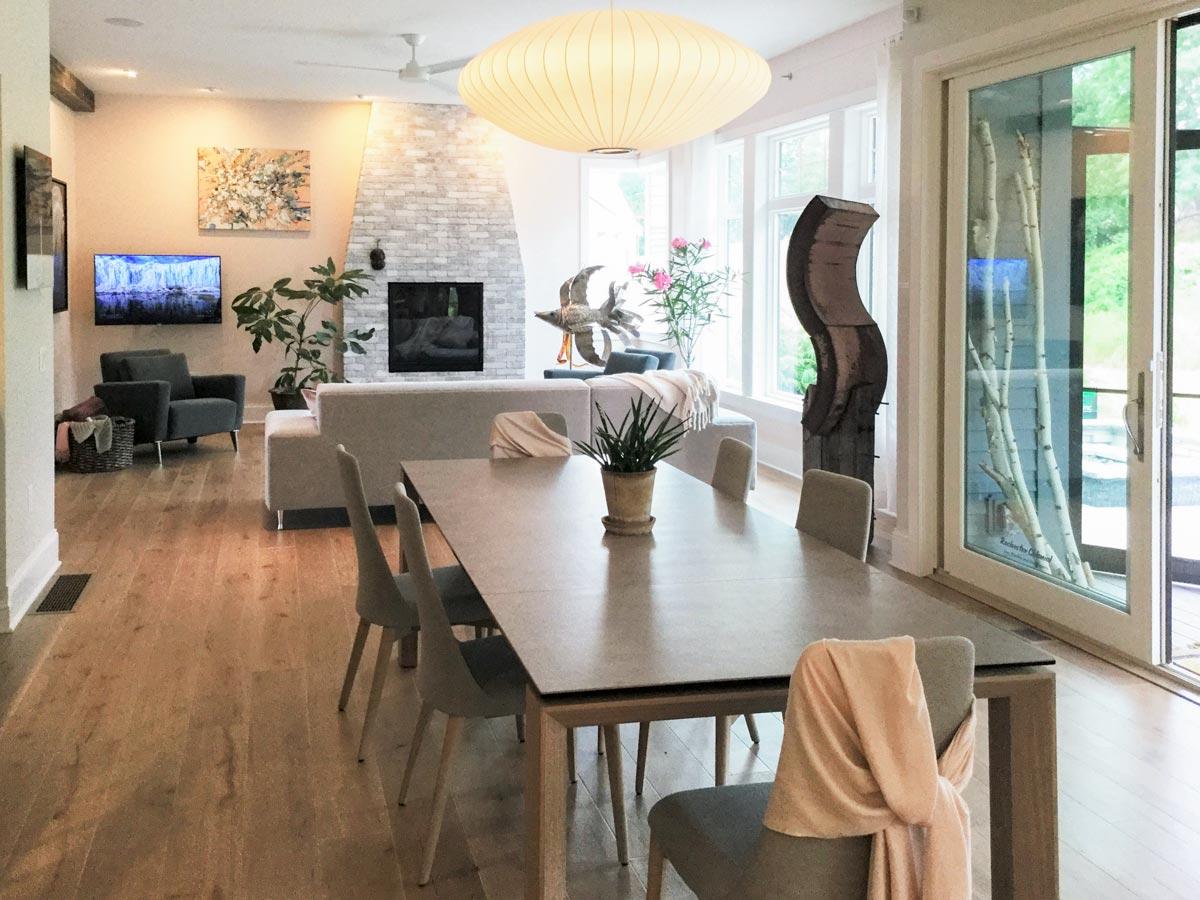

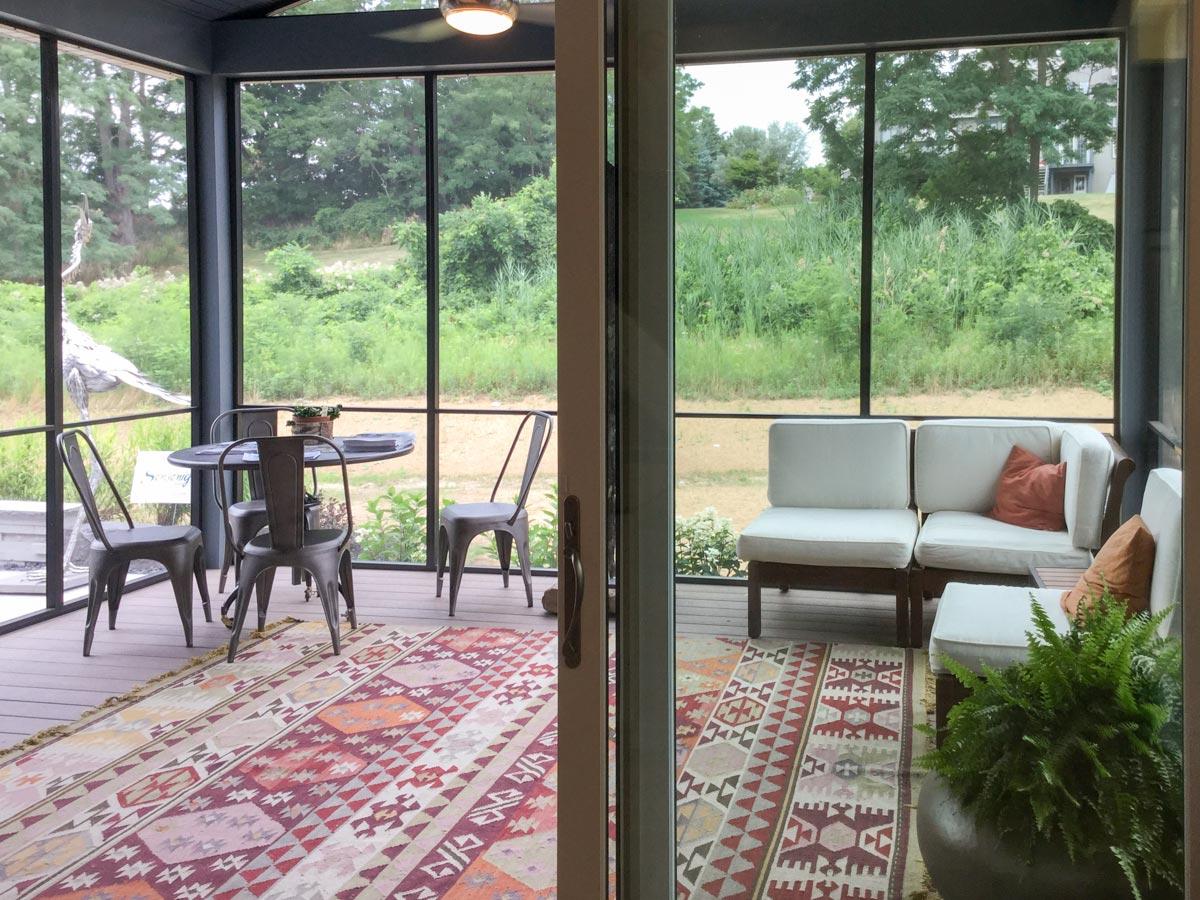

Sliding glass doors in the dining area lead out to a rear lanai.

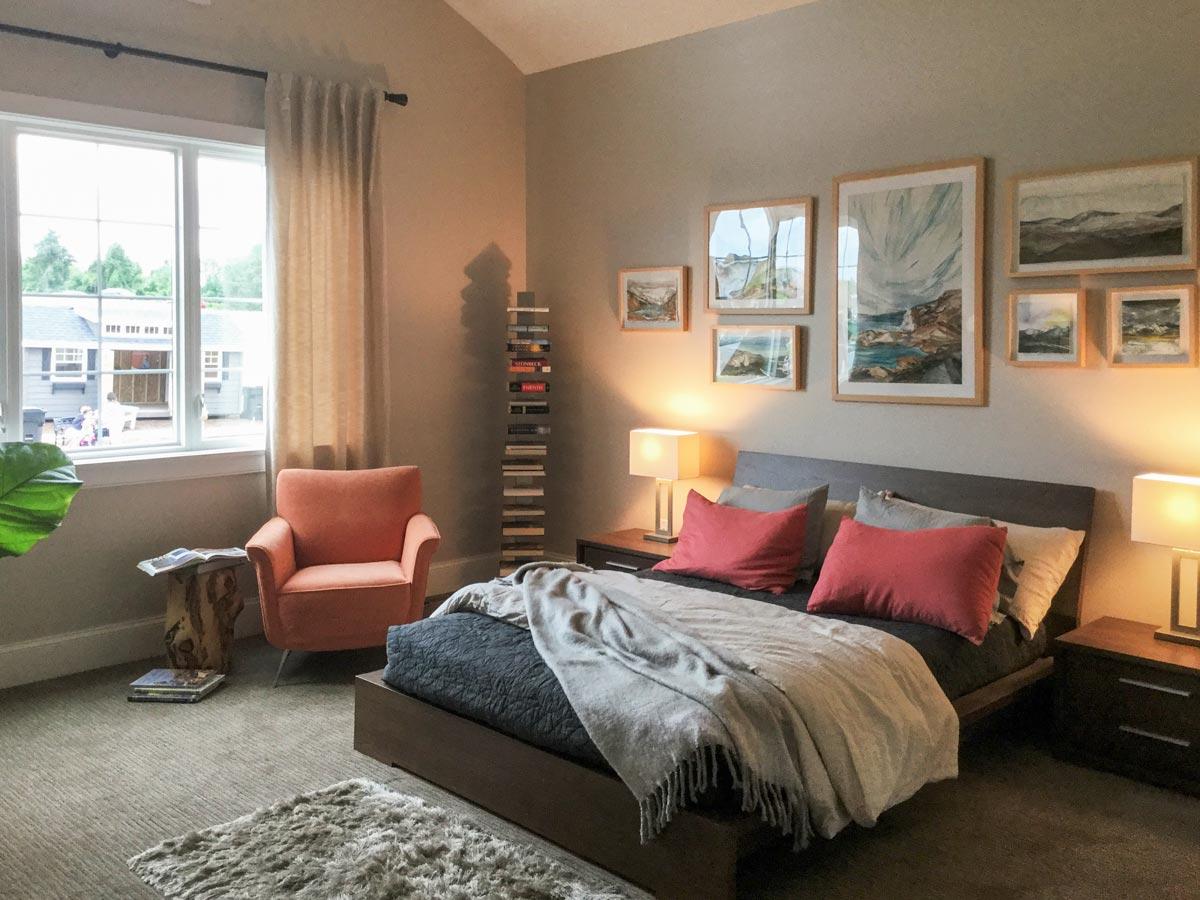

The master suite lies at the front of the house and it features a cathedral ceiling, private bathroom and big walk-in closet.
The pocket home office also face the front and has a double window.
Both family bedrooms on the second floor have vaulted ceilings.

What's Included

Cover sheet with general notes
Elevations
Foundation plan
Floor plan(s)
Roof framing plan
Sections

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,626 sq. ft.

1st Floor

2,061 sq. ft.

2nd Floor

565 sq. ft.

Porch, Front

147 sq. ft.

Lanai

203 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

59' 0"

Depth

64' 0"

Max Ridge Height

24' 3"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Room

Ceiling Type

Height

Master Bedroom

Cathedral

0' 0''

Bedroom 2

Vaulted

0' 0''

Bedroom 3

Vaulted

0' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Square Footage Breakdown

Total Heated Area

2,626 sq. ft.

1st Floor

2,061 sq. ft.

2nd Floor

565 sq. ft.

Porch, Front

147 sq. ft.

Lanai

203 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

59' 0"

Depth

64' 0"

Max Ridge Height

24' 3"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Room

Ceiling Type

Height

Master Bedroom

Cathedral

0' 0''

Bedroom 2

Vaulted

0' 0''

Bedroom 3

Vaulted

0' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
