Plan 444004GDN: Classic Craftsman Home Plan with 2-Story Great Room and Angled 3-Car Garage

Plan 444004GDN

Classic Craftsman Home Plan with 2-Story Great Room and Angled 3-Car Garage

Heated S.F.

3,102

Beds

Baths

3.5

Stories

Cars

Floor Plan

Main Level

2nd Floor

Plan Details

This classic Craftsman exterior features an arched entry framed in tapered, square columns. Twin gables with a single center dormer provide simplicity.
From the foyer, a flex room, or study, is located to the left with built-in shelves and access to a powder bath.

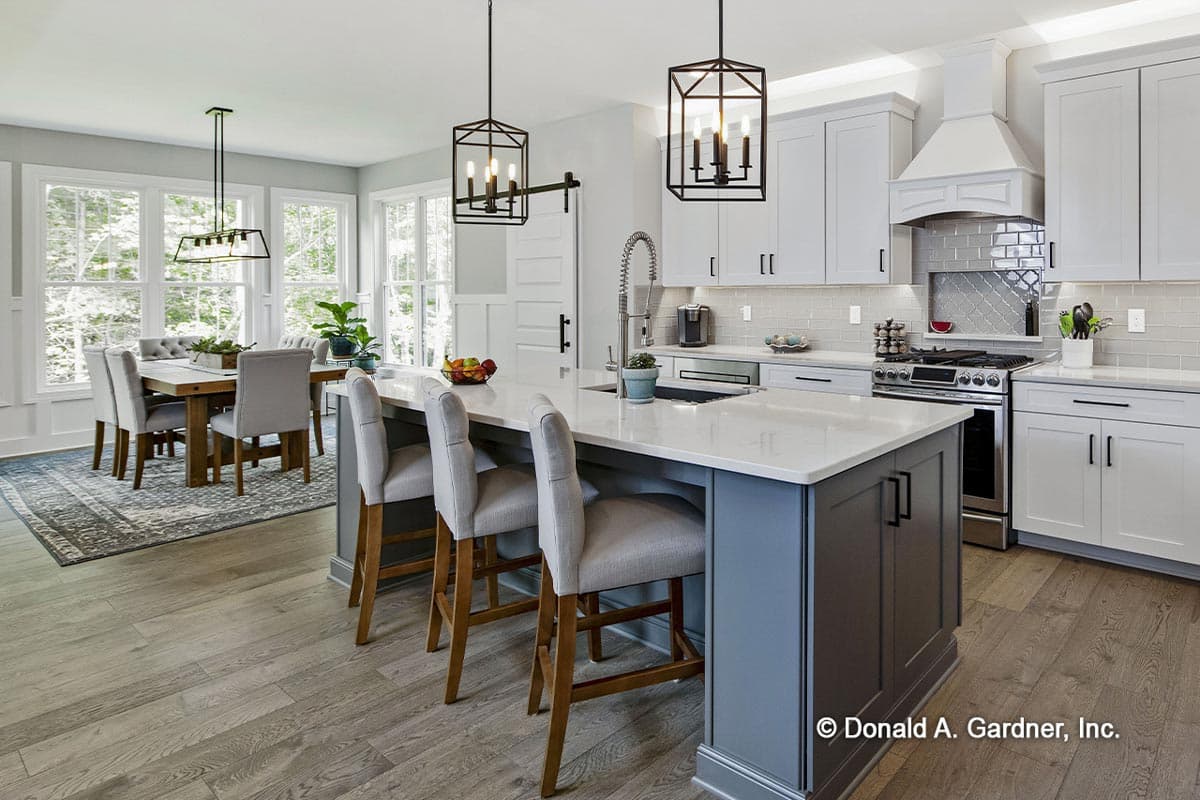

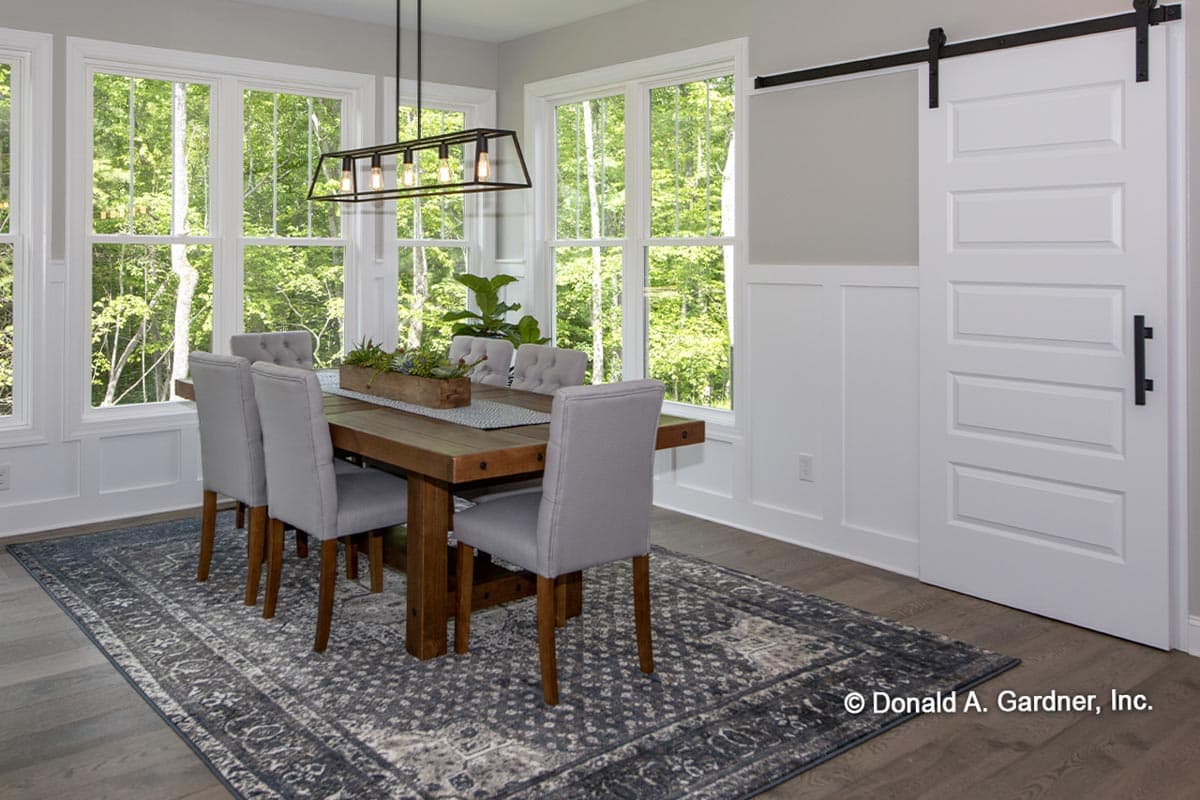

Vertical space is gained in the great room with the two-story ceiling height, making the fireplace a grand focal point. The gourmet kitchen boasts a large island, walk-in pantry, and a sizable dining area with access to a screened porch.

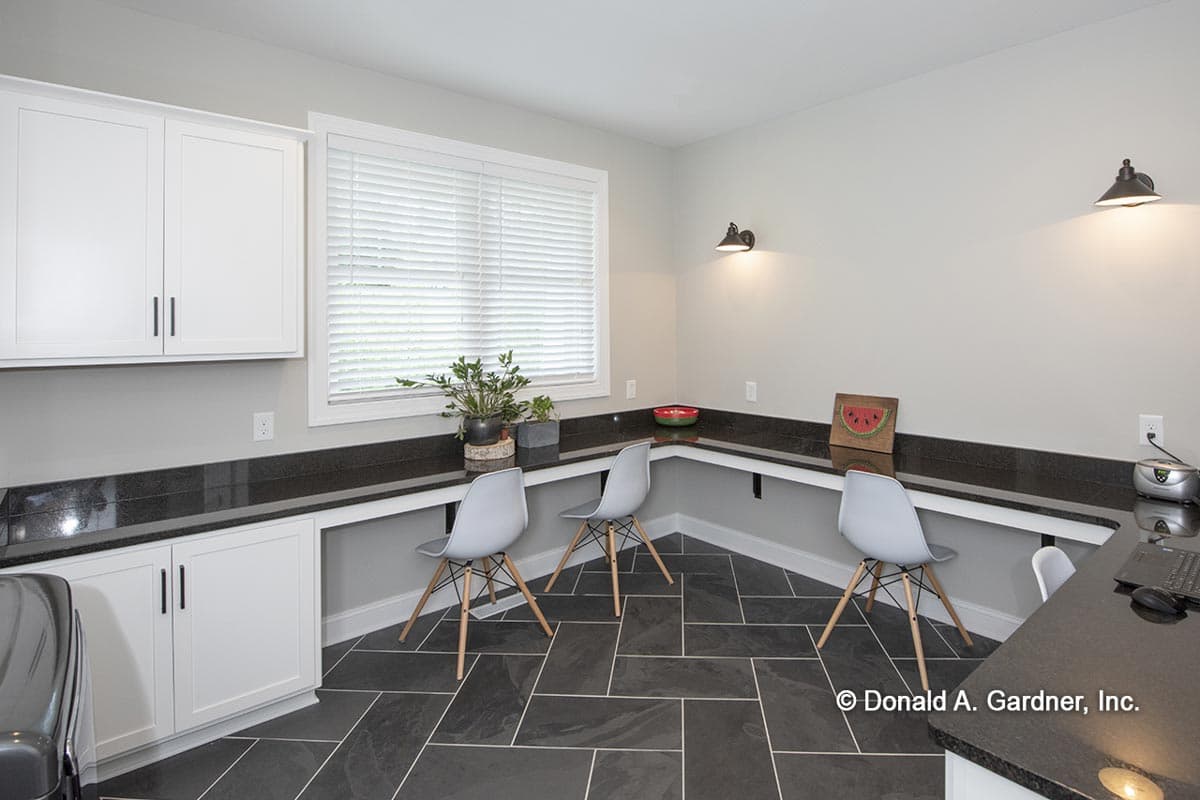

Families of all sizes will appreciate the laundry / craft / hobby room combo, just inside from the 3-car garage.

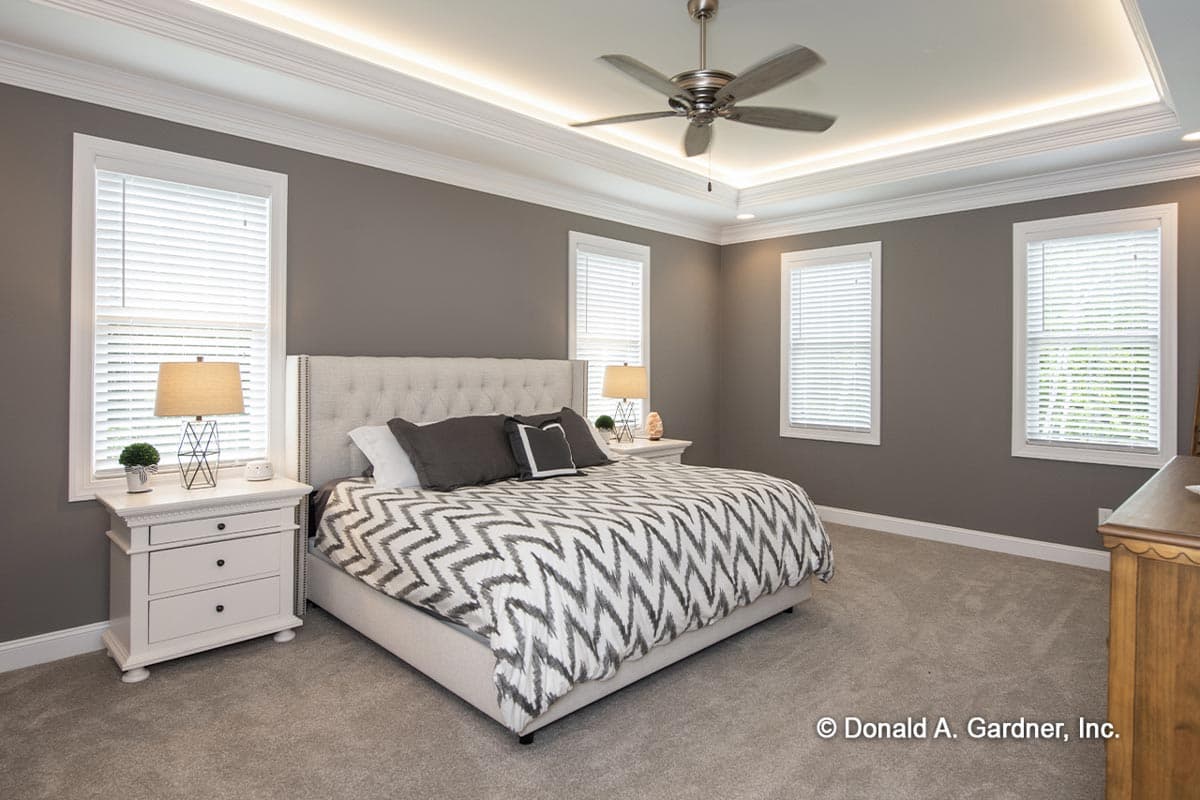

A symmetrical master suite offers spacious relaxation and boasts two walk-in closets and a 5-fixture bathroom.
Upstairs, you'll find three bedrooms and two full bathrooms. A 440 sq ft bonus room resides above the garage and includes 3 skylights for a light and airy ambiance.

What's Included

Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

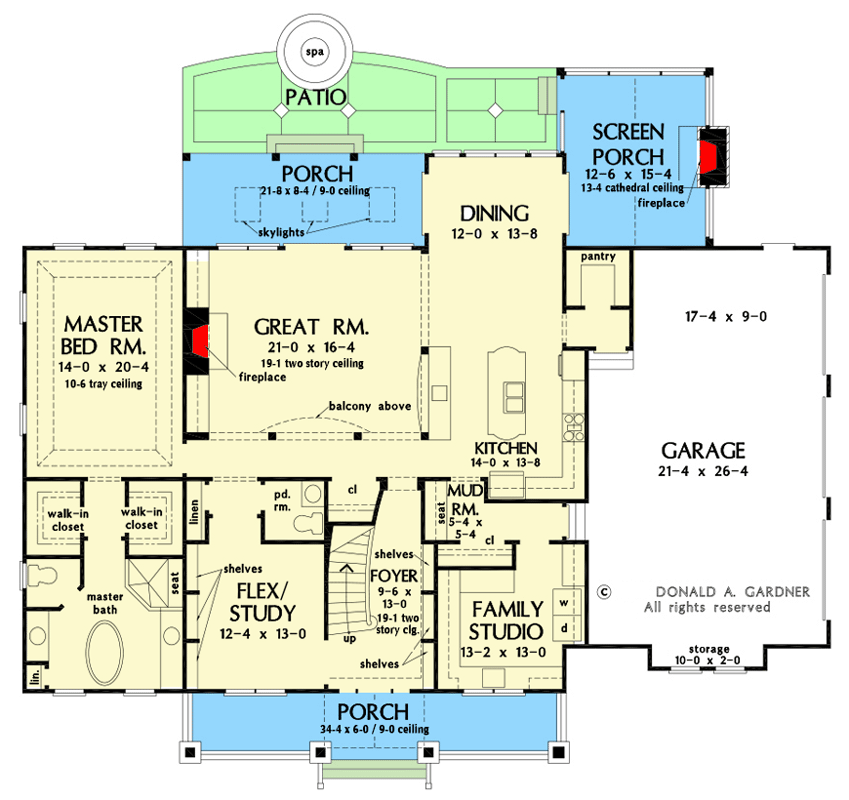

Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
