Plan 5197MM
Classic Traditional House Plan
Heated S.F.
1,865
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 5197MM

Main Level
slide image 0

Plan 5197MM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This house plan features a beautiful classic traditional style with a European touch.
  • The expansive master suite includes vaulted ceilings, large his and her walk-in closets, an oversized jet tub, separate shower, compartmentalized toilet and dual vanities.
  • The trayed ceiling in the great room makes the home feel larger than it actually is.
  • The open floorplan of this home includes a split-bedroom layout, and features the much-requested gas logs or conventional fireplace.
  • Enjoy the rear covered porch, perfect for those family bar-b-ques.
  • Large kitchen features popular raised bar for meals and conversations with family.
  • Related Plans: This house plan is available in a siding exterior. See 5197MM. Gain an optional three-car garage with 5125MM (siding) and 5126MM (stone and siding), Get a side-entry garage with house plans 5127MM (siding), 5113MM (brick) and 51017MM (stone and siding). Gain a bonus room with house plan 51006MM (brick and siding).
What's Included

  • Cover Sheet: Showing architectural rendering of residence.

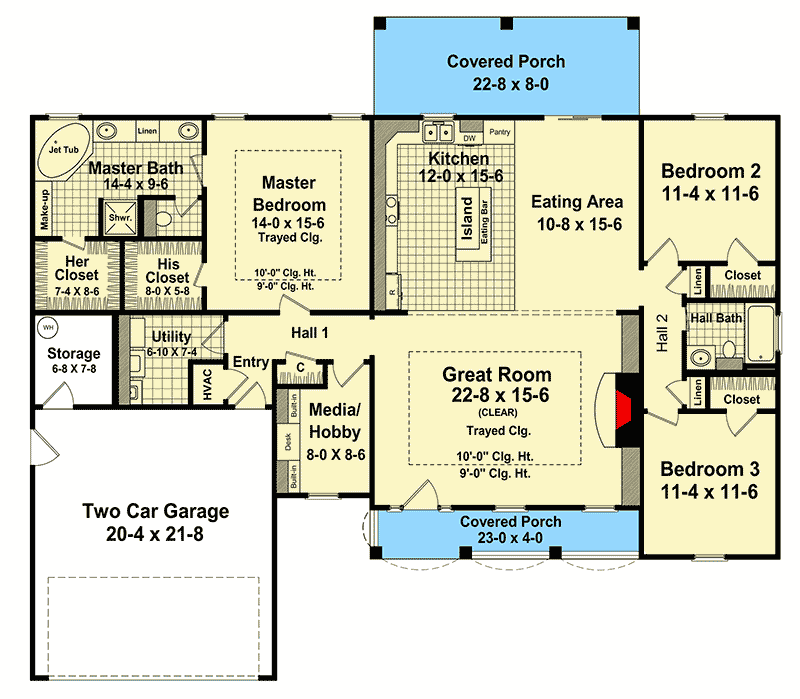

  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

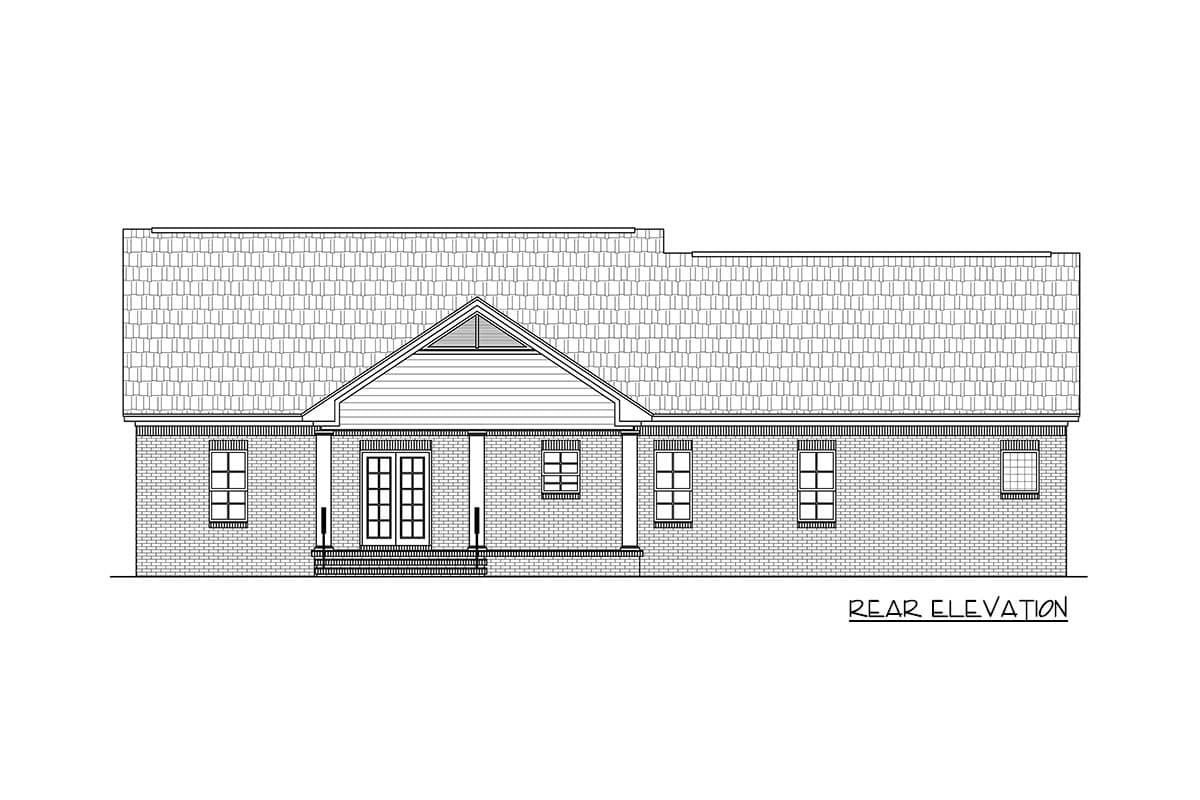

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,865 sq. ft.

1st Floor

1,865 sq. ft.

Porch, Front

92 sq. ft.

Porch, Rear

181 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

53' 0"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

513 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Bedrooms - Split

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

USDA Approved

Square Footage Breakdown

Total Heated Area

1,865 sq. ft.

1st Floor

1,865 sq. ft.

Porch, Front

92 sq. ft.

Porch, Rear

181 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

53' 0"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

513 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Bedrooms - Split

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

USDA Approved
