Plan 17809LV
Cleverly-Designed Narrow Lot House Plan
Heated S.F.
1,713
Beds
3
Baths
2.5
Stories
2
Photos
Floor Plan

Plan 17809LV

Main Level
slide image 0
2nd Floor
slide image 1

Plan 17809LV

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Metal roofing, stonework and shakes accent the exterior of this narrow lot Northwest house plan.
  • Cleverly designed to maximize the use of space, the home makes use of every inch of its 23' wide footprint.

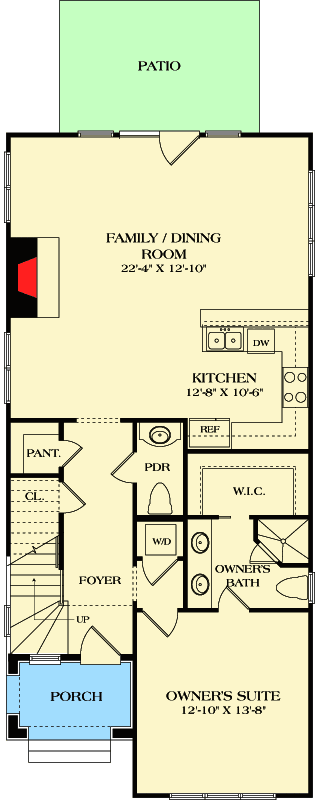

  • A stack washer/dryer closet saves space and the marvelous open layout of the main living area makes the home feel larger.

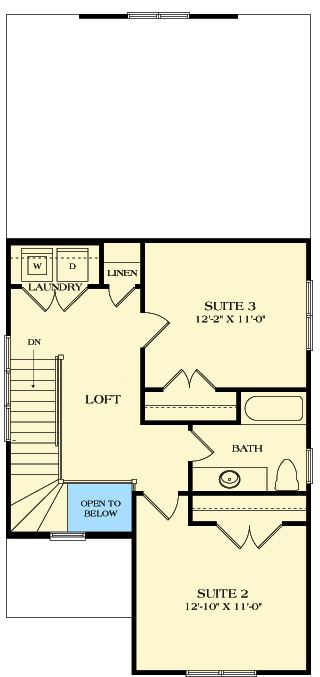

  • The master suite is on the first floor and upstairs there are two more bedrooms.
  • A second washer/dryer closet on this floor is a wonderful convenience.
  • The loft space has an open rail that expands the area.
  • Related Plans: Get different exteriors and layouts with house plan 17805LV (1,572 sq. ft.), house plan 17806LV (1,582 sq. ft.) and house plan 17808LV (1,614 sq. ft.).
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 17809LV Comes to Life in Texas

House Plan 17809LV Comes to Life in Texas

22

Photos

What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans

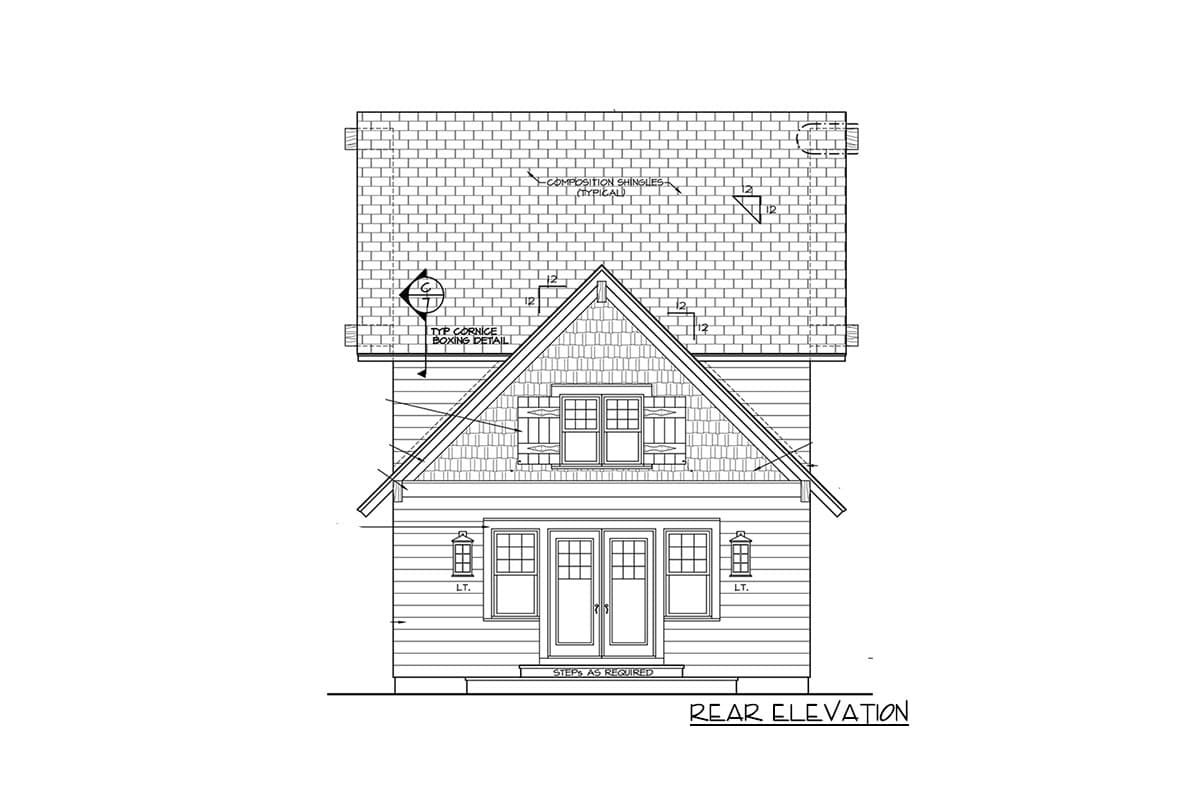

  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,713 sq. ft.

1st Floor

1,052 sq. ft.

2nd Floor

661 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

23' 0"

Depth

50' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Cottage

Craftsman

Northwest

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,713 sq. ft.

1st Floor

1,052 sq. ft.

2nd Floor

661 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

23' 0"

Depth

50' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Cottage

Craftsman

Northwest

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Plan Collections

Photo Gallery
