Plan 737022LVL
Coastal Contemporary House Plan
Heated S.F.
3,722
Beds
4 - 5
Baths
4
Stories
2
Cars
2
Floor Plan

Plan 737022LVL

Main Level
slide image 0
2nd Floor
slide image 1

Plan 737022LVL

1-800-854-7852

1-262-521-4596

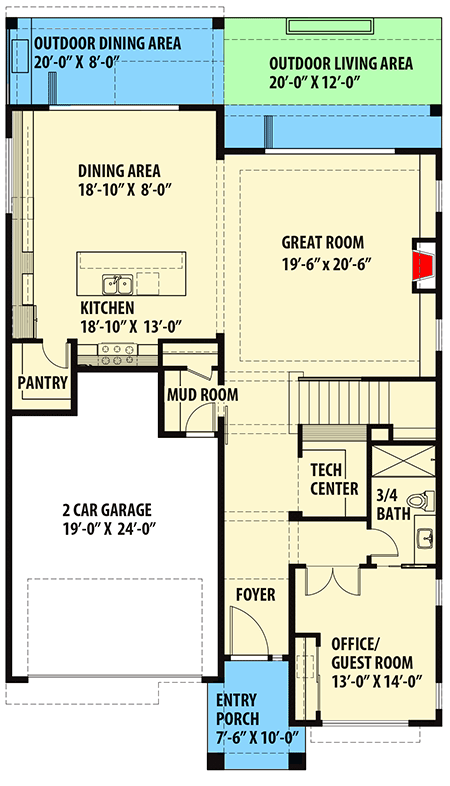

Main Level
floor plan image Main Level

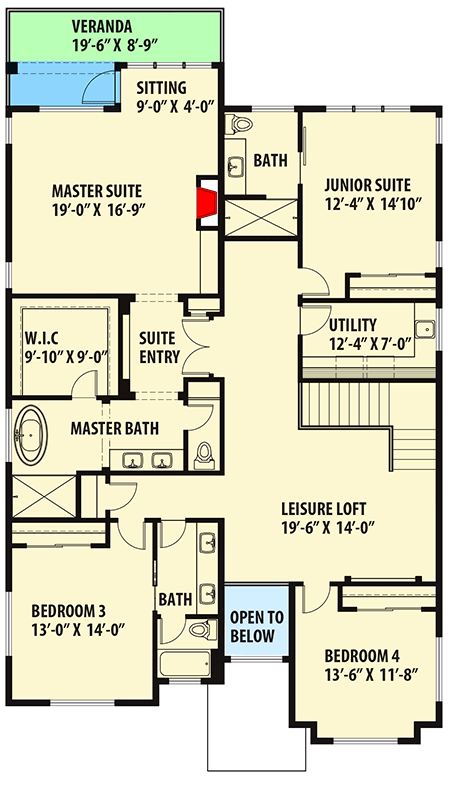

2nd Floor
floor plan image 2nd Floor
Plan Details
  • The open floor plan and outdoor living areas greatly enhance this coastal cottage house plan.
  • Folding glass doors retract back in both the great room and the dining area so you can easily step outside and enjoy covered and uncovered porches and decks.
  • A whole wall of counters line the left side of the kitchen and dining area so there's plenty of storage.
  • A cozy tech center is tucked off the hallway and there's a first floor guest suite too.
  • Upstairs, a junior suite and leisure loft are added perks.
  • In the master suite, homeowners get a private veranda off their sitting area.
  • Save steps with a handy second floor laundry room.
What's Included
  • Cover sheet
  • Foundation plan
  • Floor plans
  • Roof framing plan
  • Building section and typical wall sections
  • Elevations
  • General construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,722 sq. ft.

1st Floor

1,587 sq. ft.

2nd Floor

2,135 sq. ft.

Porch, Front

72 sq. ft.

Covered Patio

318 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

69' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

471 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

2.5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Master Suite - Sitting Area

Plan Collections

Luxury

Photo Gallery

Premium Collection
