Plan 42619DB
Comfortable Traditional House Plan with 3 Bedrooms - 1176 Sq Ft
Heated S.F.
1,176
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 42619DB

Main Level
slide image 0
Optional Basement Stairs Replacement
slide image 1

Plan 42619DB

1-800-854-7852

1-262-521-4596

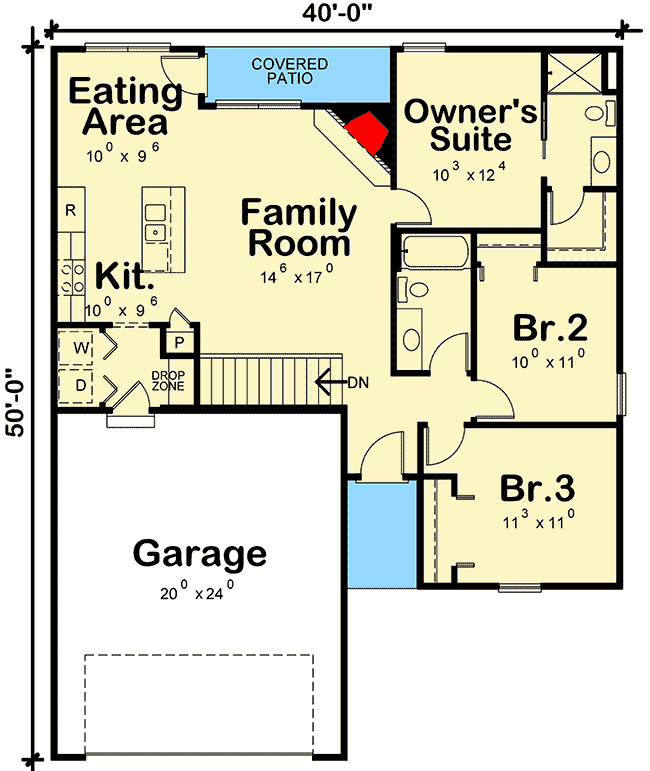

Main Level
floor plan image Main Level

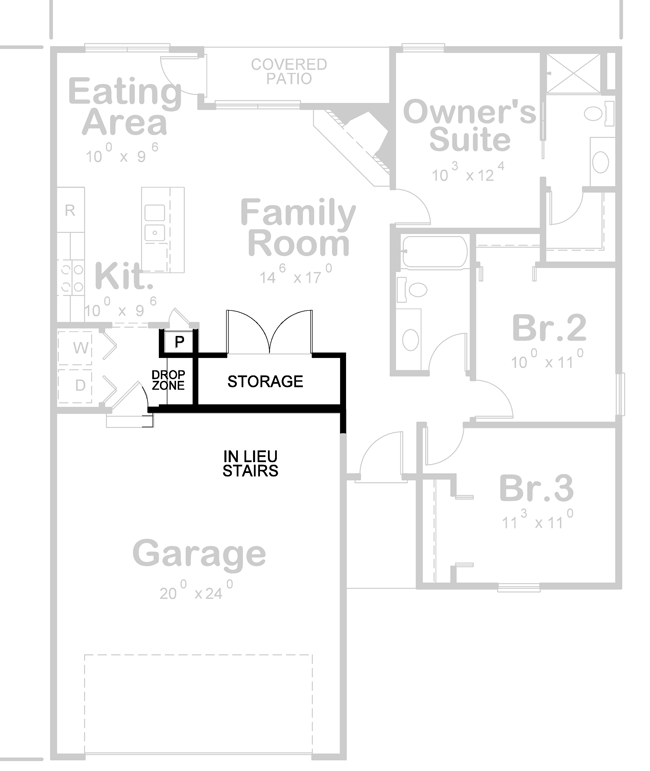

Optional Basement Stairs Replacement
floor plan image Optional Basement Stairs Replacement
Plan Details
  • This traditional house plan includes 1,176 sq. ft. of living space beneath a cross-gable roof.
  • Once inside, an open floor plan creates a comfortable space for everyday living, while a corner fireplace adds to the cozy ambience.
  • The kitchen island houses a double-bowl sink and anchors the living space, and the adjoining eating area offers access to a covered patio.
  • The owner's suite is rear facing, with a pocket door that reveals a full bath and walk-in closet. Bedrooms 2 and 3, near the foyer, share the hall bath.
  • A drop zone is located just inside from the double garage, which includes a laundry closet.
  • Related Plan: Get an alternate exterior with plan 42620DB.
What's Included
  • General Notes

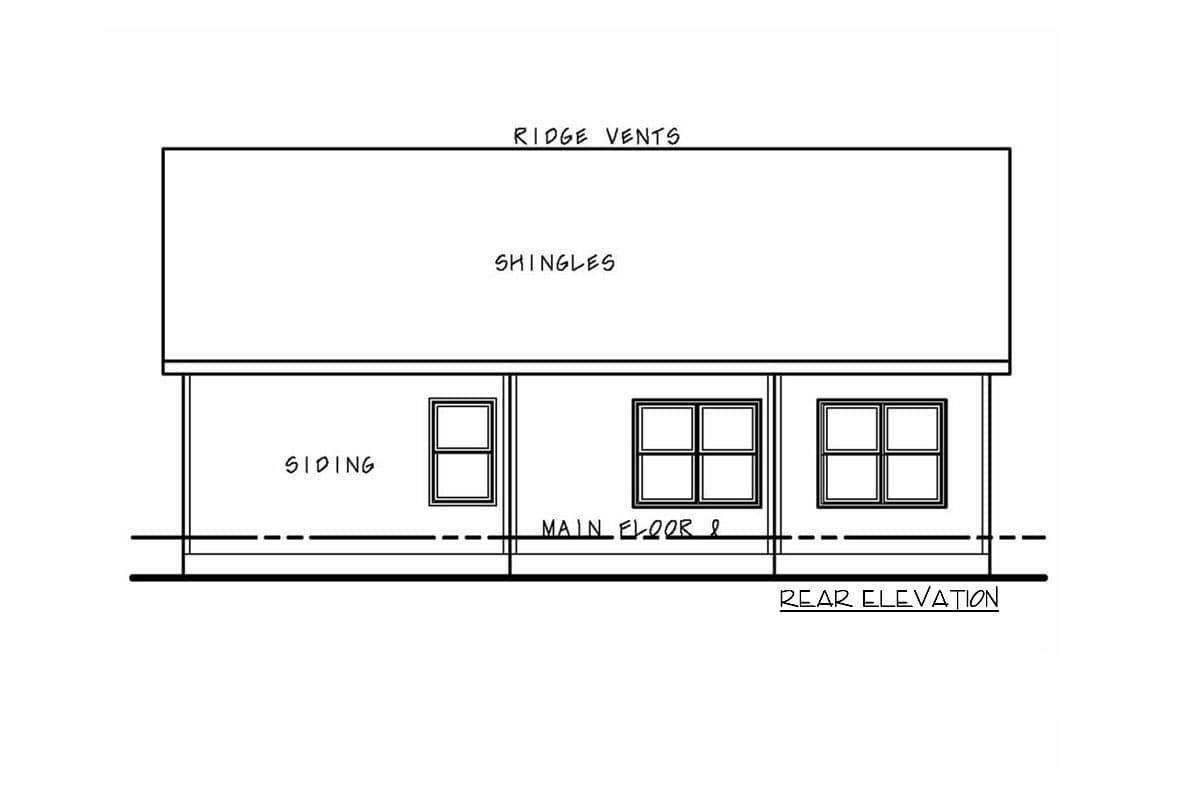

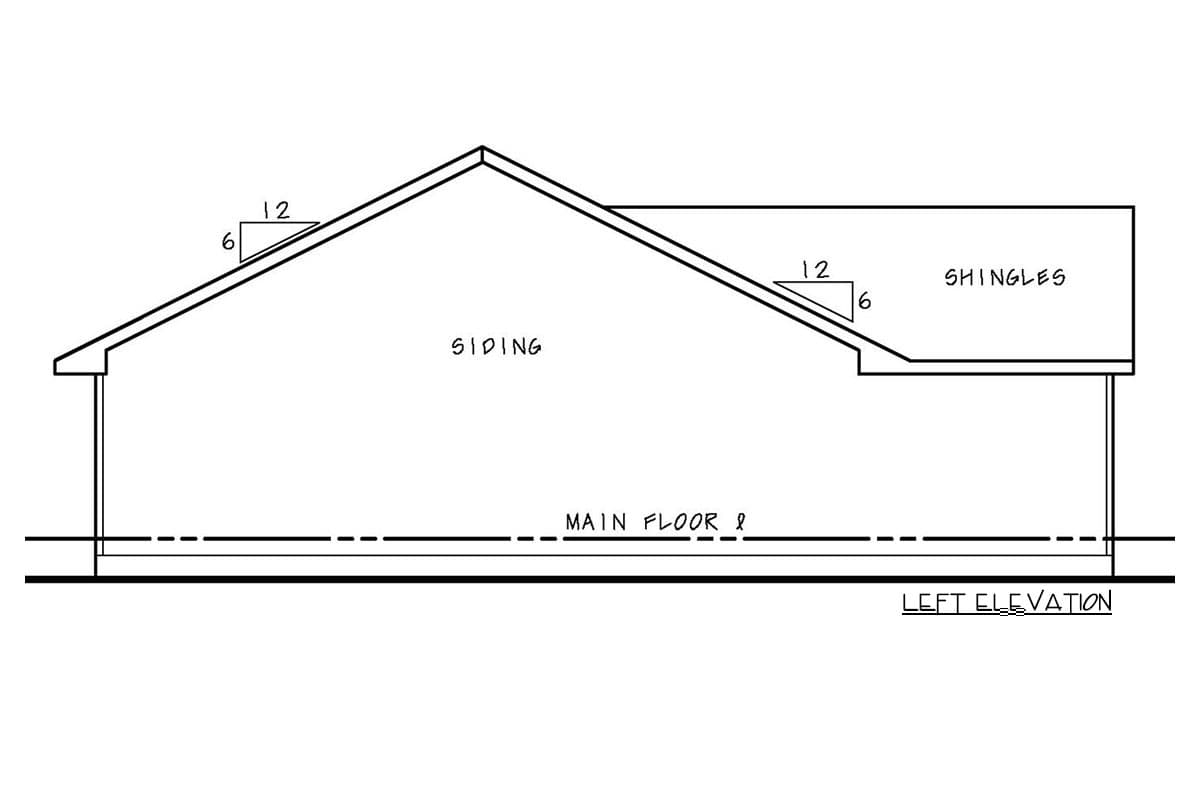

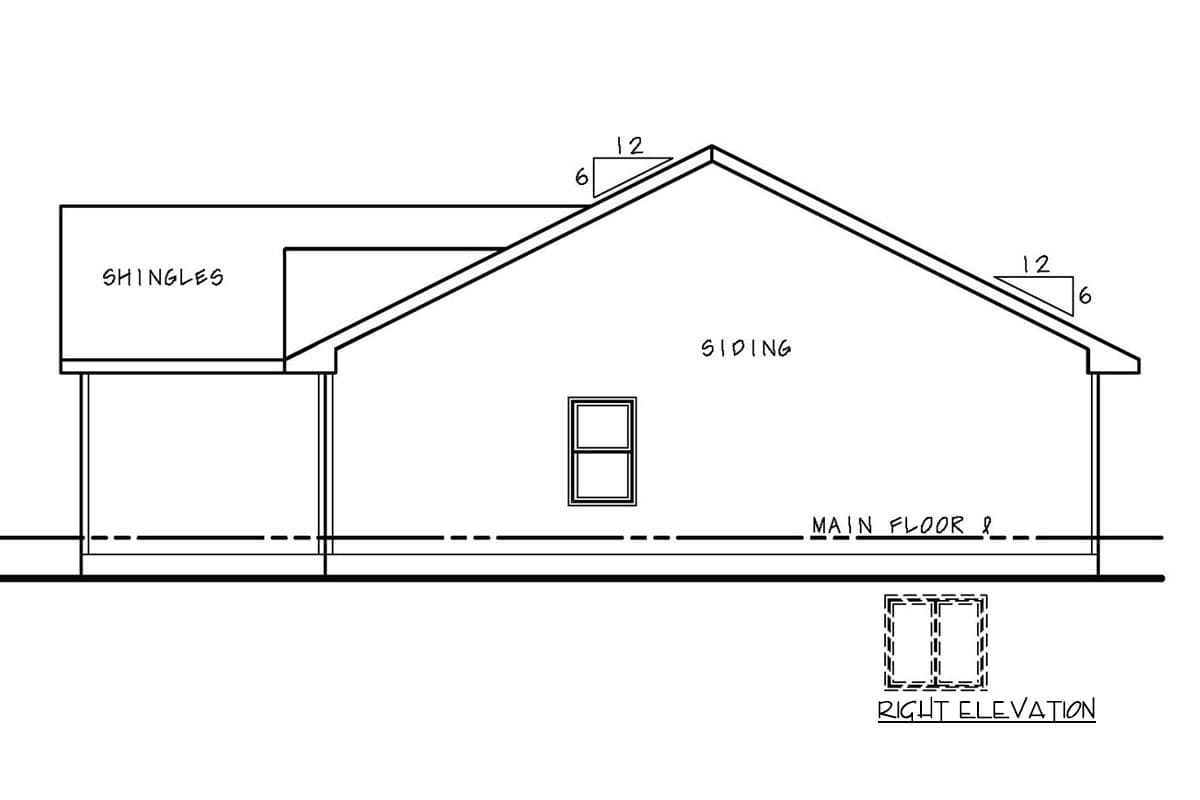

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,176 sq. ft.

1st Floor

1,176 sq. ft.

Porch, Rear

53 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

50' 0"

Max Ridge Height

21' 1"

Garage

Type

Attached

Area

501 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,176 sq. ft.

1st Floor

1,176 sq. ft.

Porch, Rear

53 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

50' 0"

Max Ridge Height

21' 1"

Garage

Type

Attached

Area

501 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
