Plan 59309ND
Comforts of Home
Heated S.F.
2,570
Units
2
Width
Depth
Floor Plan

Plan 59309ND

Main Level
slide image 0
2nd Floor
slide image 1

Plan 59309ND

1-800-854-7852

1-262-521-4596

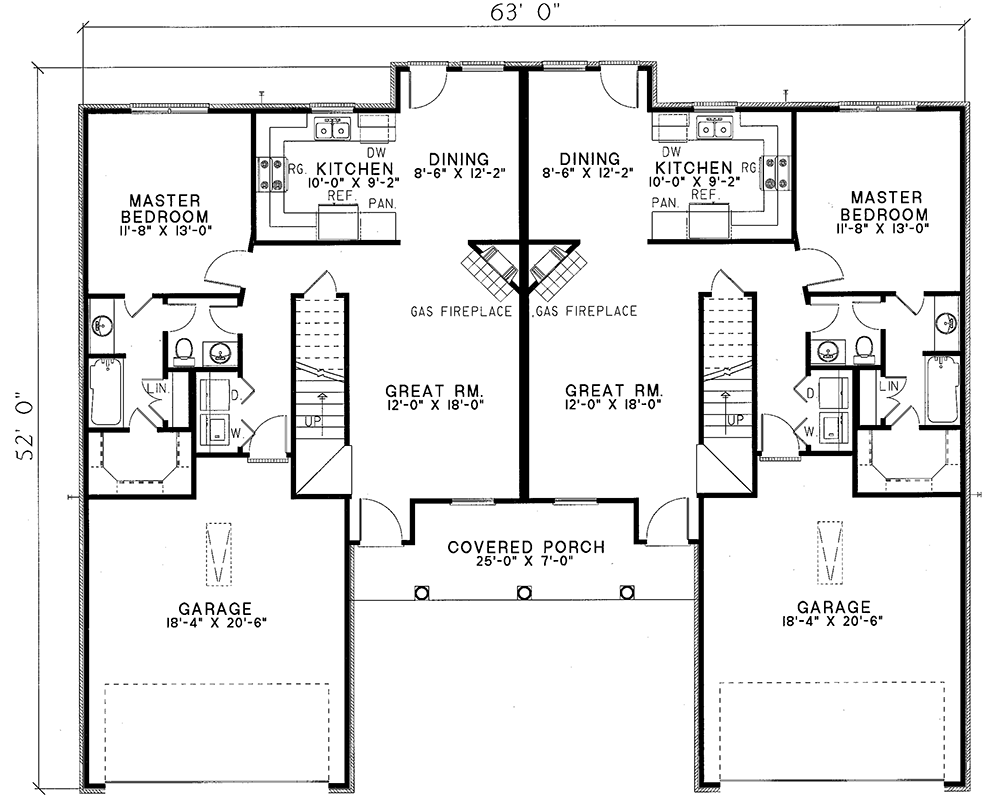

Main Level
floor plan image Main Level

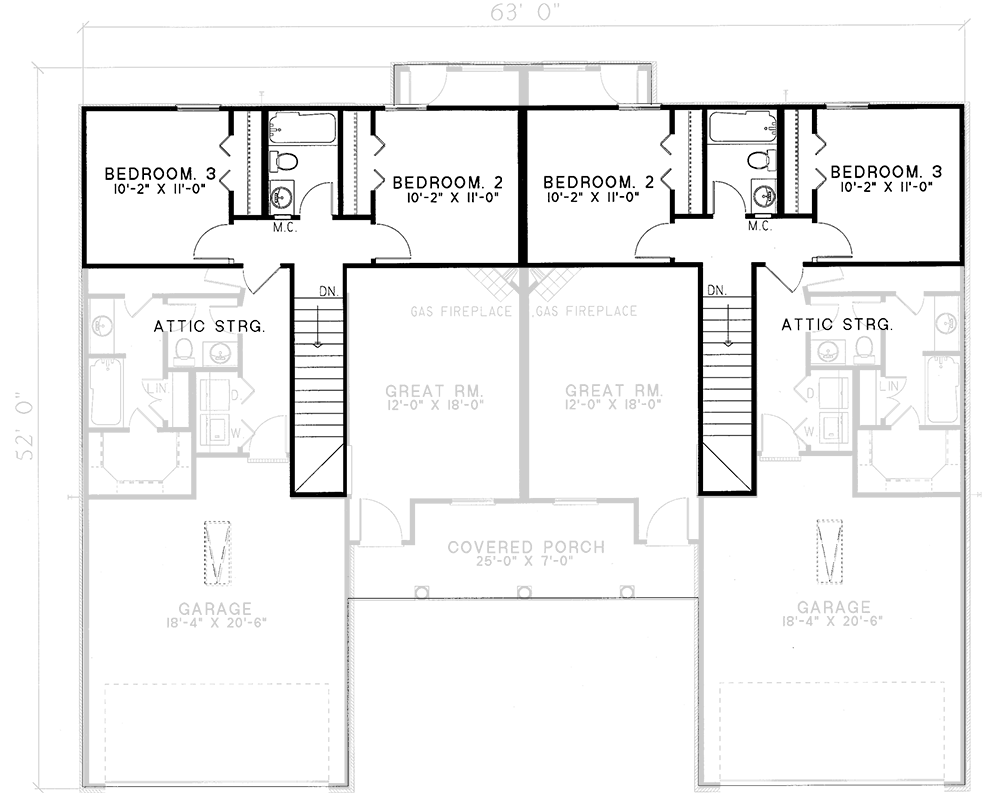

2nd Floor
floor plan image 2nd Floor
Plan Details
  • You'll enjoy all the comforts of home in this design. Upon entering this southern traditional home design, you'll feel warmth in the spacious great room with an angled fireplace.
  • The kitchen is open to a spacious dining room both enjoying windows and a door accessing the back yard.
  • You'll find ultimate seclusion in the master suite with a full bath and huge walk-in closet.
  • The kids will be in a world of their own, upstairs complete with two bedrooms and a full bath.
Unit A
1,285Sq. Ft.
911 Sq. Ft.
1st Floor
374 Sq. Ft.
2nd Floor
3Beds
2Full Baths
2Vehicle
Attached
376 Sq. Ft.
31' 6"width
52'depth
26'height
Unit B
1,285Sq. Ft.
911 Sq. Ft.
1st Floor
374 Sq. Ft.
2nd Floor
3Beds
2Full Baths
2Vehicle
Attached
376 Sq. Ft.
31' 6"width
52'depth
26'height
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,570 sq. ft.

1st Floor

1,822 sq. ft.

2nd Floor

748 sq. ft.

Porch, Front

222 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

63' 0"

Depth

52' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

752 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Transitional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
