Plan 36498TX
Commanding Presence
Heated S.F.
5,224
Beds
4
Baths
5.5+
Stories
2
Cars
3
Floor Plan

Plan 36498TX

Main Level
slide image 0
2nd Floor
slide image 1

Plan 36498TX

1-800-854-7852

1-262-521-4596

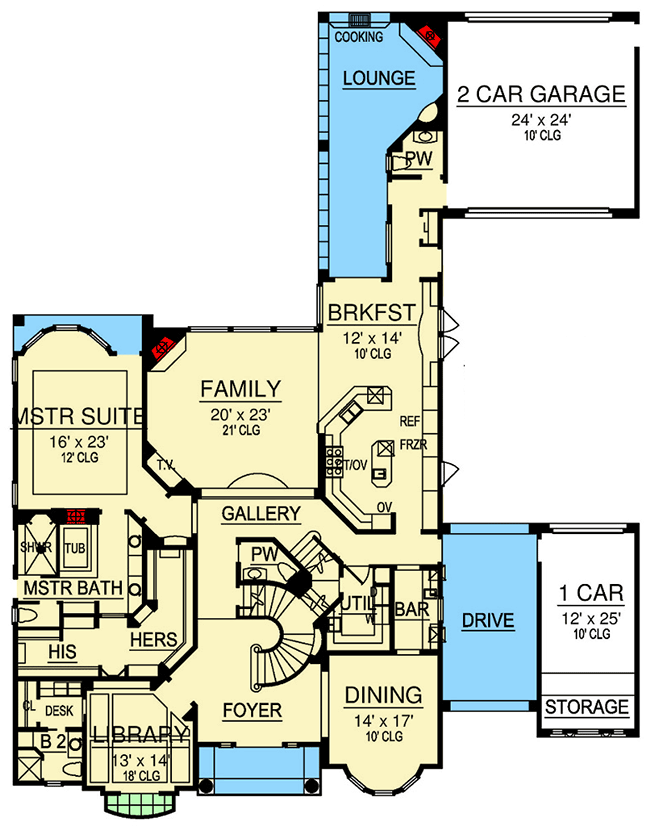

Main Level
floor plan image Main Level

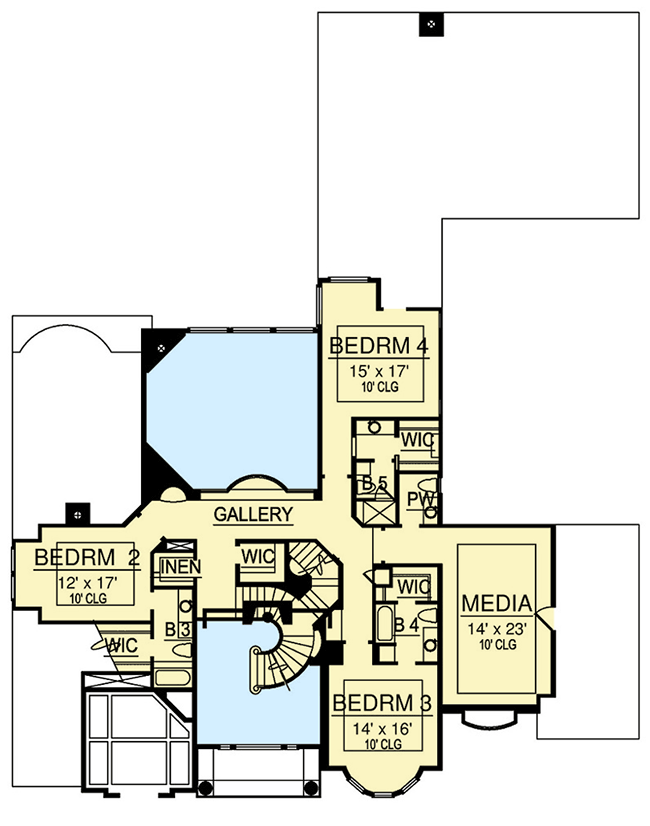

2nd Floor
floor plan image 2nd Floor
Plan Details

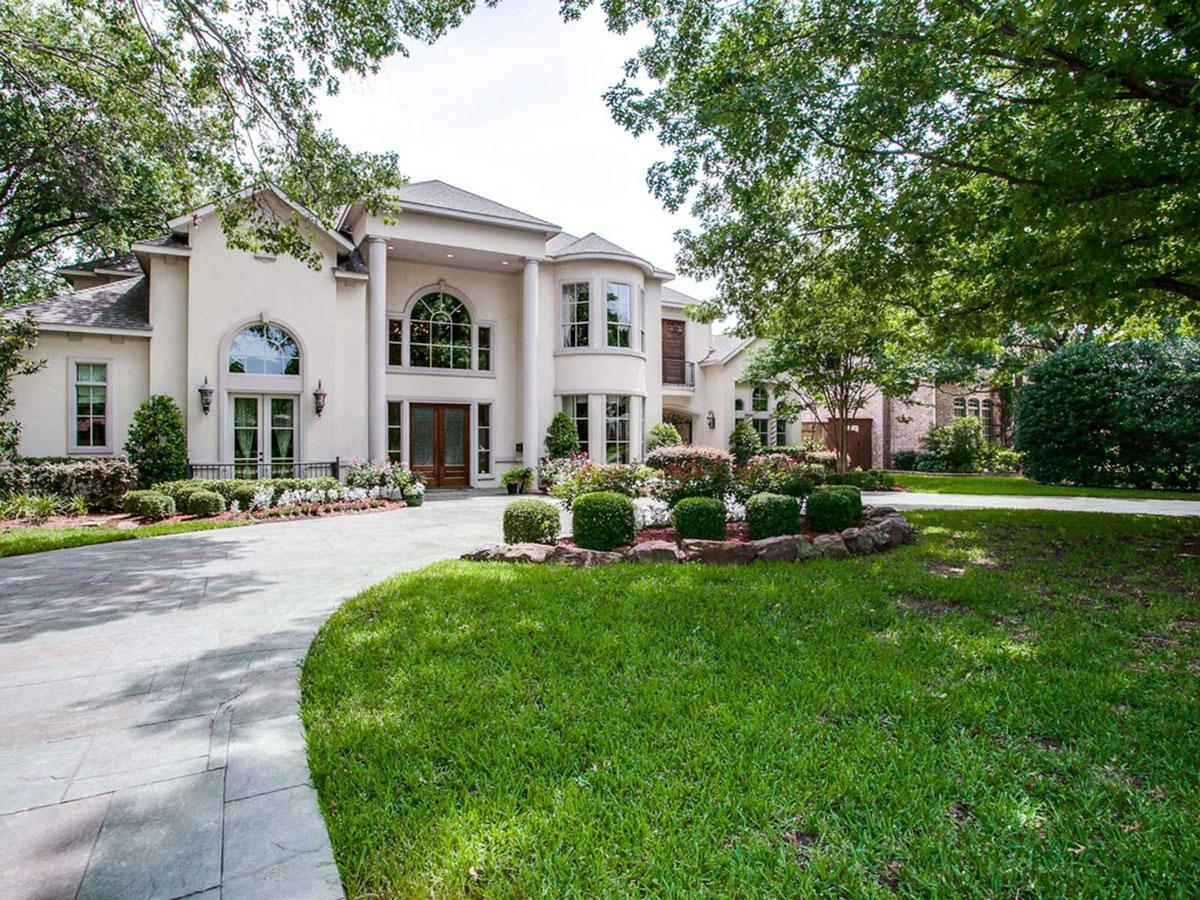

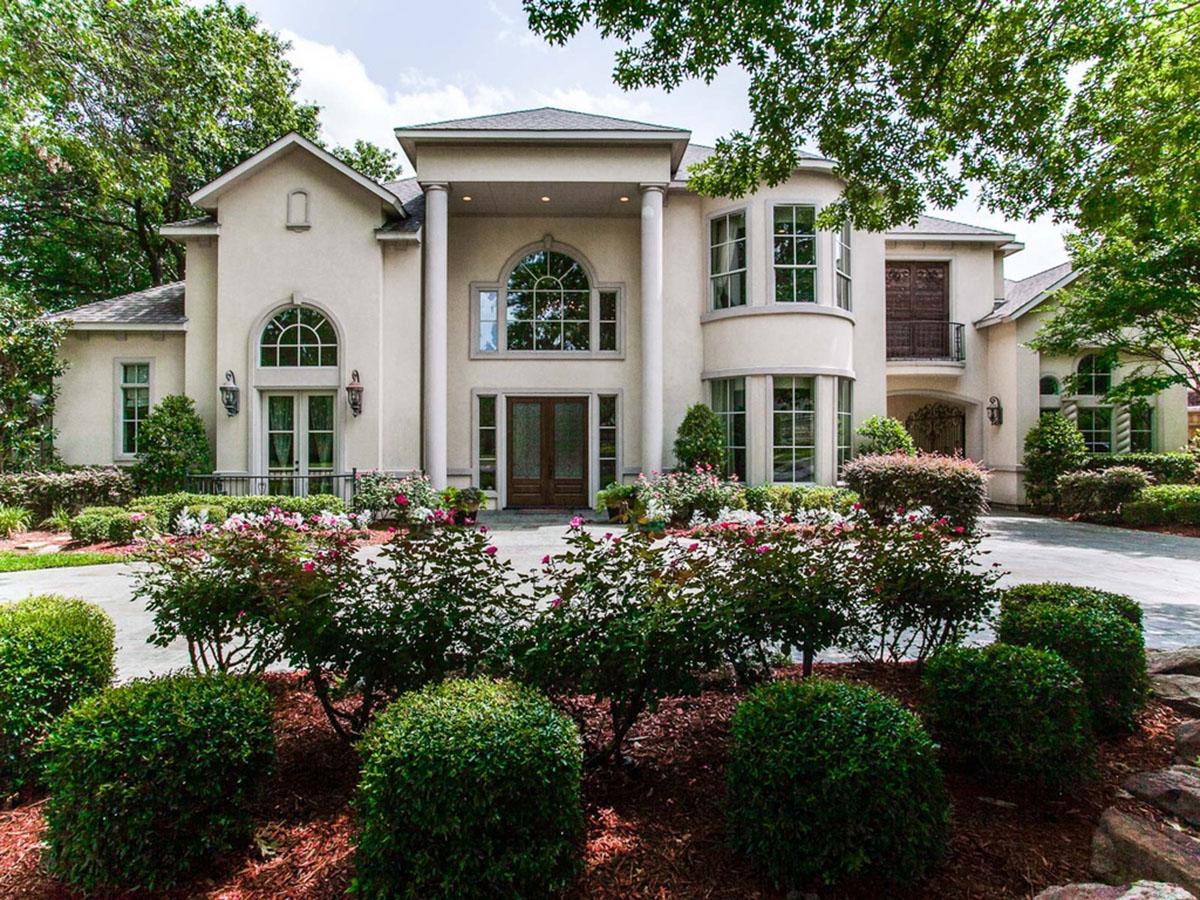

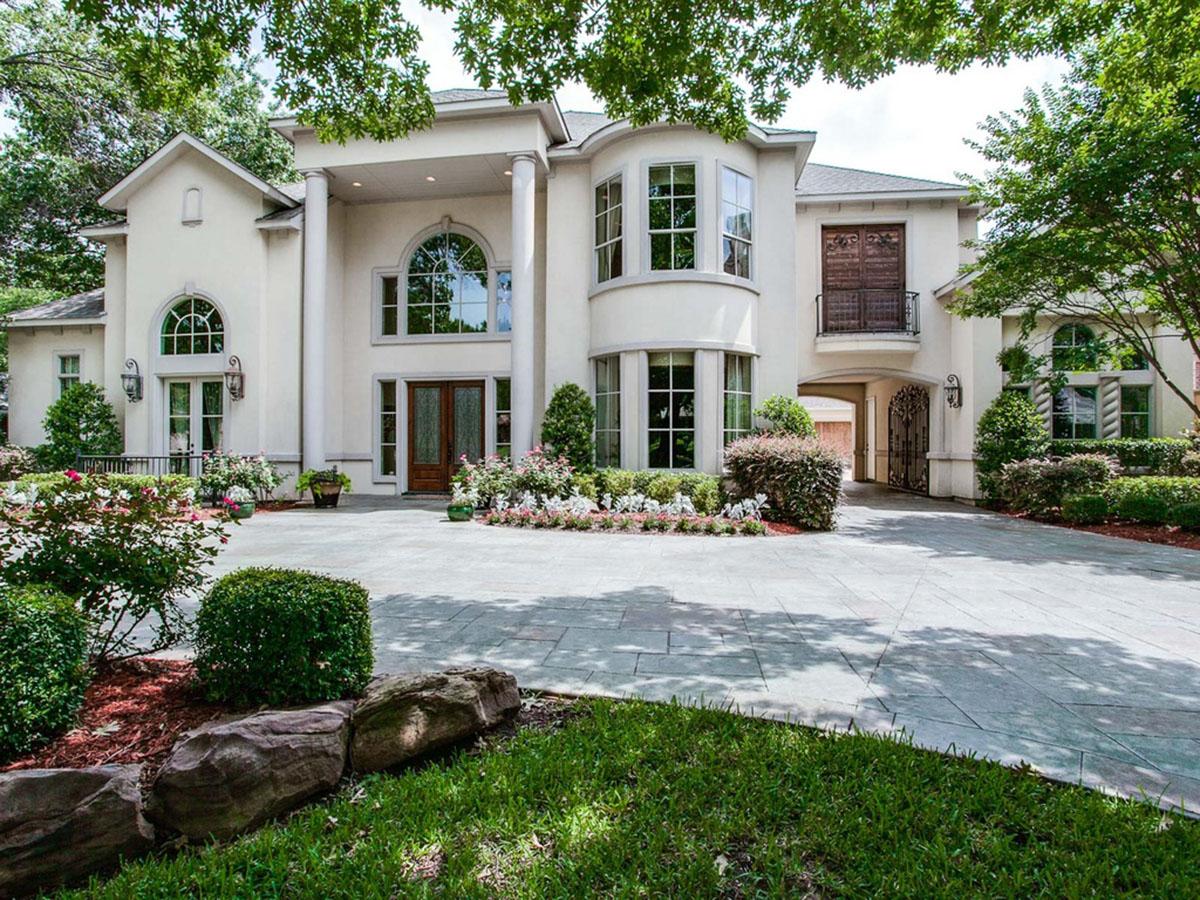

  • The huge two-story entry porch of this Hill Country house plan gives it a commanding presence designed to impress.
  • Transom windows flood the home with extra light making it a pleasure to live in.

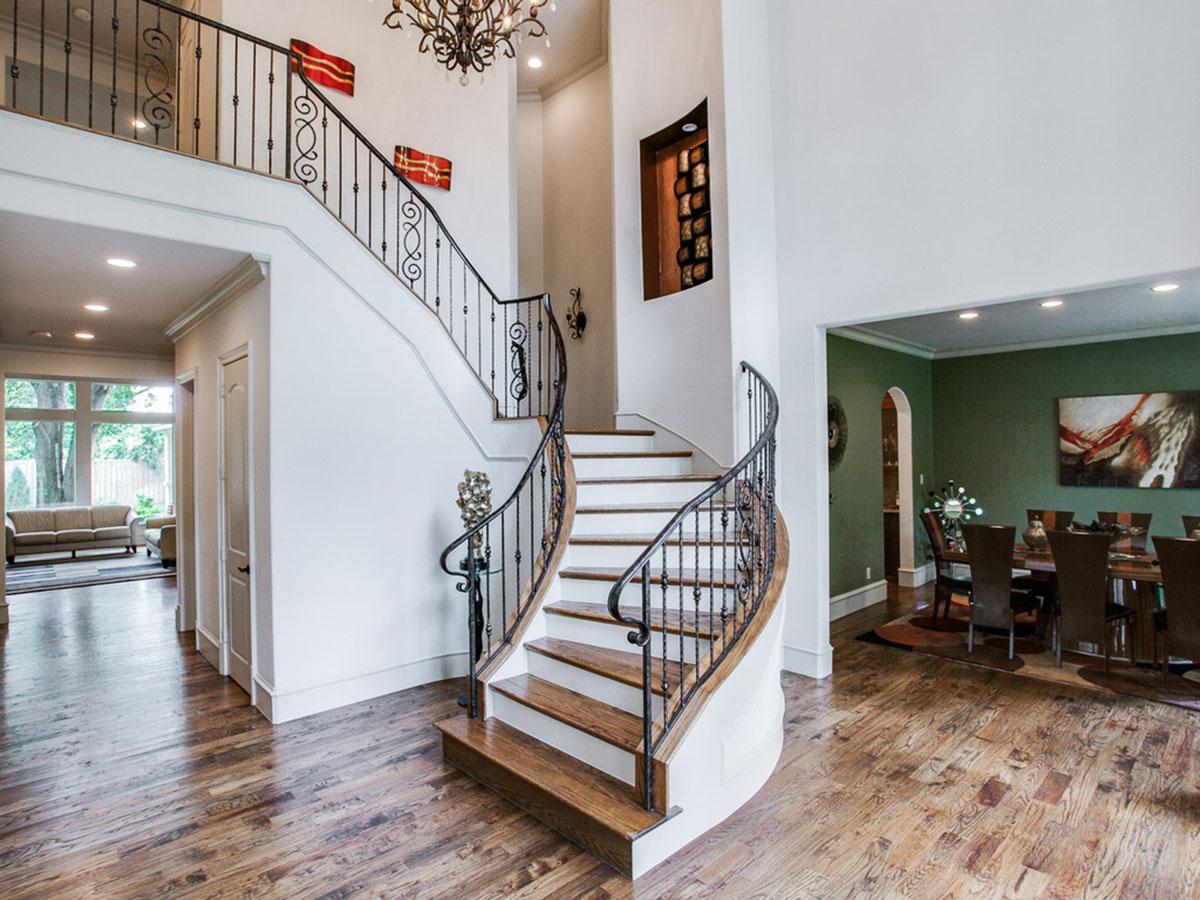

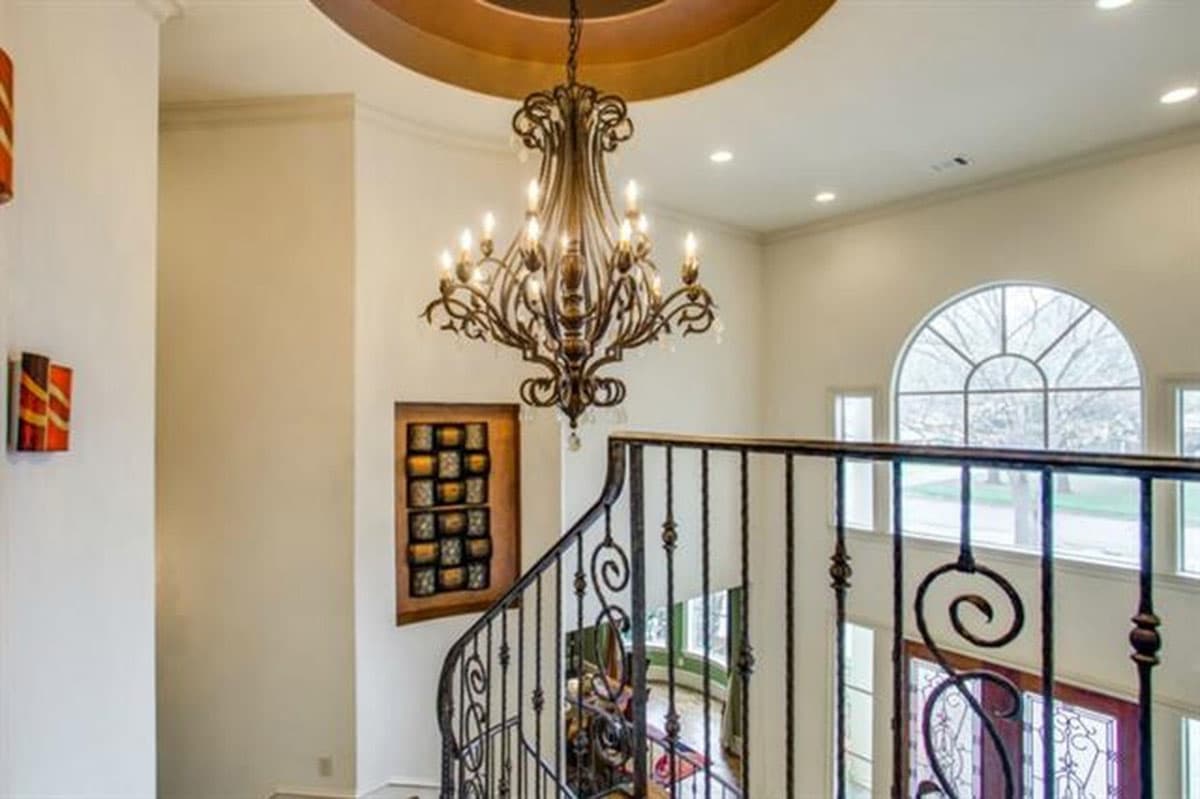

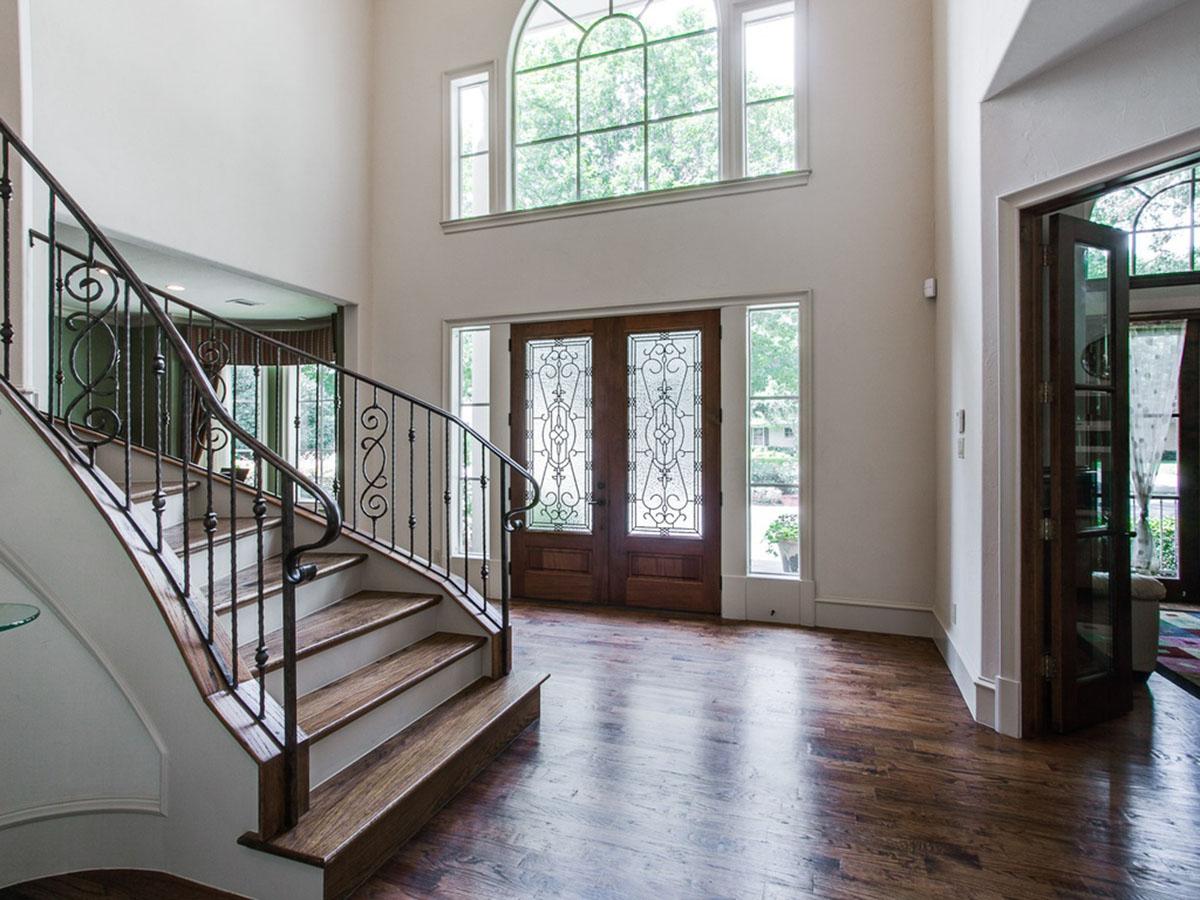

  • The elaborate curved staircase will knock your socks off when you step into the foyer.

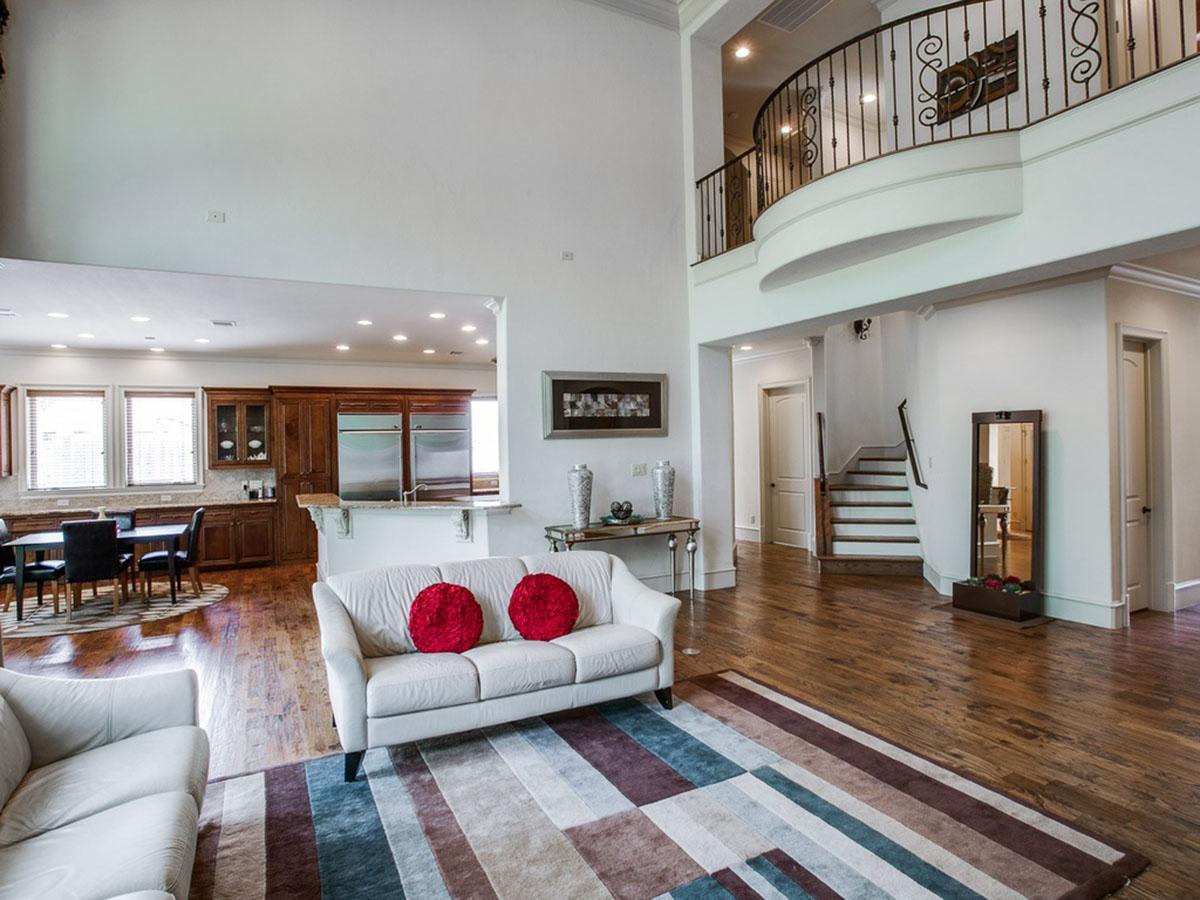

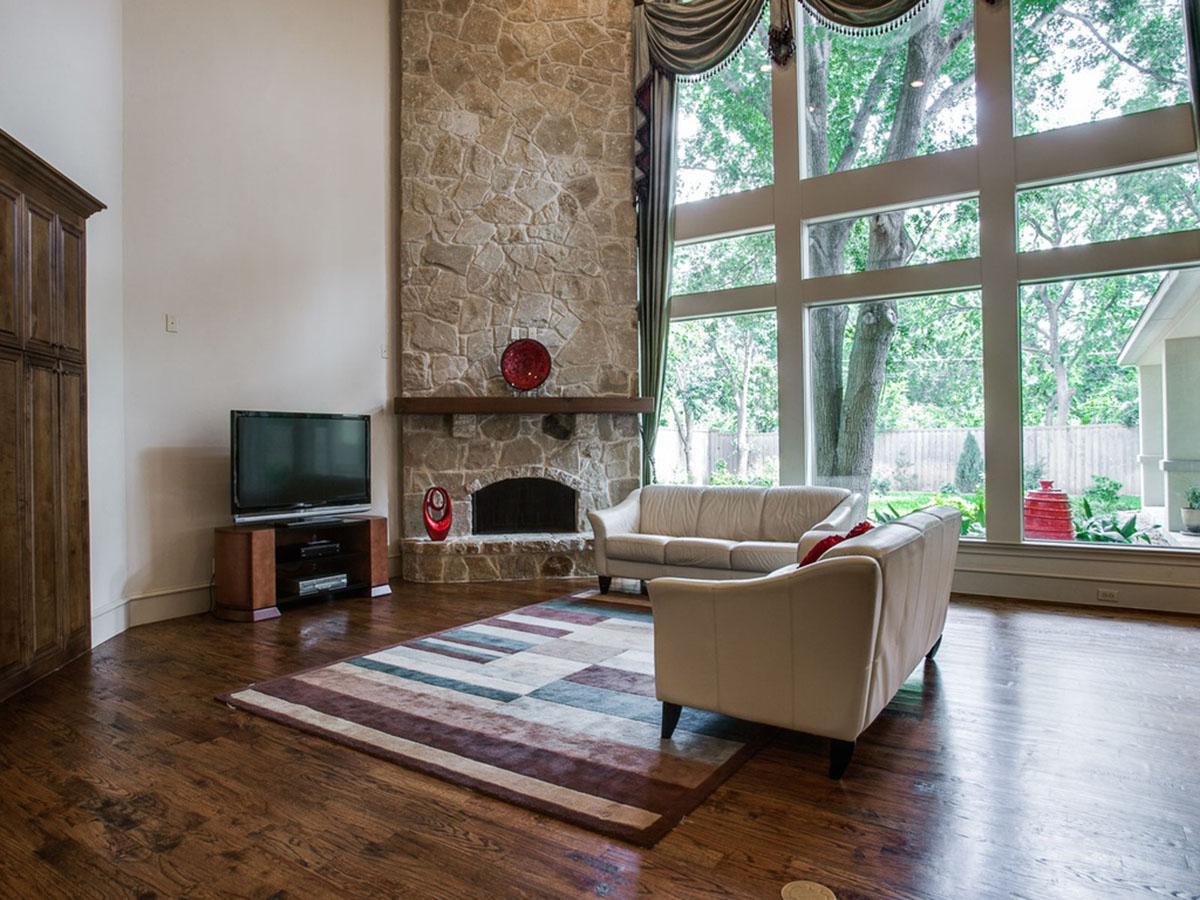

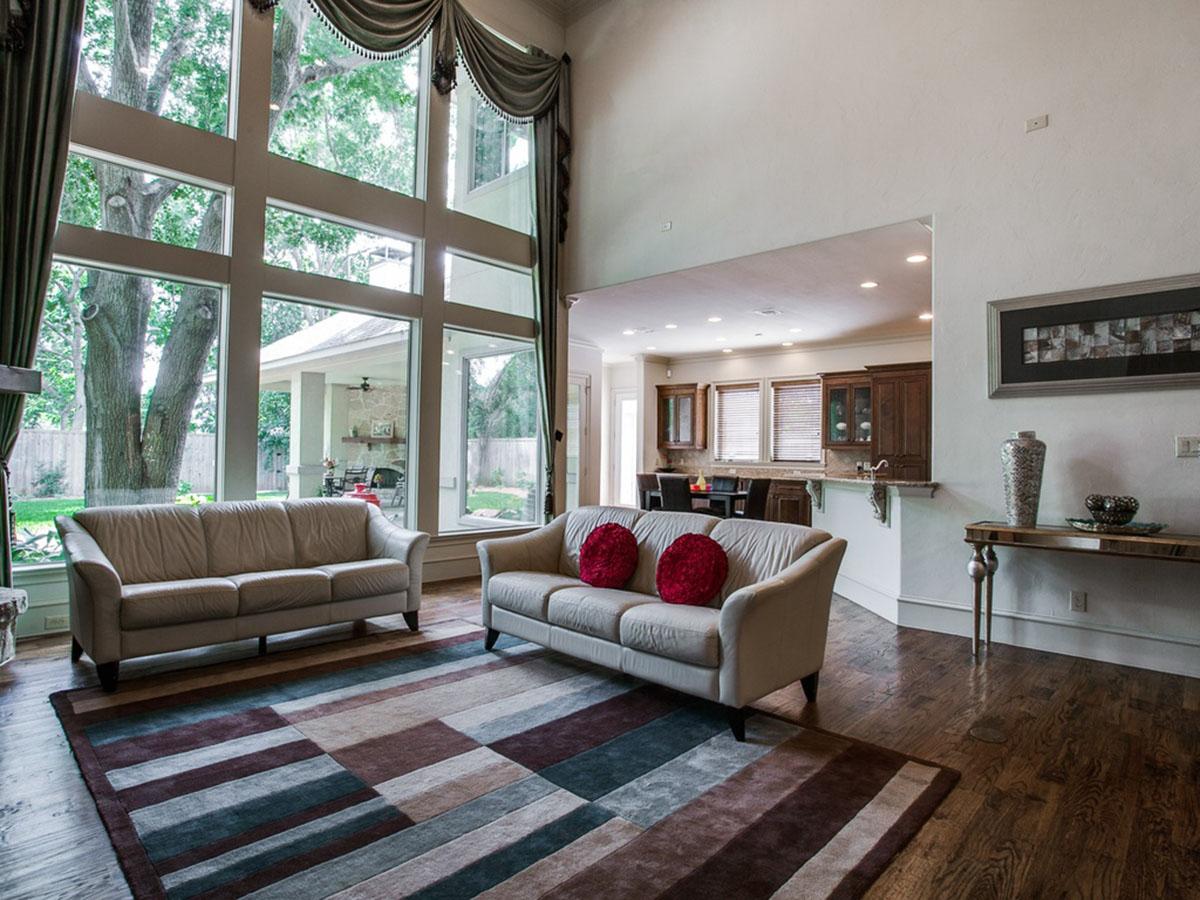

  • An impressive informal area in back has that open layout that today's families demand.

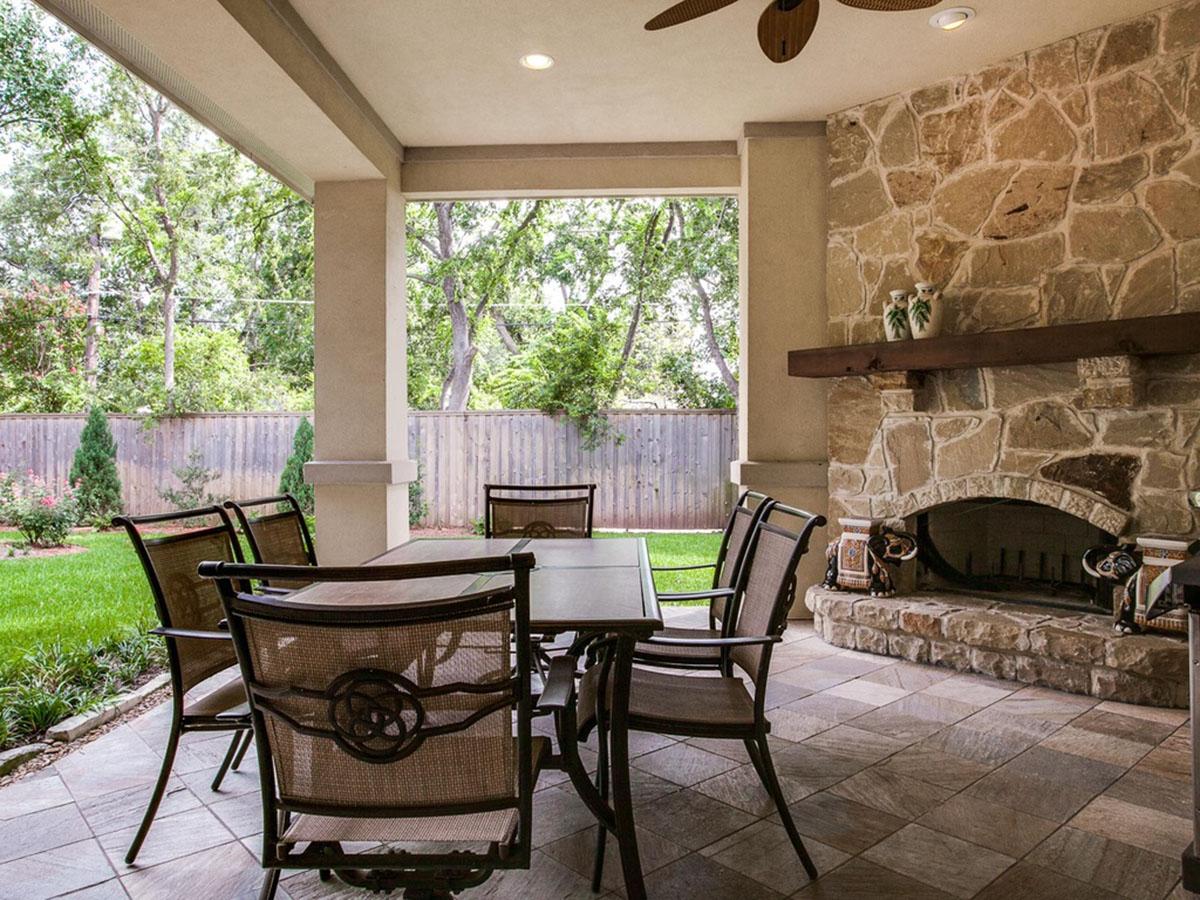

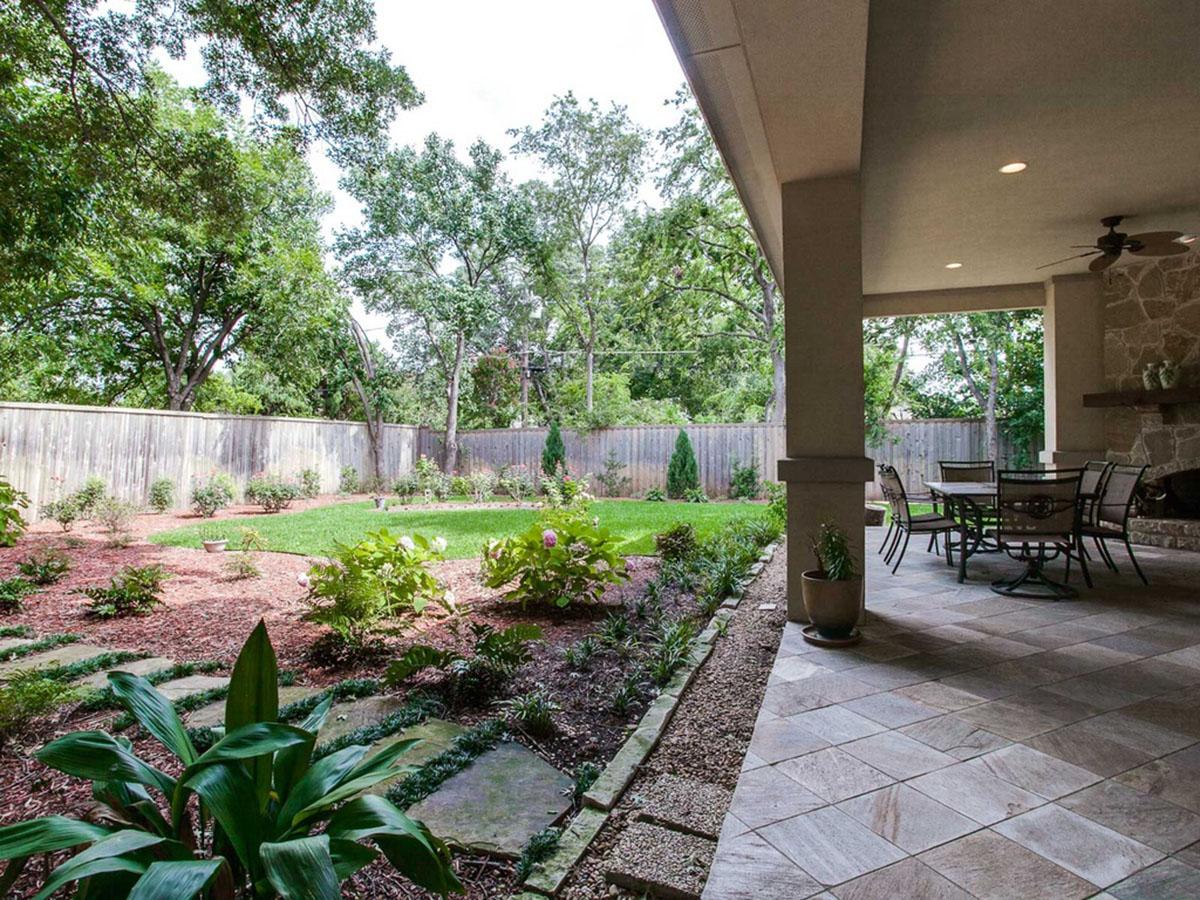

  • Enjoy outdoor living on the covered lanai where you have a grilling station and outdoor fireplace to warm those chilly nights.

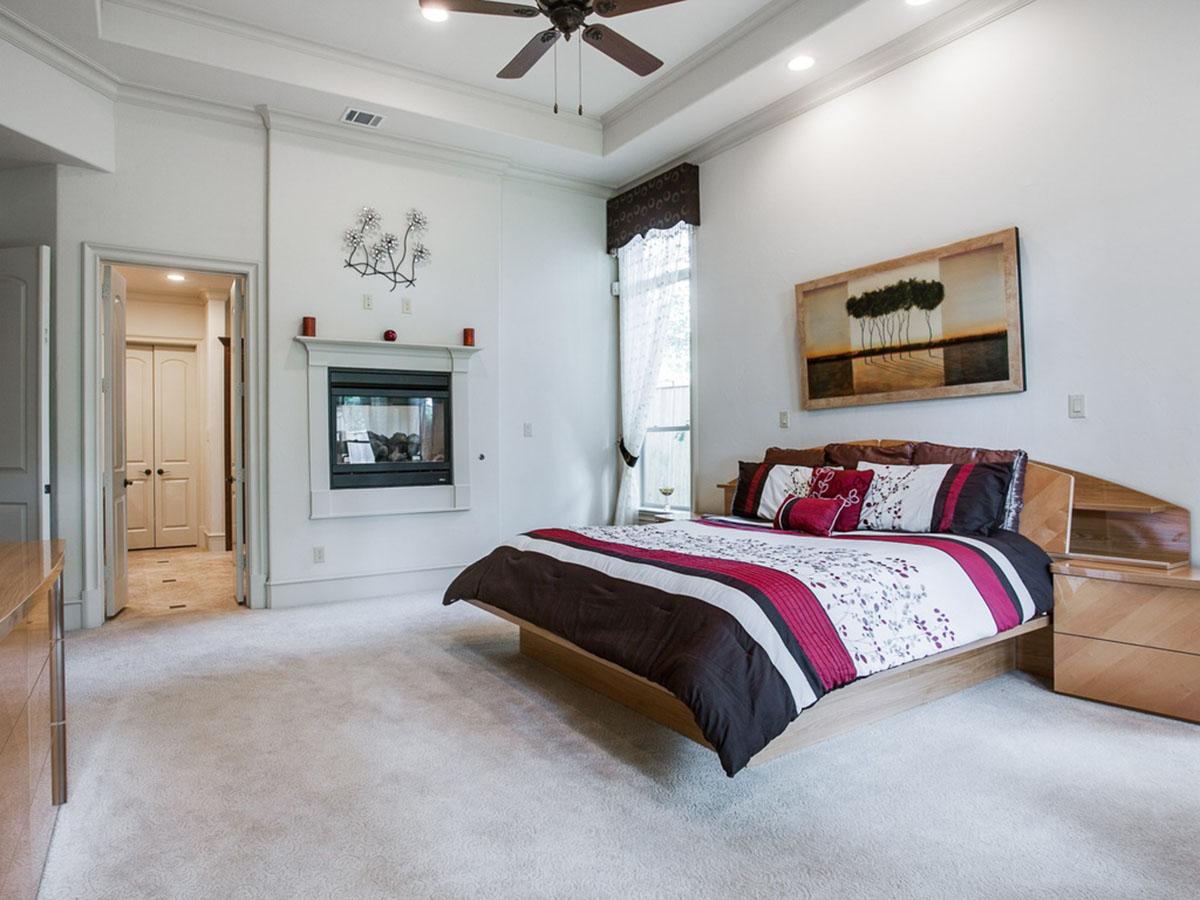

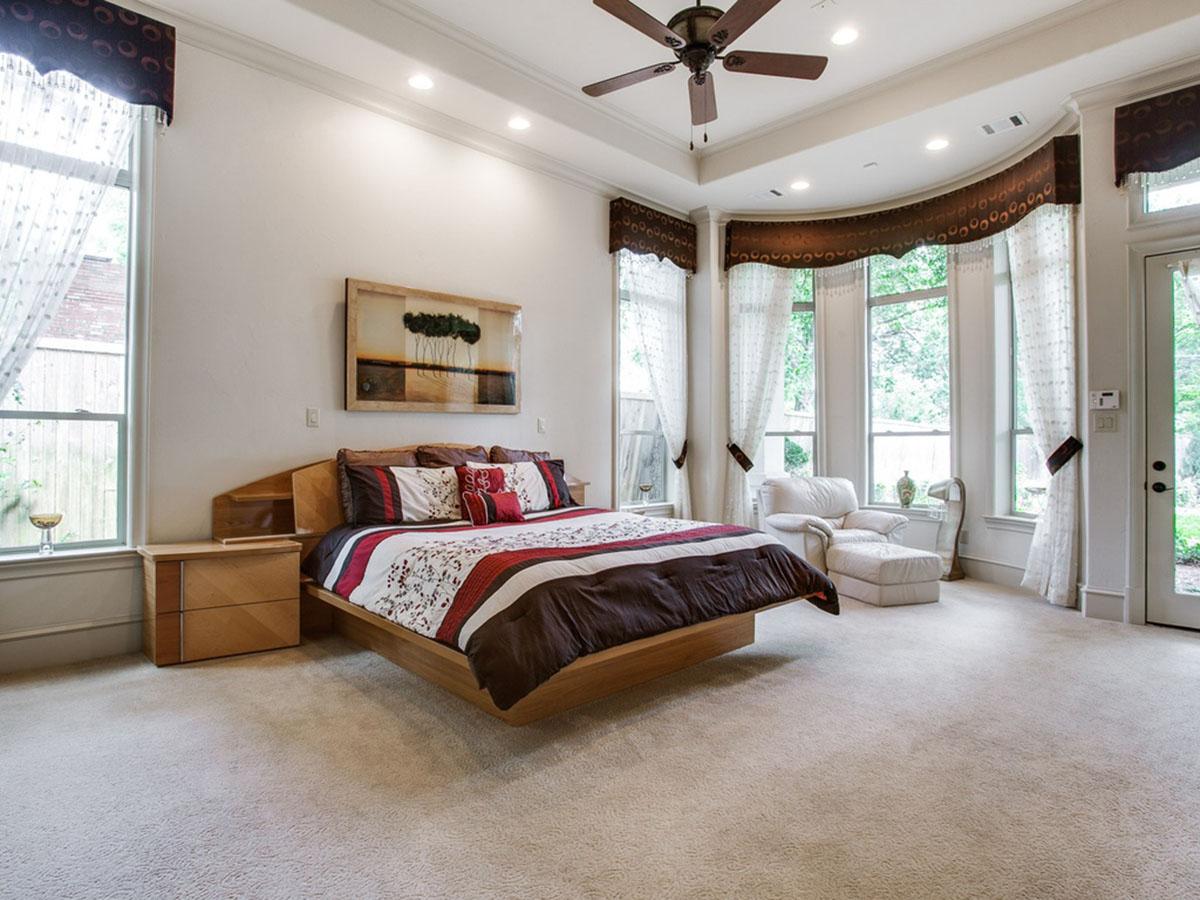

  • At night, retire to the luxurious master retreat where you have a private porch, bayed sitting area and a massive L-shaped walk-in closet.

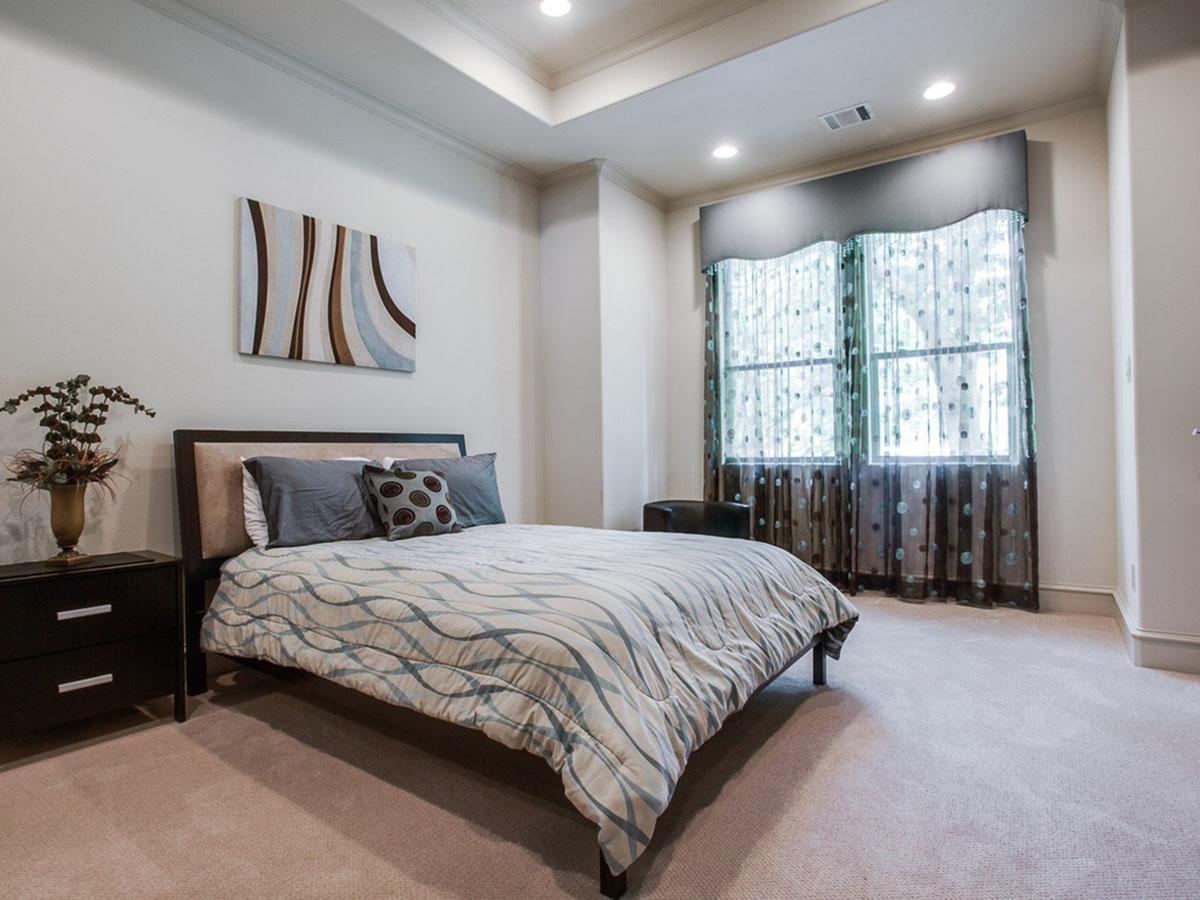

  • Three big bedrooms on the second floor, each with a private bathroom, share easy access to the media room with its tray ceiling.
What's Included
  • Cover sheet
  • Foundation Plan - schematic only
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,224 sq. ft.

1st Floor

3,344 sq. ft.

2nd Floor

1,880 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Half bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

88' 0"

Depth

101' 0"

Max Ridge Height

37' 0"

Garage

Type

Attached

Area

1013 sq. ft.

Count

3 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Hill Country

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Media Room

Multiple Stairs

Outdoor Fireplace

Plan Collections

Photo Gallery
