Plan 55093BR
Compact 3-Bed Cabin Under 1400 Square Feet
Heated S.F.
1,383
Beds
3
Baths
2
Stories
2
Floor Plan

Plan 55093BR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 55093BR

1-800-854-7852

1-262-521-4596

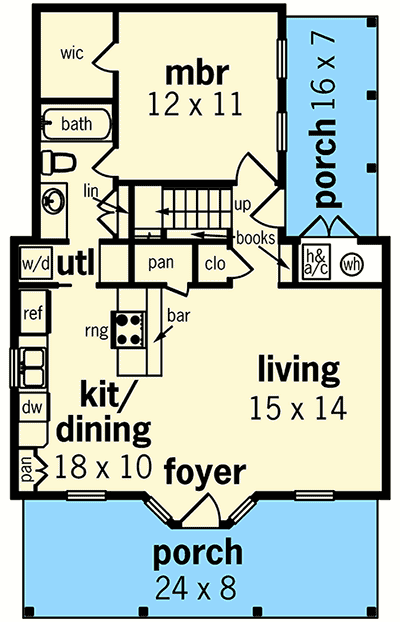

Main Level
floor plan image Main Level

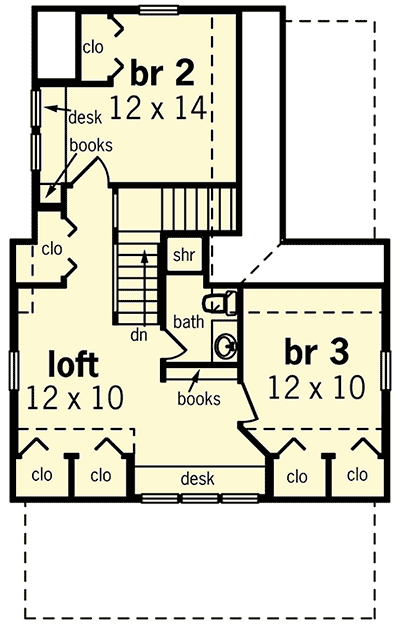

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This extremely compact design has a surprising amount of interior space and it has an eye-catching exterior reminiscent of homes from an earlier period.
  • The kitchen has a floor to ceiling pantry plus a walk in pantry located under the stairwell.
  • The master bath has built-in linen storage and easy access from the kitchen & utility area.
  • Bookshelves are built into the living room, (next to the door leading to the porch) stairwell, upstairs study area and the rear upstairs bed room.
  • This is a super energy-saving home plan featuring 2x6 exterior walls, 12' attic insulation and many other energy saving features.
What's Included
  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.

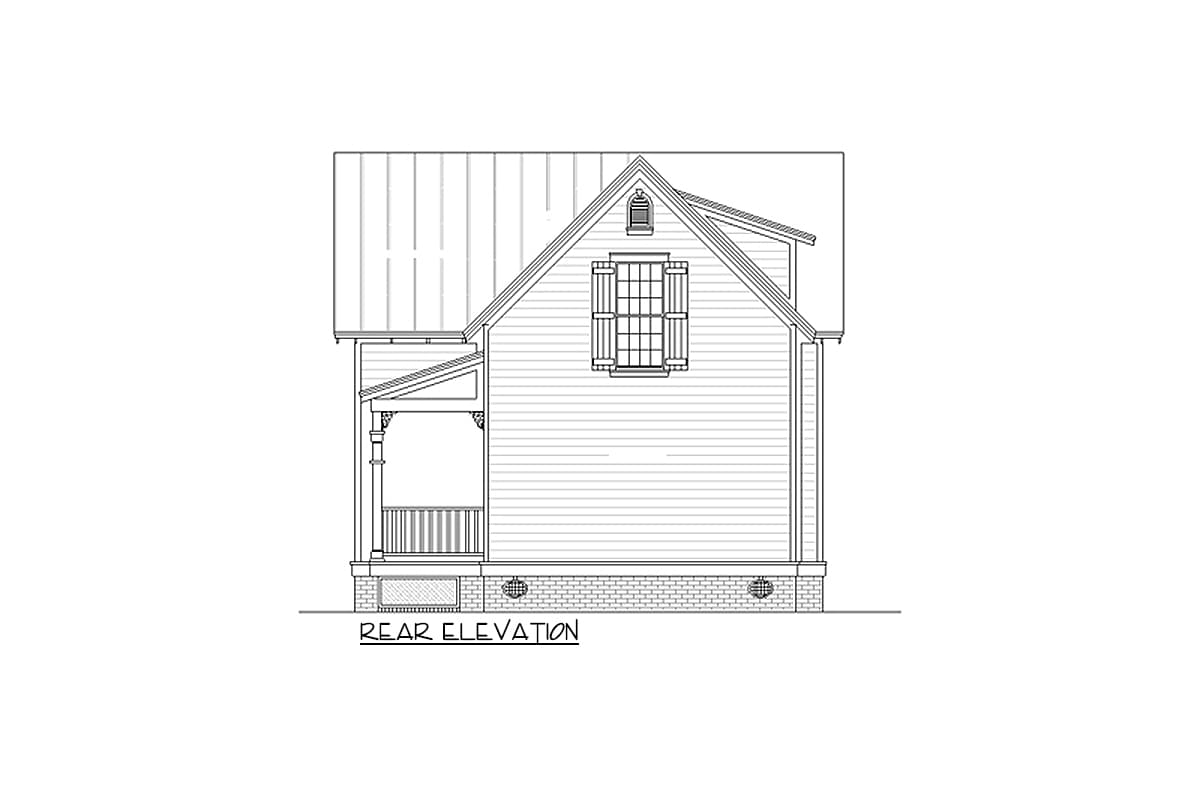

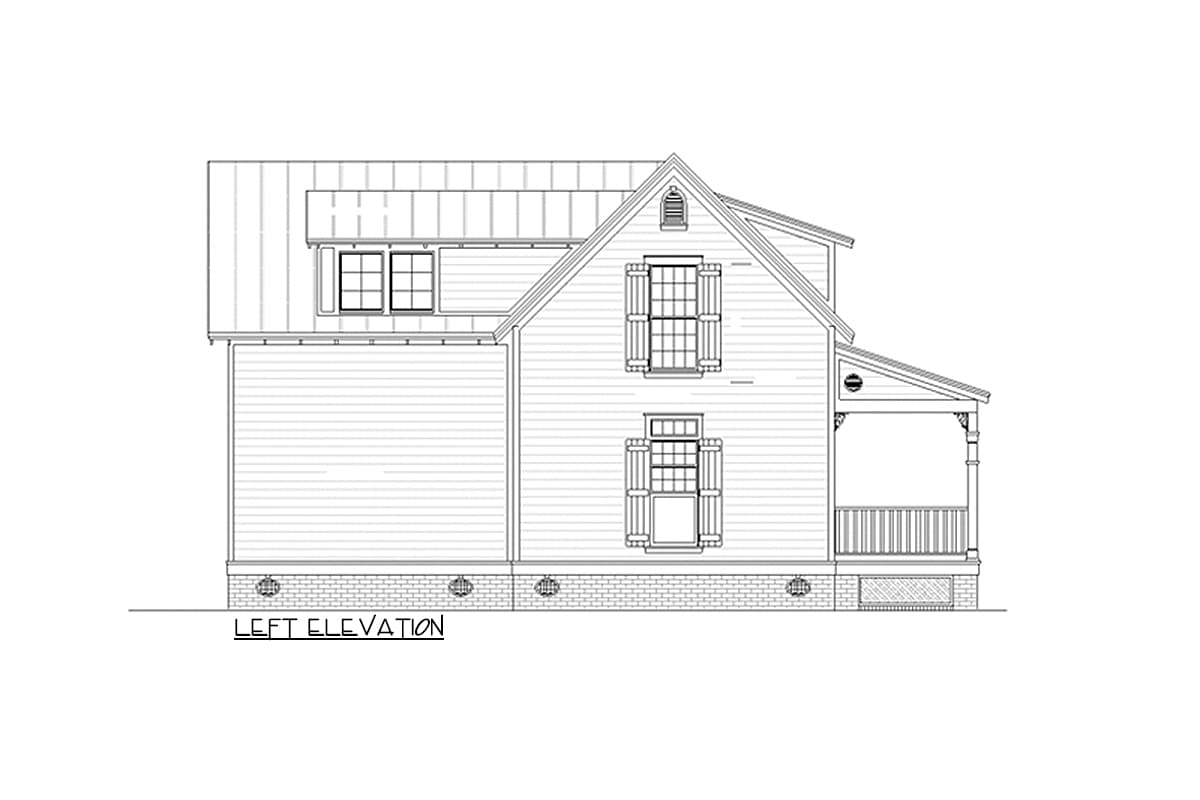

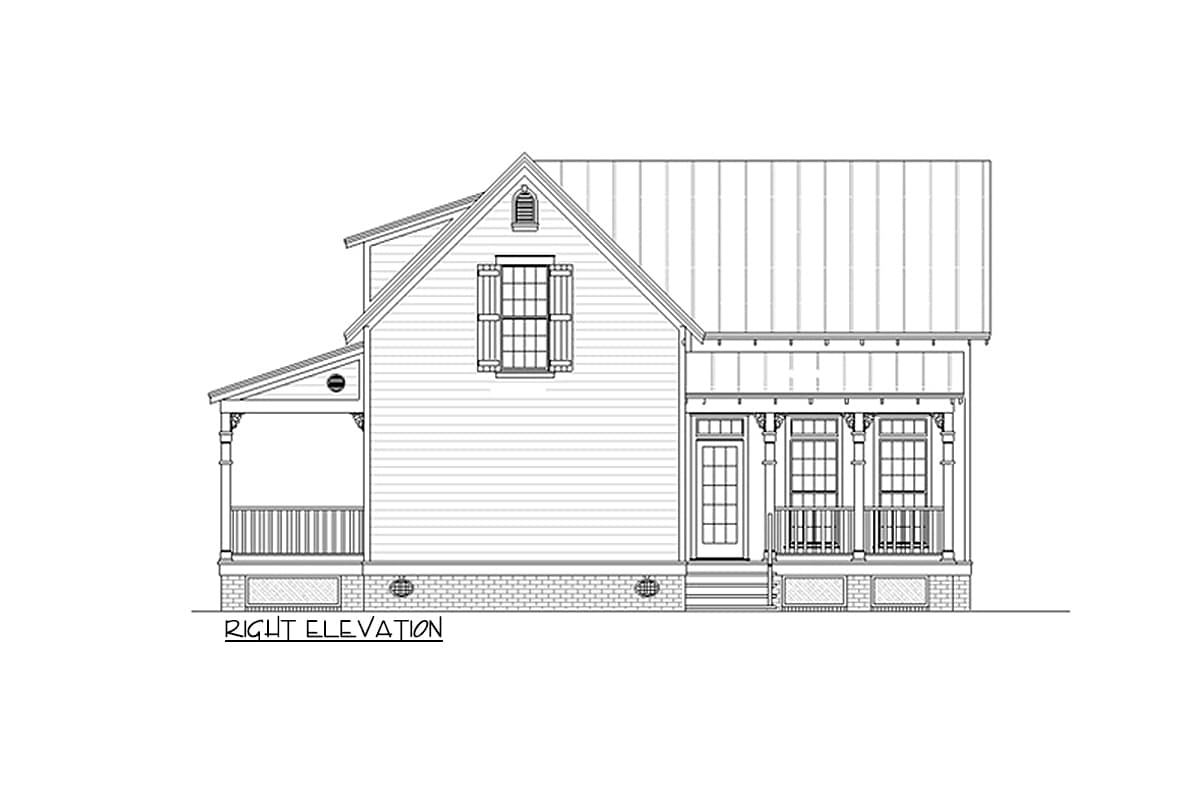

  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,383 sq. ft.

1st Floor

757 sq. ft.

2nd Floor

626 sq. ft.

Porch, Front

192 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

42' 0"

Max Ridge Height

23' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Rustic

Vacation

Special Features

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,383 sq. ft.

1st Floor

757 sq. ft.

2nd Floor

626 sq. ft.

Porch, Front

192 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

42' 0"

Max Ridge Height

23' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Rustic

Vacation

Special Features

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor
