Plan 80794PM
Compact Contemporary House Plan - 1070 Sq Ft
Heated S.F.
1,070
Beds
2
Baths
1.5
Stories
1
Cars
1
Floor Plan

Plan 80794PM

Main Level
slide image 0

Plan 80794PM

1-800-854-7852

1-262-521-4596

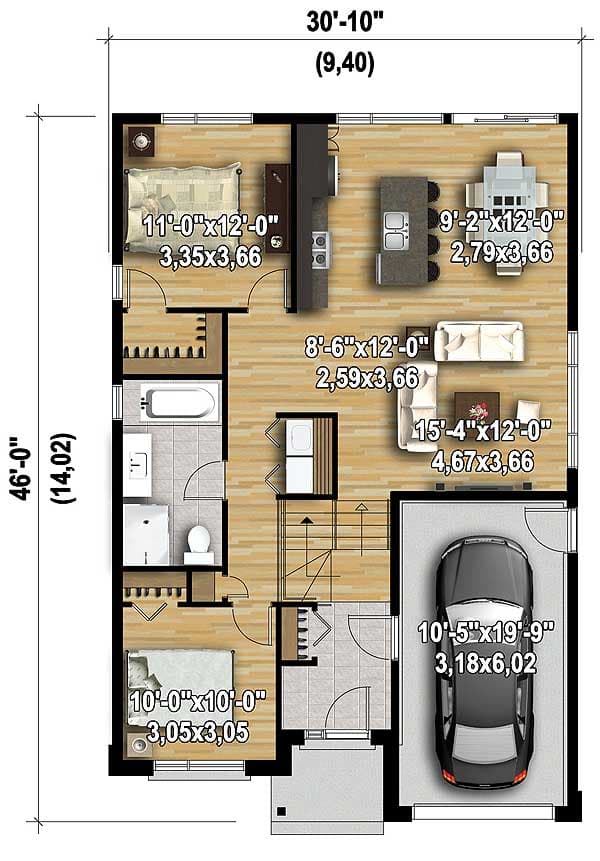

Main Level
floor plan image Main Level
Plan Details
  • Just over 30' wide, this Contemporary house plan packs a lot into its small footprint.
  • From the sunken foyer, you have just four short steps up to the main living area where the open layout puts everything within sight.
  • Sliding glass doors take you out to your backyard.
  • Two bedrooms share a large bathroom and laundry closet.
  • This plan's compact size makes it ideal for a getaway home as it is easy to clean and maintain.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,070 sq. ft.

1st Floor

1,070 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 10"

Depth

46' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

247 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,070 sq. ft.

1st Floor

1,070 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 10"

Depth

46' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

247 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric
