Plan 55109BR
Compact Cottage
Heated S.F.
1,034
Beds
2
Baths
2
Stories
2
Floor Plan

Plan 55109BR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 55109BR

1-800-854-7852

1-262-521-4596

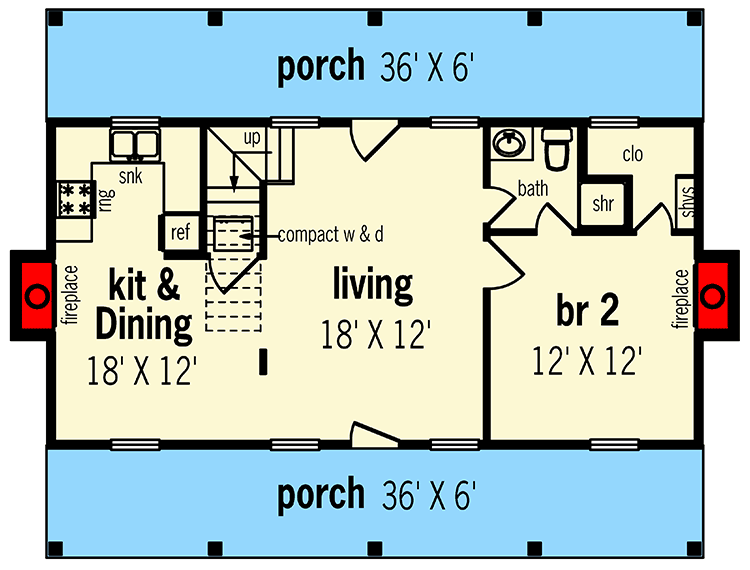

Main Level
floor plan image Main Level

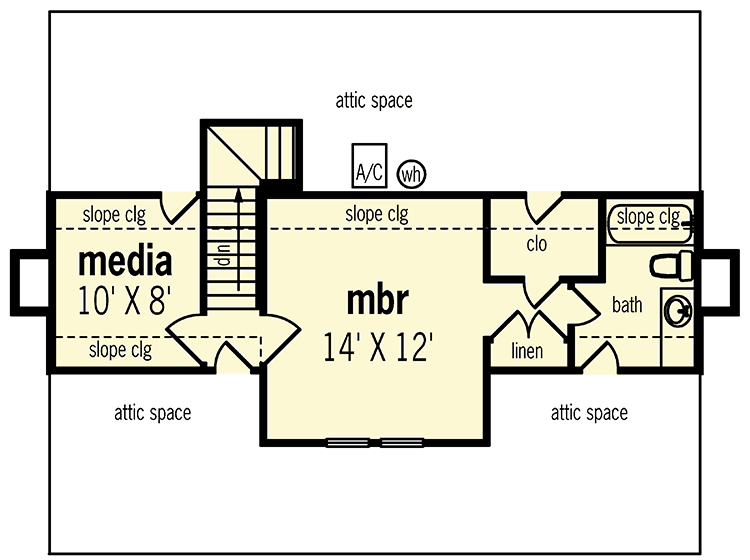

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Although this home is very compact, the country kitchen is full size and has a wood burning fireplace.
  • Both bedrooms can be used as the master with each having a bath and walk-in closet.
  • The downstairs master also has a wood burning fireplace.
  • A swing room can be used to store gear or it makes a great media room.
What's Included
  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,034 sq. ft.

1st Floor

648 sq. ft.

2nd Floor

386 sq. ft.

Porch, Front

216 sq. ft.

Porch, Rear

216 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

36' 0"

Depth

30' 0"

Max Ridge Height

20' 4"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Vacation

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Media Room
