Plan 55233BR
Compact Cottage House Plan with 3 Beds and 2 Floors
Heated S.F.
1,330
Beds
3
Baths
2.5
Stories
2
Floor Plan

Plan 55233BR

Main Level
slide image 0
2nd Floor
slide image 1
Unfinished Basement
slide image 2

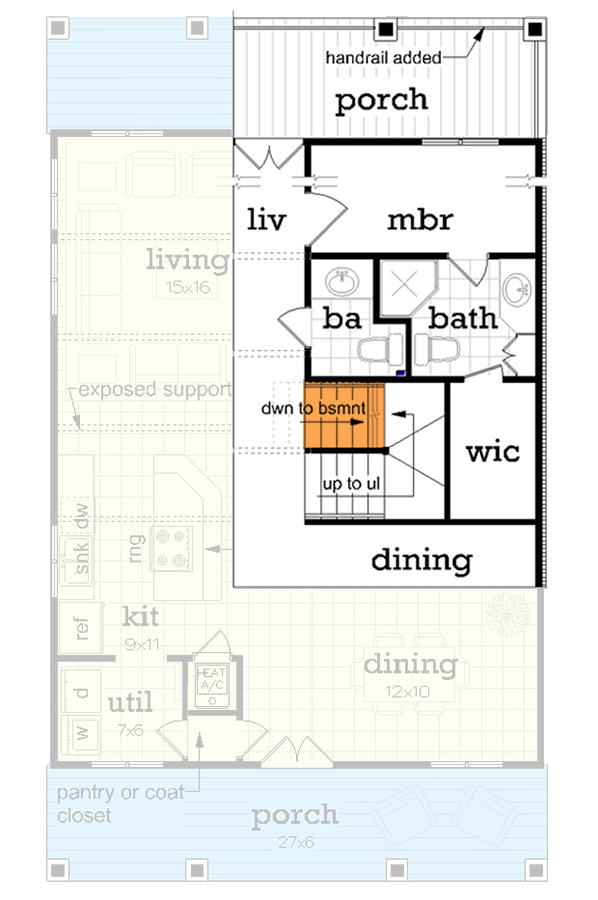

Basement Stairs Location
slide image 3

Plan 55233BR

1-800-854-7852

1-262-521-4596

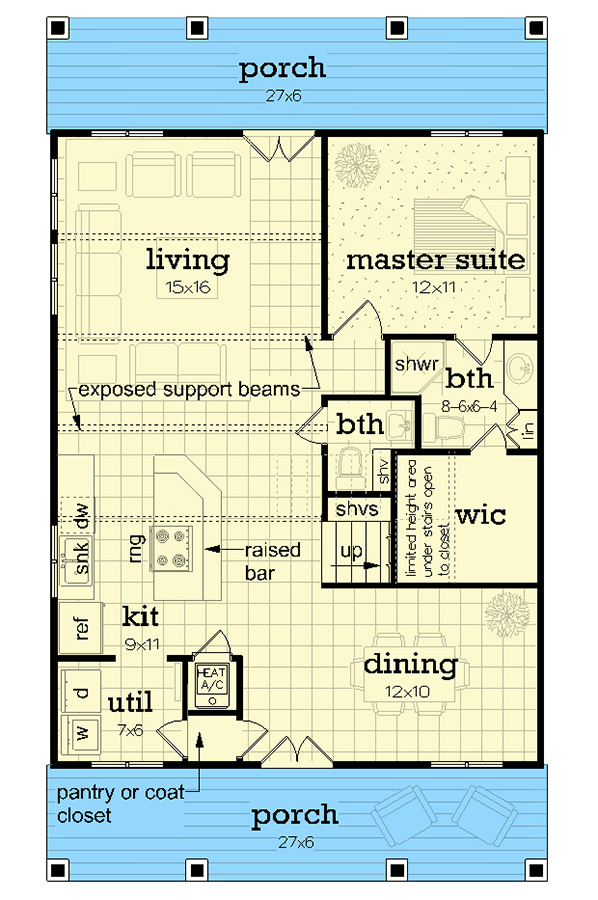

Main Level
floor plan image Main Level

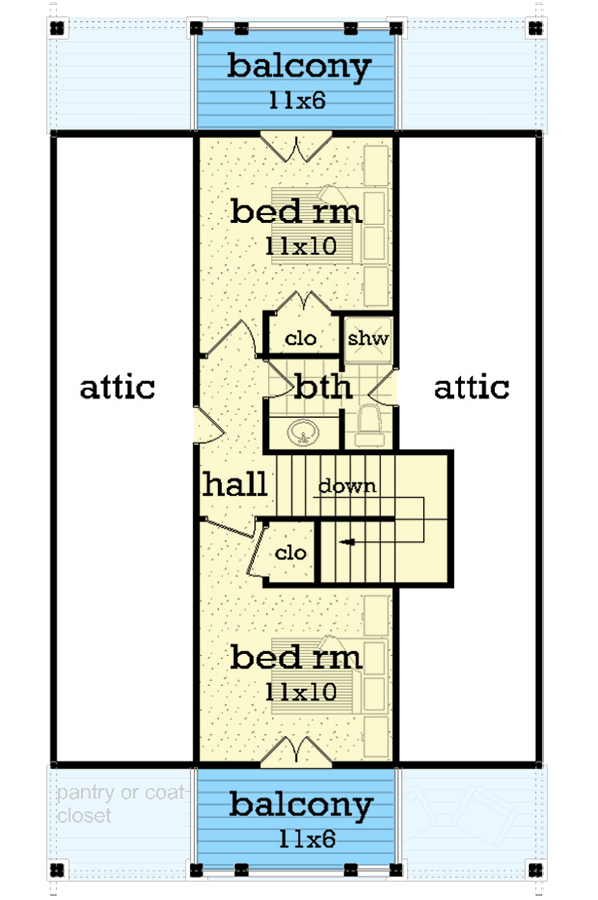

2nd Floor
floor plan image 2nd Floor

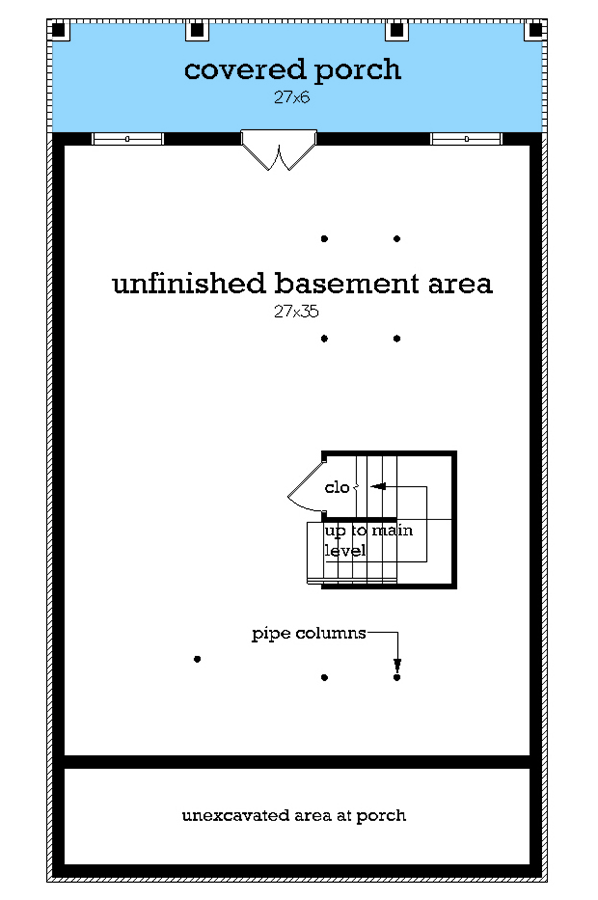

Unfinished Basement
floor plan image Unfinished Basement
Basement Stairs Location
floor plan image Basement Stairs Location
Plan Details
  • This 3 bed, 2.5 bath compact cottage house plan gives you 1,330 square feet of heated living spread across two floors.
  • The foot print is extremely compact measuring only 27’wide and 47’ deep so land space needed is minimal and it can be built on extremely narrow suburban lots.
  • All living spaces have expansive views by the use of uninterrupted glass in the casement windows and patio doors.
  • The main level living spaces are totally open and feature exposed wood finished beams. The kitchen is fully appointed and features a 42”-high raised eating bar and convenient access to the laundry area compete with a large pantry. An open dining area maximizes the number of seating for those entertaining events.
  • The master suite has a connecting bath featuring a corner shower, built-in linen cabinet and a very large walk-in closet.
  • A centrally located stair ascends to the upper level and even the stairwell space is maximized with built-in book shelves. Two secondary upstairs bedrooms with a centrally located bath rounds out the living space but outdoor balconies for both bedrooms makes them more than just sleeping rooms.
What's Included
  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.

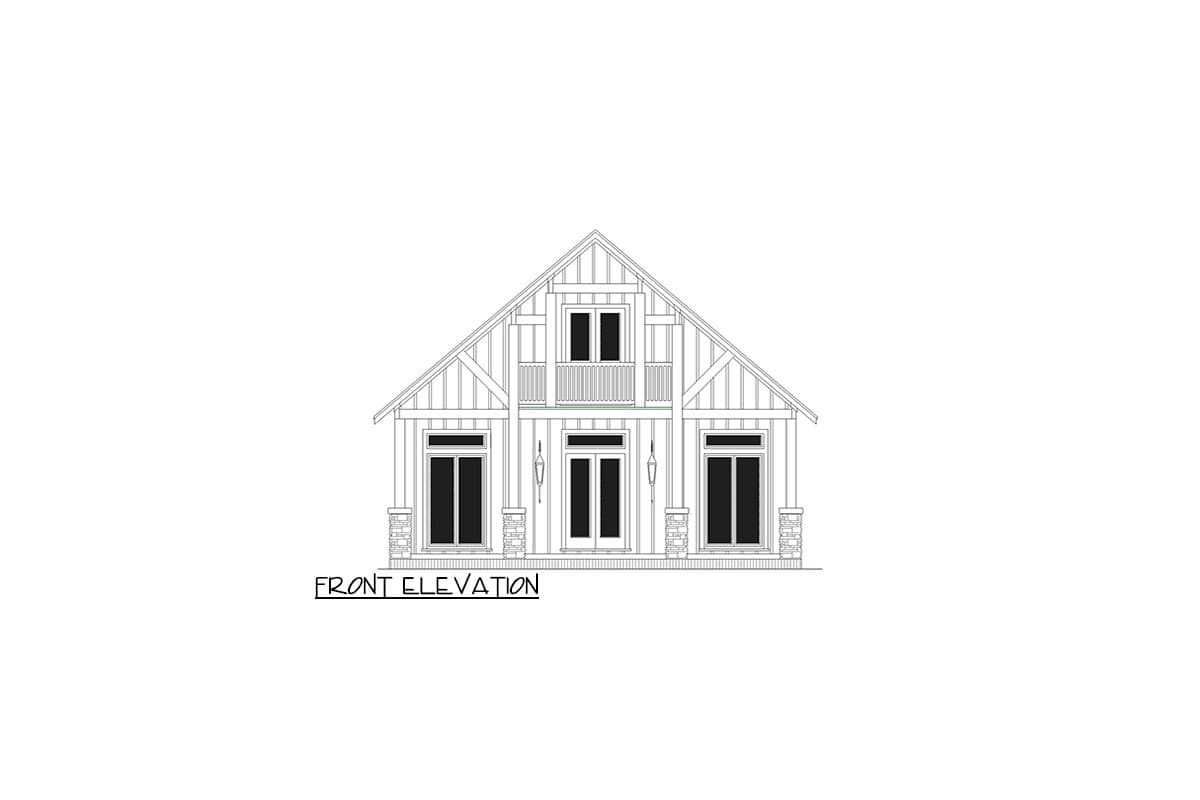

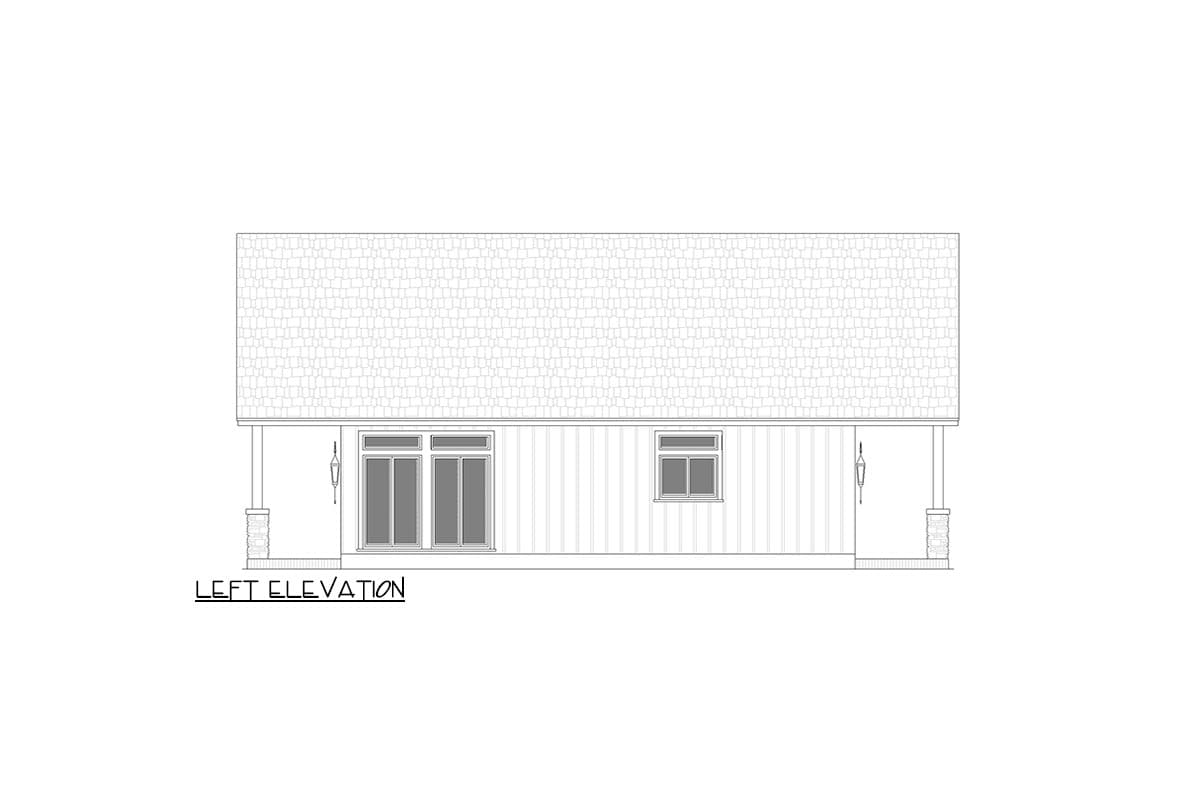

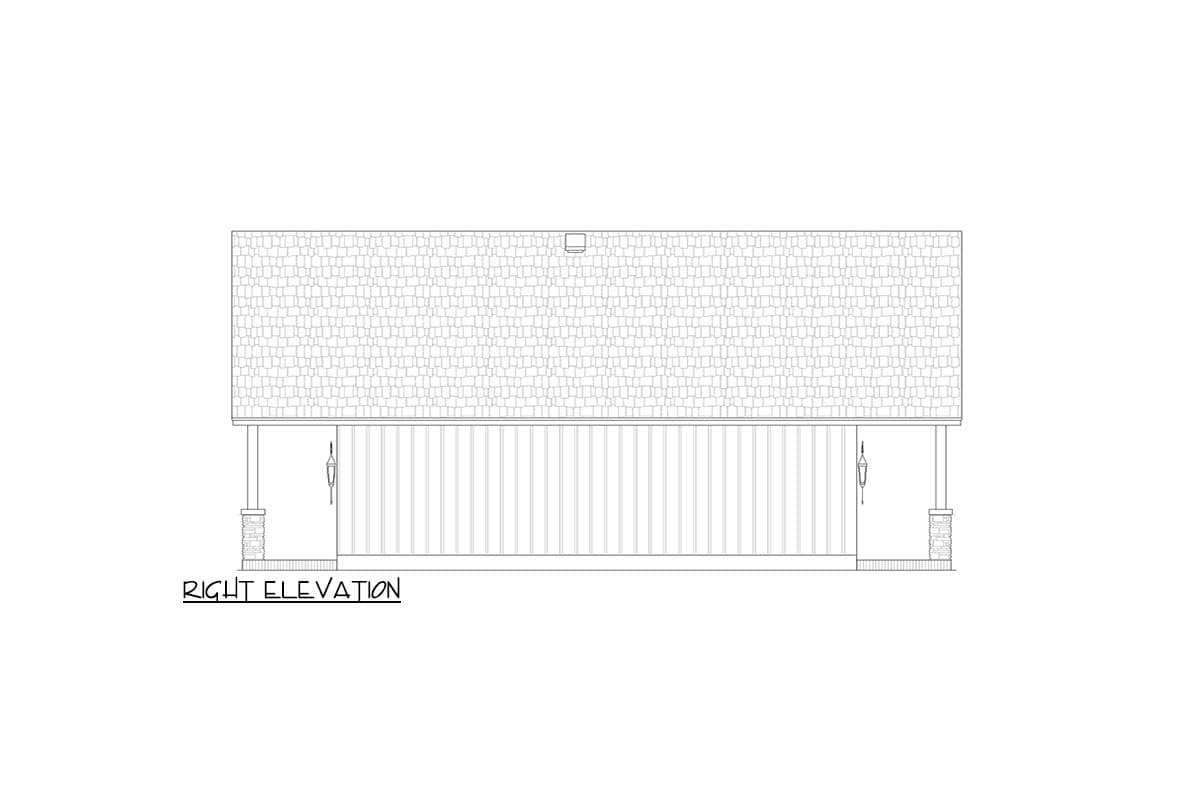

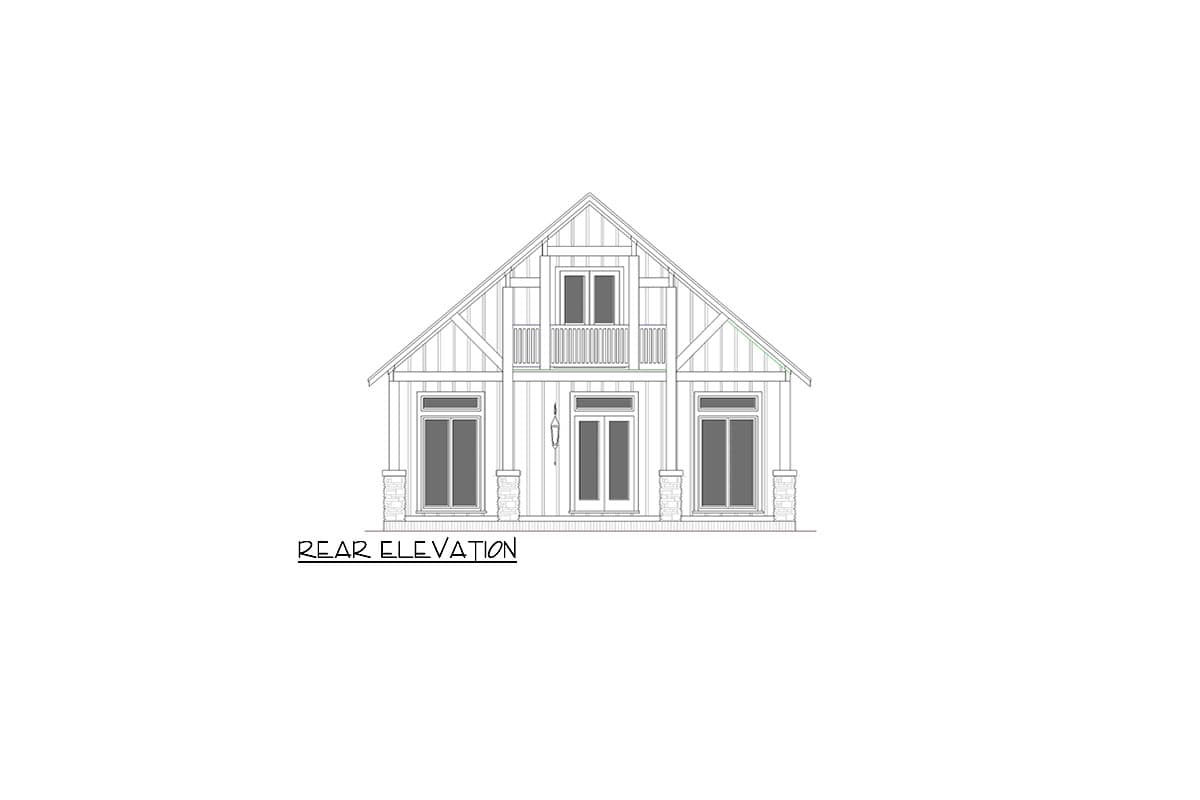

  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,330 sq. ft.

1st Floor

945 sq. ft.

2nd Floor

385 sq. ft.

Porch, Combined

324 sq. ft.

Balcony / Veranda

140 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

27' 0"

Depth

47' 0"

Max Ridge Height

21' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,330 sq. ft.

1st Floor

945 sq. ft.

2nd Floor

385 sq. ft.

Porch, Combined

324 sq. ft.

Balcony / Veranda

140 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

27' 0"

Depth

47' 0"

Max Ridge Height

21' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Master Suite - 1st Floor

Mudroom
