Name: Plan 51783HZ: Compact Craftsman House Plan Ideal for a Narrow Lot - 2219 Sq Ft
SKU: 51783HZ
Price: 1395.0 USD
Availability: InStock

Plan 51783HZ

Compact Craftsman House Plan Ideal for a Narrow Lot - 2219 Sq Ft

Heated S.F.

2,219

Beds

Baths

Stories

Cars

Floor Plan

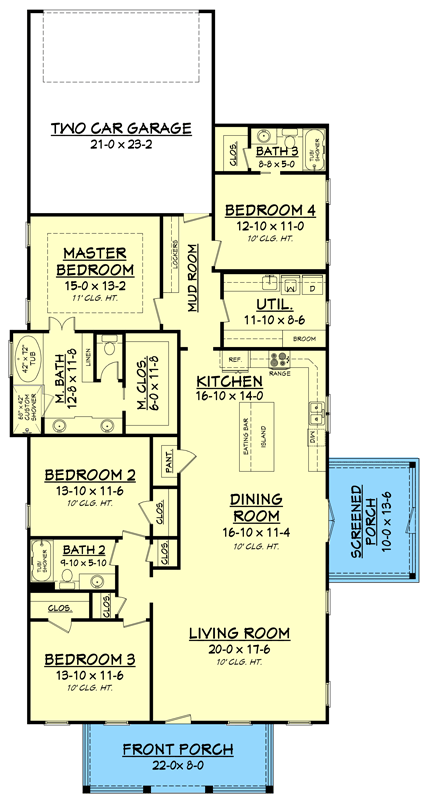

Main Level

Basement Stairs Location

Plan Details

This wonderful narrow lot traditional home offers 4 large bedrooms with three full baths and gives you 2,219 square feet of heated living space.
The wide open living, dining and kitchen create an amazing open feeling that is great for enjoying time with family and friends.
The large kitchen offers miles of counter space and storage.
The utility room is enormous and offers a sink, counter space and broom closet.
The master suite is luxurious and roomy.
The screened porch offers an additional entertaining space or that area for just relaxing on those cool and sunny days.

What's Included

This house plan has 8 pages as follows:

Page 1 Cover Sheet with abbreviations, rendering, sheet index
Page 2 Foundation Plan and Details
Page 3 Detailed floor plans (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

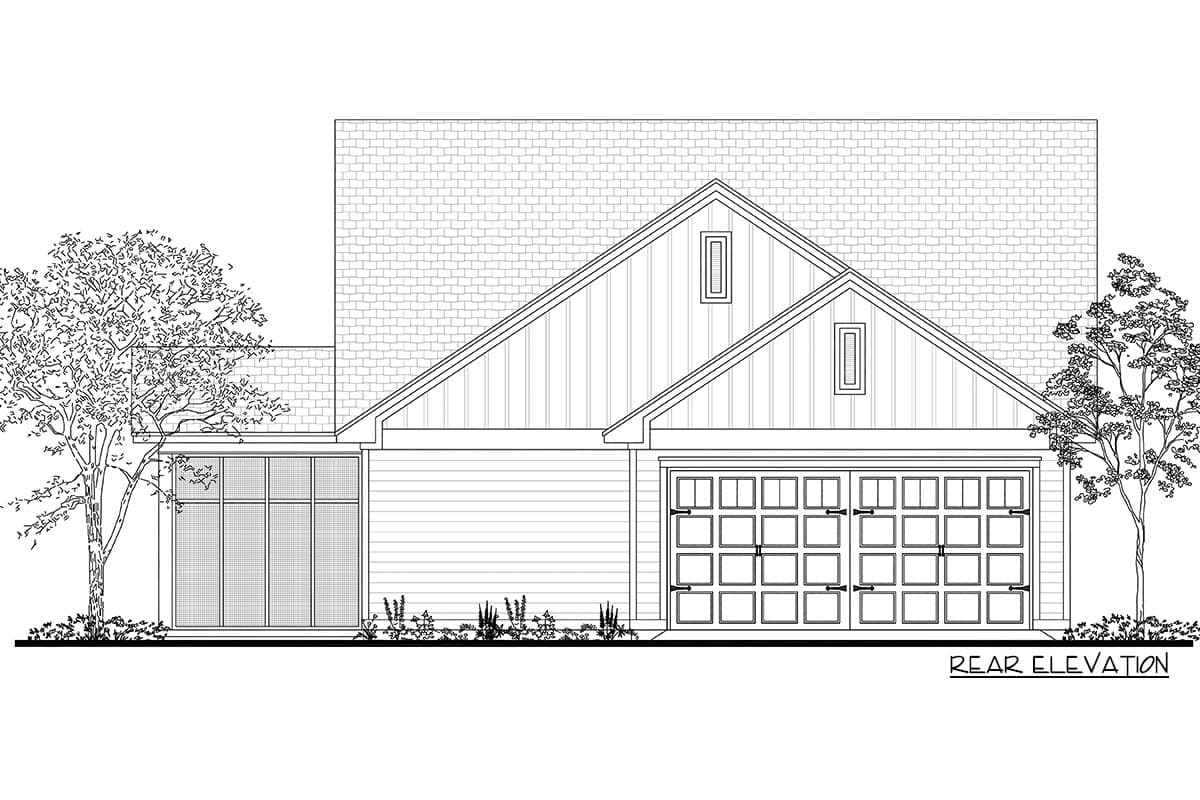

Page 4 Front and rear exterior views with notes and garage section
Page 5 Right and left exterior views with notes and wall sections
Page 6 Cross Section & kitchen cabinet views
Page 7 Roof plan & span charts
Page 8 Electrical plans & notes/ legend

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require
