Plan 82204KA
Compact European House Plan
Heated S.F.
1,856
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 82204KA

Main Level
slide image 0

Plan 82204KA

1-800-854-7852

1-262-521-4596

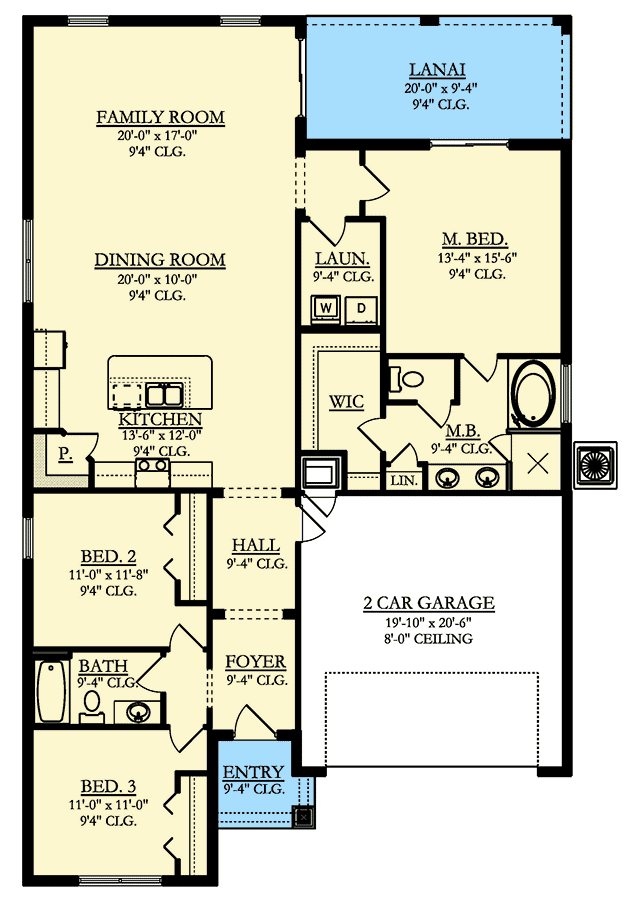

Main Level
floor plan image Main Level
Plan Details
  • A transom window over the front door brings extra light into the foyer of this compact one level European home.
  • Pass by two family bedrooms on your way back to the main living area with its wonderful open layout.
  • Skip the formal dining room and enjoy a 20' wide dining area that is open to the kitchen and family room.
  • Sliding glass doors in the family room and master suite take you out to a covered lanai.
  • Homeowners get a big walk-in clothes closet and a large soaking tub in the master bathroom.
  • Related Plans: Get different exteriors with house plans 82202KA and 82203KA.
What's Included
  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.

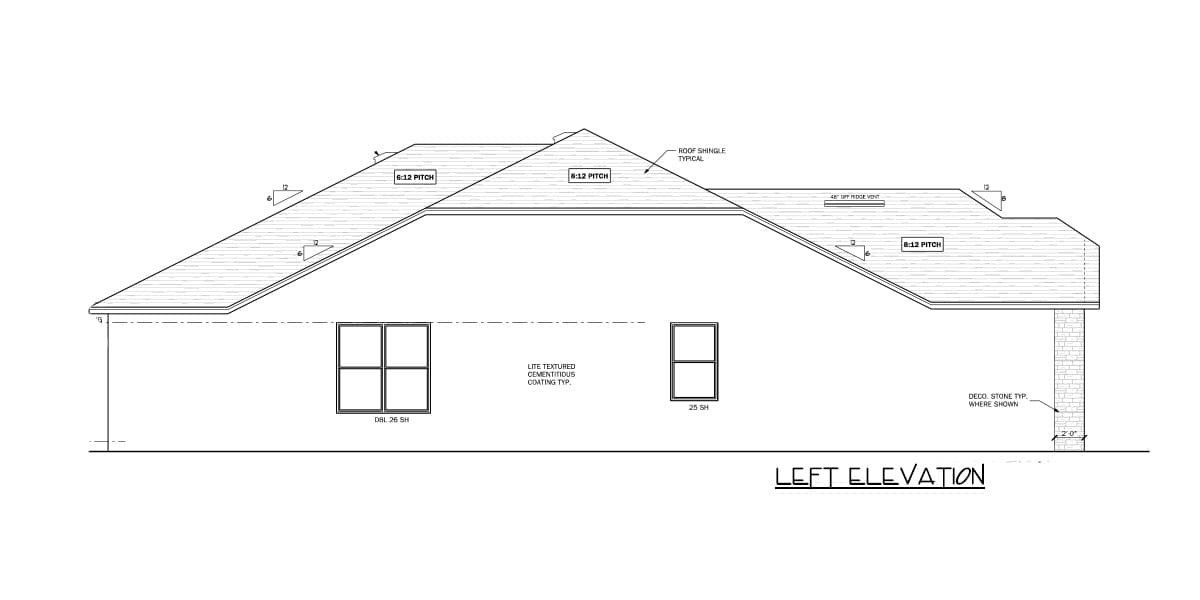

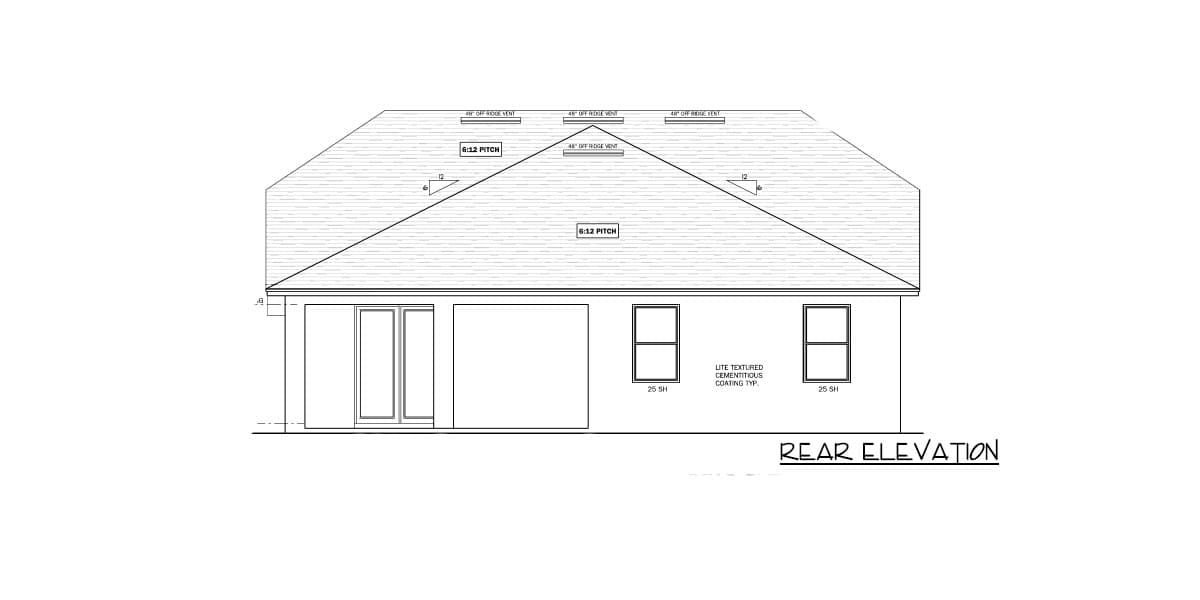

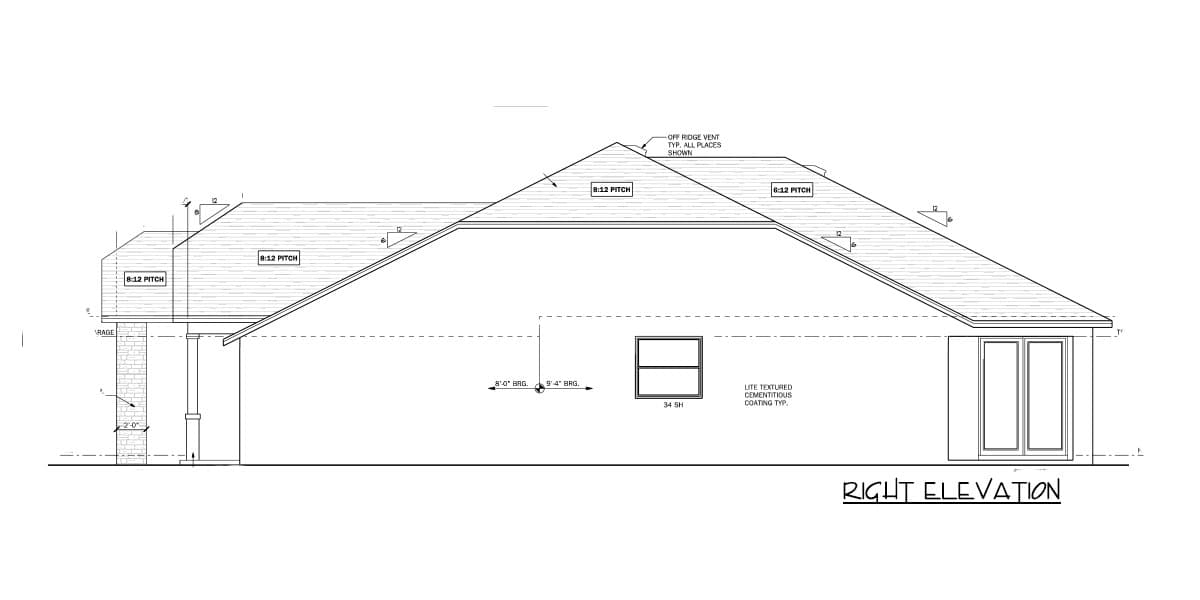

  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,856 sq. ft.

1st Floor

1,856 sq. ft.

Porch, Front

44 sq. ft.

Porch, Rear

178 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

41' 4"

Depth

65' 8"

Max Ridge Height

19' 8"

Garage

Type

Attached

Area

434 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

European

Ranch

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,856 sq. ft.

1st Floor

1,856 sq. ft.

Porch, Front

44 sq. ft.

Porch, Rear

178 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

41' 4"

Depth

65' 8"

Max Ridge Height

19' 8"

Garage

Type

Attached

Area

434 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

European

Ranch

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor
