Plan 80796PM
Compact Modern Style
Heated S.F.
1,182
Beds
3
Baths
1
Stories
1
Floor Plan

Plan 80796PM

Main Level
slide image 0

Plan 80796PM

1-800-854-7852

1-262-521-4596

Main Level

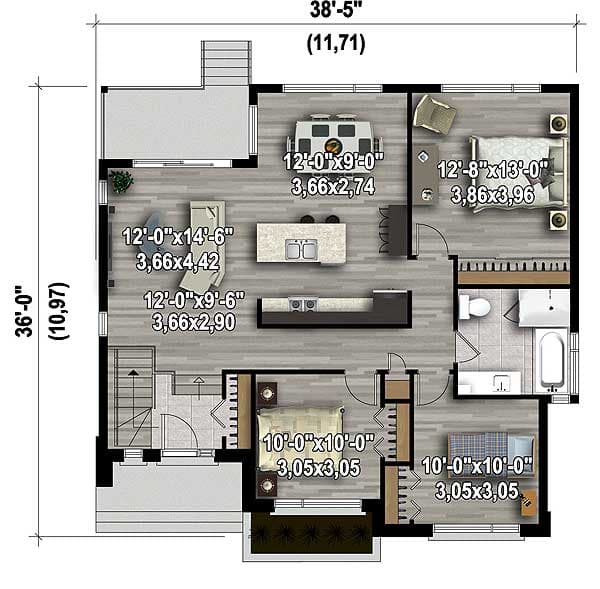

floor plan image Main Level
Plan Details
  • A sunken foyer brings you into this compact Modern house plan with only two steps up to reach the main living area.
  • Here, the open layout makes the space feel larger.
  • The rear wall is all glass or sliding glass doors and there are transoms to bring in extra light.
  • A four piece bathroom serves all three bedrooms.
  • In the kitchen, an island gives you extra counter space and storage.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,182 sq. ft.

1st Floor

1,182 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 5"

Depth

36' 0"

Max Ridge Height

22' 11"

Roof Details

Framing Type

Truss

Architectural Style

Modern

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,182 sq. ft.

1st Floor

1,182 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 5"

Depth

36' 0"

Max Ridge Height

22' 11"

Roof Details

Framing Type

Truss

Architectural Style

Modern

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric
