Plan 80881PM
Compact Northwest House Plan
Heated S.F.
1,264
Beds
3
Baths
1.5
Stories
2
Floor Plan

Plan 80881PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80881PM

1-800-854-7852

1-262-521-4596

Main Level

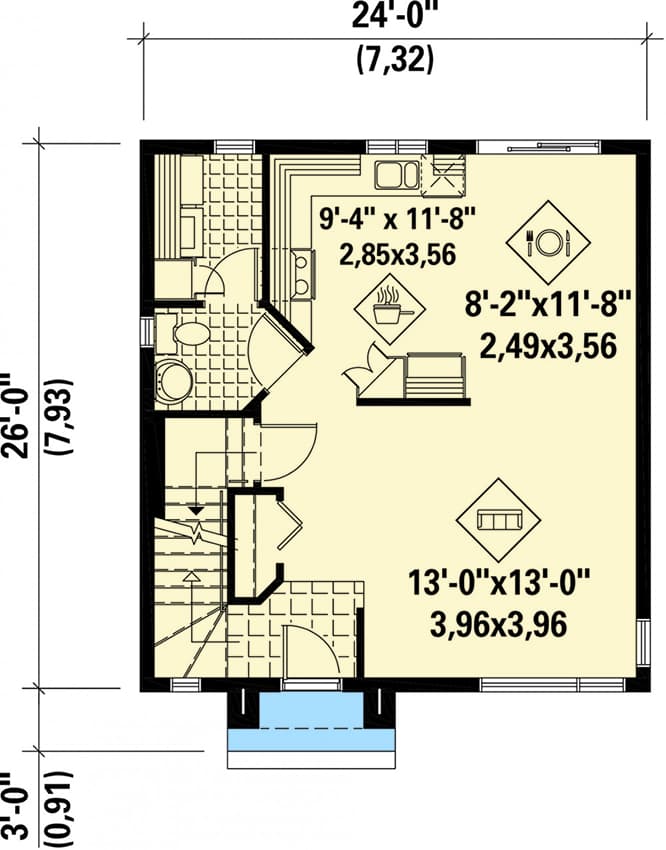

floor plan image Main Level
2nd Floor

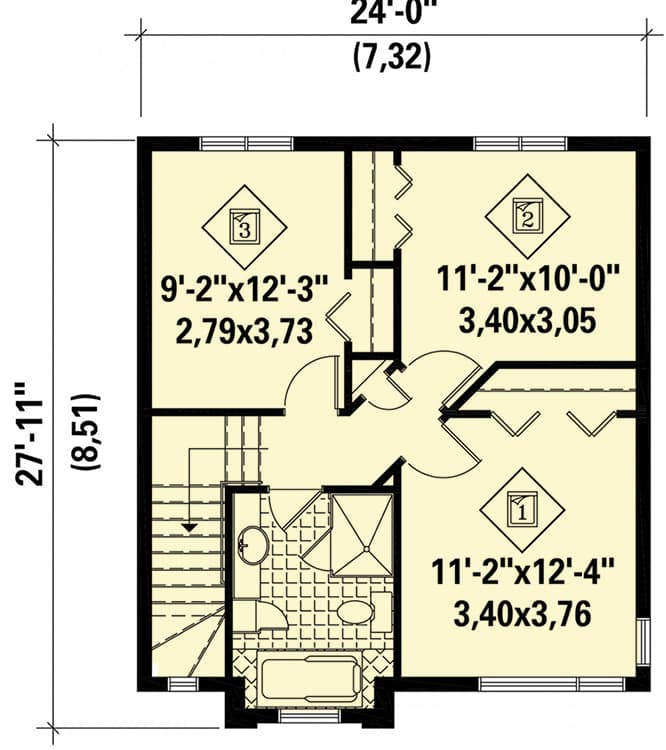

floor plan image 2nd Floor
Plan Details
  • Rustic shakes and siding are accented with stonework in this two-story Northwest house plan.
  • The square foundation shape makes the home economical to build.
  • An open layout means you can move from room to room easily and there are sliding glass doors to the backyard.
  • You'll enjoy a window by the kitchen sink and lots of counter space.
  • All three bedrooms are upstairs and they share a large hall bathroom.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,264 sq. ft.

1st Floor

624 sq. ft.

2nd Floor

640 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

26' 0"

Max Ridge Height

26' 0"

Roof Details

Framing Type

Truss

Architectural Style

Northwest

Special Features

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric
