Plan 90311PD
Compact Prairie Style House Plan
Heated S.F.
1,522
Beds
3
Baths
1.5
Stories
2
Cars
1
Floor Plan

Plan 90311PD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 90311PD

1-800-854-7852

1-262-521-4596

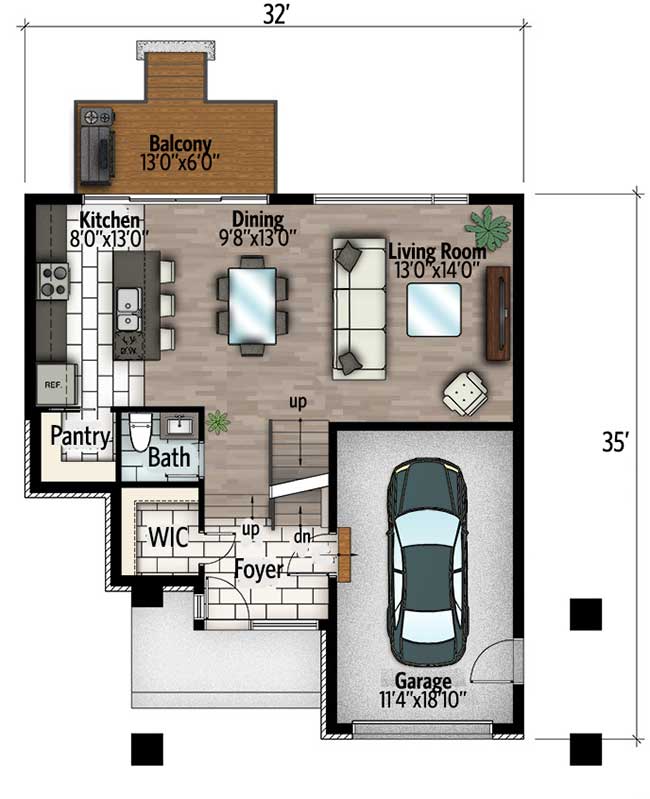

Main Level
floor plan image Main Level

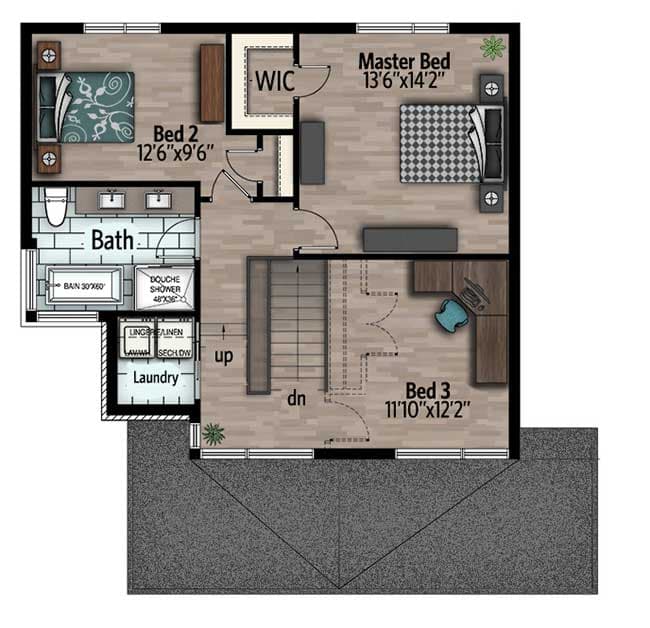

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This narrow lot Prairie style house plan offers three bedrooms and an open floor plan, all just 32' wide.
  • The sunken foyer is just two steps down from the main living area that runs side to side with clear views between rooms.
  • The kitchen gets a walk-in pantry and an island, with sliding glass doors out to a rear balcony.
  • A walk-in closet comes with the second floor master suite and there's a laundry room tucked away down the hall.
  • All three bedrooms share the large hall bathroom that has two sinks.
What's Included
Please note this plan is designed to the National Building Code of Canada.

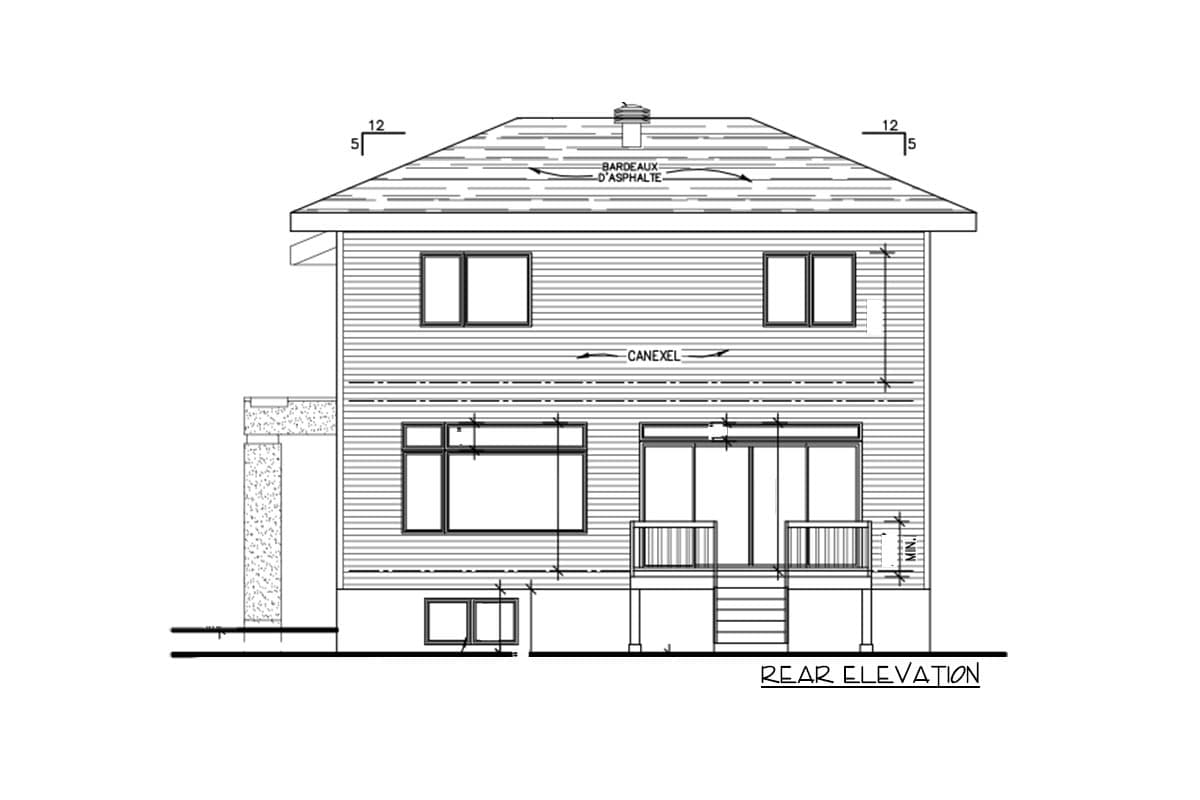

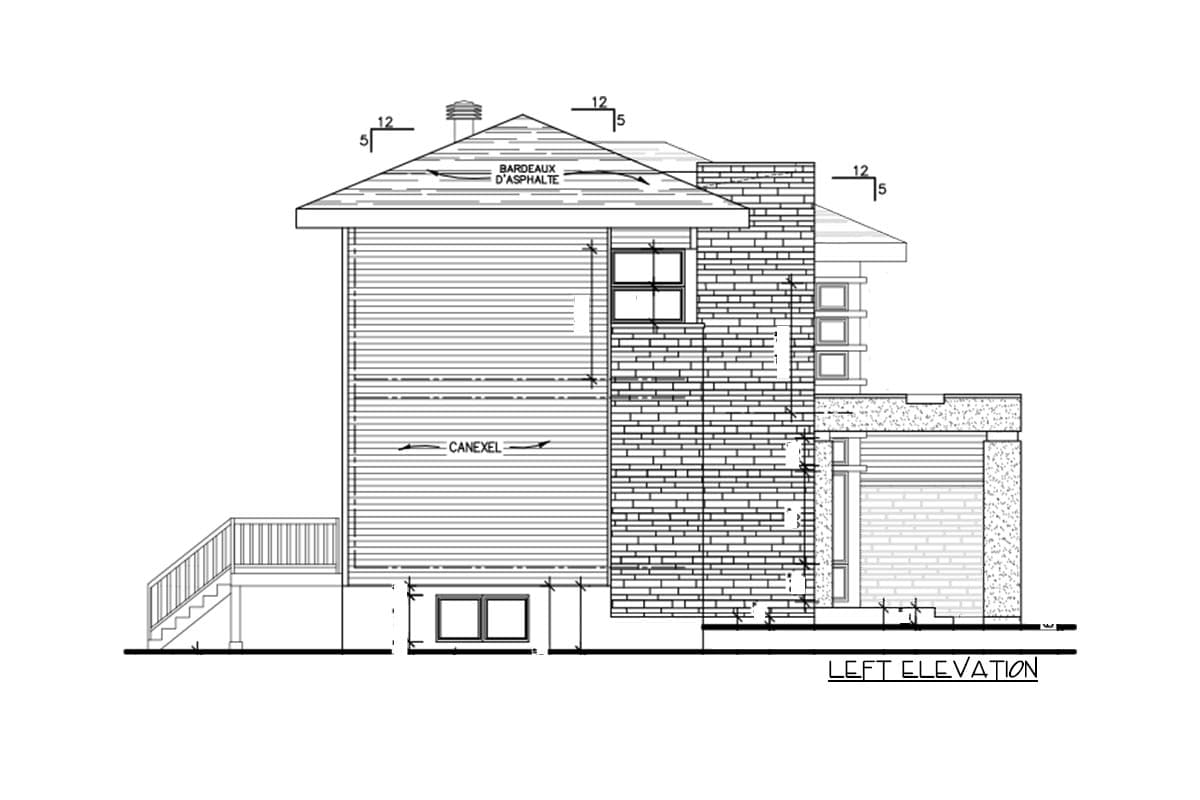

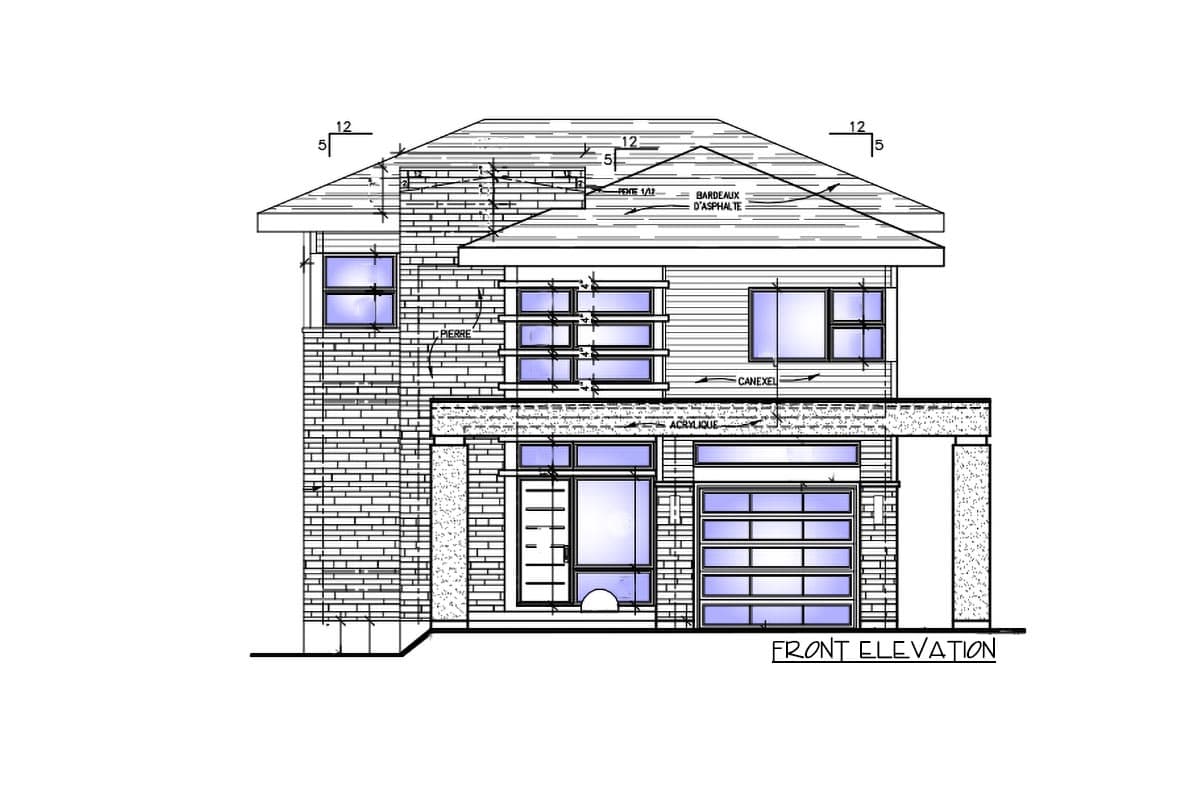

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,522 sq. ft.

1st Floor

685 sq. ft.

2nd Floor

837 sq. ft.

Optional Lower Level

685 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

35' 0"

Max Ridge Height

27' 10"

Garage

Type

Attached

Area

255 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Northwest

Prairie

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans
