Plan 89777AH
Compact Ranch Home Plan
Heated S.F.
1,613
Beds
2
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 89777AH

Main Level
slide image 0

Plan 89777AH

1-800-854-7852

1-262-521-4596

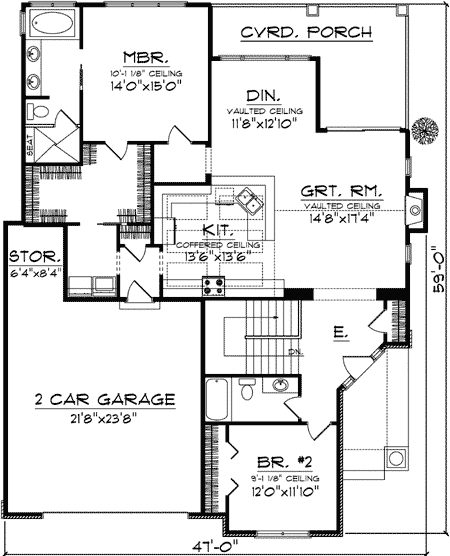

Main Level
floor plan image Main Level
Plan Details
  • This 2-bedroom home packs tons of living space into just over 1600 square feet, making it a perfect plan for homeowners on a budget.
  • An open floor plan combines the kitchen, great room and dining rooms into a spacious living area with a covered porch wrapping much of the rear for additional entertaining space.
  • The master suite is tucked behind the garage and features a Jucuzzi tub, dual sinks, a spacious walk-in closet and convenient access to the laundry room.
  • A two-stall garage with extra storage space makes this an affordable home with lots of punch.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,613 sq. ft.

1st Floor

1,613 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 0"

Depth

59' 0"

Max Ridge Height

27' 9"

Garage

Type

Attached

Area

583 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Cottage

Northwest

Ranch

Shingle

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,613 sq. ft.

1st Floor

1,613 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 0"

Depth

59' 0"

Max Ridge Height

27' 9"

Garage

Type

Attached

Area

583 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Cottage

Northwest

Ranch

Shingle

Special Features

Bedrooms - Split

Master Suite - 1st Floor
