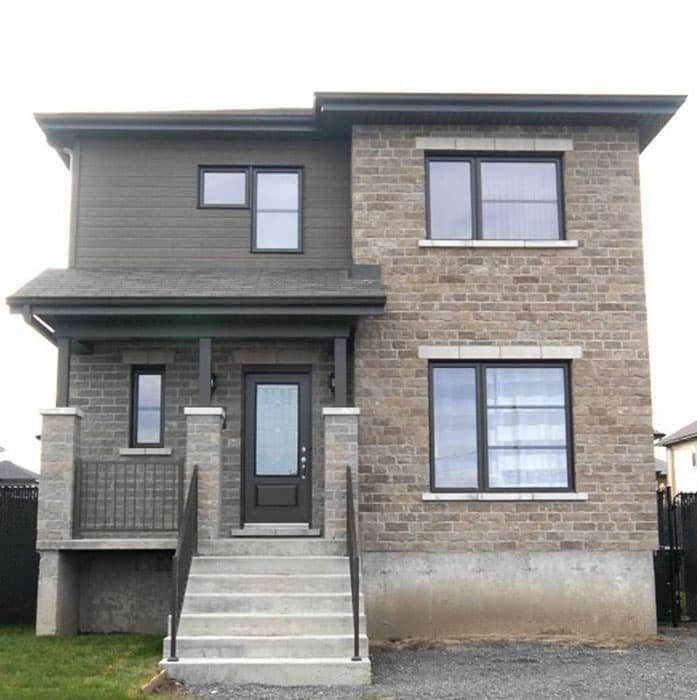

Compact Two-Story Northwest House Plan - 1200 Sq Ft
Heated S.F.
1,200
Beds
3
Baths
1.5
Stories
2
Floor Plan

Plan 80885PM

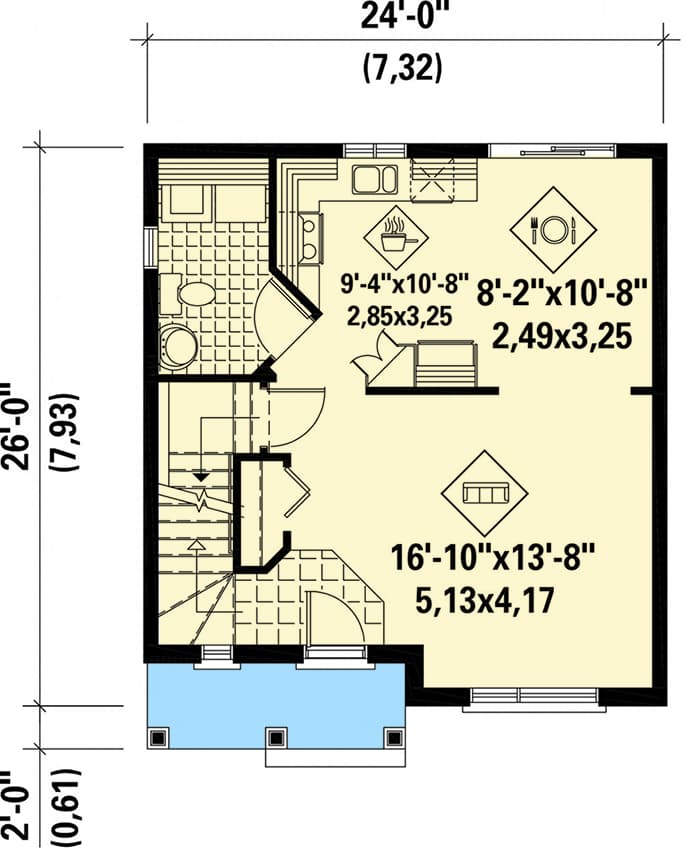

Main Level
slide image 0

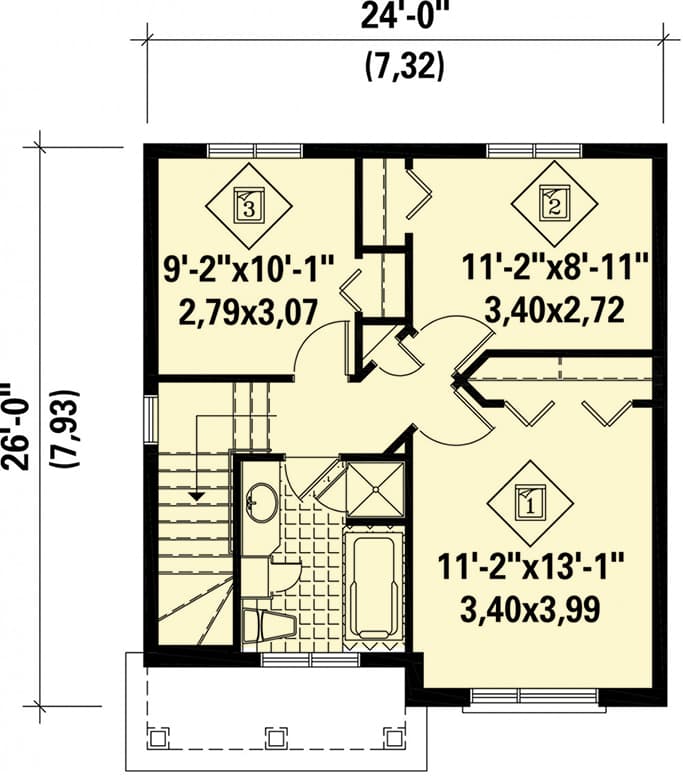

2nd Floor
slide image 1

Plan 80885PM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Metal roofing accents the front porch of this compact 1,200 square foot house plan.
  • Only 24' wide, the home is designed to fit on a narrow lot.
  • Yet the open layout makes the inside space feel much larger.
  • Sliding glass doors in the dining area lead out to the back yard and the kitchen sink has a double window so you can watch the kids play.
  • In an economical use of space, the powder room is combined with the washer/dryer area.
  • Three bedrooms upstairs share a large four piece washroom.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,200 sq. ft.

1st Floor

600 sq. ft.

2nd Floor

600 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

26' 0"

Max Ridge Height

26' 0"

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Northwest

Traditional

Special Features

Laundry - Lower Level

Master Suite - 2nd Floor
