Plan 39145ST
Complete with Rooftop Terrace
Heated S.F.
6,502
Beds
4
Baths
4.5
Stories
3
Cars
2
Floor Plan

Plan 39145ST

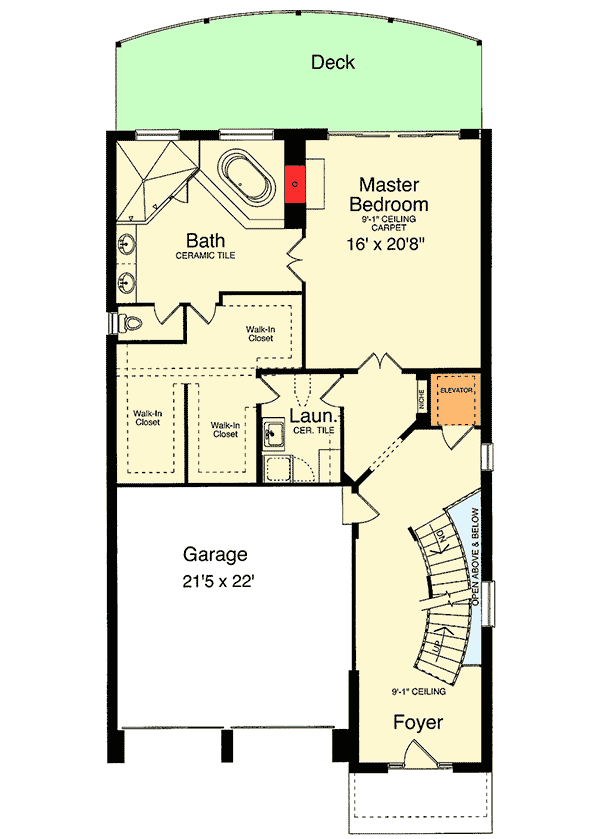

Main Level
slide image 0

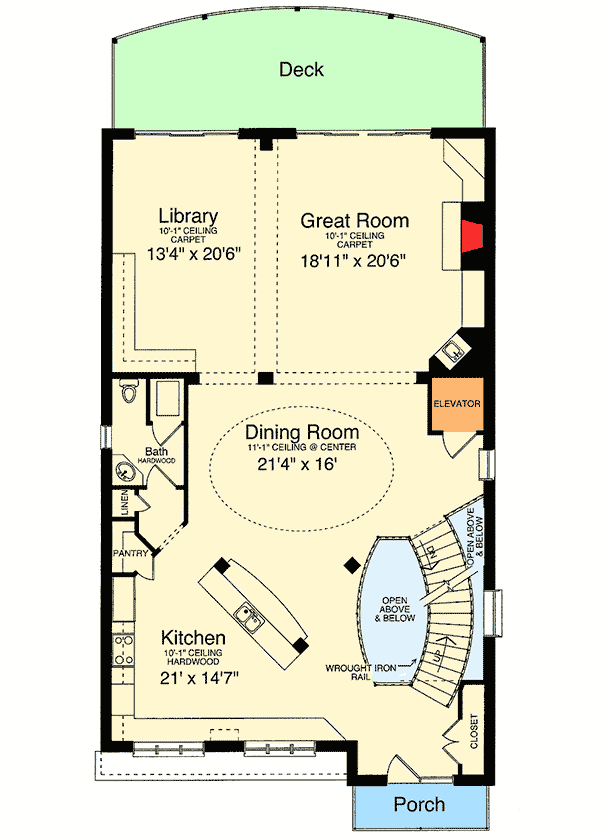

Second Level
slide image 1

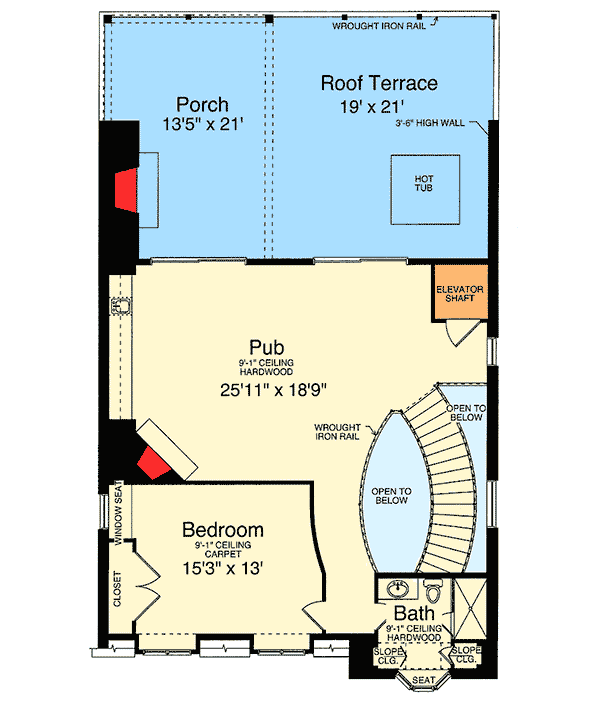

Third Level
slide image 2

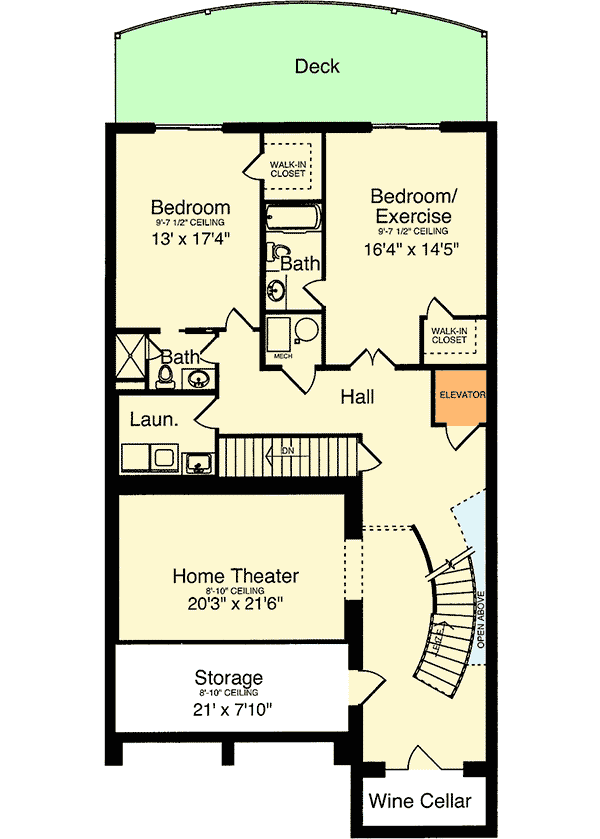

Lower Level
slide image 3

Plan 39145ST

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Second Level
floor plan image Second Level
Third Level
floor plan image Third Level
Lower Level
floor plan image Lower Level
Plan Details
  • The attractive exterior is decorated with a balcony, arches and scallop trim. The foyer features a beautiful curved staircase and 20' ceiling height through the staircase. Each level of living space enjoys access to a deck to enjoy the outdoors.
  • The master bedroom suite showcases a see through fireplace and European-style master bath with spacious walk-in closet.
  • The main level features an open style living and entertaining space. The gourmet kitchen enjoys an oven cabinet, pantry and island with sink and seating. The dining room is topped with a raised ceiling and the great room and library enjoy views to the rear and access to another deck.
  • The top level offers a fourth bedroom, large entertainment area and roof top terrace and covered porch. An elevator offers easy access between floors and convenience for the homeowner.
What's Included
  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

6,502 sq. ft.

Lower Level

2,024 sq. ft.

1st Floor

1,454 sq. ft.

2nd Floor

1,968 sq. ft.

3rd Floor

1,056 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

34' 0"

Depth

74' 0"

Garage

Type

Attached

Area

472 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

10'

Roof Details

Framing Type

Truss

Architectural Style

European

Special Features

Elevator

Home Theater

Laundry - Lower Level

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Outdoor Fireplace

Wet Bar

Plan Collections

Luxury

Photo Gallery

Premium Collection

Square Footage Breakdown

Total Heated Area

6,502 sq. ft.

Lower Level

2,024 sq. ft.

1st Floor

1,454 sq. ft.

2nd Floor

1,968 sq. ft.

3rd Floor

1,056 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

34' 0"

Depth

74' 0"

Garage

Type

Attached

Area

472 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

10'

Roof Details

Framing Type

Truss

Architectural Style

European

Special Features

Elevator

Home Theater

Laundry - Lower Level

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Outdoor Fireplace

Wet Bar

Plan Collections

Luxury

Photo Gallery

Premium Collection
