Plan 80928PM
Contemporary 2-Bed Home Plan
Heated S.F.
900
Beds
2
Baths
1
Stories
1
Floor Plan

Plan 80928PM

Main Level
slide image 0
Lower Level
slide image 1

Plan 80928PM

1-800-854-7852

1-262-521-4596

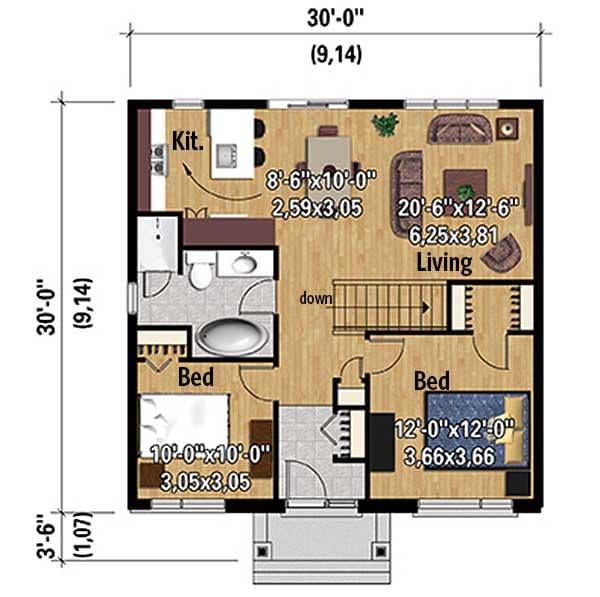

Main Level
floor plan image Main Level

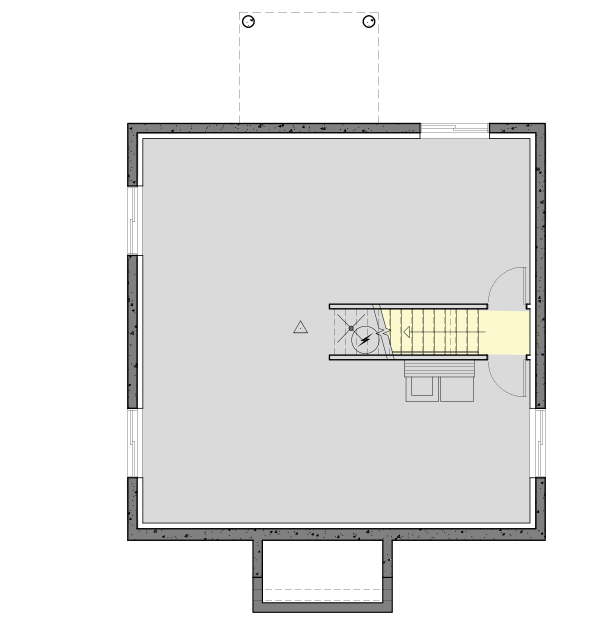

Lower Level
floor plan image Lower Level
Plan Details
  • Stone accents on the front elevation, combined with concrete columns and modern, multi-pane windows offer this 2-bedroom, contemporary home great curb appeal.
  • A coat closet sits just inside the foyer for added convenience. The back of the home boasts your main living space with views towards the back of the property.
  • The open-concept floor plan allows for clean sight lines between the kitchen, dining room, and living room. The kitchen's counter provides seating for two for casual meals.
  • A 4-fixture bathroom offers a tub and separate shower.
  • Two bedrooms are situated on each side of the foyer providing a bit of privacy in this cozy home.
  • An unfinished basement gives you room to expand and storage space.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

900 sq. ft.

1st Floor

900 sq. ft.

Basement Unfinished

900 sq. ft.

Porch, Front

35 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

30' 0"

Max Ridge Height

21' 4"

Ceiling Heights

Lower Level

8'

First Floor

8' 2"

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

900 sq. ft.

1st Floor

900 sq. ft.

Basement Unfinished

900 sq. ft.

Porch, Front

35 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

30' 0"

Max Ridge Height

21' 4"

Ceiling Heights

Lower Level

8'

First Floor

8' 2"

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric
