Plan 80956PM
Contemporary 2-Bed Home Plan with Open Shared Living Spaces
Heated S.F.
892
Beds
2
Baths
1
Stories
1
Floor Plan

Plan 80956PM

Main Level
slide image 0

Plan 80956PM

1-800-854-7852

1-262-521-4596

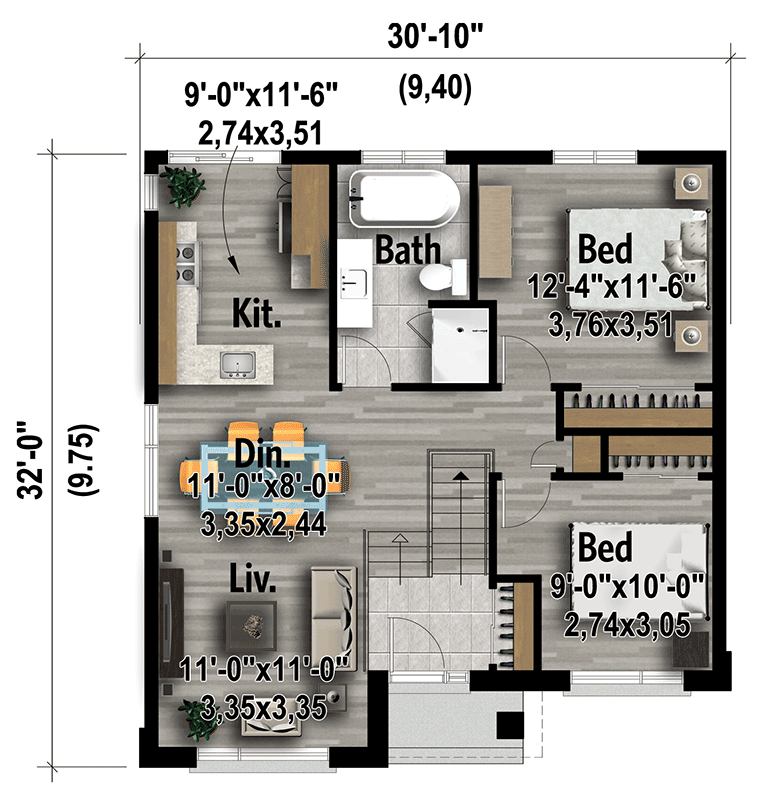

Main Level
floor plan image Main Level
Plan Details
  • Hip and valley rooflines balance atop this contemporary, 2-bedroom home plan, with a variety of exterior materials adding to the character and curb appeal.
  • Oversized windows and a flat porch roof contribute to the modern feel.
  • The shared living spaces occupy the left side of the home, and are open to one another, allowing conversation to easily flow.
  • The rectangular kitchen features wrap-around counters to increase workspace, and a nearby sliding door leads to the backyard.
  • The bedrooms can be found on the opposite side of the home, next to a 4-fixture bath with a separate tub and shower.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

892 sq. ft.

1st Floor

892 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 10"

Depth

32' 0"

Max Ridge Height

20' 0"

Ceiling Heights

Lower Level

8'

First Floor

8' 2"

Roof Details

Primary Pitch

6 on 12

Architectural Style

Contemporary

Northwest

Prairie

Special Features

Master Suite - 1st Floor
