Contemporary 3-Bed House Plan
Heated S.F.
1,457
Beds
3
Baths
1
Stories
2
Cars
1
Floor Plan

Plan 80920PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80920PM

1-800-854-7852

1-262-521-4596

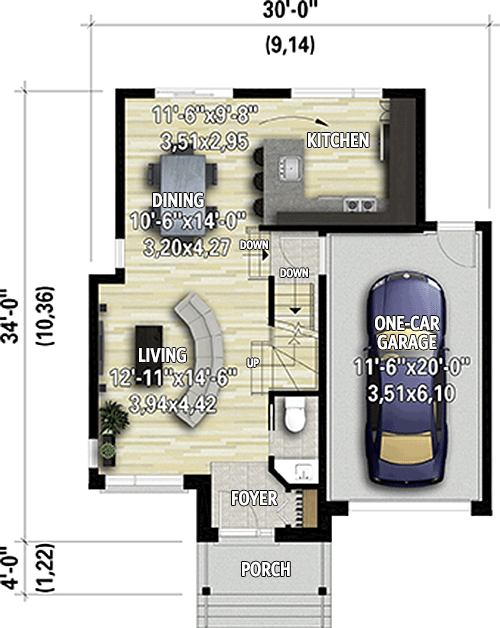

Main Level
floor plan image Main Level

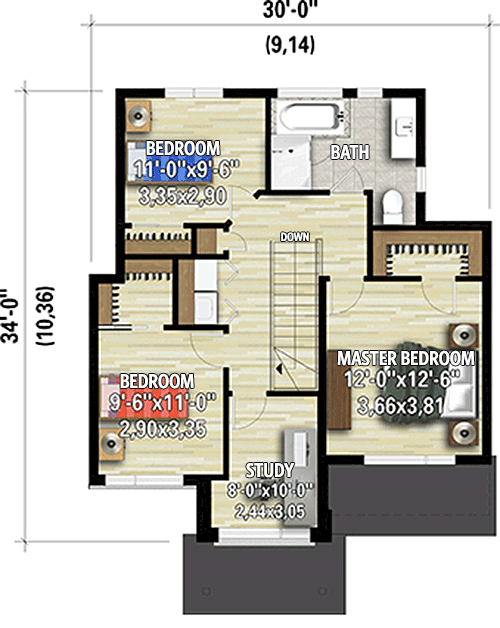

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Stone and vertical siding adorn the exterior of this modern, 3-bedroom home plan, which includes a rain porch atop the front entry.
  • The formal front entry has convenient access to a nearby powder bath on the main level, and opens to the living room.  A dining room, with sliding doors leading to the back of the property, sits adjacent to the kitchen with a wrap-around island and seating for three. Large windows in the kitchen provide plenty of natural light.
  • Three bedrooms can be found on the second level, along with a 4-fixture bathroom, and laundry closet.
  • A quiet, office nook at the top of the stairs provides a private space to work.
What's Included
Please note this plan is designed to the National Building Code of Canada.

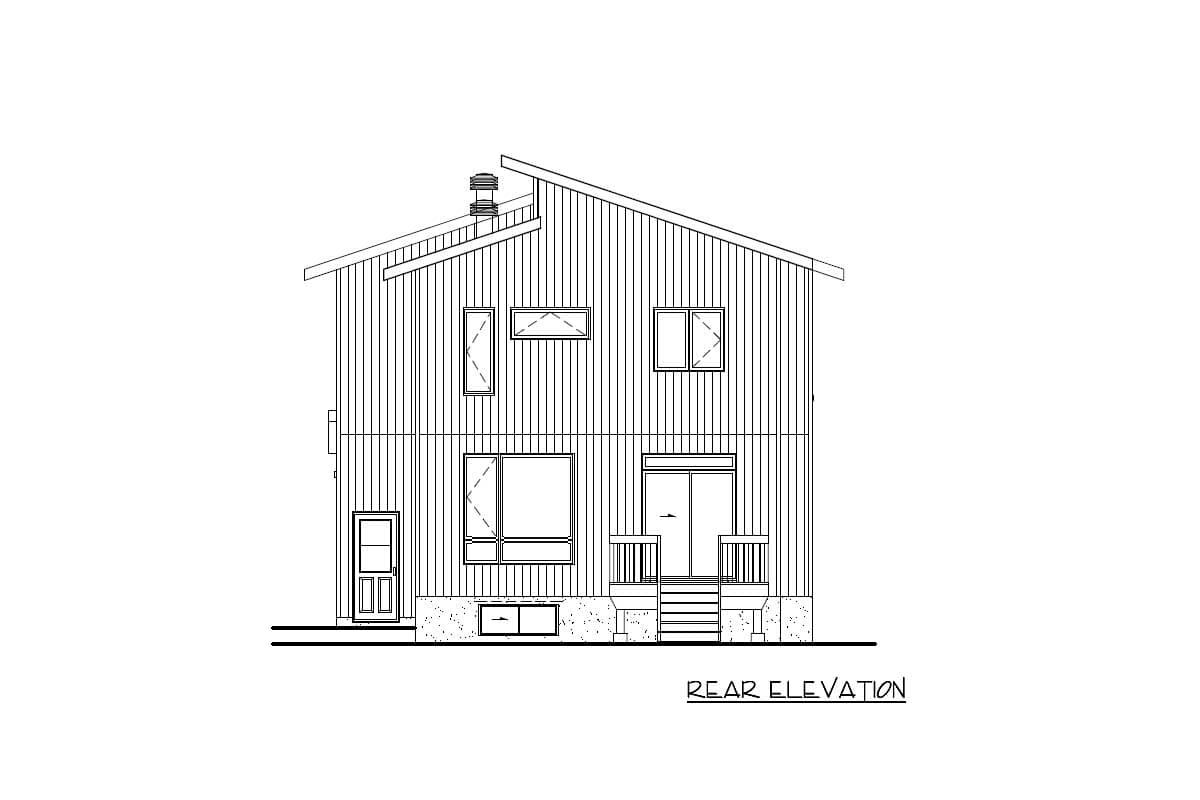

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,457 sq. ft.

1st Floor

620 sq. ft.

2nd Floor

837 sq. ft.

Basement Unfinished

620 sq. ft.

Porch, Front

65 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

34' 0"

Max Ridge Height

29' 10"

Garage

Type

Attached

Area

266 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9' 2"

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Breakfast Nook

Home Office

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Home Office

Metric

Square Footage Breakdown

Total Heated Area

1,457 sq. ft.

1st Floor

620 sq. ft.

2nd Floor

837 sq. ft.

Basement Unfinished

620 sq. ft.

Porch, Front

65 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

34' 0"

Max Ridge Height

29' 10"

Garage

Type

Attached

Area

266 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9' 2"

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Breakfast Nook

Home Office

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Home Office

Metric
