Plan 801145PM
Contemporary 3-Bed Scandinavian-Style House Plan Under 1800 Square Feet
Heated S.F.
1,739
Beds
3
Baths
1.5
Stories
2
Cars
1
Floor Plan

Plan 801145PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 801145PM

1-800-854-7852

1-262-521-4596

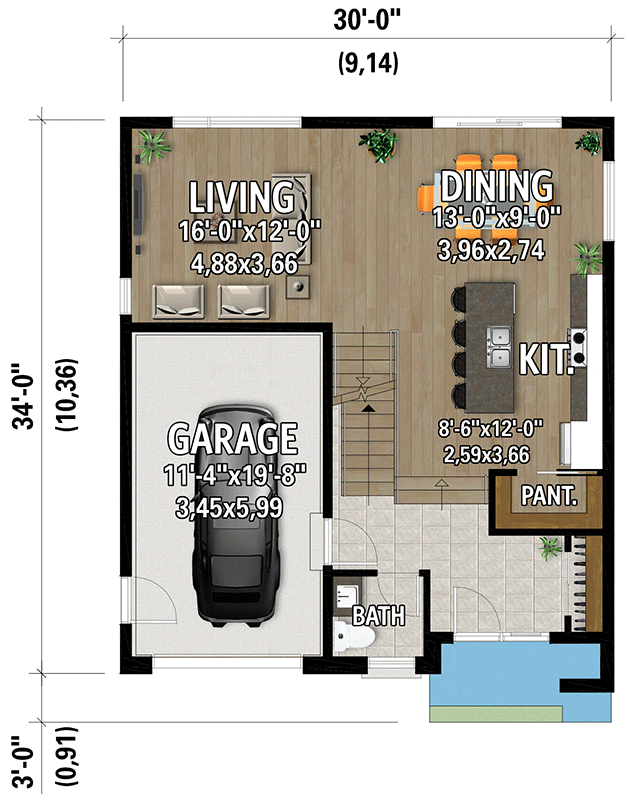

Main Level
floor plan image Main Level

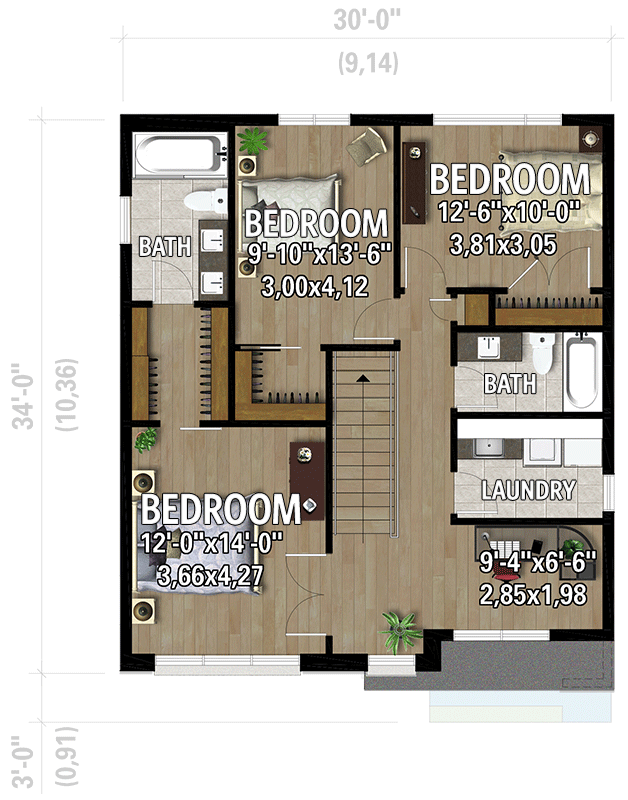

2nd Floor
floor plan image 2nd Floor
Plan Details

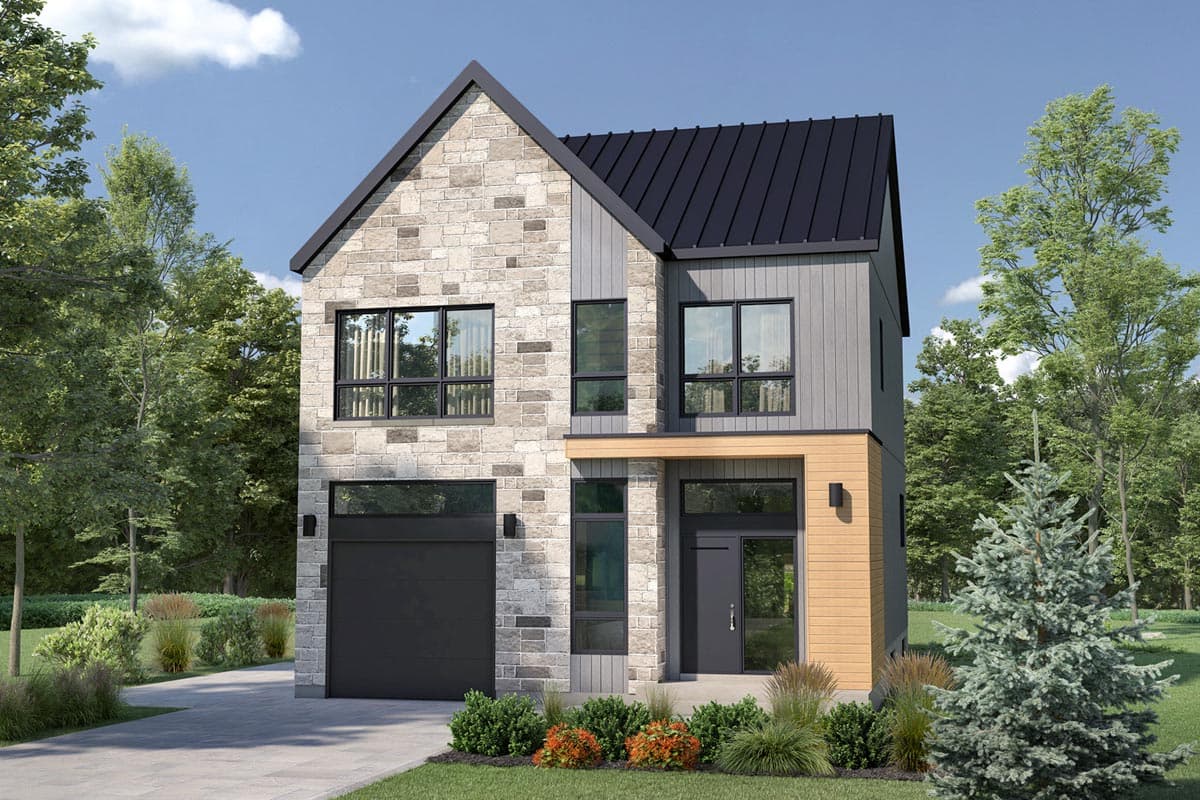

  • The mix of stone and wood give this 1,739 square foot house plan great curb appeal.
  • The main floor is all open-concept with a powder room off the foyer. The kitchen has a walk-in pantry and an island.
  • All three bedrooms are on the second floor. The master bedroom is equipped with a walk-in closet and a bathroom. The other bedrooms share a second bathroom. Laundry is conveniently placed for all the bedrooms.
  • An open area in front can be used as an office or a reading corner.
  • NOTE: Please allow 15 to 20 business days for delivery.
What's Included
Please note this plan is designed to the National Building Code of Canada.

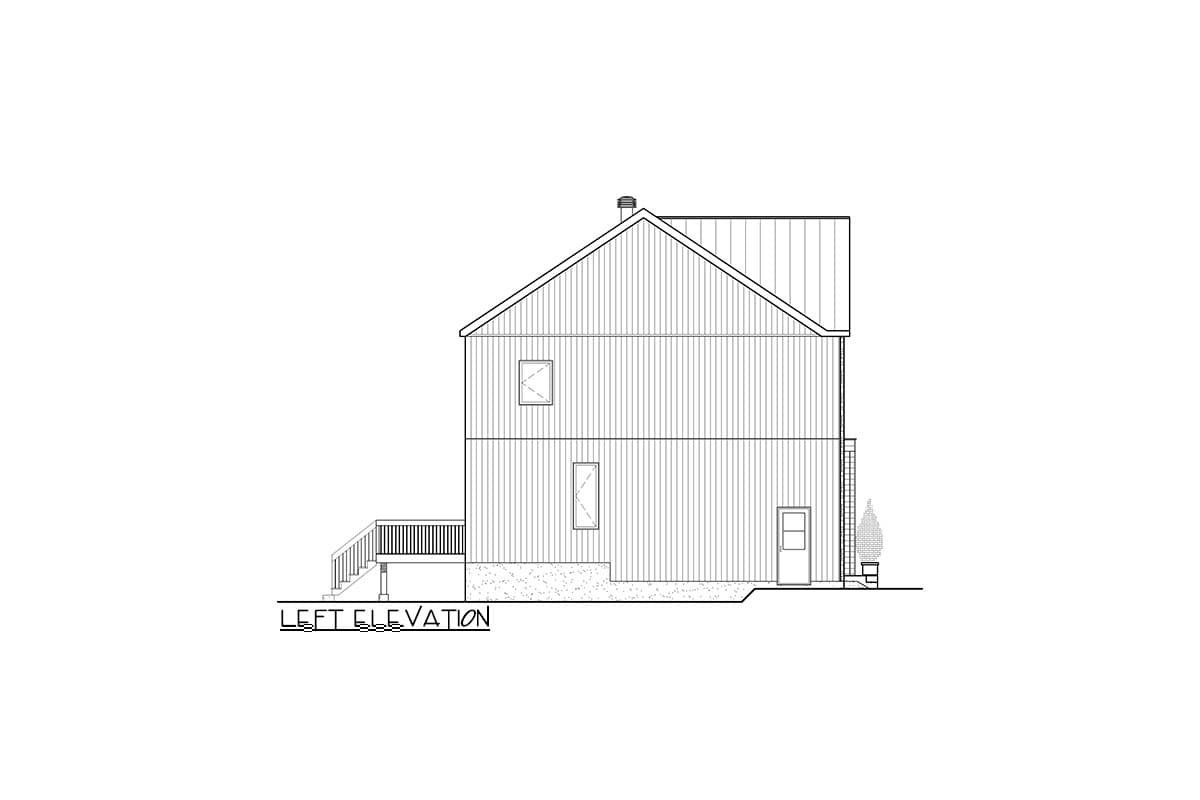

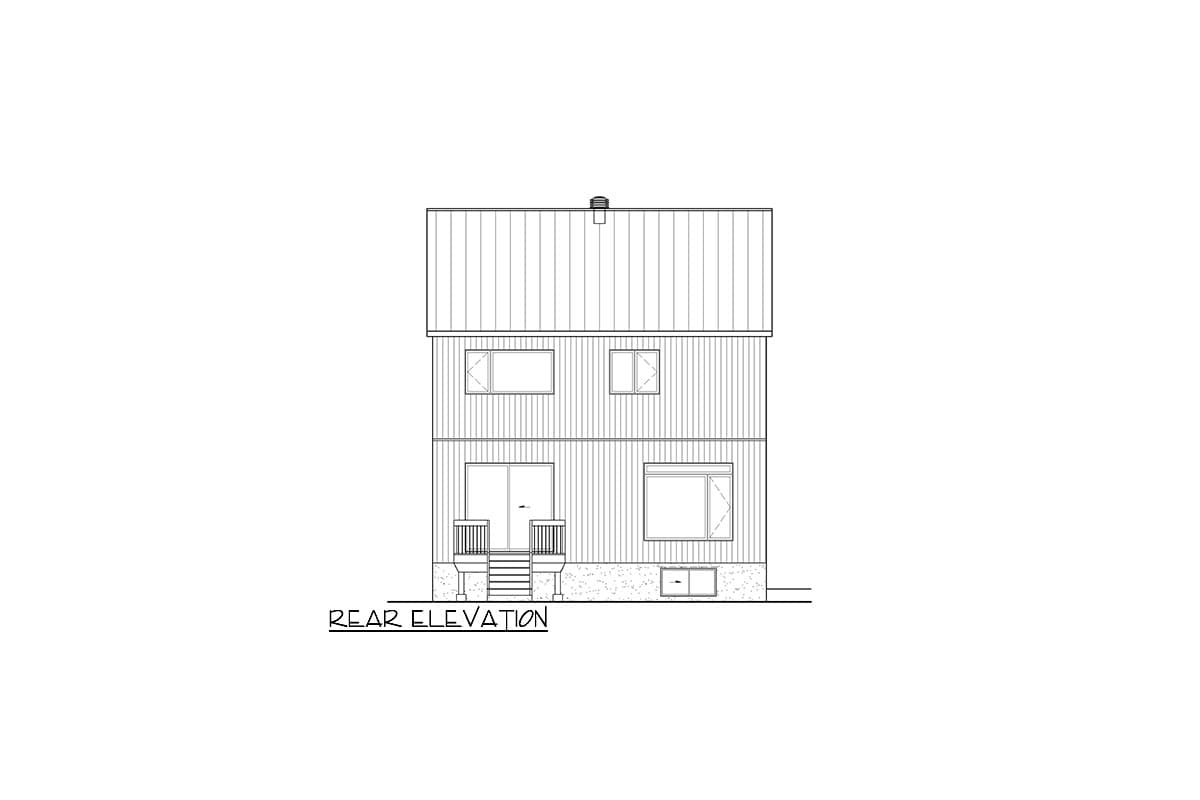

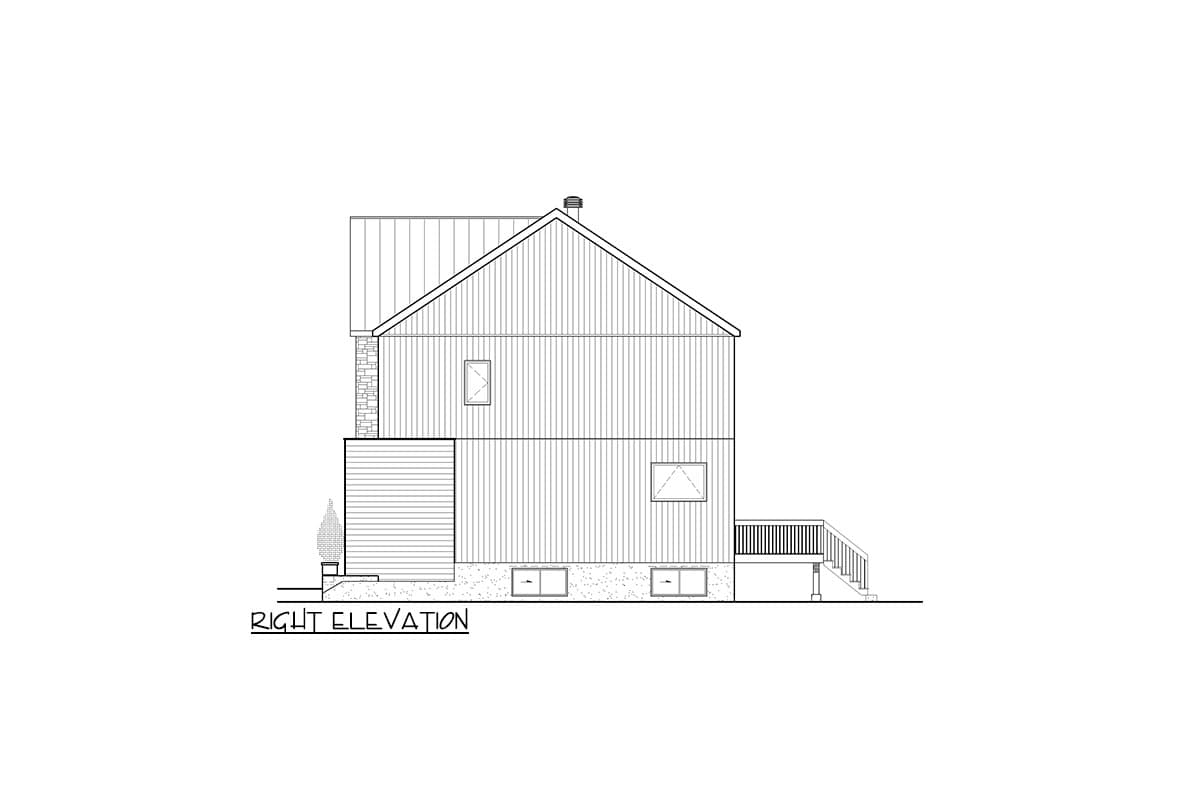

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,739 sq. ft.

1st Floor

740 sq. ft.

2nd Floor

999 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

34' 0"

Max Ridge Height

34' 2"

Garage

Type

Attached

Area

259 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Contemporary

Northwest

Scandinavian

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans
