Plan 61539UT
Contemporary 4-Car Detached RV Garage - 1300 Sq Ft
Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
4
Floor Plan

Plan 61539UT

Main Level
slide image 0

Plan 61539UT

1-800-854-7852

1-262-521-4596

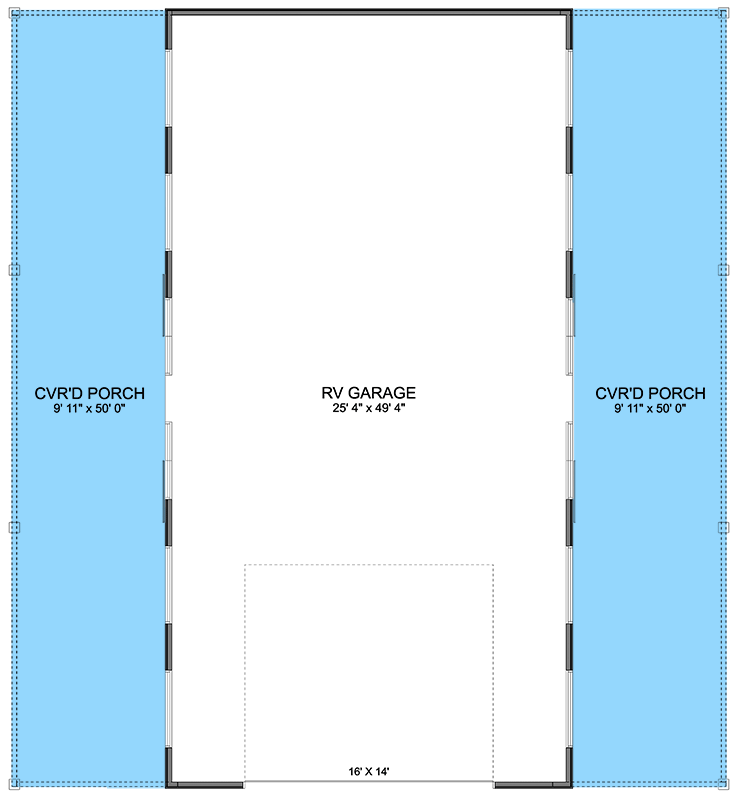

Main Level
floor plan image Main Level
Plan Details

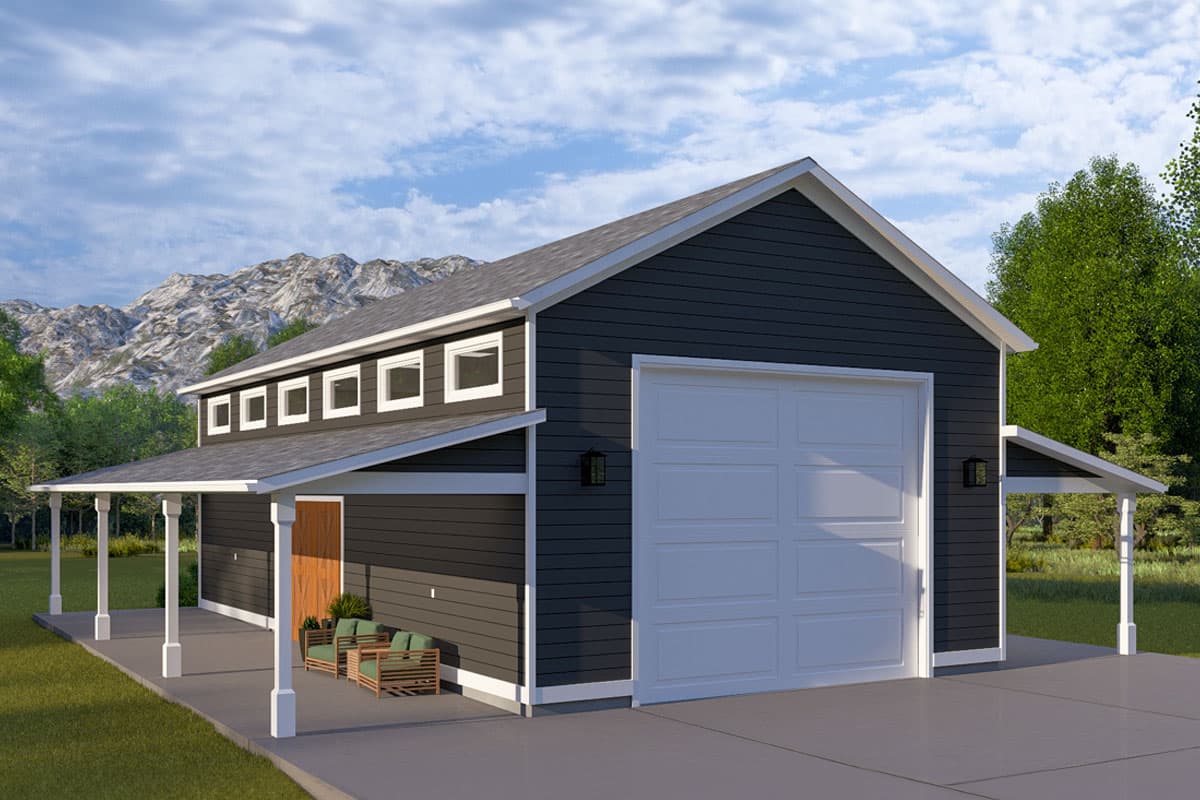

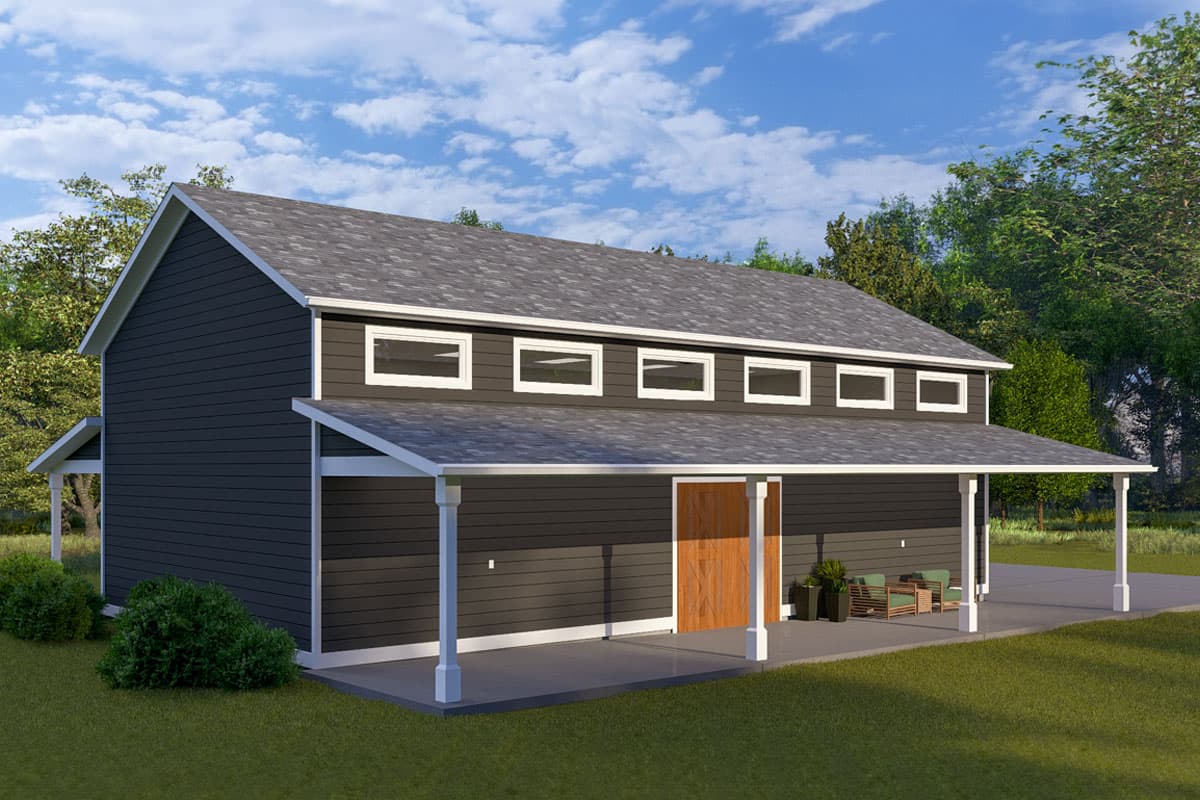

  • This 1,300 square foot detached garage plan offers space for 4 vehicles with 16' by 14' RV bay overhead door. Two 9'11"-deep porches run along both sides giving you almost 1,000 square feet of covered outdoor space.
  • Barn doors on either side grant you access to the garage and allow for large equipment to be easily moved in and out of storage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

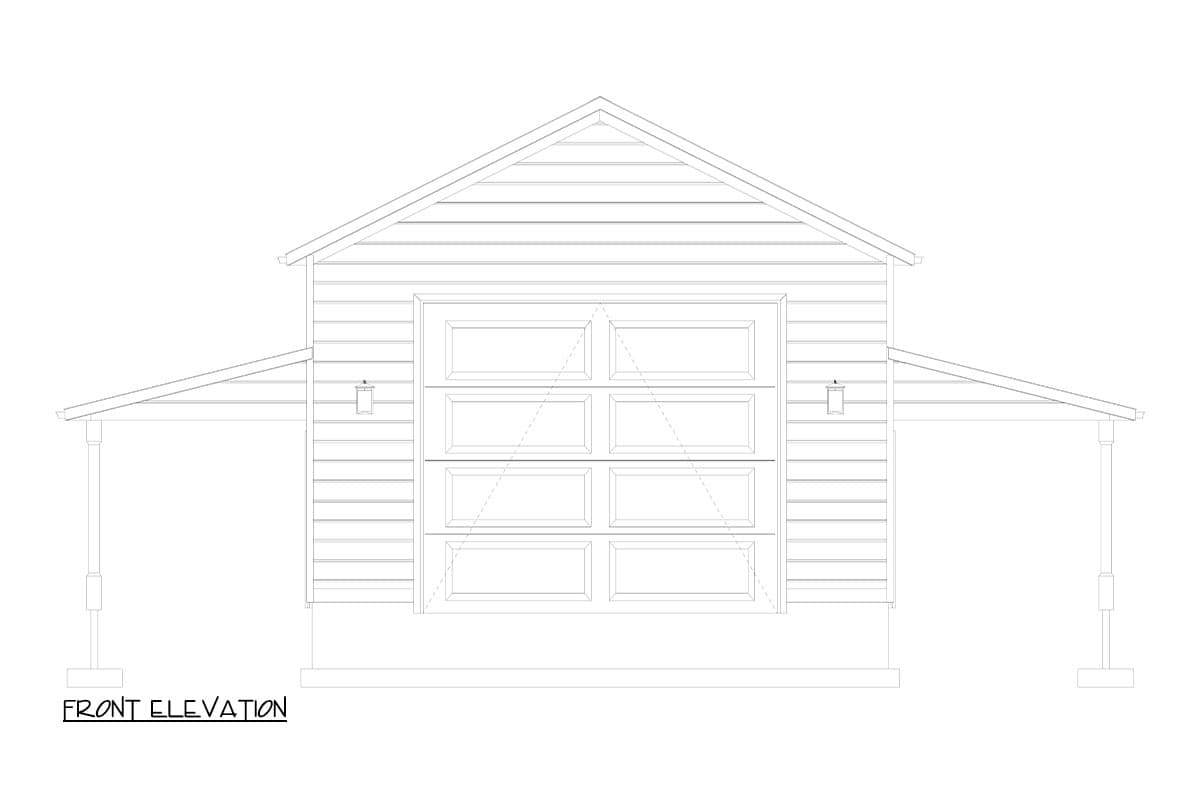

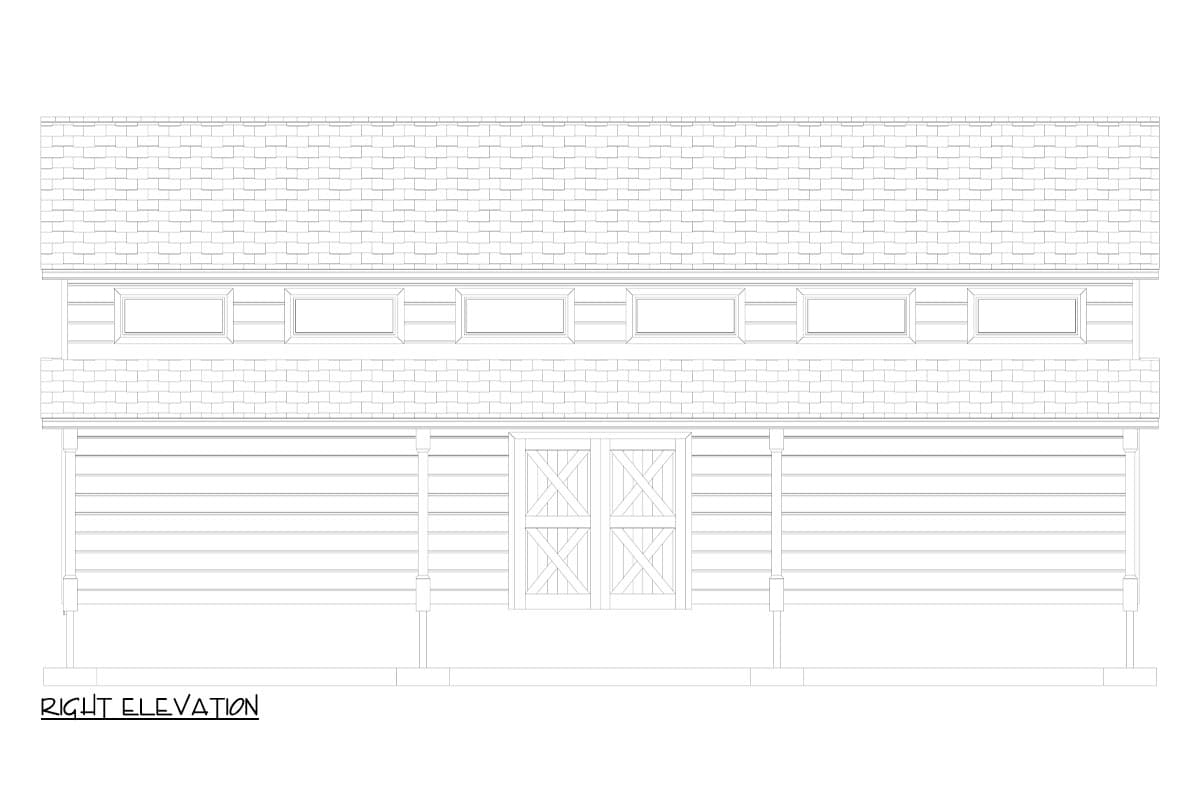

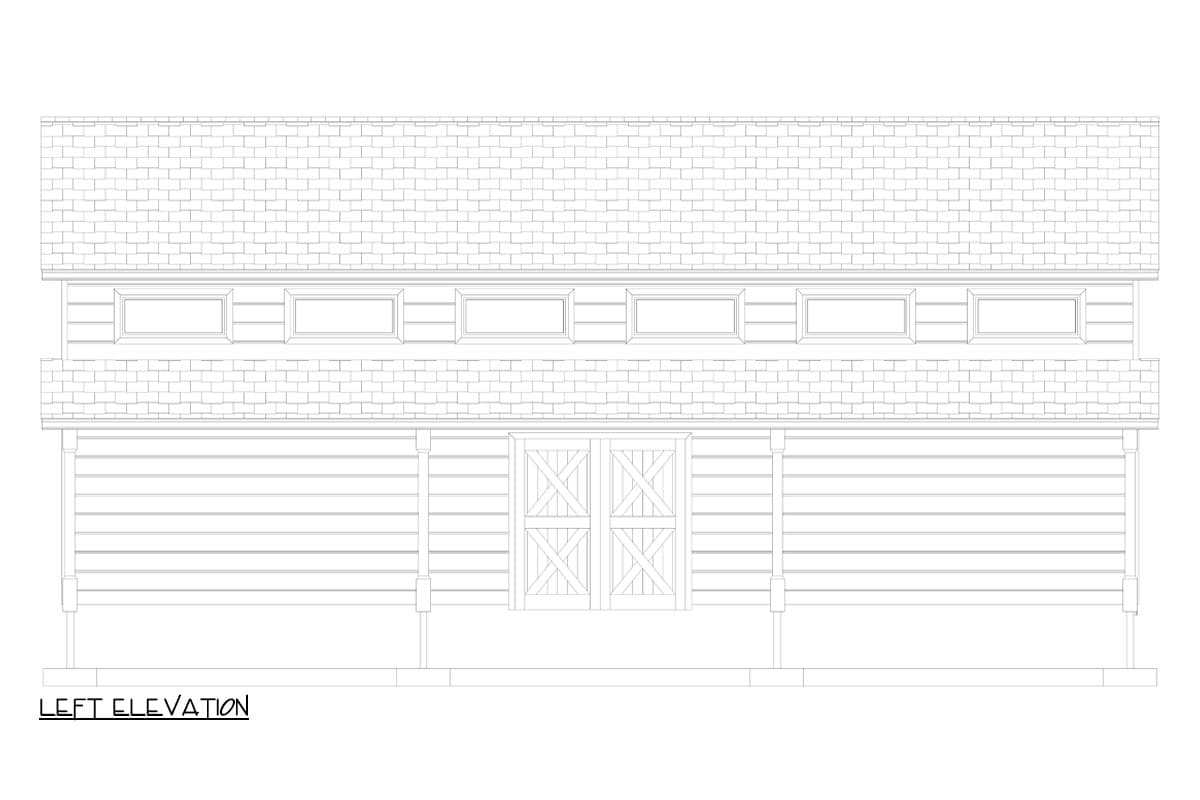

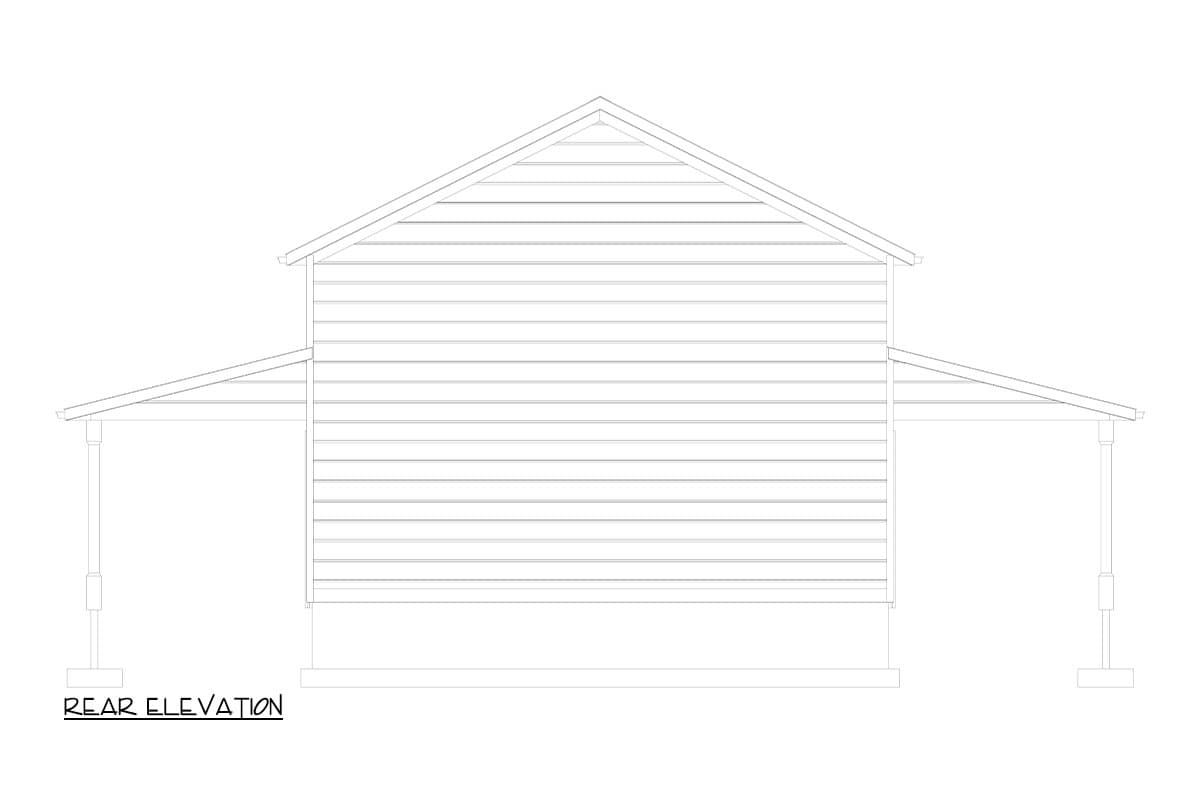

  • Elevations
  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Porch, Combined

990 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

46' 0"

Depth

50' 0"

Max Ridge Height

22' 10"

Garage

Type

Detached, Carport, RV Garage

Area

1300 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

16'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Barndominium

Contemporary

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Porch, Combined

990 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

46' 0"

Depth

50' 0"

Max Ridge Height

22' 10"

Garage

Type

Detached, Carport, RV Garage

Area

1300 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

16'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Barndominium

Contemporary
