Plan 420052WNT

Exclusive

Contemporary Cabin Promoting Indoor-Outdoor Living - 1370 Sq Ft
Heated S.F.
1,370
Beds
1 - 2
Baths
2
Stories
1
Floor Plan

Plan 420052WNT

Main Level
slide image 0

Plan 420052WNT

1-800-854-7852

1-262-521-4596

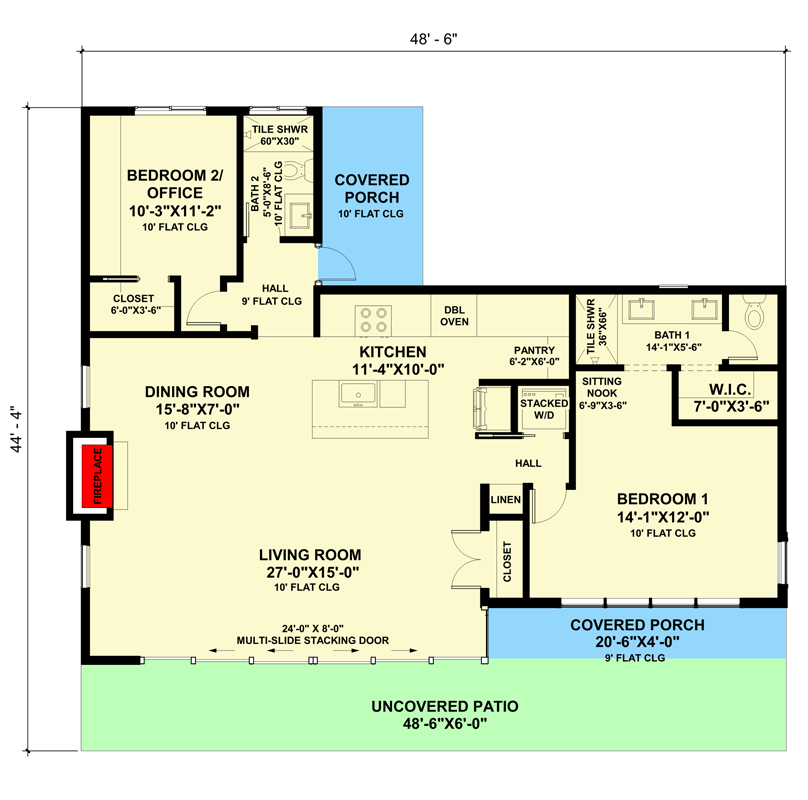

Main Level
floor plan image Main Level
Plan Details
  • The first thing you'll notice as you approach this house - suitable for building in the woods, by the water, in the country - is all the glass giving you great views, natural light, and facilitating an indoor/outdoor lifestyle. An uncovered patio (48'6" by 6') spans the entire front and a covered 4'-deep portion provides protection on the right.
  • Designed with your views in mind, you enter the home through multi-slide stacking doors into the open concept portion of the home with a kitchen, living room and dining room all having views of the fireplace.
  • In the kitchen, an island gives you prep space and counter seating and there's a door-less walk-in pantry steps away.
  • The bedrooms are split for your privacy with the one in the back easily convertible to a home office.
  • Related Plan: Get an alternate version with house plan 420072WNT.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

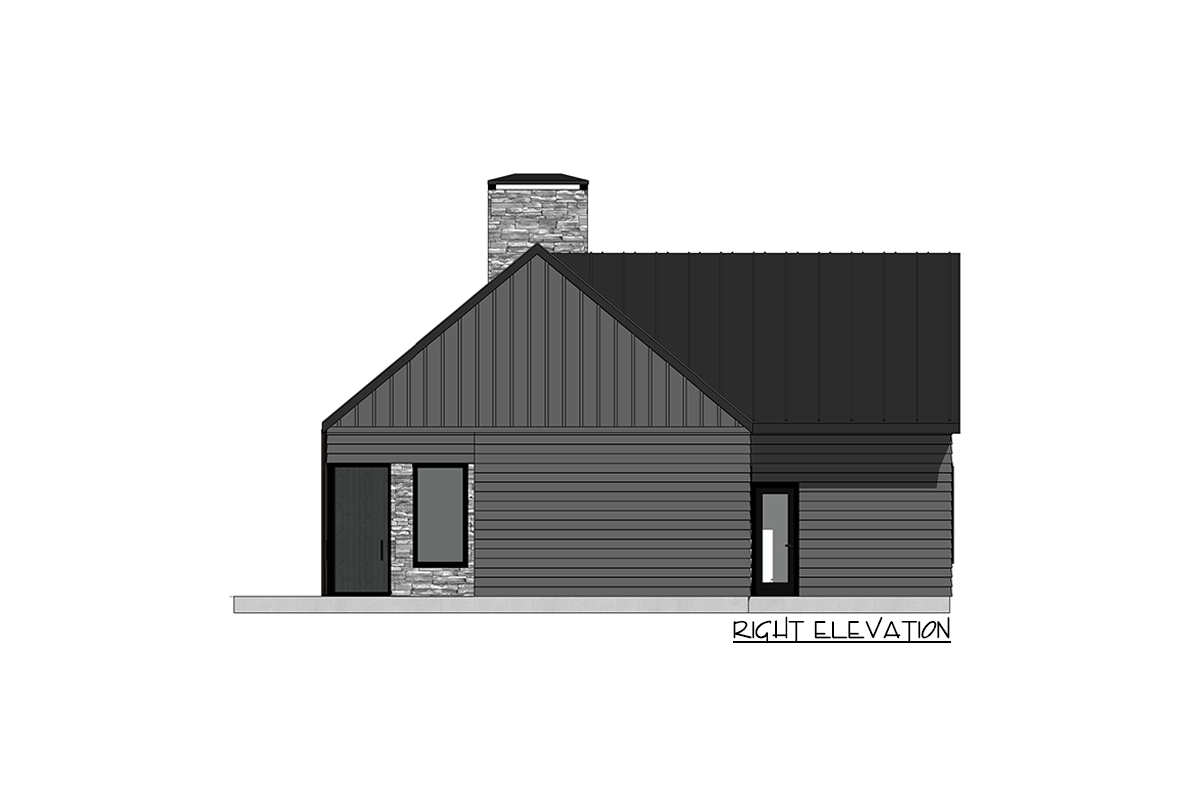

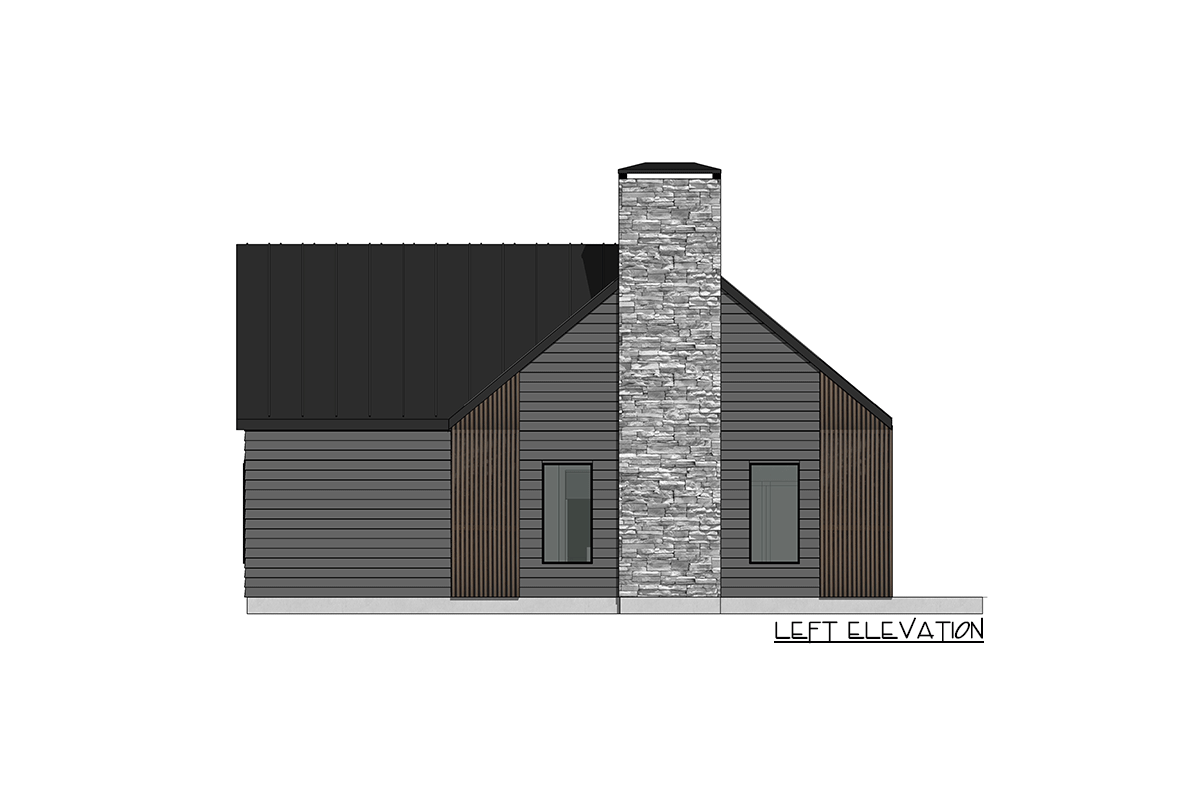

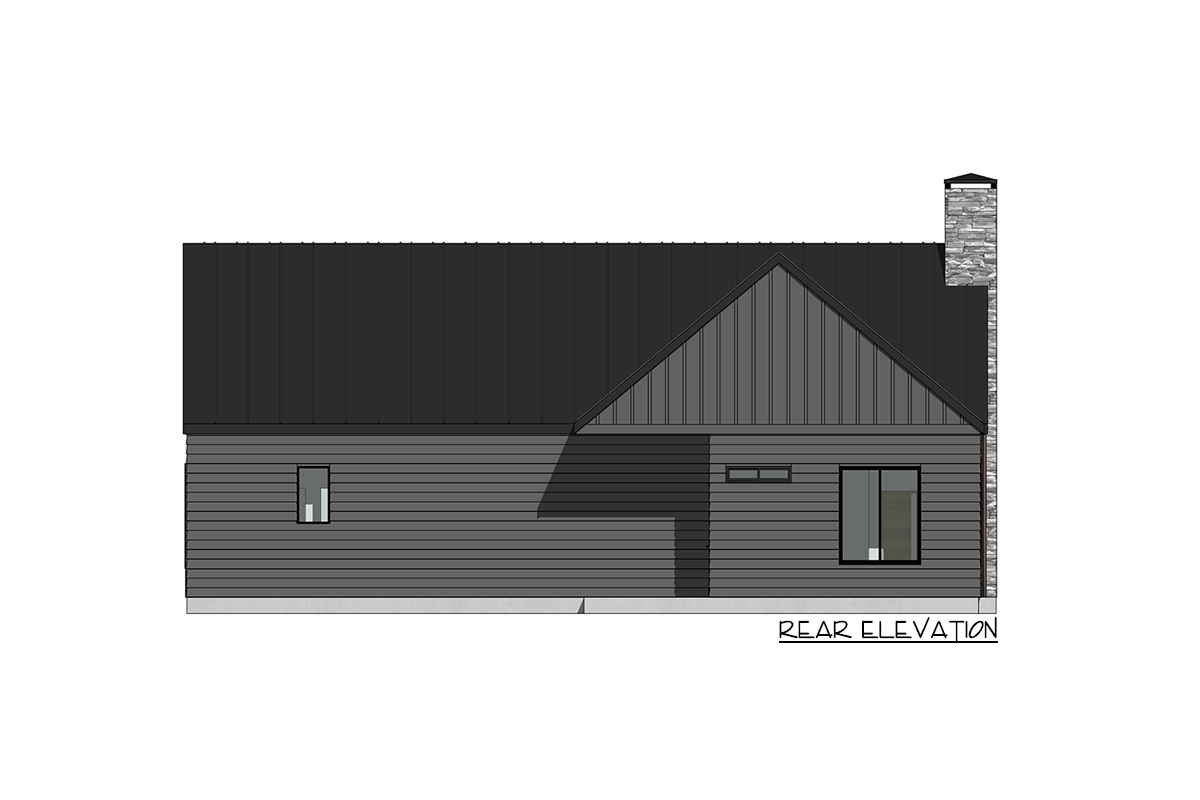

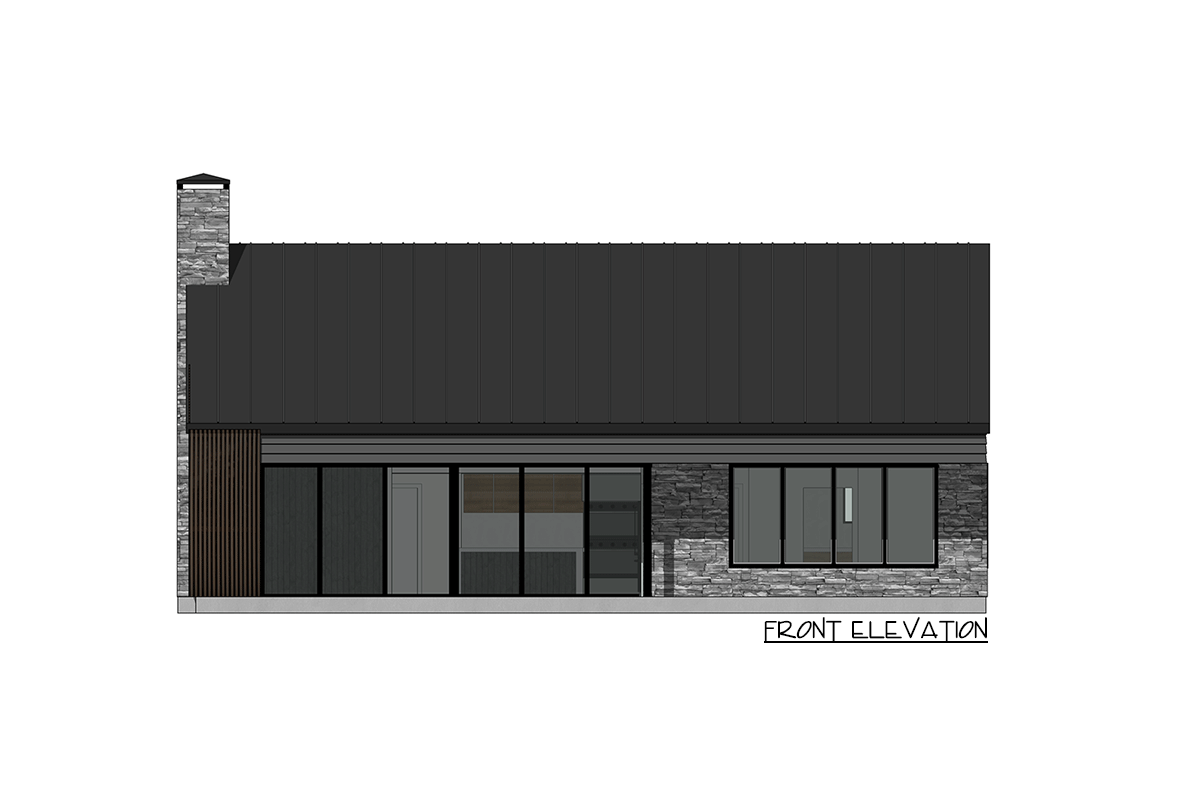

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,370 sq. ft.

1st Floor

1,370 sq. ft.

Porch, Front

361 sq. ft.

Porch, Rear

87 sq. ft.

Porch, Combined

448 sq. ft.

Covered Patio

167 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

44' 4"

Max Ridge Height

26' 0"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Cabin

Contemporary

Modern

Mountain

Ranch

Scandinavian

Special Features

Bedrooms - Split

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

1,370 sq. ft.

1st Floor

1,370 sq. ft.

Porch, Front

361 sq. ft.

Porch, Rear

87 sq. ft.

Porch, Combined

448 sq. ft.

Covered Patio

167 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

44' 4"

Max Ridge Height

26' 0"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Cabin

Contemporary

Modern

Mountain

Ranch

Scandinavian

Special Features

Bedrooms - Split

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive
