Plan 61252UT
Contemporary Carriage House with Studio Apartment
Heated S.F.
909
Beds
1
Baths
1.5
Stories
2
Cars
3
Tour
Floor Plan

Plan 61252UT

Main Level
slide image 0
2nd Floor
slide image 1

Plan 61252UT

1-800-854-7852

1-262-521-4596

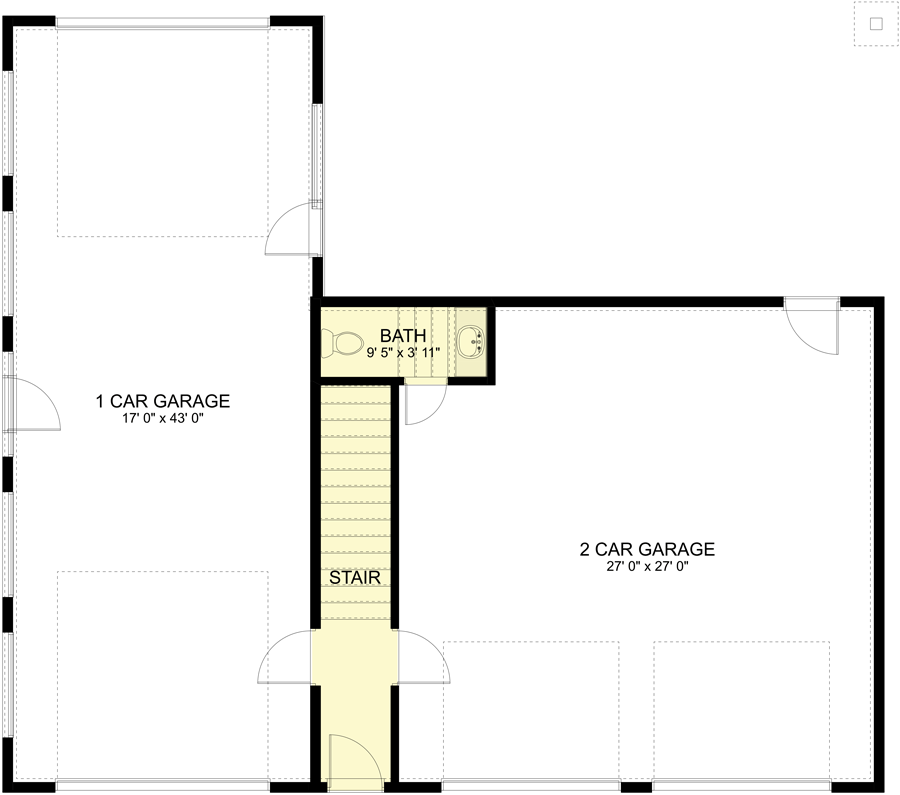

Main Level
floor plan image Main Level

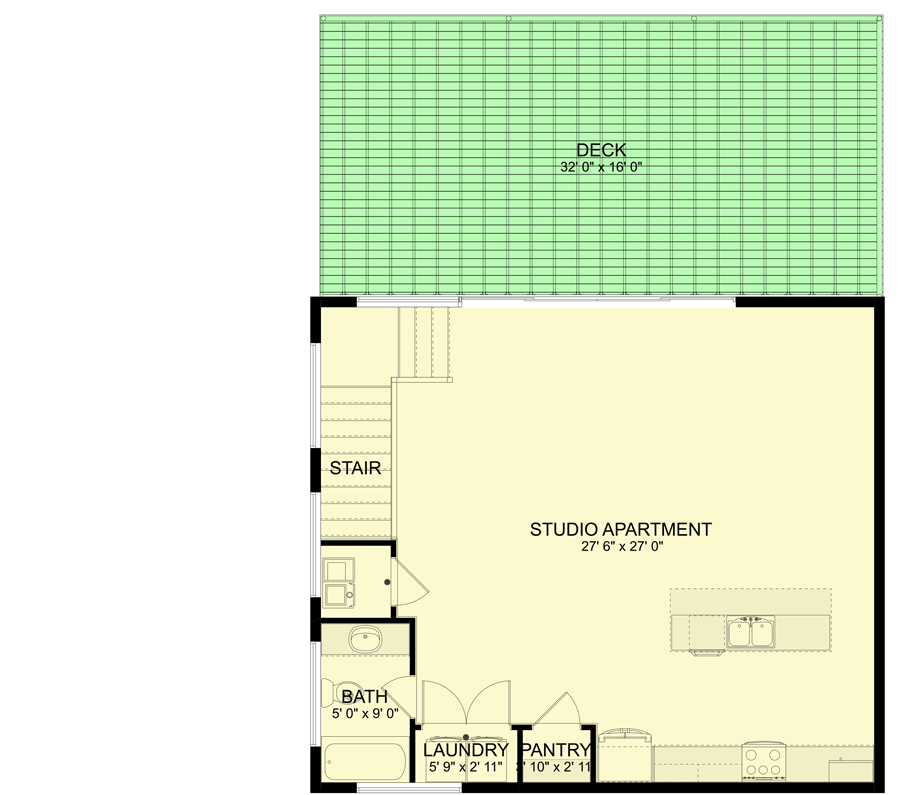

2nd Floor
floor plan image 2nd Floor
Plan Details

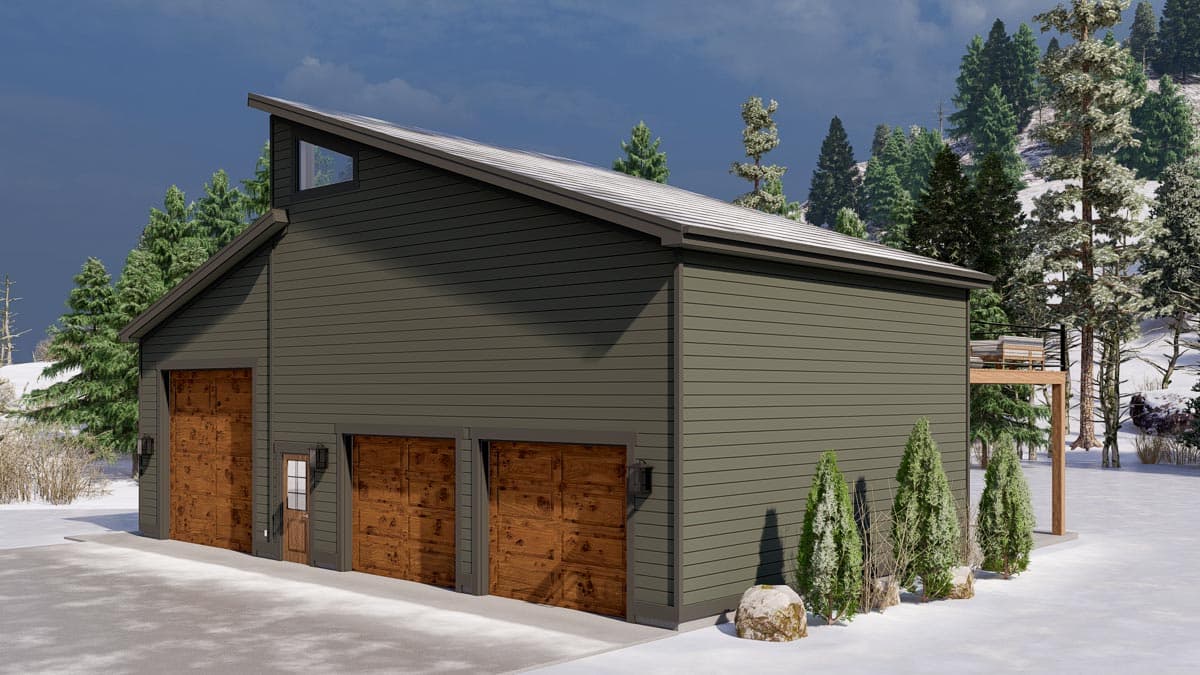

  • This Contemporary Carriage house presents clapboard siding topped by a shed-style roof.

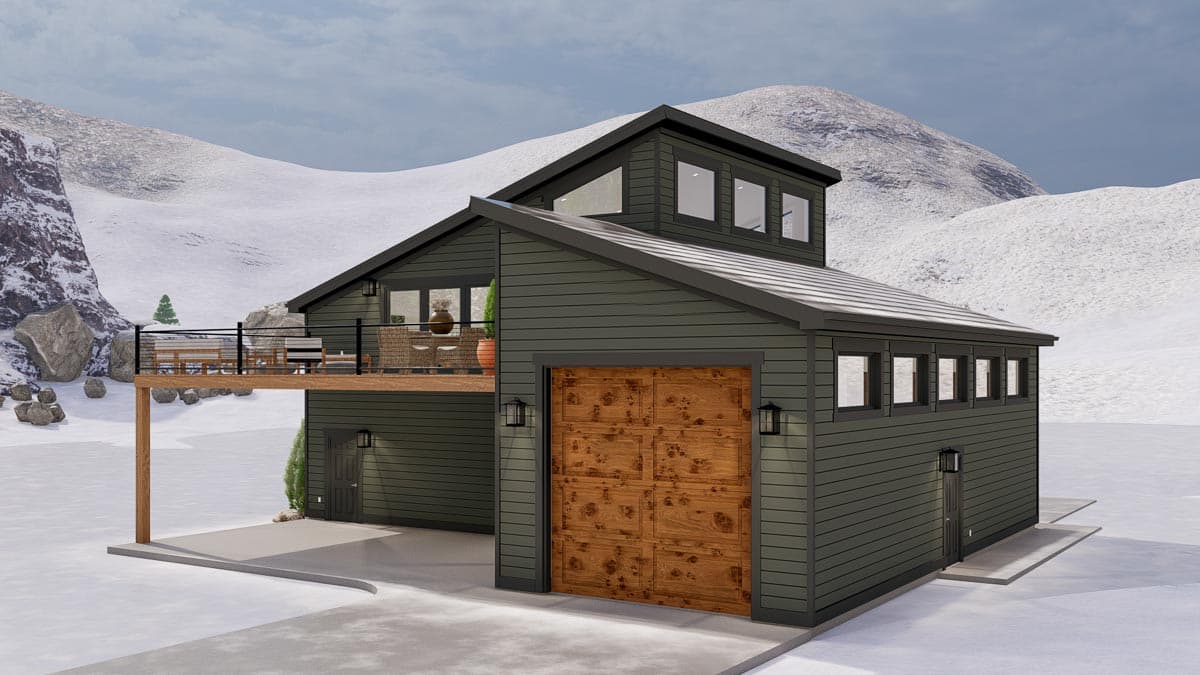

  • To the left, a large overhead door provides space for your RV, trailer, or larger vehicles, and includes a second overhead door on the rear elevation.
  • To the right, a double garage can be found with a powder bath and access to the stairway.
  • Upstairs, the studio apartment delivers 909 square feet of living space, and flows onto a sizable deck for additional outdoor space when entertaining.
What's Included
  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing
  • Elevations
  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

909 sq. ft.

2nd Floor

909 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

44' 0"

Max Ridge Height

28' 9"

Garage

Type

Detached, RV Garage

Area

1688 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Loft

Vaulted

5' 0''

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Carriage

Contemporary

Mid Century Modern

Modern

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

909 sq. ft.

2nd Floor

909 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

44' 0"

Max Ridge Height

28' 9"

Garage

Type

Detached, RV Garage

Area

1688 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Loft

Vaulted

5' 0''

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Carriage

Contemporary

Mid Century Modern

Modern

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU
