Plan 66296WE
Contemporary Dream Escape
Heated S.F.
6,385
Beds
4 - 5
Baths
5.5
Stories
2
Cars
3
Floor Plan

Plan 66296WE

Main Level
slide image 0
Second Floor
slide image 1
Lower Level
slide image 2

Plan 66296WE

1-800-854-7852

1-262-521-4596

Main Level

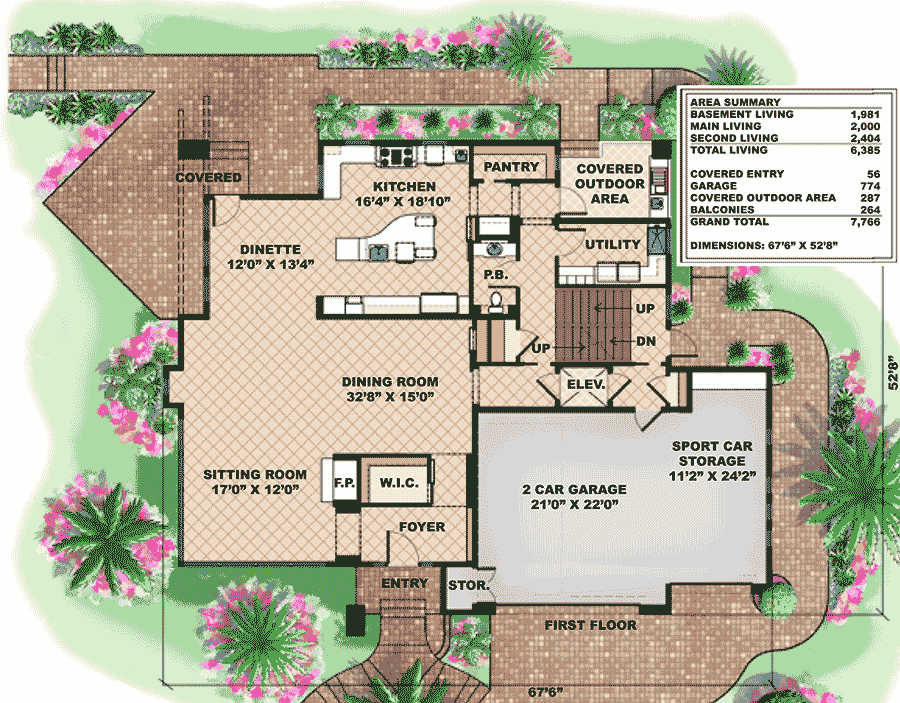

floor plan image Main Level
Second Floor

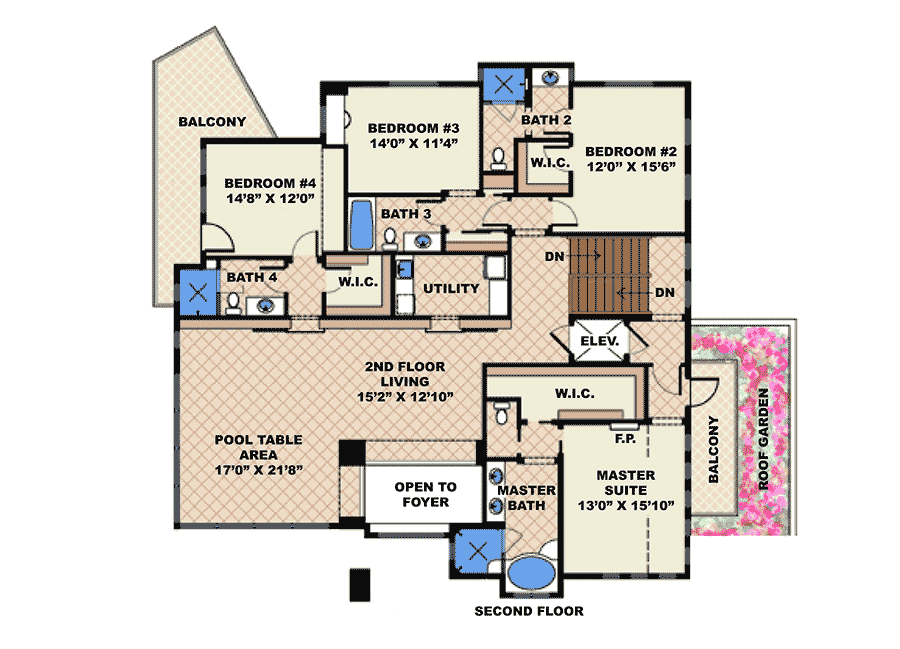

floor plan image Second Floor
Lower Level

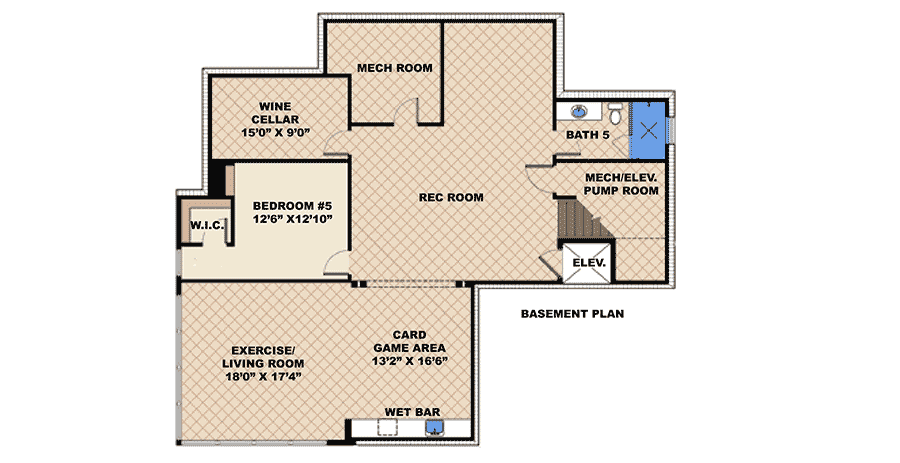

floor plan image Lower Level
Plan Details
  • This contemporary house plan is perfectly suited for either a permanent getaway or a luxury vacation retreat perhaps with a water or mountain setting.
  • A wide open floor plan greets you as you enter off the foyer. A fireplace is tucked against the walk-in hall closet and your eye has views through to the back patio.
  • The spacious kitchen has a large island with seating and has a large walk-in pantry. Note the outdoor kitchen area steps away.
  • The second floor features a unique roof garden visible off the master suite balcony. An open living area has views to the foyer below and a balcony off Bedroom 4 is a nice touch.
  • The basement of this house plan has fun living in mind with a recreation room, wine cellar, card game area and a flexible space for exercise and relaxing.
What's Included
Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

6,385 sq. ft.

Lower Level

1,981 sq. ft.

1st Floor

2,000 sq. ft.

2nd Floor

2,404 sq. ft.

Entry

56 sq. ft.

Balcony / Veranda

264 sq. ft.

Lanai

287 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

52' 8"

Depth

67' 6"

Garage

Type

Attached

Area

774 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Coastal

Contemporary

Southern

Vacation

Special Features

Bonus Room

Butler Walk-in Pantry

Elevator

Master Suite - 2nd Floor

Outdoor Kitchen

Plan Collections

Luxury

Square Footage Breakdown

Total Heated Area

6,385 sq. ft.

Lower Level

1,981 sq. ft.

1st Floor

2,000 sq. ft.

2nd Floor

2,404 sq. ft.

Entry

56 sq. ft.

Balcony / Veranda

264 sq. ft.

Lanai

287 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

52' 8"

Depth

67' 6"

Garage

Type

Attached

Area

774 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Coastal

Contemporary

Southern

Vacation

Special Features

Bonus Room

Butler Walk-in Pantry

Elevator

Master Suite - 2nd Floor

Outdoor Kitchen

Plan Collections

Luxury
