Plan 100333GHR

Exclusive

Contemporary Duplex House Plan with Matching 2 Bed 2 Bath Units - 928 Sq Ft Per Unit
Heated S.F.
1,856
Units
2
Width
Depth
Floor Plan

Plan 100333GHR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 100333GHR

1-800-854-7852

1-262-521-4596

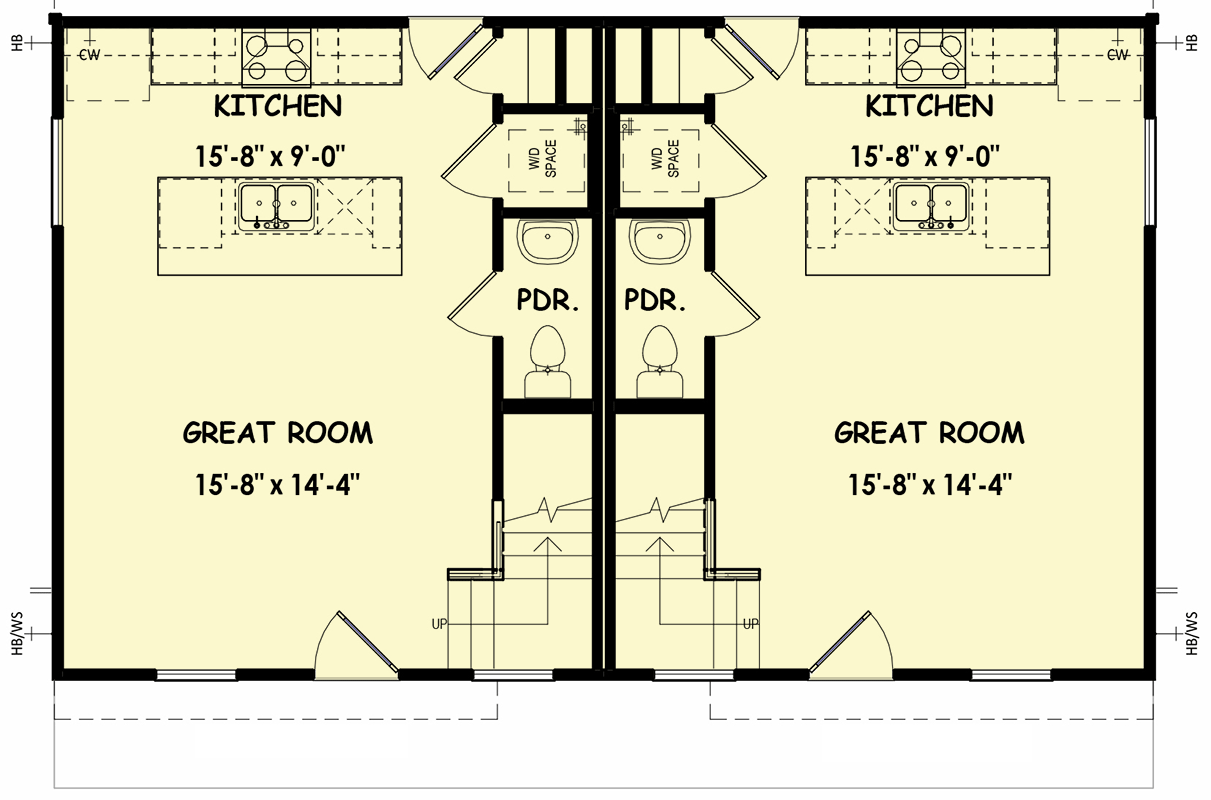

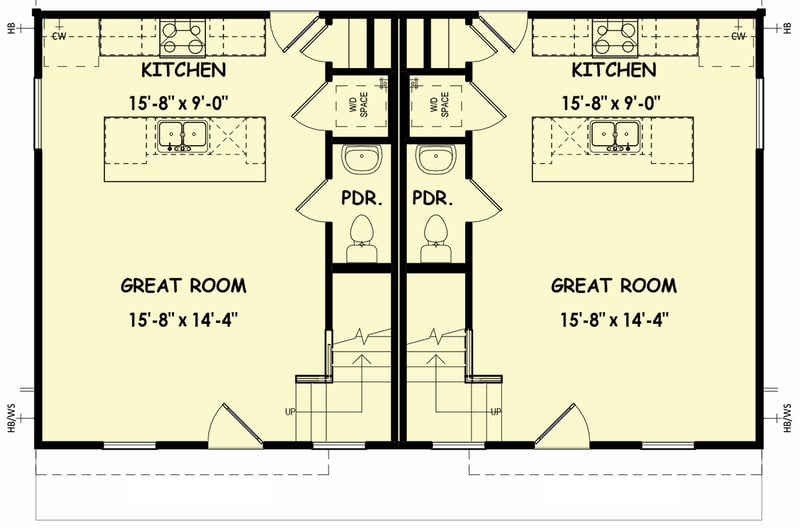

Main Level
floor plan image Main Level

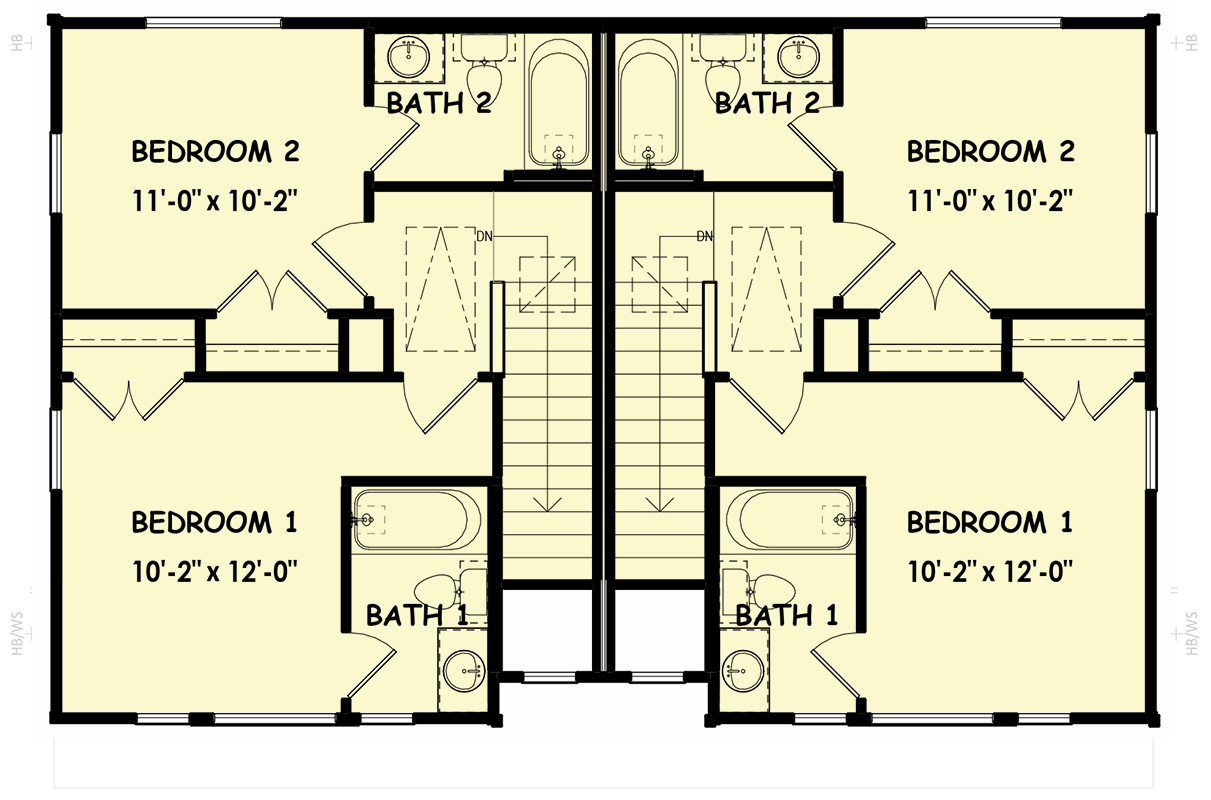

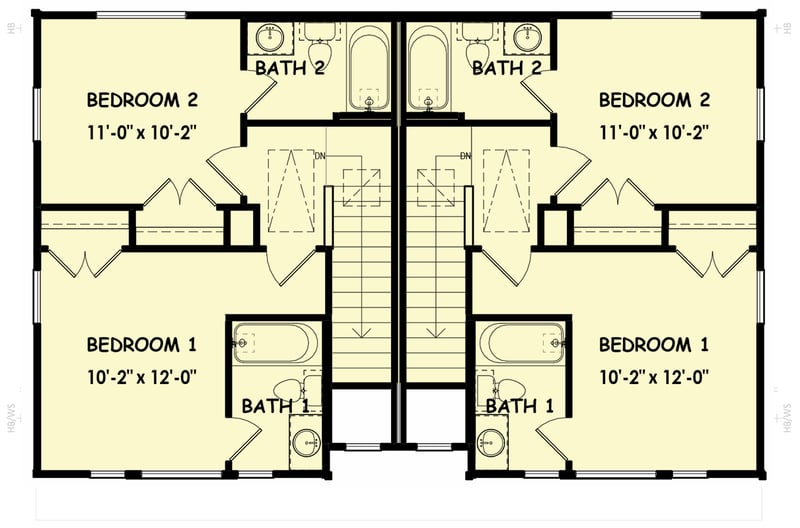

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This contemporary duplex house plan gives you two, 928 square feet units of heated living (478 sq. ft. on the first floor and 450 sq ft. on the second floor) with 2 beds and 2.5 baths.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
928Sq. Ft.
478 Sq. Ft.
1st Floor
450 Sq. Ft.
2nd Floor
2Beds
2Full Baths
1Half Bath
None
20'width
24'depth
27'height
Unit B
928Sq. Ft.
478 Sq. Ft.
1st Floor
450 Sq. Ft.
2nd Floor
2Beds
2Full Baths
1Half Bath
None
20'width
24'depth
27'height
What's Included
  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

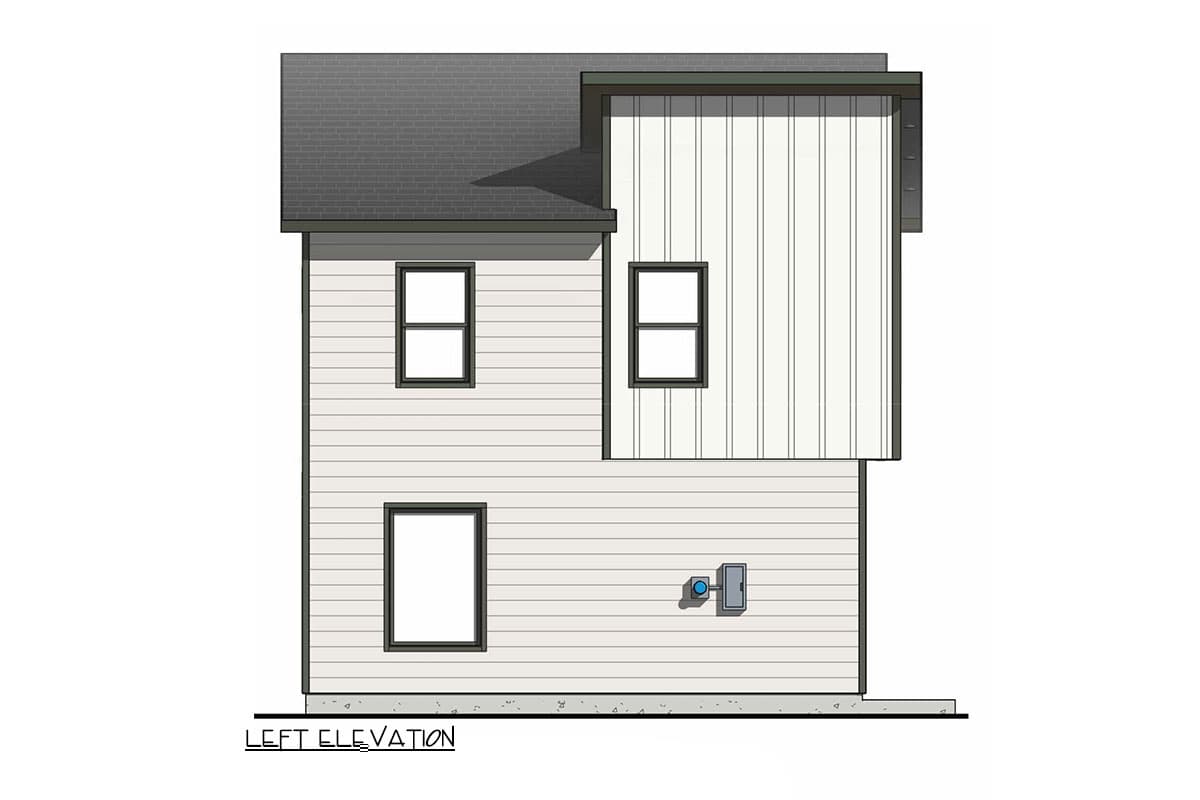

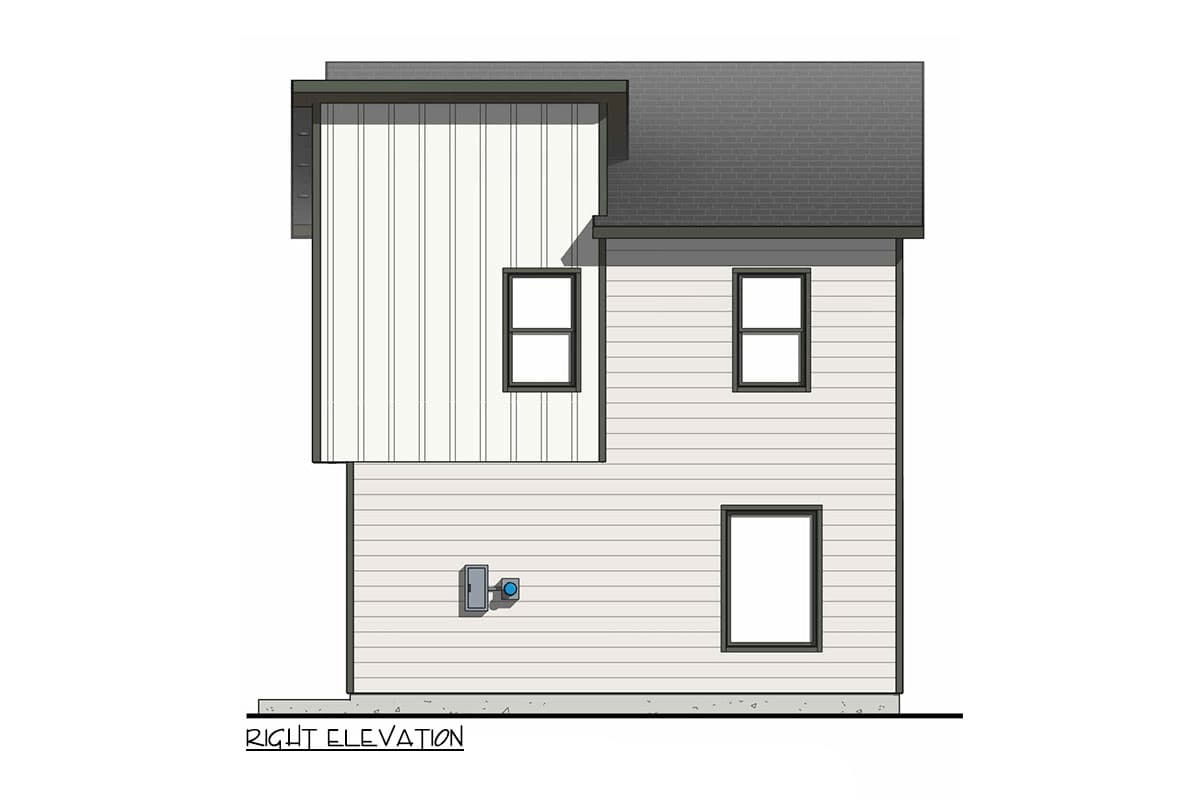

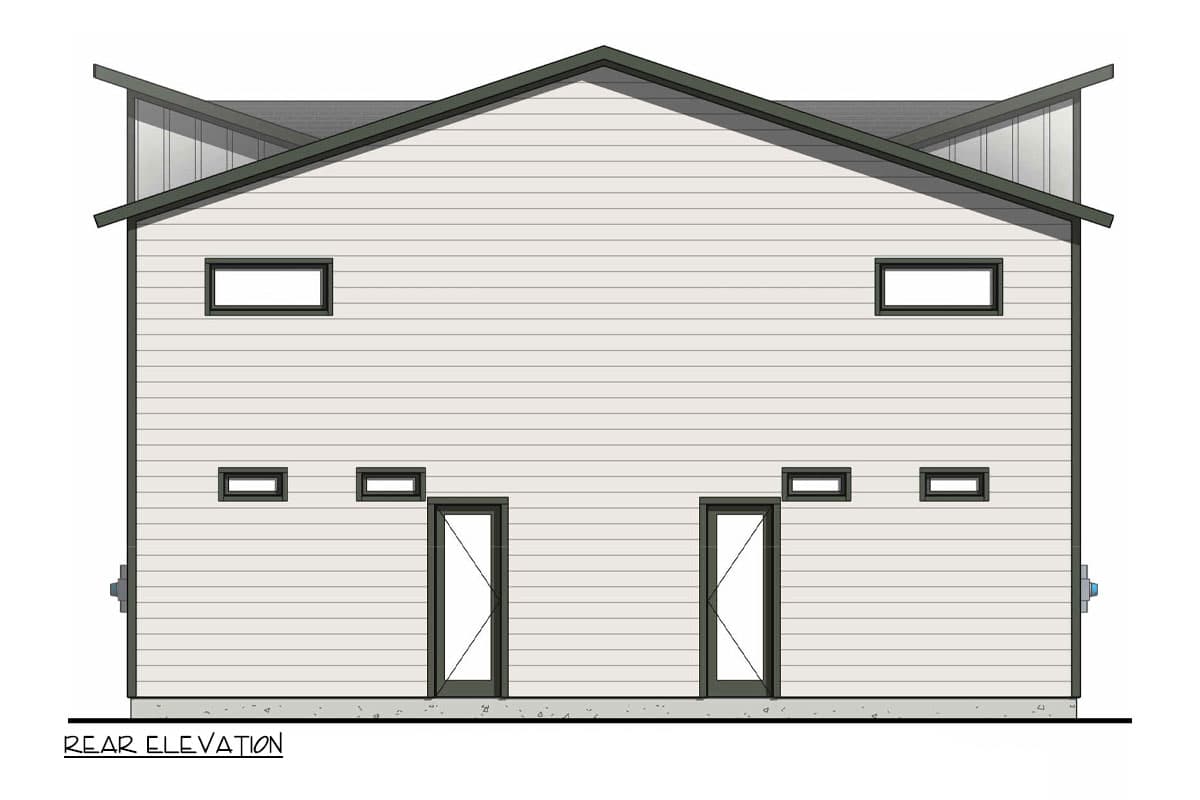

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,856 sq. ft.

1st Floor

956 sq. ft.

2nd Floor

900 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

24' 0"

Max Ridge Height

27' 7"

Ceiling Heights

First Floor

10' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

12 on 4

Secondary Pitch

12 on 3

Framing Type

Stick

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 2nd Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

1,856 sq. ft.

1st Floor

956 sq. ft.

2nd Floor

900 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

24' 0"

Max Ridge Height

27' 7"

Ceiling Heights

First Floor

10' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

12 on 4

Secondary Pitch

12 on 3

Framing Type

Stick

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 2nd Floor

Plan Collections

Exclusive
