Plan 42833MJ

Exclusive

Contemporary Exterior and Circular Floor Plan

Heated S.F.

2,439

Beds

3

Baths

2.5

Stories

2

Cars

2

Floor Plan

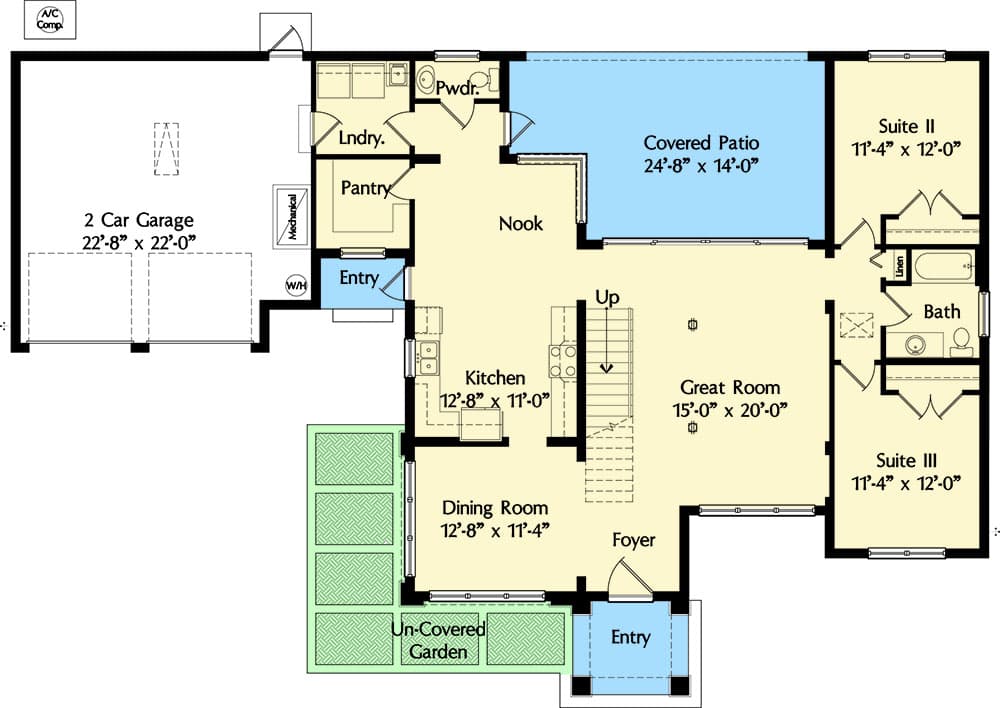

Main Level

floor plan image Main Level

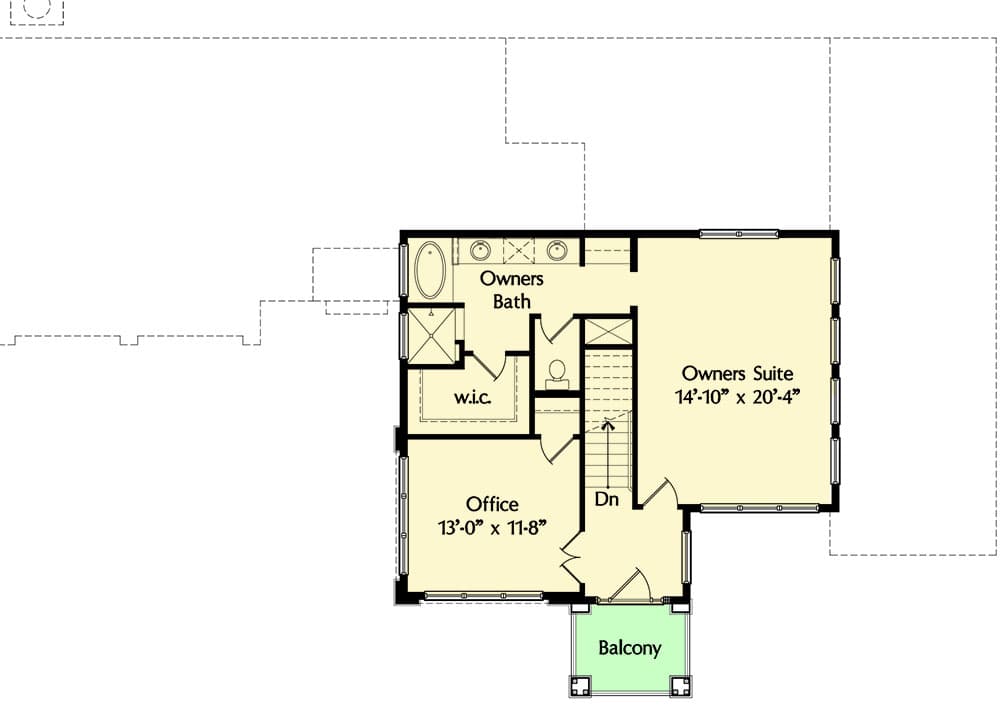

2nd Floor

floor plan image 2nd Floor

Plan Details

This house plan has a clean exterior vertical windows and great outdoor spaces including a second floor balcony and a large covered patio in back.
The main floor consists of an open great room that flows to the kitchen and eating area. There is a formal dining room easily served by the kitchen as well.
Two suites are on the main floor and they are a bath. Across the floor you'll find the family entry, walk-in pantry and laundry room.
The upstairs is dedicated to the master suite and bath as well as a roomy home office.
FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What's Included

Cover Sheet
Floor Plans
Slab Foundation Plan (plumbing layout)
Elevations
Sections
Stair Sections if applicable
Electrical Layout
Basic Details Sheet

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,439 sq. ft.

1st Floor

1,616 sq. ft.

2nd Floor

823 sq. ft.

Porch, Combined

322 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

76' 0"

Depth

50' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

536 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

0' 10"

Second Floor

0' 10"

Roof Details

Primary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 2nd Floor

Plan Collections

Square Footage Breakdown

Total Heated Area

2,439 sq. ft.

1st Floor

1,616 sq. ft.

2nd Floor

823 sq. ft.

Porch, Combined

322 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

76' 0"

Depth

50' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

536 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

0' 10"

Second Floor

0' 10"

Roof Details

Primary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 2nd Floor

Plan Collections
